Isuzu WW
▶
TRUCKS
▶
FSS
▶
11510 - FSS(RHD)EURO2
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#114368) — 17 parça
Tümü
A - FCS5MS
B - FGS5MS
◀
[358A] NO.1 (14 parça)
[358A] NO.2 (3 parça)
▶
58
112
59
57
29
56
140
139
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; OIL PIPE TO BODY
8-98012-254-1
03
1
1302-
●
●
1
CLIP; OIL PIPE TO BODY
8-98012-254-1
07
1
1302-
●
●
29
NUT; CLIP
EXC. TRAILER BRAKE CONTROL<J91> M8 FLANGE
0-91180-108-0
01
1
1302-
●
56
BOLT; CLIP
EXC. TRAILER BRAKE CONTROL<J91> M8X50 FLANGE
0-28050-850-0
01
1
1302-
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
05
1
1302-
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
06
1
1302-
●
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1302-
●
58
CLIP; OIL PIPE
8-98012-254-1
02
1
1302-
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
05
1
1302-
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
06
1
1302-
●
112
CLIP; OIL PIPE
8-98012-254-1
02
1
1302-
●
112
CLIP; OIL PIPE
WHEEL BASE 3800MM(38W)
8-98012-254-1
04
1
1302-
●
139
CLIP; UPR
EXC. TRAILER BRAKE CONTROL<J91> ID=10 & 10
1-09709-241-0
01
1
1302-
●
140
CLIP; LWR
EXC. TRAILER BRAKE CONTROL<J91> ID=6 & 6
1-09709-244-0
01
1
1302-
●

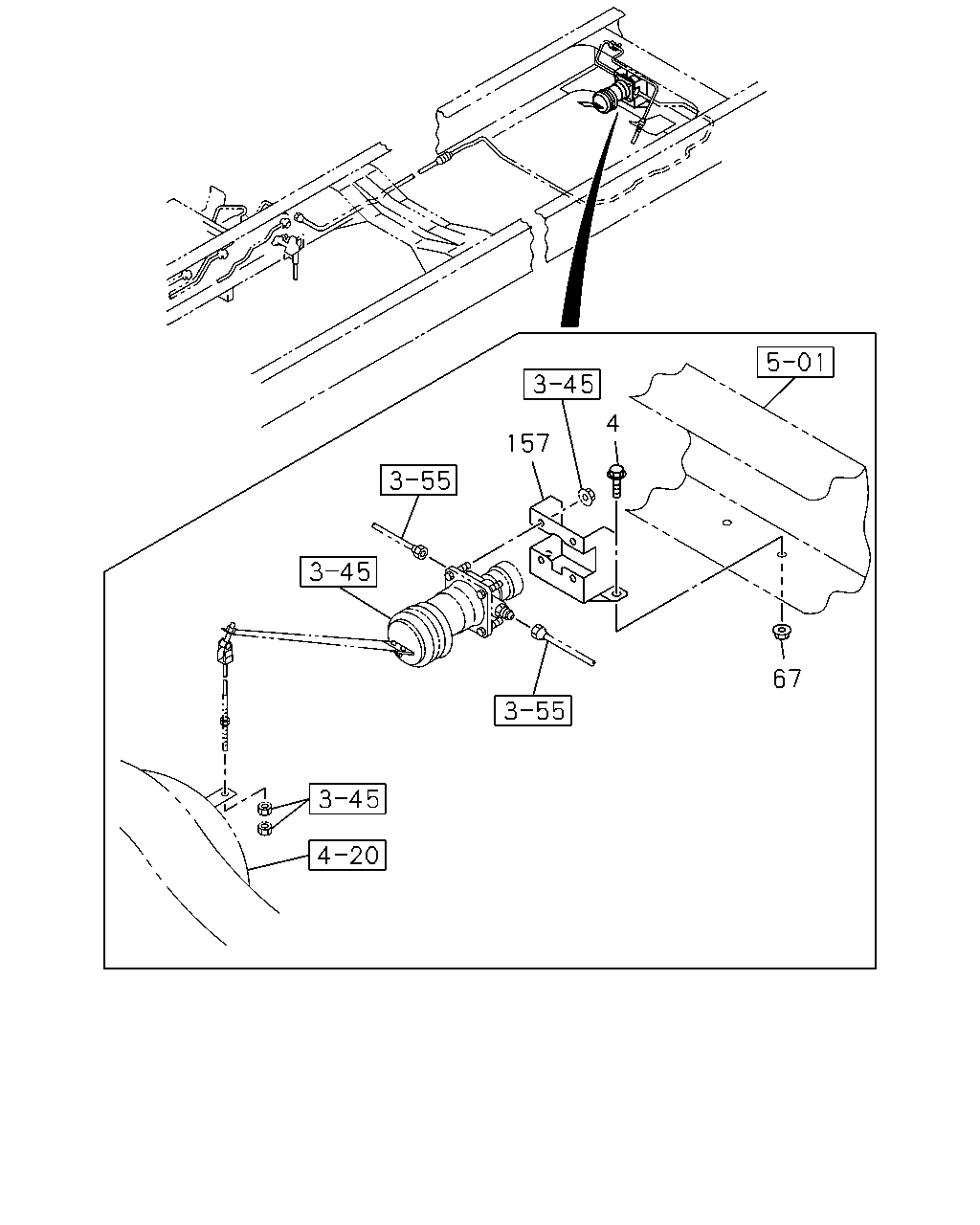

157
67
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1302-
●
67
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1302-
●
157
BRACKET; BRK
1-47477-787-0
01
1
1302-
●
