3-58 — FIXING PARTS; OIL PIPING
(#114367) — 24 parça
◀

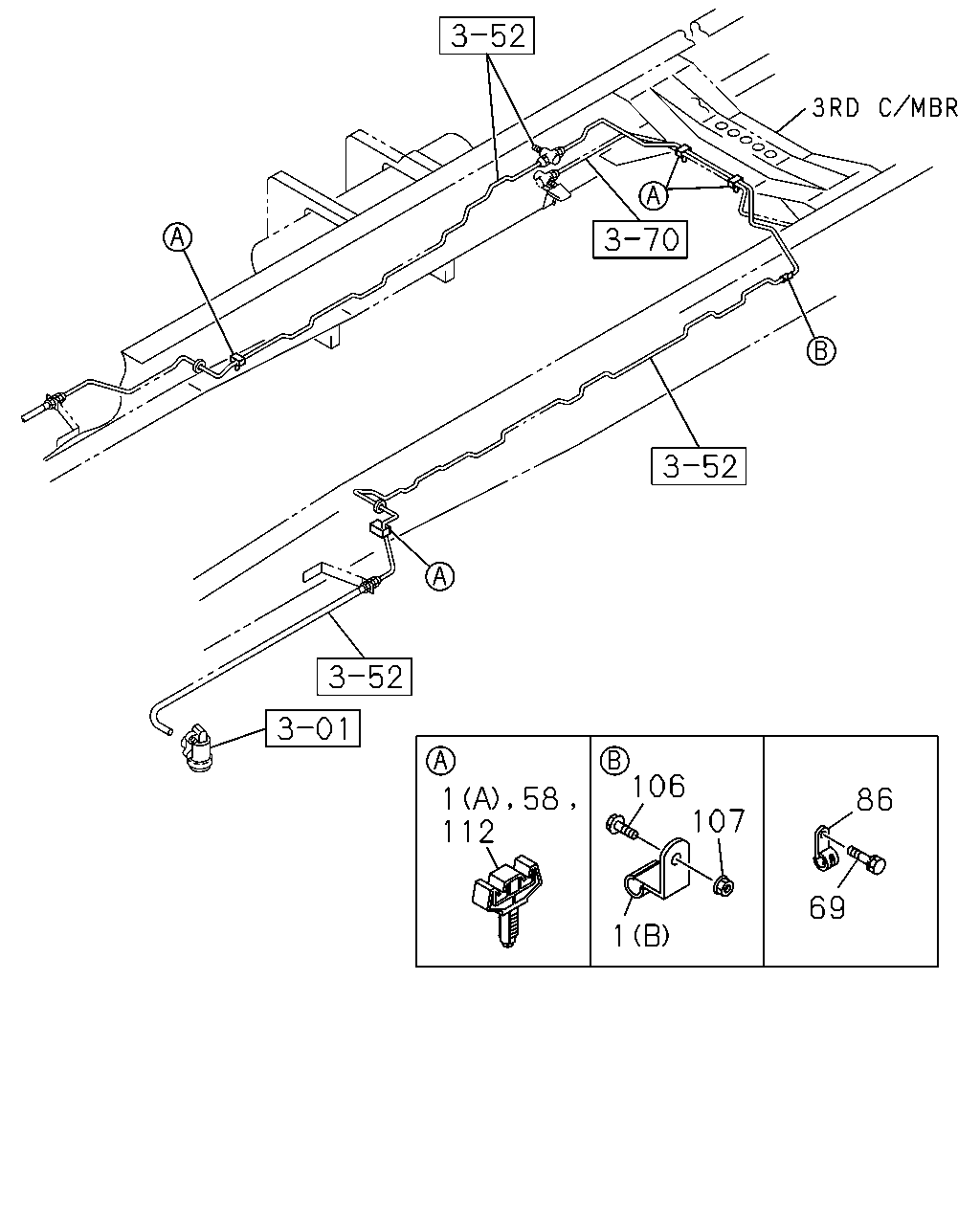

[358A] FRAME SIDE (15 parça)

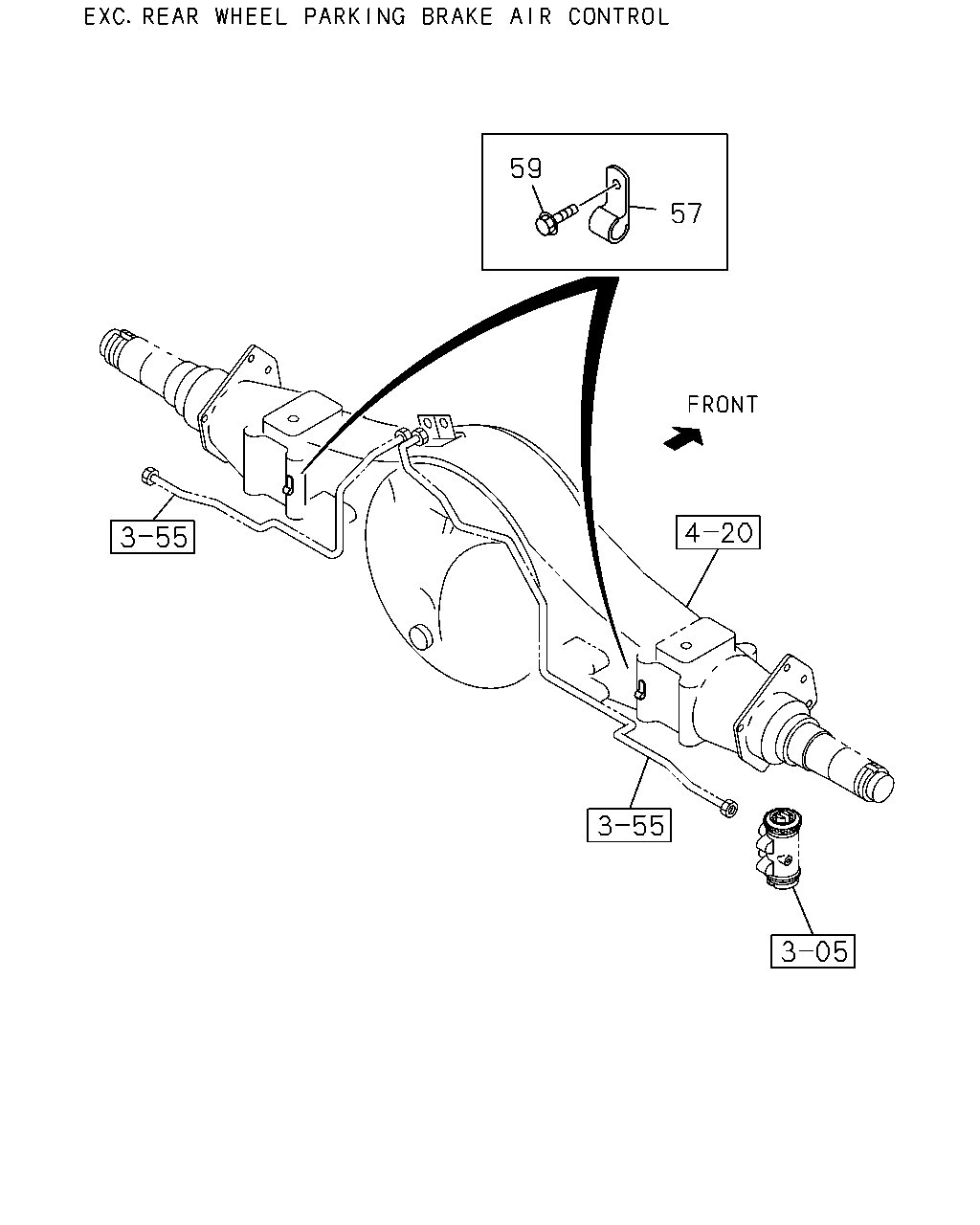

[358A] REAR AXLE SIDE NO.1 (4 parça)

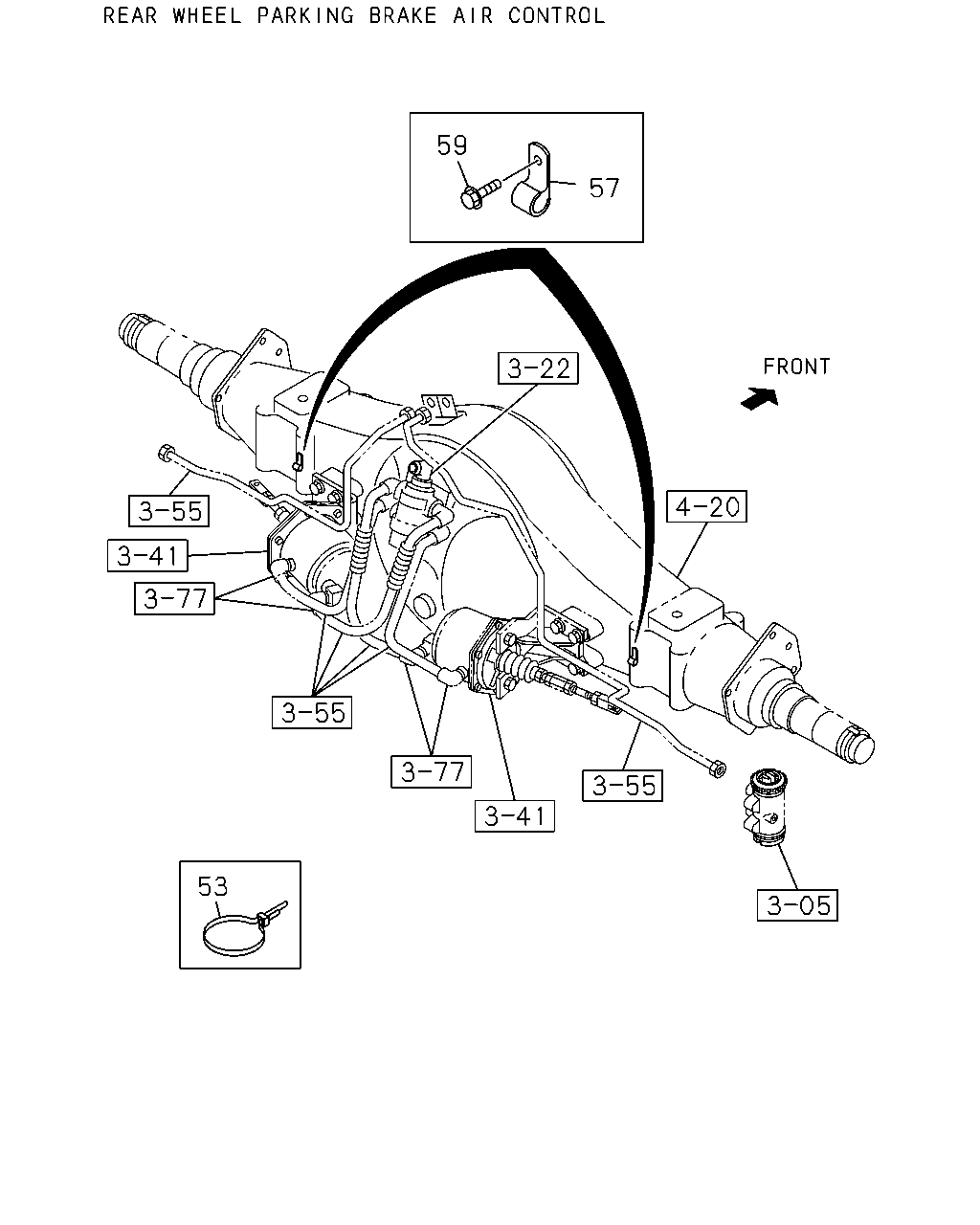

[358A] REAR AXLE SIDE NO.2 (5 parça)
▶
1
58
112
106
107
1
86
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
1302-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
04
1
1302-
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
04
1
1302-
58
CLIP; OIL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)
8-98012-254-1
05
1
1302-
69
BOLT; CLIP
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 FLANGE
0-28050-816-0
02
1
1302-1510
69
BOLT; CLIP
EXC. BRAKE ADJUSTER MANUAL<BJR>,ALGERIA EQUIPMENT(WN1) M8X16 FLANGE
0-28050-816-0
02
1
1511-
86
CLIP; OIL PIPE
EXC. BRAKE ADJUSTER MANUAL<BJR>
8-98085-372-0
02
1
1302-1510
86
CLIP; OIL PIPE
EXC. BRAKE ADJUSTER MANUAL<BJR>,ALGERIA EQUIPMENT(WN1)
8-98085-372-0
02
1
1511-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
1302-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
04
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 3700MM(37W)
8-98012-254-1
03
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 4300MM(43W)
8-98012-254-1
05
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 4600MM(46W)
8-98012-254-1
06
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 4900MM(49W)
8-98012-254-1
07
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 5300MM(53W)
8-98012-254-1
08
1
1302-
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20
0-95234-635-0
04
1
1302-
57
CLIP; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20
0-95234-635-0
02
1
1302-
59
BOLT; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE
0-28050-810-0
04
1
1302-
59
BOLT; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE
0-28050-810-0
02
1
1302-
59
57
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250
1-09707-126-0
05
1
1302-
57
CLIP; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20
0-95234-635-0
04
1
1302-
57
CLIP; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20
0-95234-635-0
02
1
1302-
59
BOLT; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE
0-28050-810-0
04
1
1302-
59
BOLT; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE
0-28050-810-0
02
1
1302-
