1 |

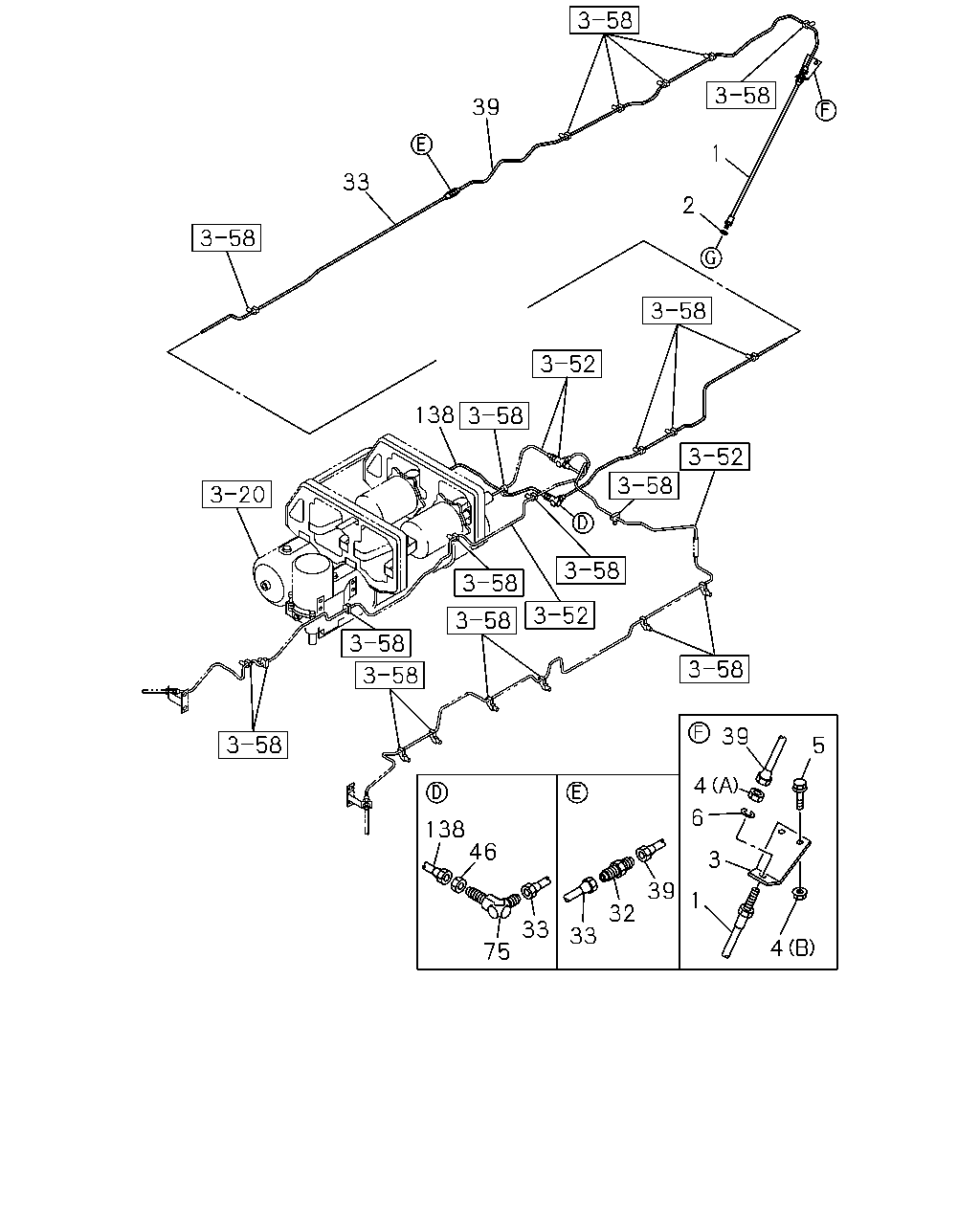

HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=700
|
0-05212-700-0 |
01 |
1 |
1302- |
| |
2 |
GASKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=9 OD=17
|
9-09920-472-0 |
01 |
1 |
1302- |
| |
3 |
BRACKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47465-251-0 |
01 |
1 |
1302- |
| |
4 |
NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1302- |
| |
4 |
NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M12
|
9-09840-280-0 |
01 |
1 |
1302- |
| |
5 |
BOLT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1302- |
| |
6 |
WASHER; LK,FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
0-91510-812-0 |
01 |
1 |
1302- |
| |
32 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12 L=40
|
0-92113-006-0 |
01 |
1 |
1302- |
| |
33 |
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS)
WHEEL BASE 3900MM(39W)
L=797
SERVICED BY L=800
|
1-47428-728-0 |
01 |
1 |
1305- |
| |
33 |
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS)
WHEEL BASE 4200MM(42W)
L=1133
SERVICED BY L=1200
|
1-47428-732-0 |
01 |
1 |
1305- |
| |
33 |
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS)
WHEEL BASE 4600MM(46W)
L=1533
SERVICED BY L=1620
|
1-47428-736-0 |
01 |
1 |
1305- |
| |
33 |
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS)
WHEEL BASE 5000MM(50W)
L=1933
SERVICED BY L=2000
|
1-47428-739-0 |
01 |
1 |
1305- |
| |
33 |
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L)
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=941
SERVICED BY L=1000
|
1-47428-730-0 |
01 |
1 |
1302- |
| |
33 |
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L)
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=1342
SERVICED BY L=1370
|
1-47428-734-0 |
01 |
1 |
1302- |
| |
33 |
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L)
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=1708
SERVICED BY L=1820
|
1-47428-738-0 |
01 |
1 |
1302- |
| |
33 |
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L)
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=2141
SERVICED BY L=2200
|
1-47428-740-0 |
01 |
1 |
1302- |
| |
39 |
PIPE; OIL,UNION TO RR FLEX HOSE
4HK1-TCS ENG(RJS)
L=2086
SERVICED BY L=2200
|
1-47428-740-0 |
01 |
1 |
1305- |
| |
39 |
PIPE; OIL,UNION TO RR FLEX HOSE
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=2086
SERVICED BY L=2200
|
1-47428-740-0 |
01 |
1 |
1302- |
| |
46 |
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12
|
9-09840-280-0 |
01 |
1 |
1302- |
| |
75 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12 ELBOW
|
0-92125-206-0 |
01 |
1 |
1302- |
| |
138 |
PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS)
L=546
|
8-98206-488-0 |
01 |
1 |
1305- |
| |
138 |
PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=561
SERVICED BY L=600
|
1-47428-725-0 |
01 |
1 |
1302- |
