Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#114362) — 33 parça

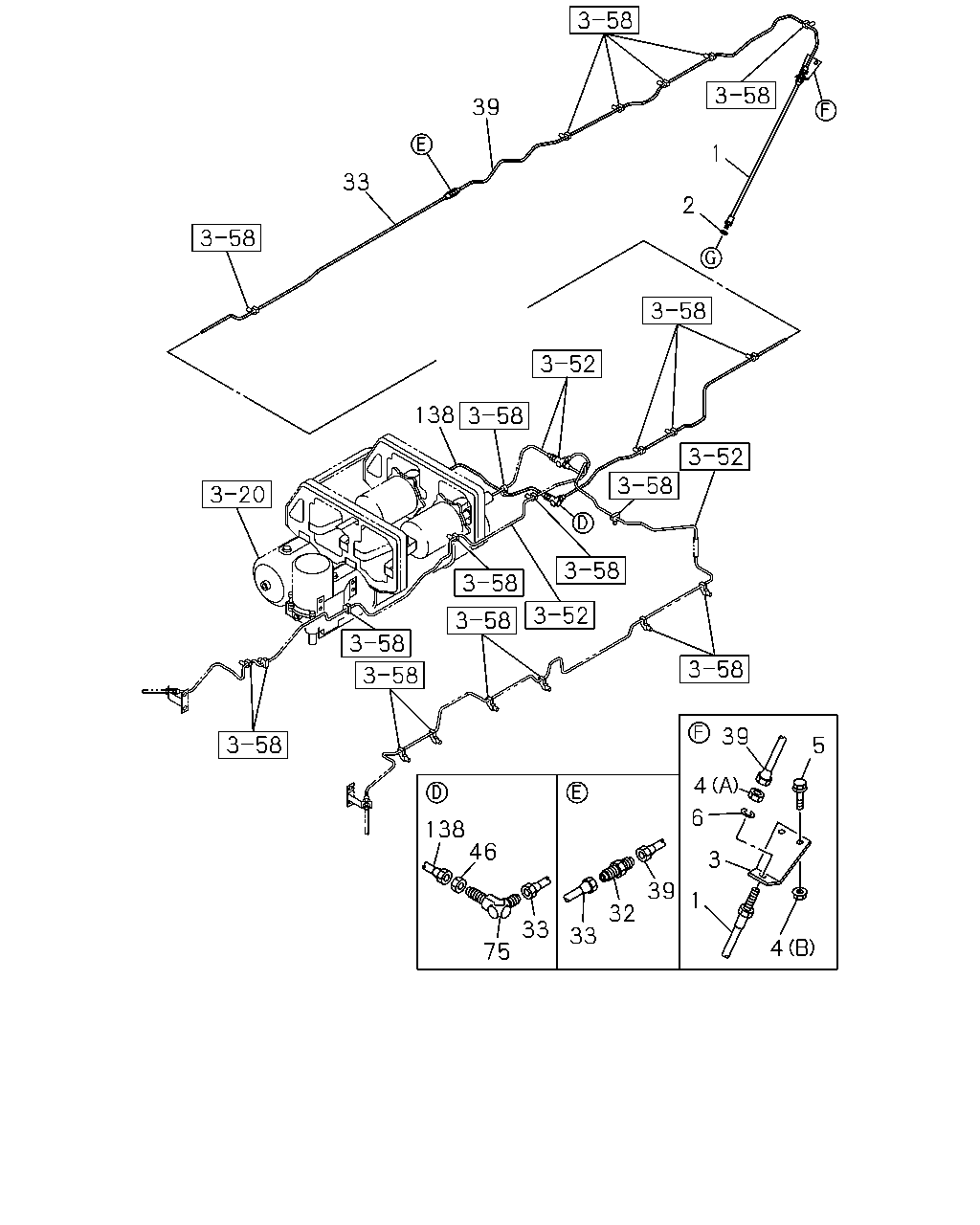

39 33 1 2 138 5 39 4 6 3 1 4 32 33 33 75 46 138 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700	0-05212-700-0	01	1	1302-
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47465-251-0	01	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 FLANGE	0-91180-108-0	02	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12	9-09840-280-0	01	1	1302-
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1302-
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	0-91510-812-0	01	1	1302-
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=40	0-92113-006-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) L=797 SERVICED BY L=800	1-47428-728-0	01	1	1305-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W) L=1133 SERVICED BY L=1200	1-47428-732-0	01	1	1305-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) L=1533 SERVICED BY L=1620	1-47428-736-0	01	1	1305-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 5000MM(50W) L=1933 SERVICED BY L=2000	1-47428-739-0	01	1	1305-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=941 SERVICED BY L=1000	1-47428-730-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1342 SERVICED BY L=1370	1-47428-734-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1708 SERVICED BY L=1820	1-47428-738-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2141 SERVICED BY L=2200	1-47428-740-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2086 SERVICED BY L=2200	1-47428-740-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE 4HK1-TCS ENG(RJS) L=2086 SERVICED BY L=2200	1-47428-740-0	01	1	1305-
46	NUT; UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	1302-
75	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 ELBOW	0-92125-206-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=561 SERVICED BY L=600	1-47428-725-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) L=546	8-98206-488-0	01	1	1305-

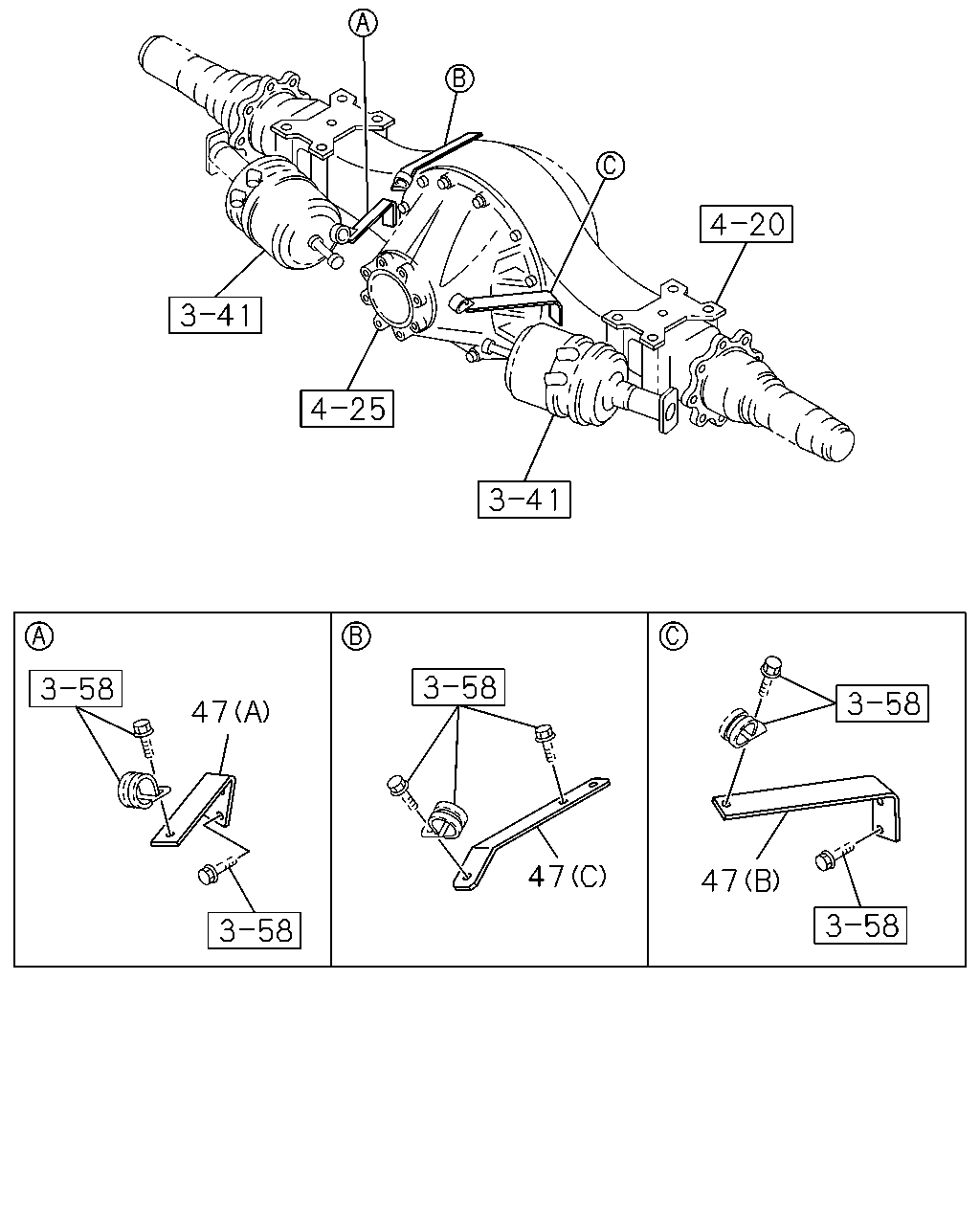

47 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-42129-515-2	01	1	1302-1401
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> (A)	1-42129-515-2	01	1	1402-1405
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-42129-515-2	01	1	1406-
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-42129-516-2	01	1	1302-1401
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> (B)	1-42129-516-2	01	1	1402-1405
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-42129-516-2	01	1	1406-
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-873-0	01	1	1302-1401
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> (C)	8-98057-873-0	01	1	1402-1405
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-873-0	01	1	1406-

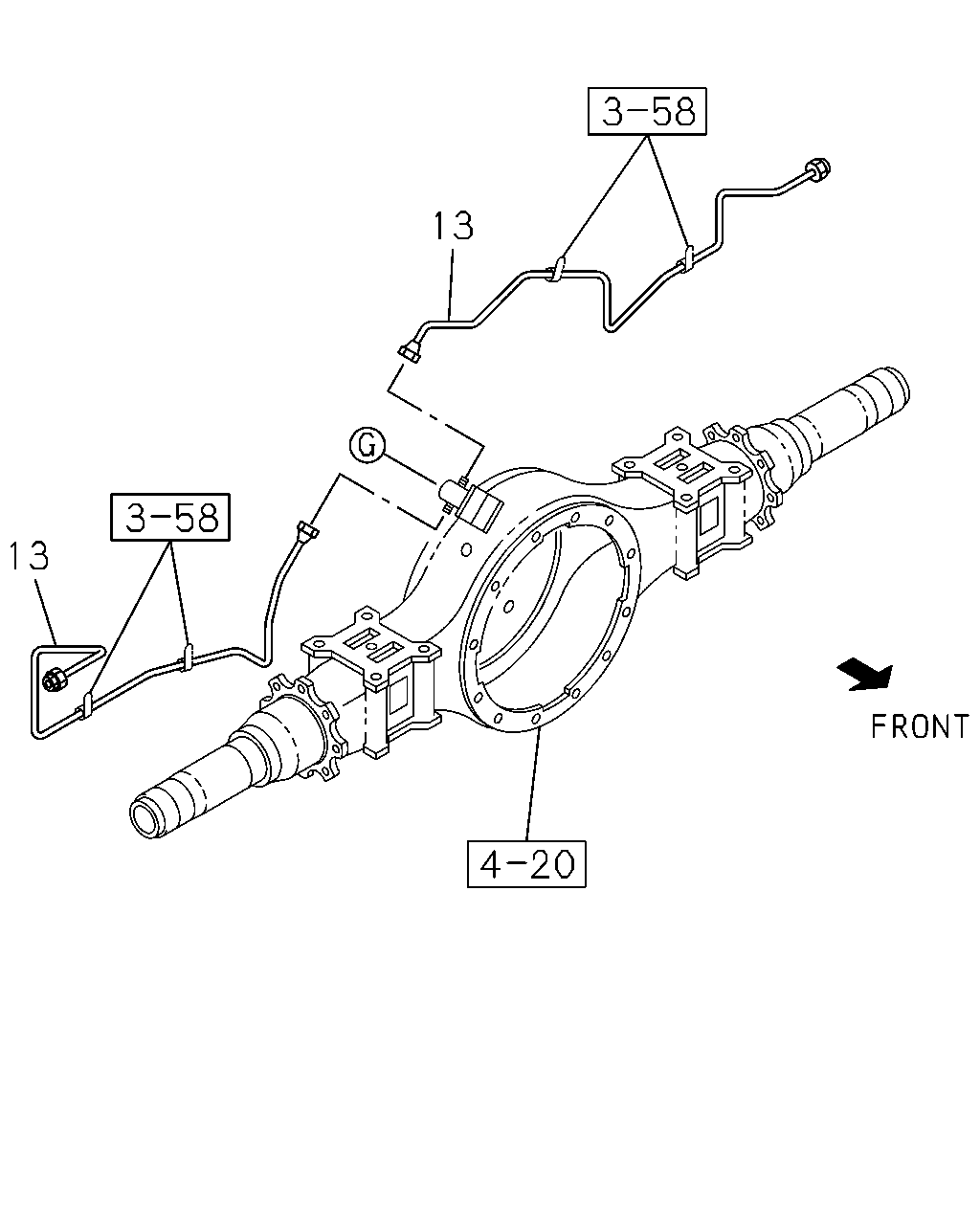

13 13

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98134-989-0	01	1	1302-
	13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98134-990-0	01	1	1302-
