Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#114361) — 190 parça

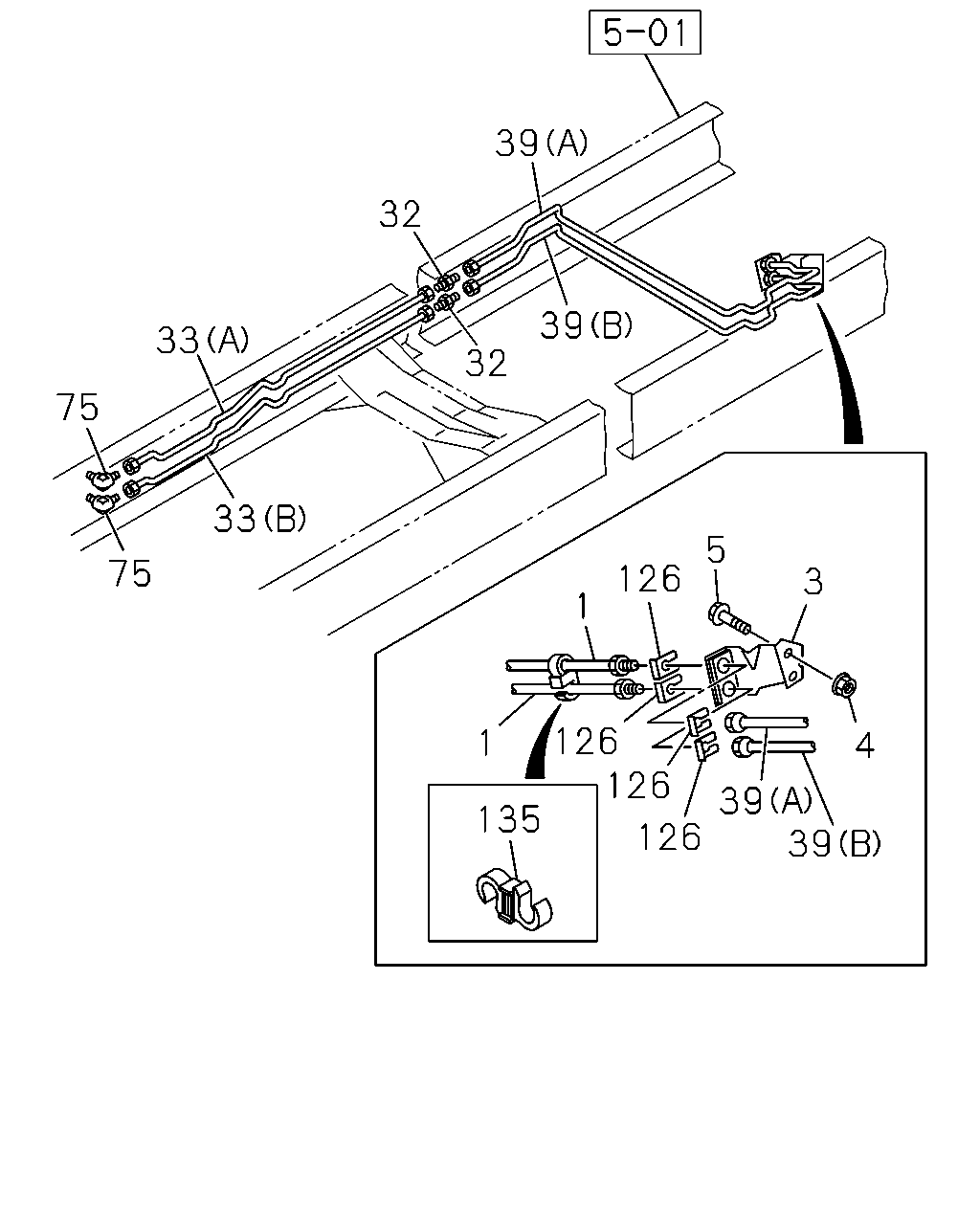

39 32 33 75 46 126 5 3 4 39 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=480	8-98172-789-0	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98065-999-2	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98182-778-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98175-942-0	01	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1302-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1302-
32	UNION; OIL PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1302-
32	UNION; OIL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1357	8-98183-294-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710	8-98106-485-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2126	8-98182-774-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2100	8-98175-941-0	01	1	1302-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1302-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1302-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1302-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1302-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1302-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1302-

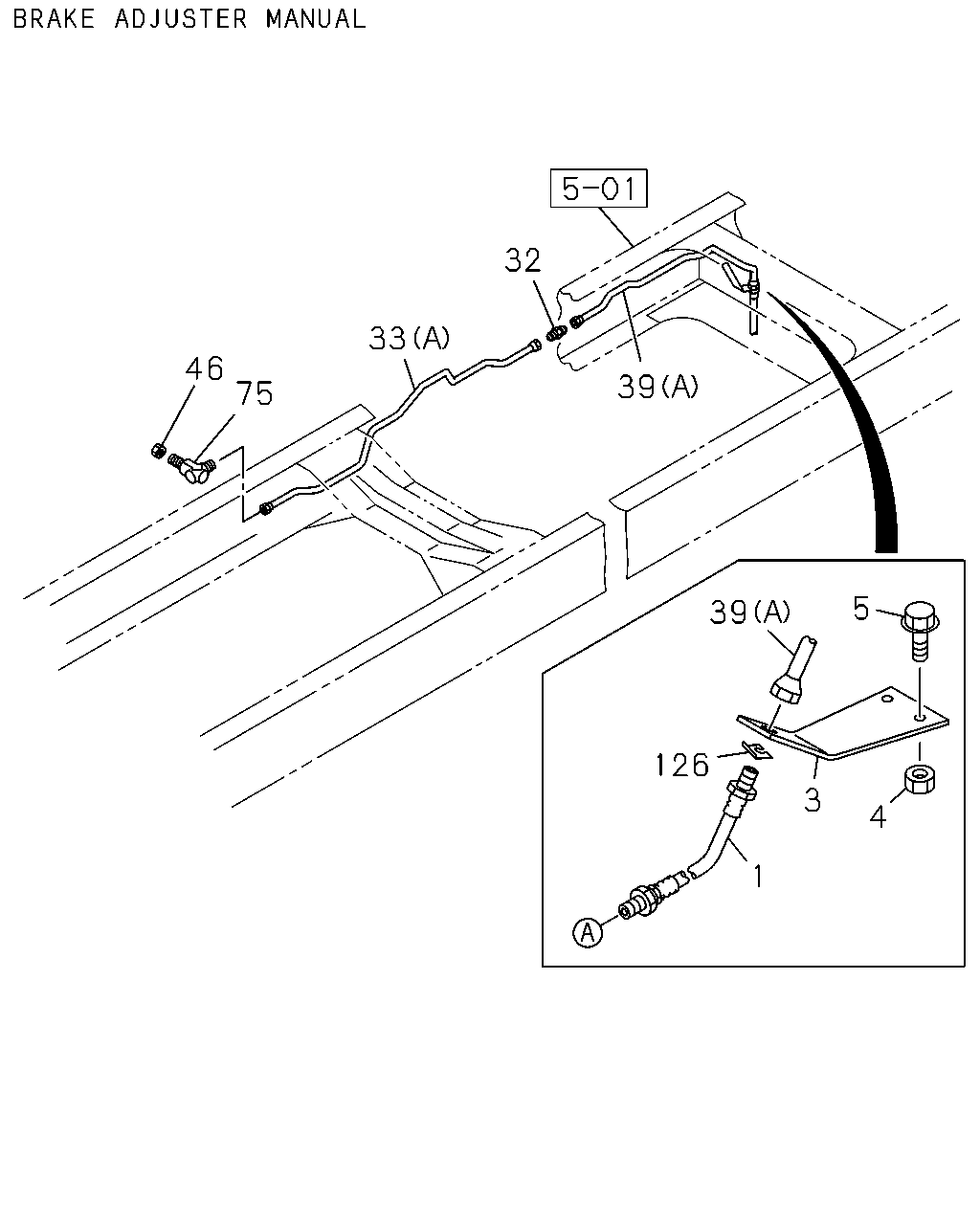

46 33 32 39 39 126 4 3 1 5 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=480	8-98172-789-0	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98065-999-2	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98182-778-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98175-942-0	01	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1302-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1302-
32	UNION; OIL PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1302-
32	UNION; OIL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1357	8-98183-294-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710	8-98106-485-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2126	8-98182-774-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2100	8-98175-941-0	01	1	1302-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1302-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1302-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1302-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1302-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1302-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1302-

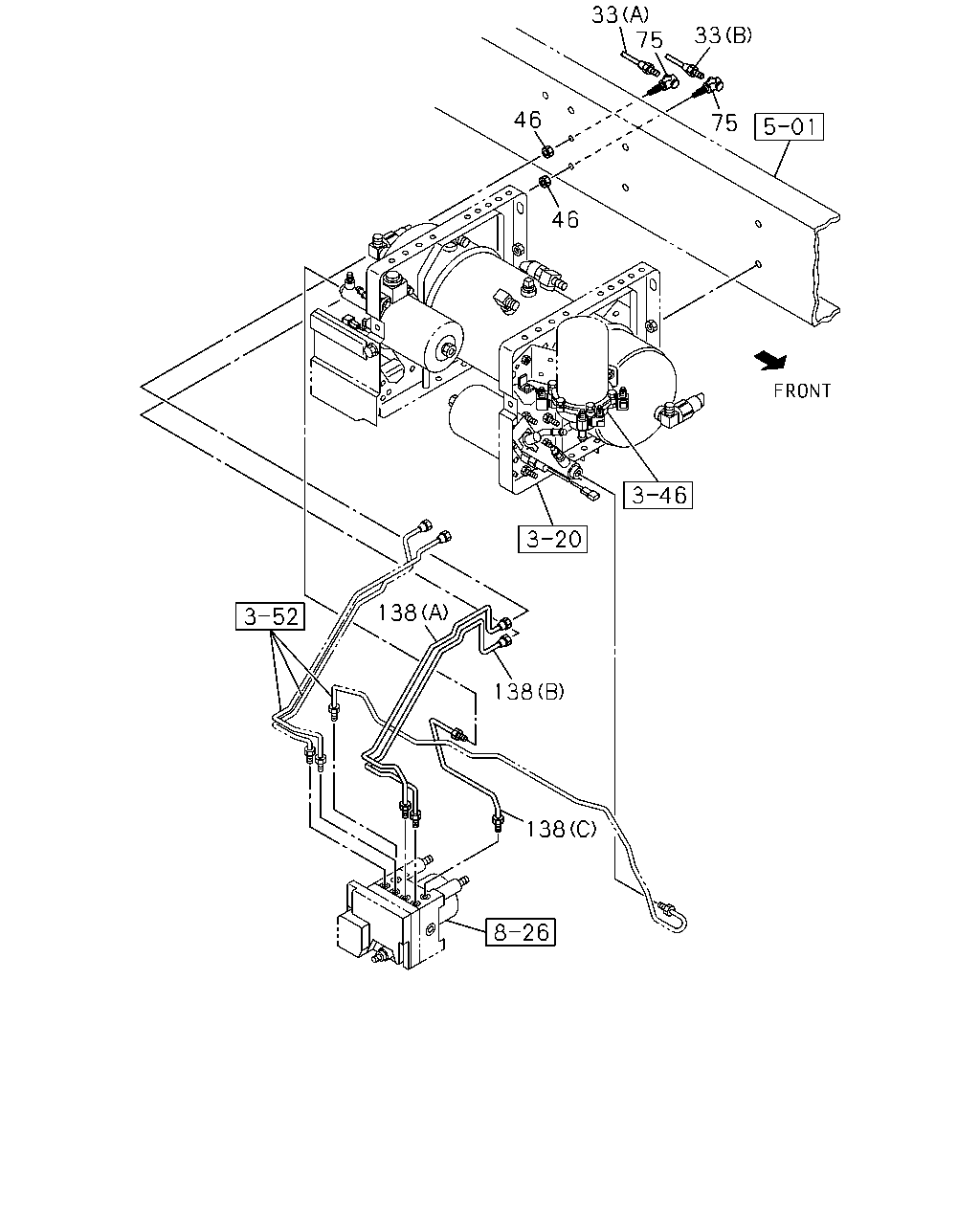

46 75 33 33 138 138 138 46 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1357	8-98183-294-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1302-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1302-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1302-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1302-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=657	8-98012-129-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=703	8-98012-146-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5) (D) L=697	8-98213-366-0	01	1	1302-

75 33 32 39 75 33 32 39 1 1 126 5 3 126 126 126 39 4 39 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=480	8-98172-789-0	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98065-999-2	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98182-778-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98175-942-0	01	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1302-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1302-
32	UNION; OIL PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1302-
32	UNION; OIL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1357	8-98183-294-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710	8-98106-485-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2126	8-98182-774-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2100	8-98175-941-0	01	1	1302-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1302-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1302-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1302-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1302-
135	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5) ID=10 & 10	1-09709-277-1	01	1	1302-

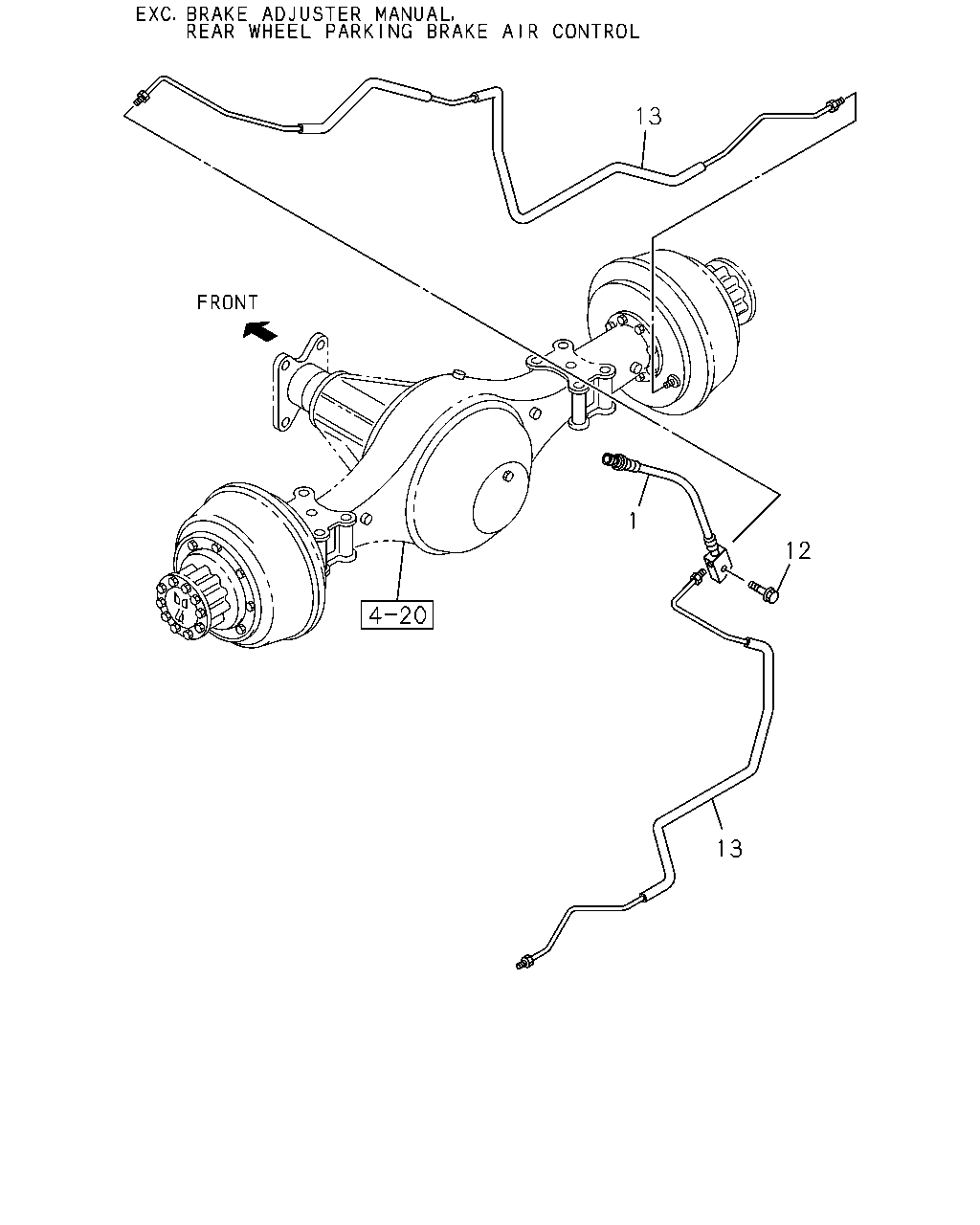

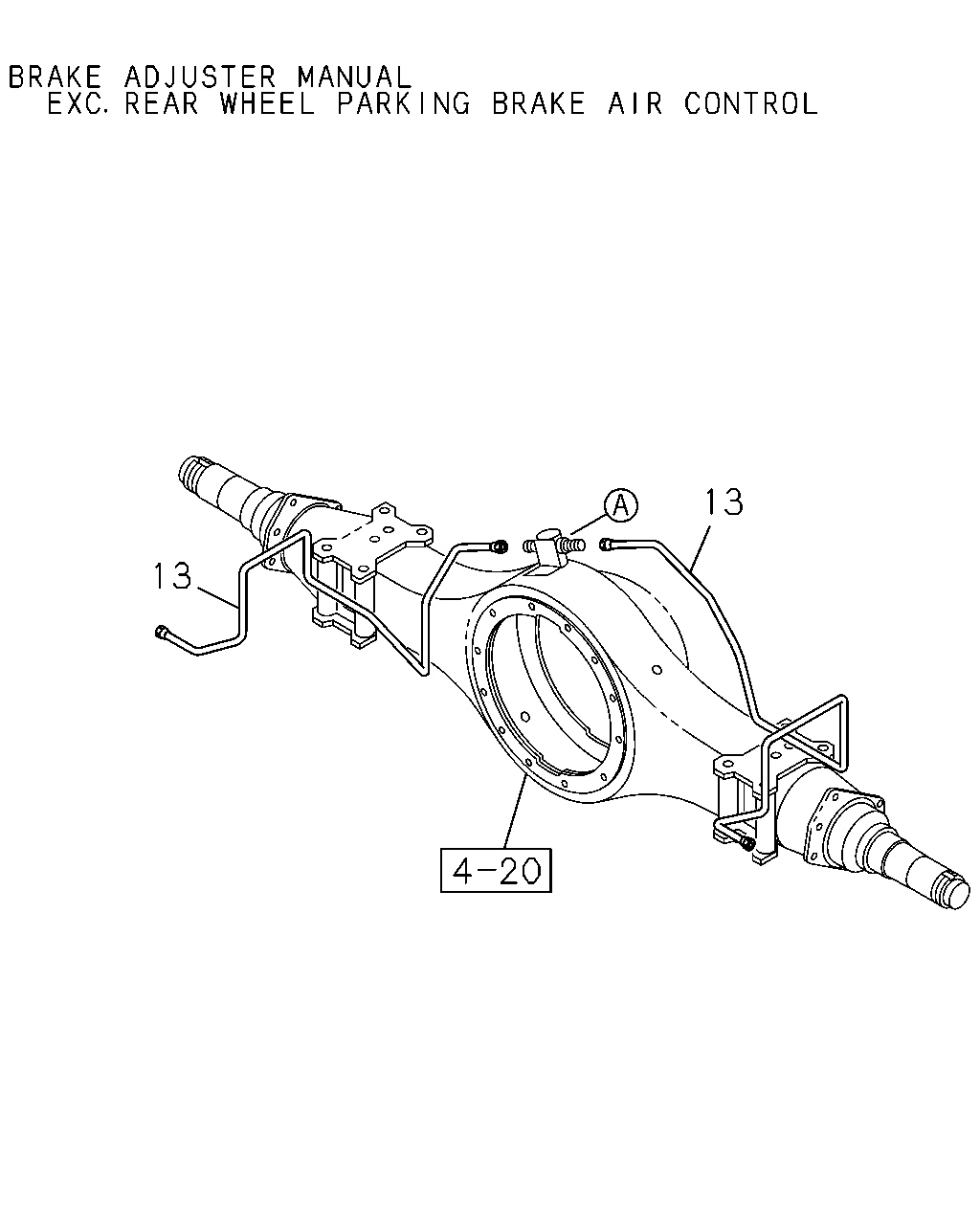

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98059-742-0	01	1	1302-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98059-741-0	01	1	1302-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98107-929-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98107-928-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> LH LINE L=847	1-47427-106-0	01	1	1302-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> RH LINE L=675	1-47427-105-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) LH LINE L=738	8-98071-762-0	01	1	1302-1512
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) L=738	8-98071-762-0	01	1	1601-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) RH LINE L=1115	8-98071-761-0	01	1	1302-1512
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) L=1115	8-98071-761-0	01	1	1601-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE	8-98107-931-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE	8-98107-930-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE L=1030	8-98281-559-0	01	1	1410-

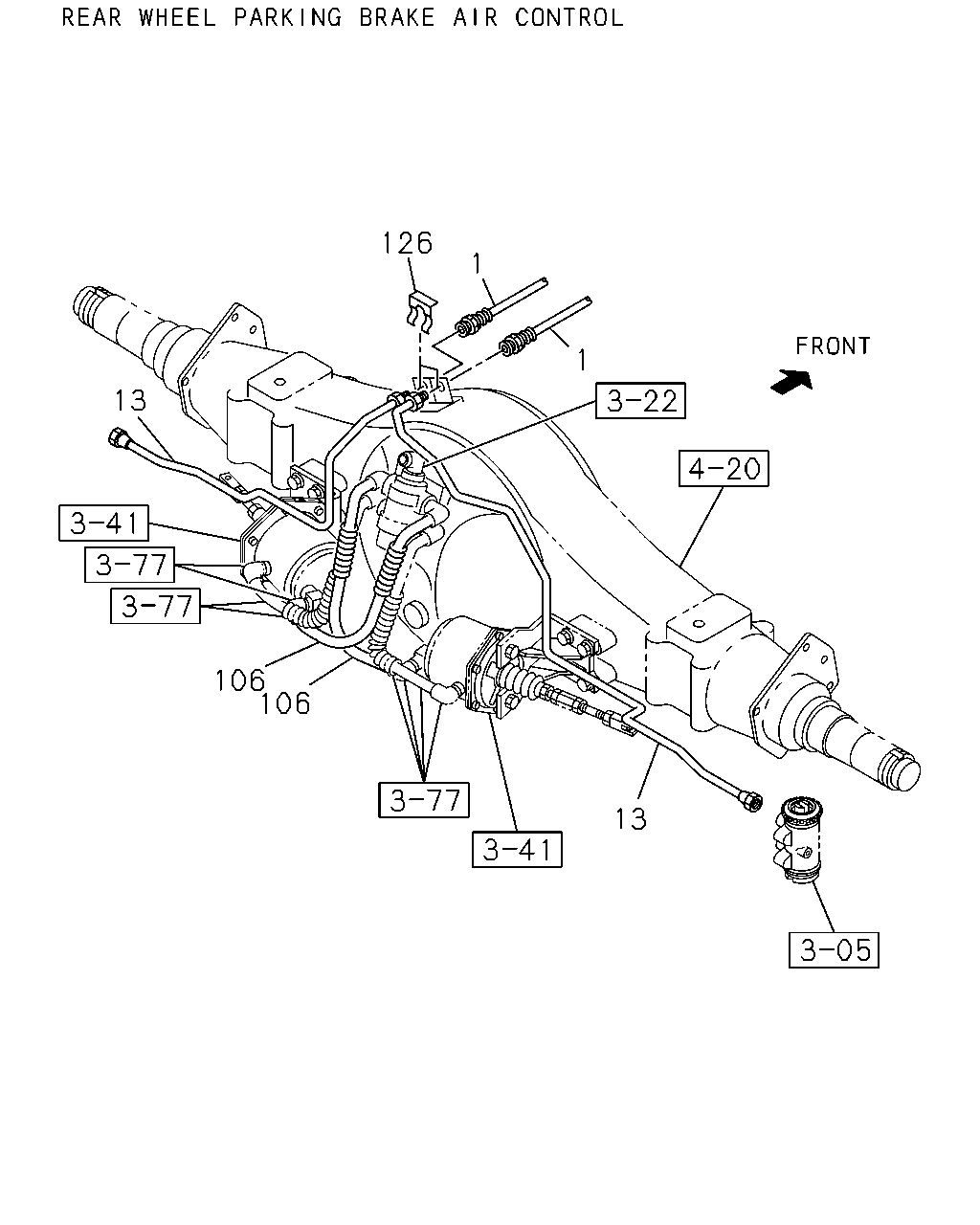

126 13 106 106 13 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=480	8-98172-789-0	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98059-742-0	01	1	1302-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98059-741-0	01	1	1302-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98107-929-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98107-928-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> LH LINE L=847	1-47427-106-0	01	1	1302-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> RH LINE L=675	1-47427-105-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) LH LINE L=738	8-98071-762-0	01	1	1302-1512
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) L=738	8-98071-762-0	01	1	1601-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) RH LINE L=1115	8-98071-761-0	01	1	1302-1512
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) L=1115	8-98071-761-0	01	1	1601-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE	8-98107-931-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE	8-98107-930-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE L=1030	8-98281-559-0	01	1	1410-
106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	1302-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1302-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1302-

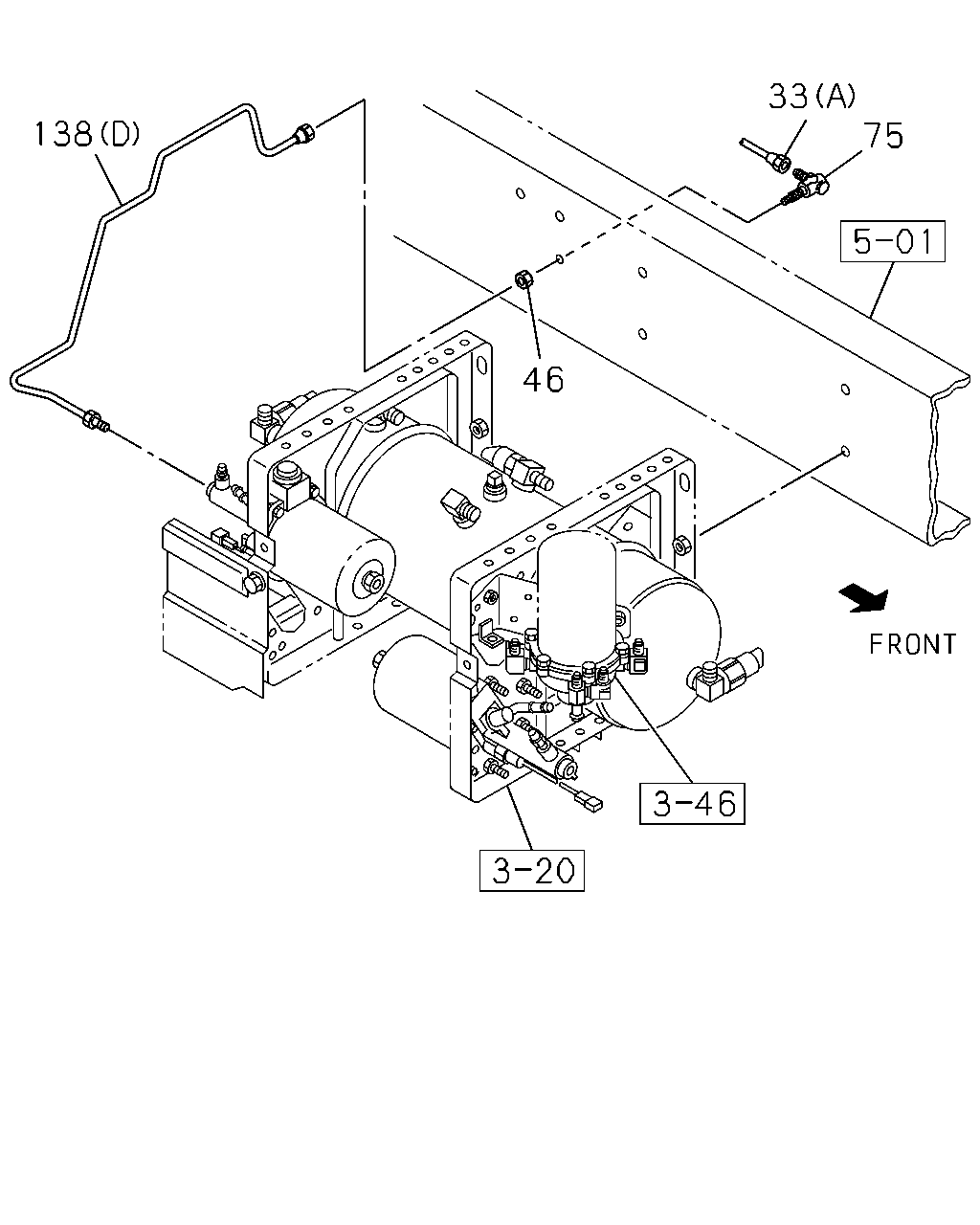

138 33 75 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1357	8-98183-294-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1302-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1302-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1302-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1302-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=657	8-98012-129-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=703	8-98012-146-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5) (D) L=697	8-98213-366-0	01	1	1302-

13 12 13 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=480	8-98172-789-0	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1302-
12	BOLT; FLEX HOSE TO RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) M8X35 FLANGE	0-28650-835-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98059-742-0	01	1	1302-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98059-741-0	01	1	1302-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98107-929-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98107-928-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> LH LINE L=847	1-47427-106-0	01	1	1302-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> RH LINE L=675	1-47427-105-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) LH LINE L=738	8-98071-762-0	01	1	1302-1512
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) L=738	8-98071-762-0	01	1	1601-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) RH LINE L=1115	8-98071-761-0	01	1	1302-1512
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) L=1115	8-98071-761-0	01	1	1601-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE	8-98107-931-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE	8-98107-930-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE L=1030	8-98281-559-0	01	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
