3-58 — FIXING PARTS; OIL PIPING (#114360) — 49 parça

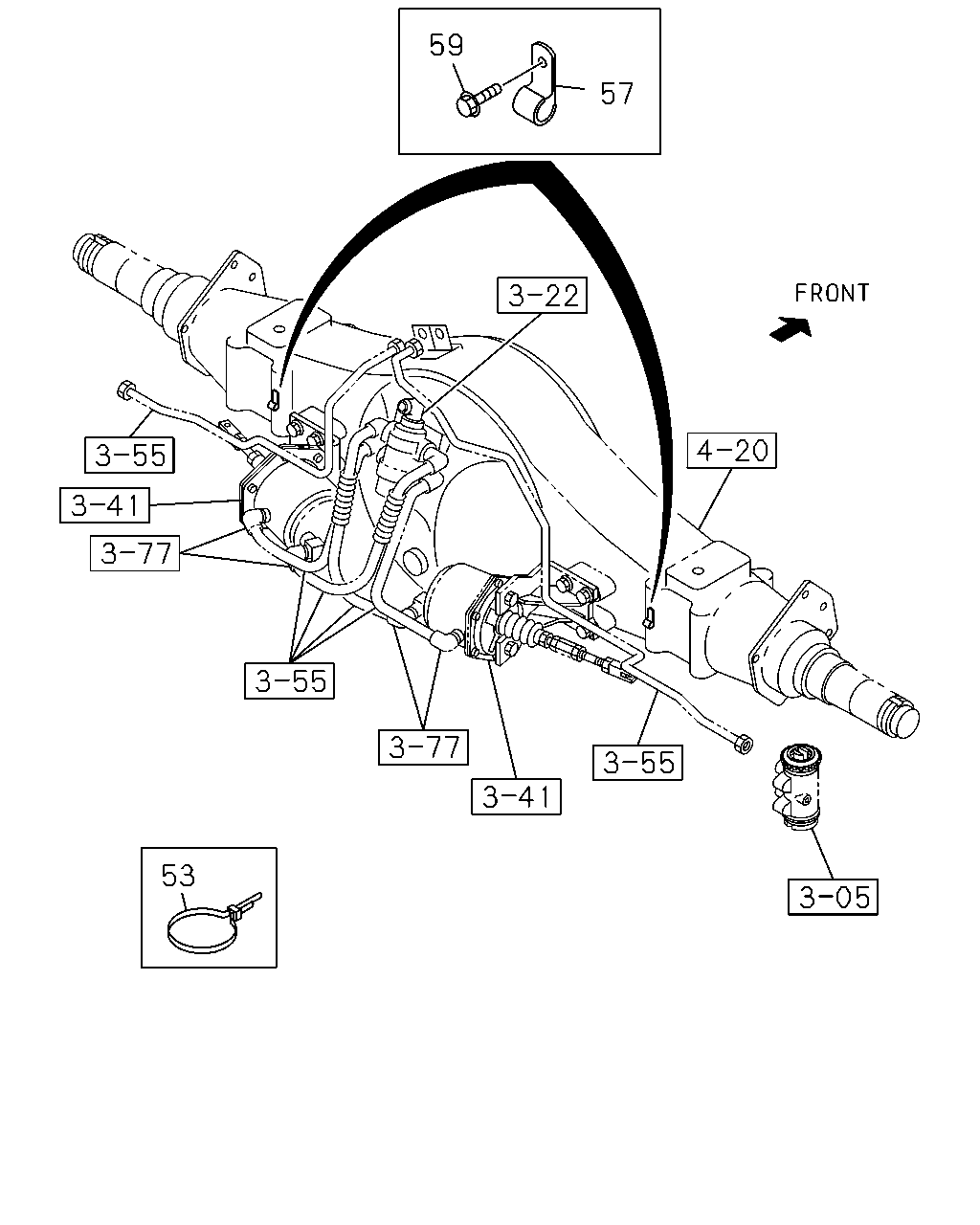

53 59 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	CLIP; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	05	1	1302-
57	CLIP; BRK PIPE,RR AXLE BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20	0-95234-635-0	04	1	1302-
57	CLIP; BRK PIPE,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=7 L=20	0-95234-635-0	05	1	1302-
57	CLIP; BRK PIPE,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=7 L=20	0-95234-635-0	02	1	1302-
59	BOLT; BRK PIPE,RR AXLE BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE	0-28050-810-0	04	1	1302-
59	BOLT; BRK PIPE,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X10 FLANGE	0-28050-810-0	05	1	1302-
59	BOLT; BRK PIPE,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X10 FLANGE	0-28050-810-0	02	1	1302-

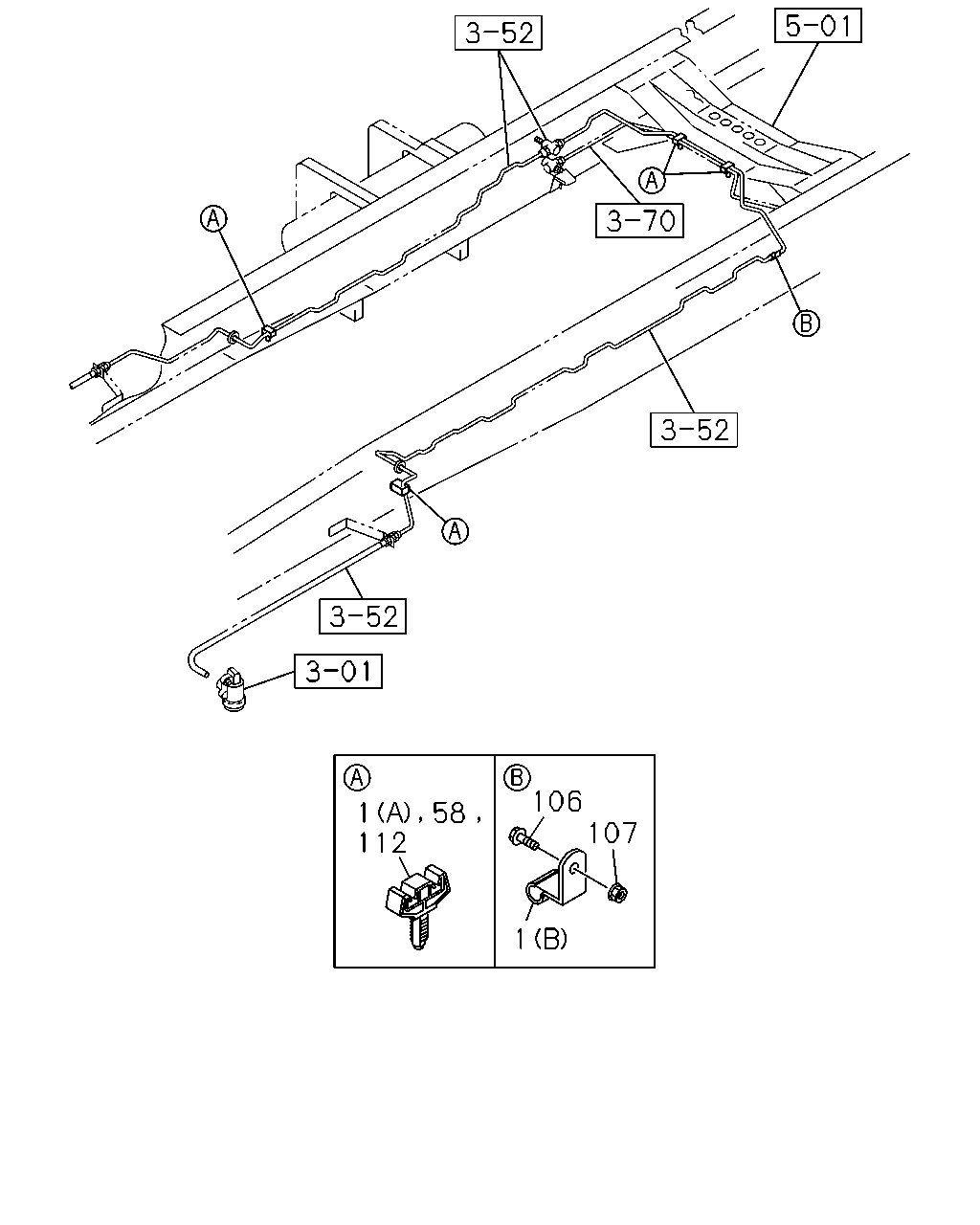

1 58 112 106 107 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98012-254-1	07	1	1302-1405
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	8-98012-254-1	07	1	1302-1405
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-254-1	07	1	1302-1405
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	8-98012-254-1	07	1	1406-
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	8-98012-254-1	07	1	1406-
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-254-1	07	1	1406-
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B) ID=6 H=20 L=20	8-98040-714-0	04	1	1302-1405
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) ID=6 H=20 L=20	8-98040-714-0	04	1	1302-1405
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) ID=6 H=20 L=20	8-98040-714-0	04	1	1406-
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) ID=6 H=20 L=20	8-98040-714-0	04	1	1406-
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-254-1	09	1	1302-1405
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-254-1	09	1	1406-
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6 H=20 L=20	8-98040-714-0	03	1	1302-1405
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6 H=20 L=20	8-98040-714-0	03	1	1406-
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-254-1	11	1	1302-
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6 H=20 L=20	8-98040-714-0	05	1	1302-
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-254-1	12	1	1302-
58	CLIP; OIL PIPE BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	05	1	1302-
58	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	05	1	1302-
58	CLIP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	06	1	1302-
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) M8X25 FLANGE	0-28650-825-0	04	1	1302-1405
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M8X25 FLANGE	0-28650-825-0	04	1	1302-1405
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M8X25 FLANGE	0-28650-825-0	04	1	1406-
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M8X25 FLANGE	0-28650-825-0	04	1	1406-
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	03	1	1302-1405
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	03	1	1406-
106	BOLT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	05	1	1302-
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	04	1	1302-1405
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	04	1	1302-1405
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M8 FLANGE	0-91180-108-0	04	1	1406-
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	04	1	1406-
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	03	1	1302-1405
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	03	1	1406-
107	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	05	1	1302-
112	CLIP; OIL PIPE WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	04	1	1302-
112	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	04	1	1302-
112	CLIP; OIL PIPE WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	03	1	1302-
112	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	05	1	1302-
112	CLIP; OIL PIPE WHEEL BASE 5100MM(51W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	06	1	1302-
112	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	01	1	1302-
112	CLIP; OIL PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	02	1	1302-
112	CLIP; OIL PIPE WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	02	1	1302-
