◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#114359) — 33 parça

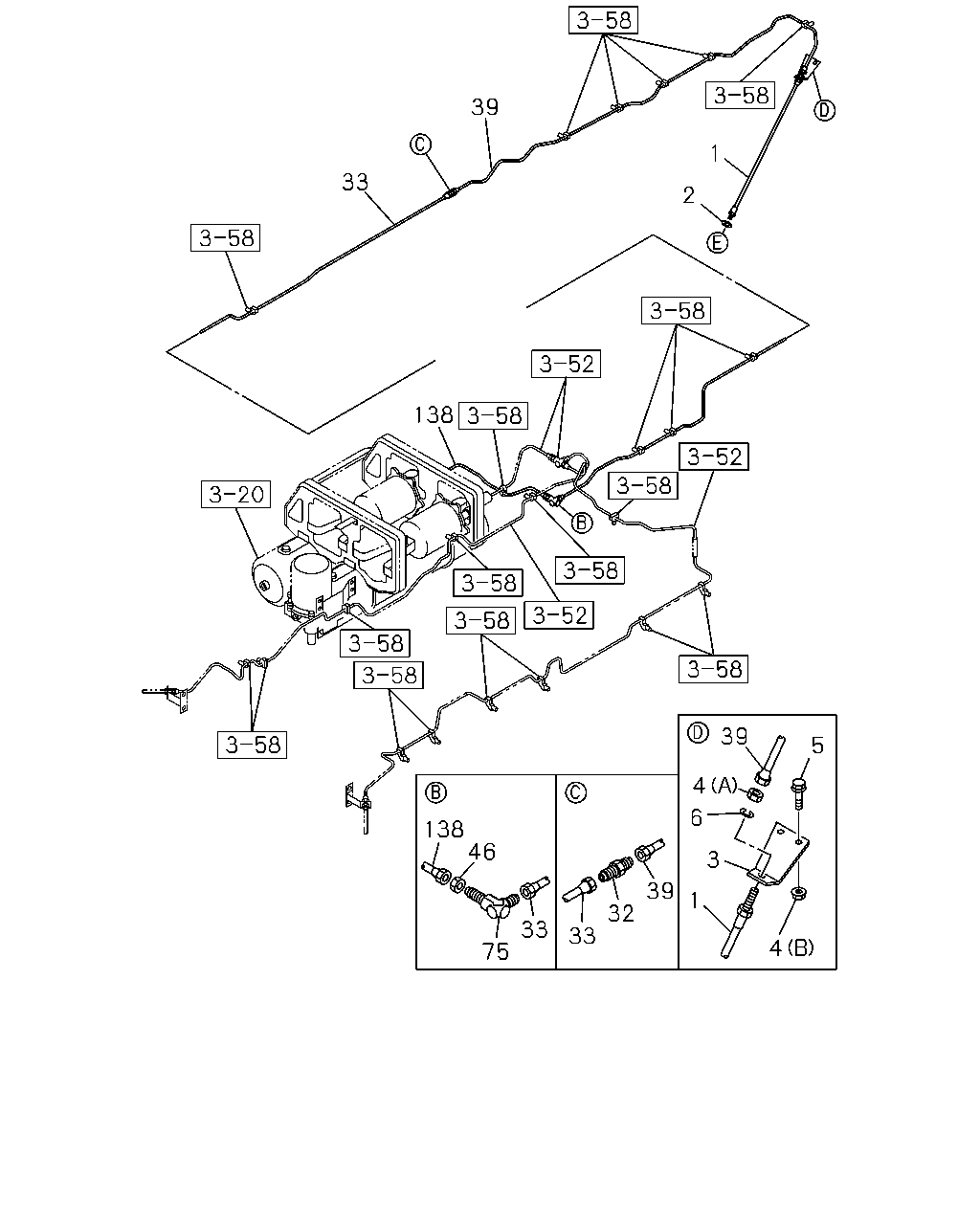

çizim 328183
33 39 1 2 138 138 46 33 75 33 39 32 3 1 6 4 39 5 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=700 		0-05212-700-0 01 1 1302- ●
2 GASKET; FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=9 OD=17 		9-09920-472-0 01 1 1302- ●
3 BRACKET; FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47465-251-0 01 1 1302- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M8 FLANGE 		0-91180-108-0 02 1 1302- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M12 		9-09840-280-0 01 1 1302- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
6 WASHER; LK,FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=12.2 		0-91510-812-0 01 1 1302- ●
32 UNION; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 L=40 		0-92113-006-0 01 1 1302- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) L=797 SERVICED BY L=800 		1-47428-728-0 01 1 1305- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W) L=1133 SERVICED BY L=1200 		1-47428-732-0 01 1 1305- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) L=1533 SERVICED BY L=1620 		1-47428-736-0 01 1 1305- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5000MM(50W) L=1933 SERVICED BY L=2000 		1-47428-739-0 01 1 1305- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5500MM(55W) L=2434 SERVICED BY L=2500 		1-47428-742-0 01 1 1305- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 6000MM(60W) L=2934 SERVICED BY L=3200 		1-47428-745-0 01 1 1305- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=941 SERVICED BY L=1000 		1-47428-730-0 01 1 1302- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1342 SERVICED BY L=1370 		1-47428-734-0 01 1 1302- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1708 SERVICED BY L=1820 		1-47428-738-0 01 1 1302- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2141 SERVICED BY L=2200 		1-47428-740-0 01 1 1302- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2650 SERVICED BY L=2650 		1-47428-743-0 01 1 1302- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 6000MM(60W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2856 SERVICED BY L=2900 		1-47428-744-0 01 1 1302- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
4HK1-TCS ENG(RJS) L=2138 SERVICED BY L=2200 		1-47428-740-0 01 1 1305- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2138 SERVICED BY L=2200 		1-47428-740-0 01 1 1302- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 6000MM(60W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2388 SERVICED BY L=2500 		1-47428-742-0 01 1 1302- ●
46 NUT; UNION,OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 		9-09840-280-0 01 1 1302- ●
75 UNION; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 ELBOW 		0-92125-206-0 01 1 1302- ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) L=546 		8-98206-488-0 01 1 1305- ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=561 SERVICED BY L=600 		1-47428-725-0 01 1 1302- ●

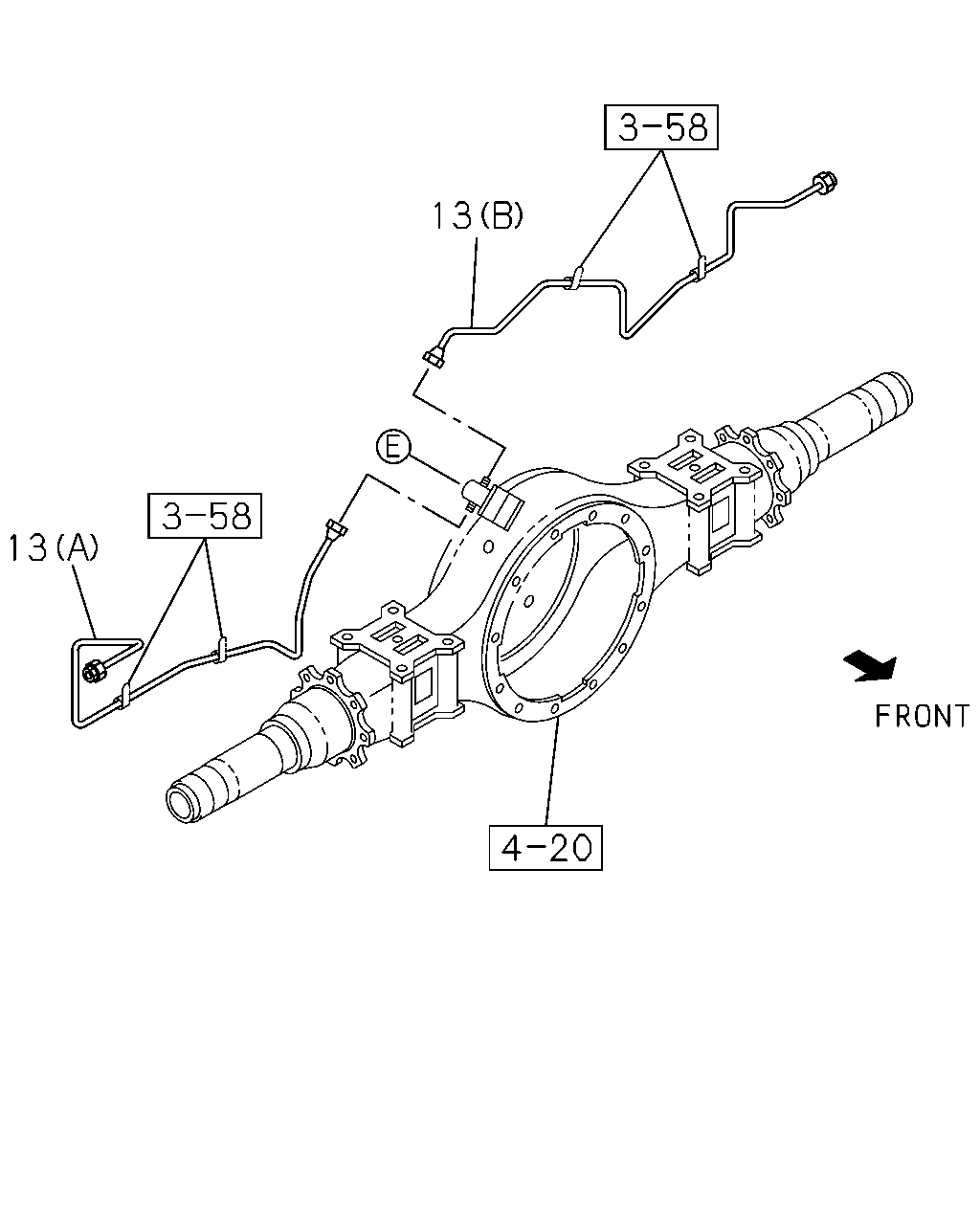

çizim 328250
13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; BRK,RR AXLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. ANTI LOCK BRAKE<JE5> (A) L=935 		8-98003-970-0 01 1 1302- ●
13 PIPE; BRK,RR AXLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. ANTI LOCK BRAKE<JE5> (B) L=1212 		8-98003-971-0 01 1 1302- ●

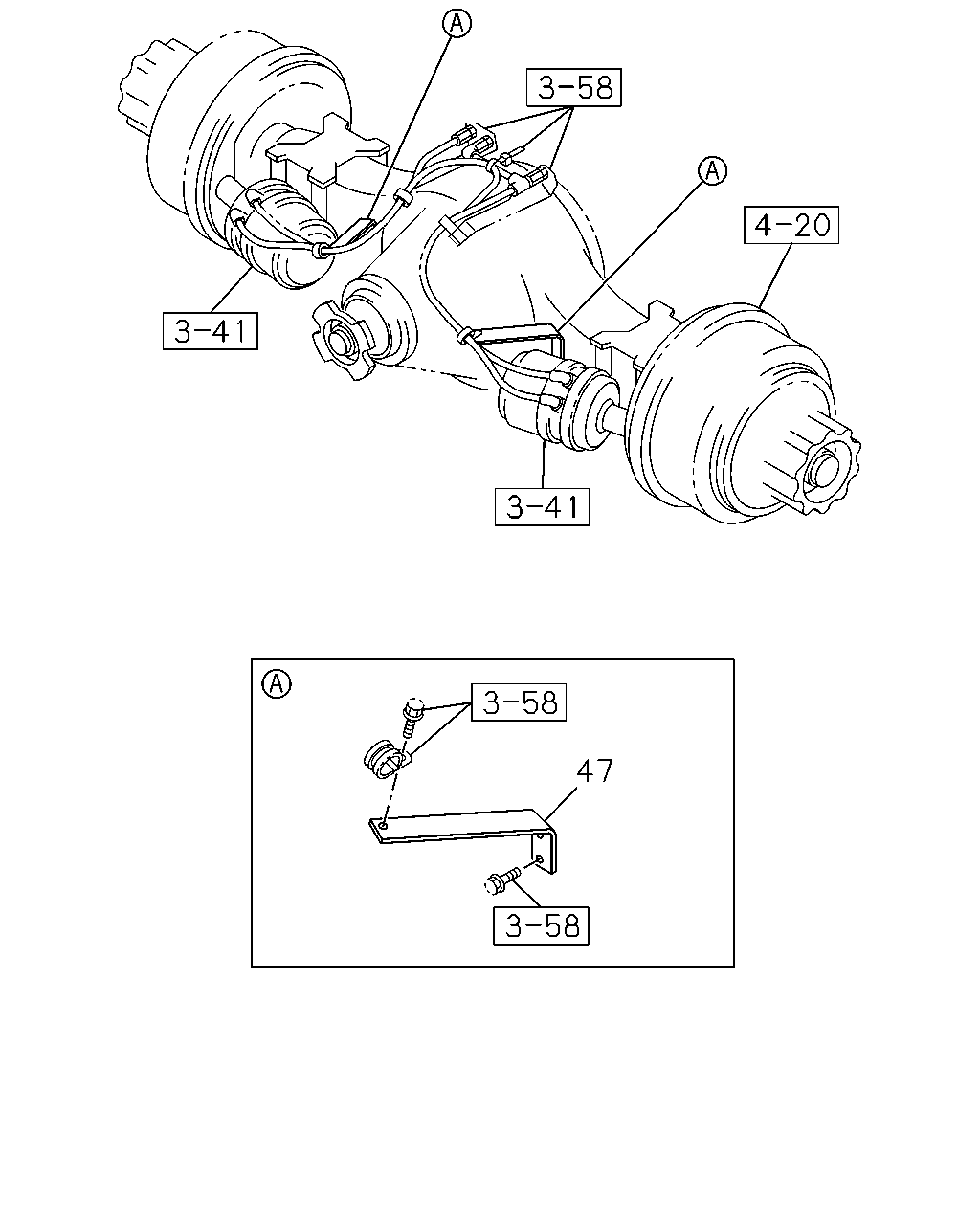

çizim 331701
47
BalonParca AdiParca NoAdetTipApplied Date A B
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-42129-515-2 01 1 1302- ●
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-42129-516-2 01 1 1302- ●
47 BRACKET 1-42129-481-2 01 1 1302- ●
47 BRACKET 1-42129-482-2 01 1 1302- ●
