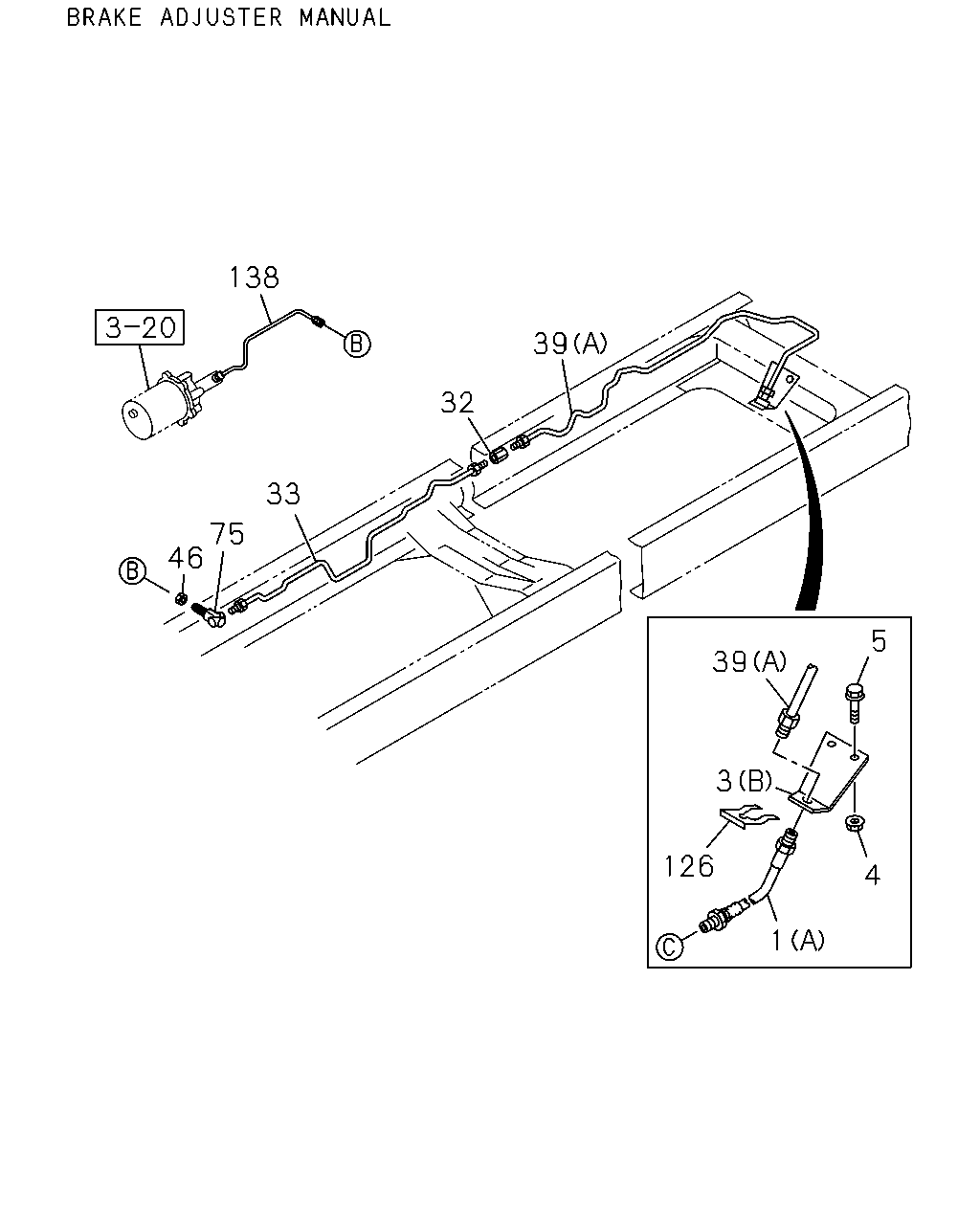

3-55 — BRAKE PIPING; OIL,REAR (#114353) — 63 parça

138 39 32 33 75 46 5 39 3 4 126 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=485	8-98057-386-1	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (A) L=480	8-98172-789-0	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> (A) L=520	8-98175-918-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	8-98065-999-2	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (B)	8-98182-778-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> (B)	8-98175-942-0	01	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1302-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1302-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) L=1357	8-98183-294-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) L=1963	8-98183-298-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) L=2263	8-98183-300-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) L=2593	8-98183-302-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) L=2923	8-98183-304-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=1710	8-98106-485-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (A) L=2126	8-98182-774-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> (A) L=2100	8-98175-941-0	01	1	1302-
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1302-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	1302-
126	CLIP; FLEX HOSE	8-97360-054-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT L=697	8-98213-366-0	01	1	1302-

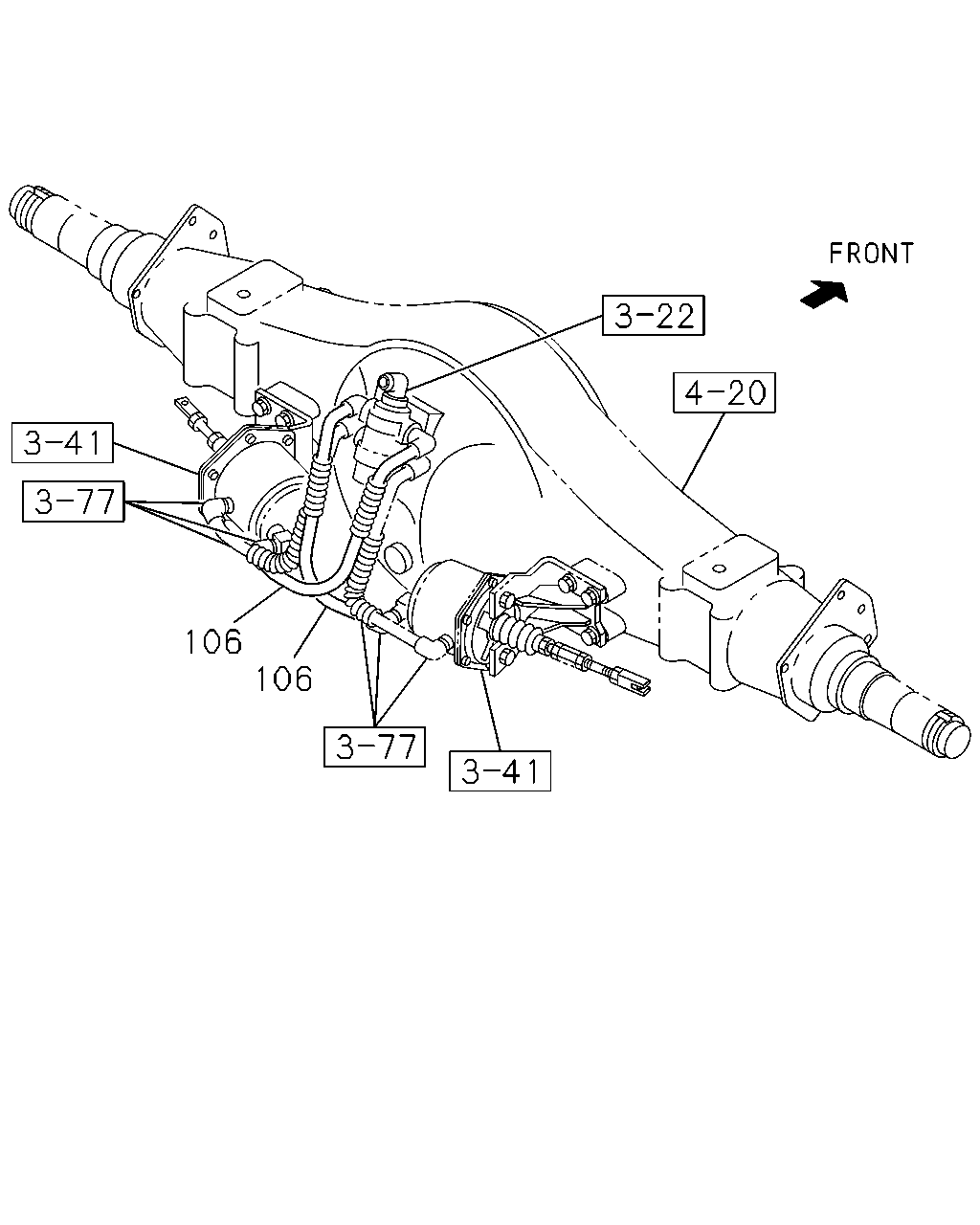

106 106

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	1302-

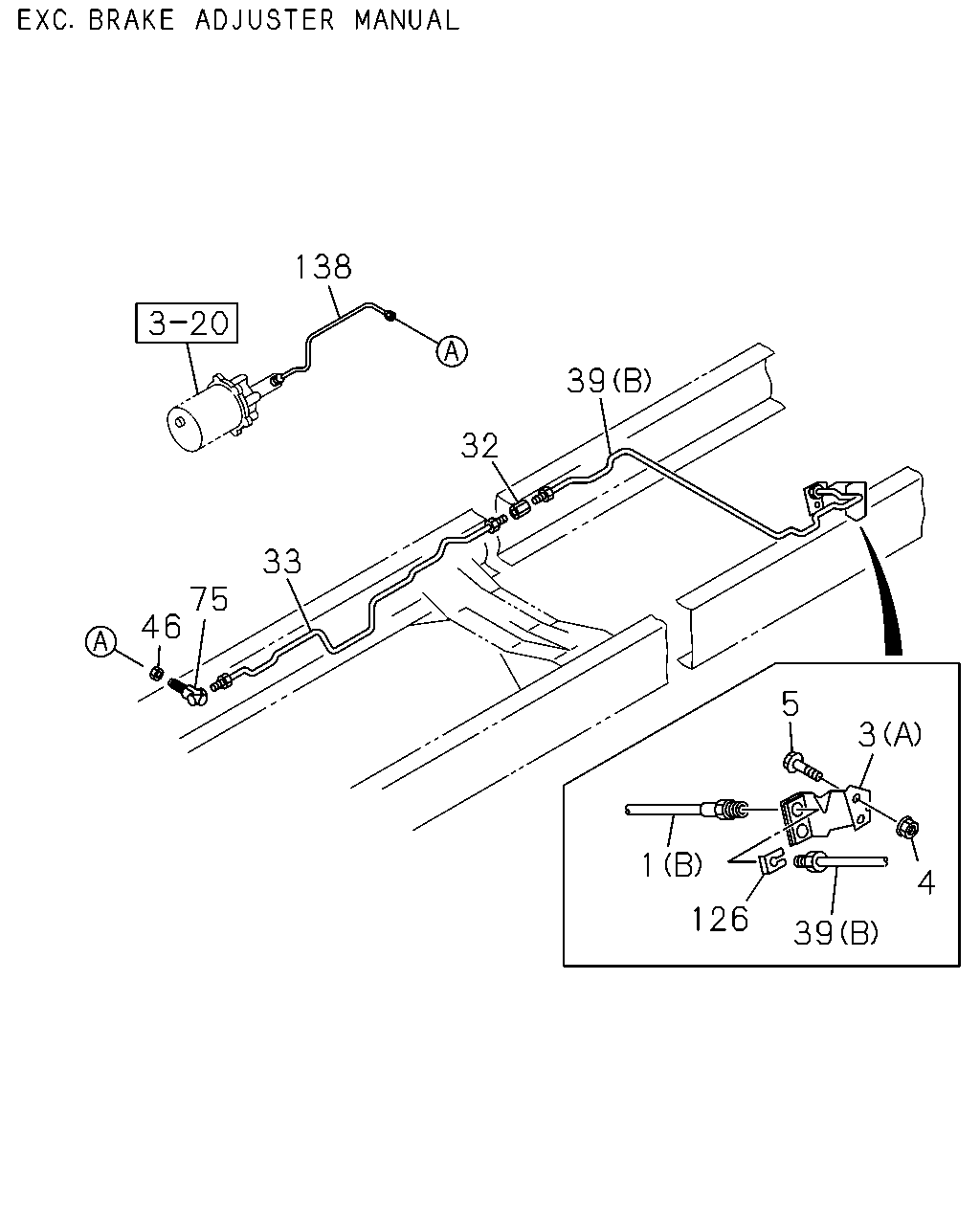

138 39 32 46 75 33 3 5 1 4 39 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=485	8-98057-386-1	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (A) L=480	8-98172-789-0	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> (A) L=520	8-98175-918-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	8-98065-999-2	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (B)	8-98182-778-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> (B)	8-98175-942-0	01	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1302-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1302-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) L=1357	8-98183-294-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) L=1963	8-98183-298-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) L=2263	8-98183-300-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) L=2593	8-98183-302-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) L=2923	8-98183-304-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=1710	8-98106-485-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (A) L=2126	8-98182-774-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> (A) L=2100	8-98175-941-0	01	1	1302-
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1302-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	1302-
126	CLIP; FLEX HOSE	8-97360-054-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT L=697	8-98213-366-0	01	1	1302-

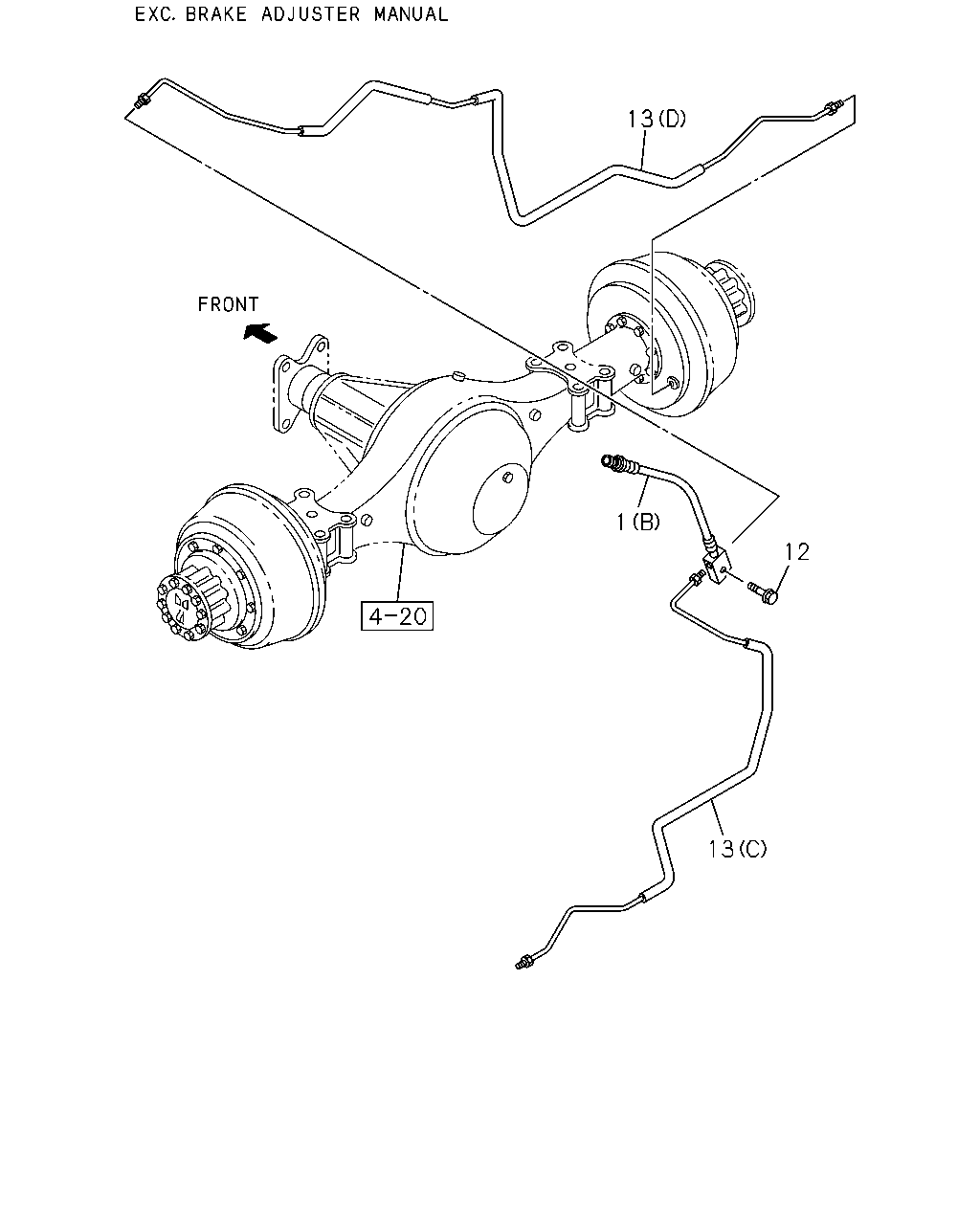

1 12 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=485	8-98057-386-1	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (A) L=480	8-98172-789-0	01	1	1302-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> (A) L=520	8-98175-918-0	01	1	1302-
12	BOLT; FLEX HOSE TO RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> M8X35 FLANGE	0-28650-835-0	01	1	1302-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) LH LINE L=847	1-47427-106-0	01	1	1302-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) RH LINE L=675	1-47427-105-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) LH LINE L=738	8-98071-762-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) RH LINE L=1115	8-98071-761-0	01	1	1302-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LH LINE	8-98107-931-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) RH LINE	8-98107-930-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) RH LINE L=1030	8-98281-559-0	01	1	1410-

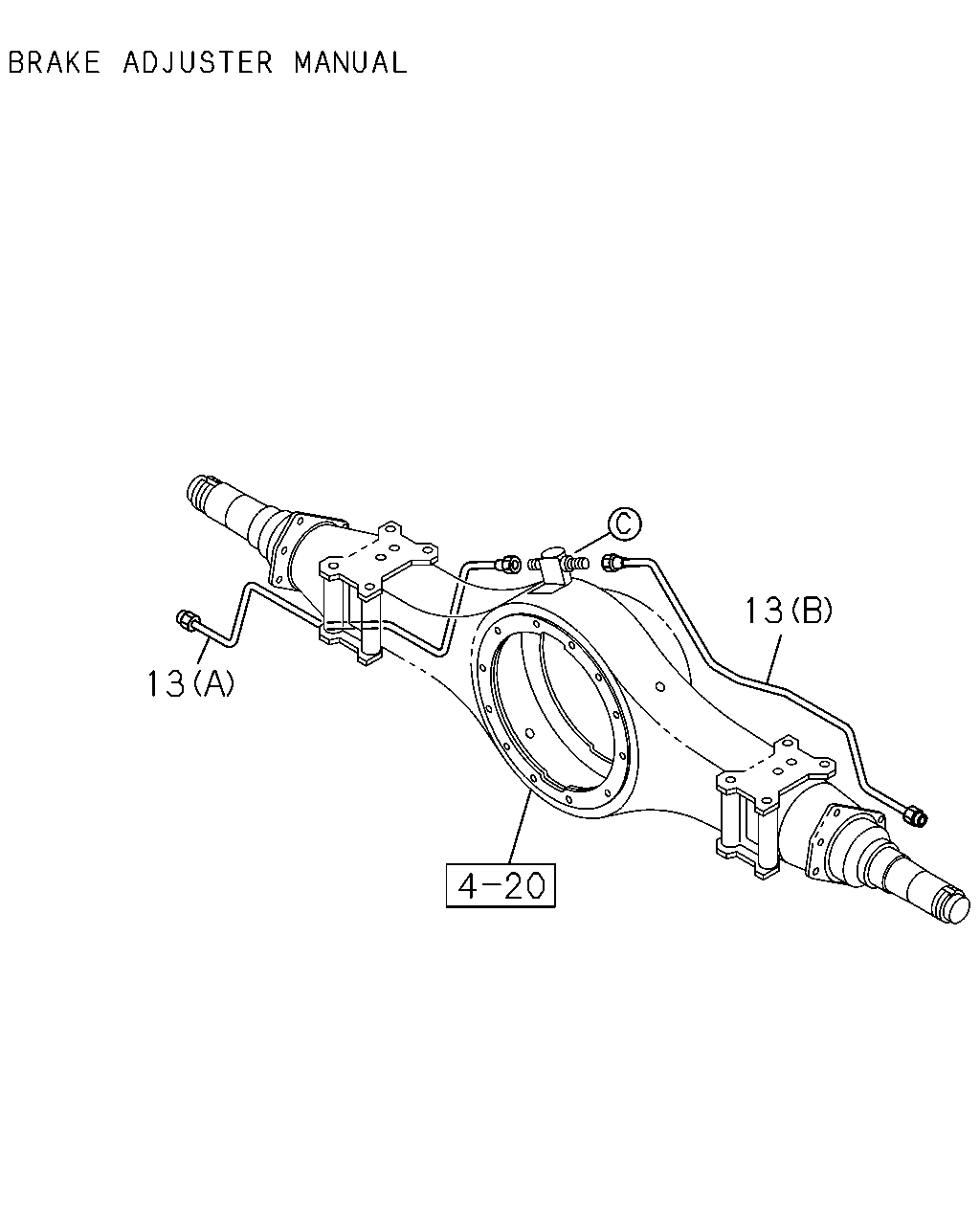

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) LH LINE L=847	1-47427-106-0	01	1	1302-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) RH LINE L=675	1-47427-105-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) LH LINE L=738	8-98071-762-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) RH LINE L=1115	8-98071-761-0	01	1	1302-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LH LINE	8-98107-931-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) RH LINE	8-98107-930-0	01	1	1302-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) RH LINE L=1030	8-98281-559-0	01	1	1410-
