Sayfa 3-52 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11509 - FSR-R EU2/4EXC.SPACE ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶

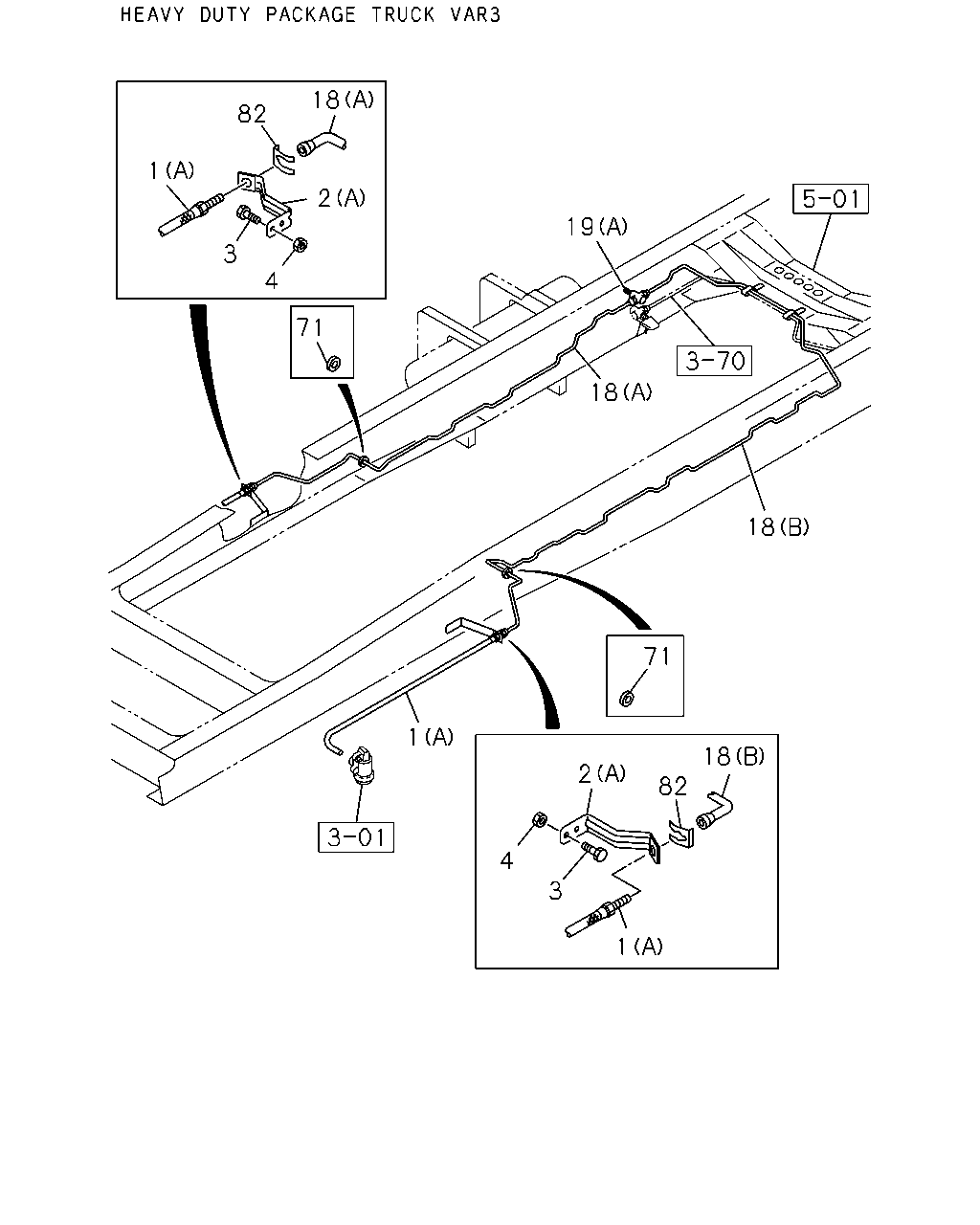

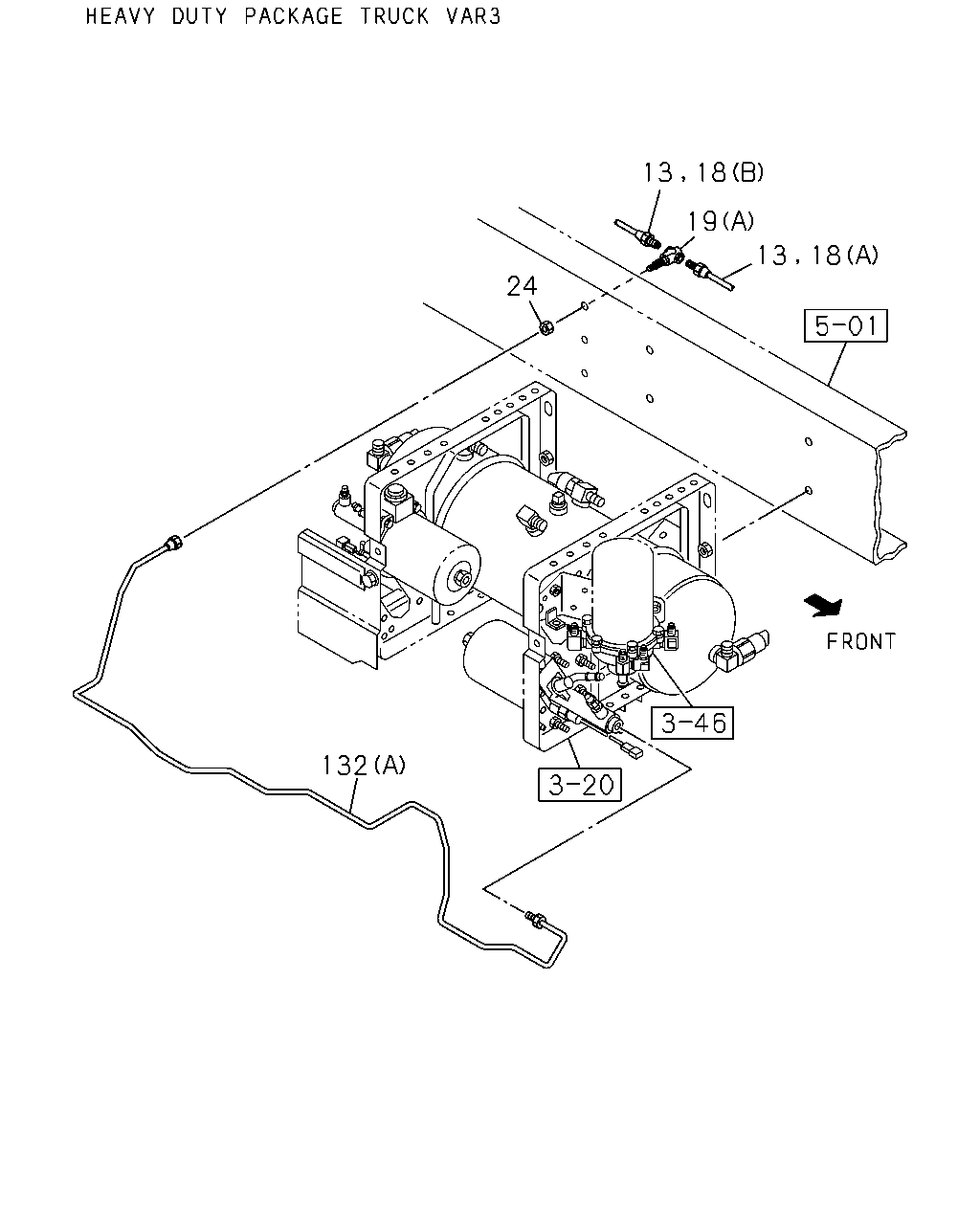

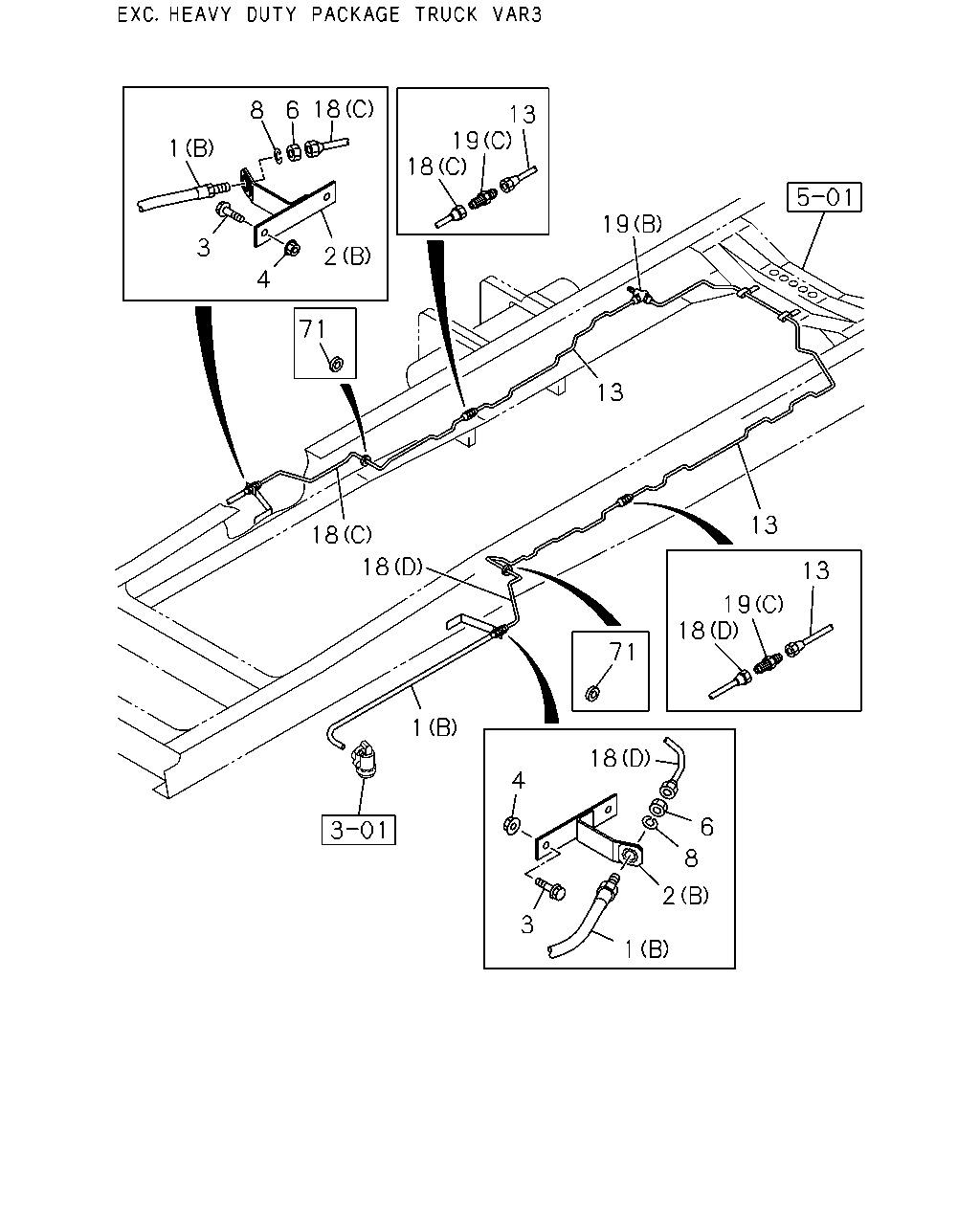

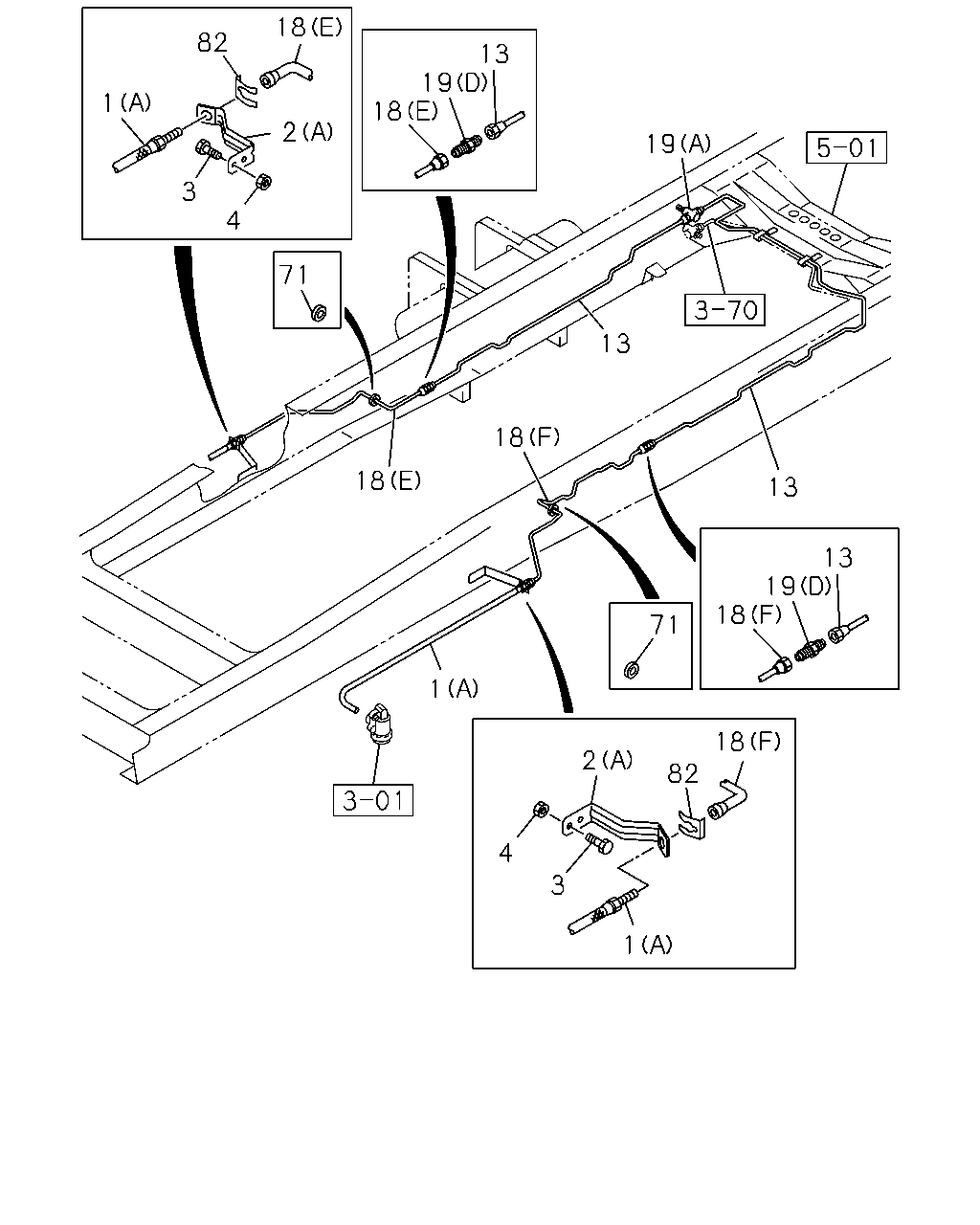

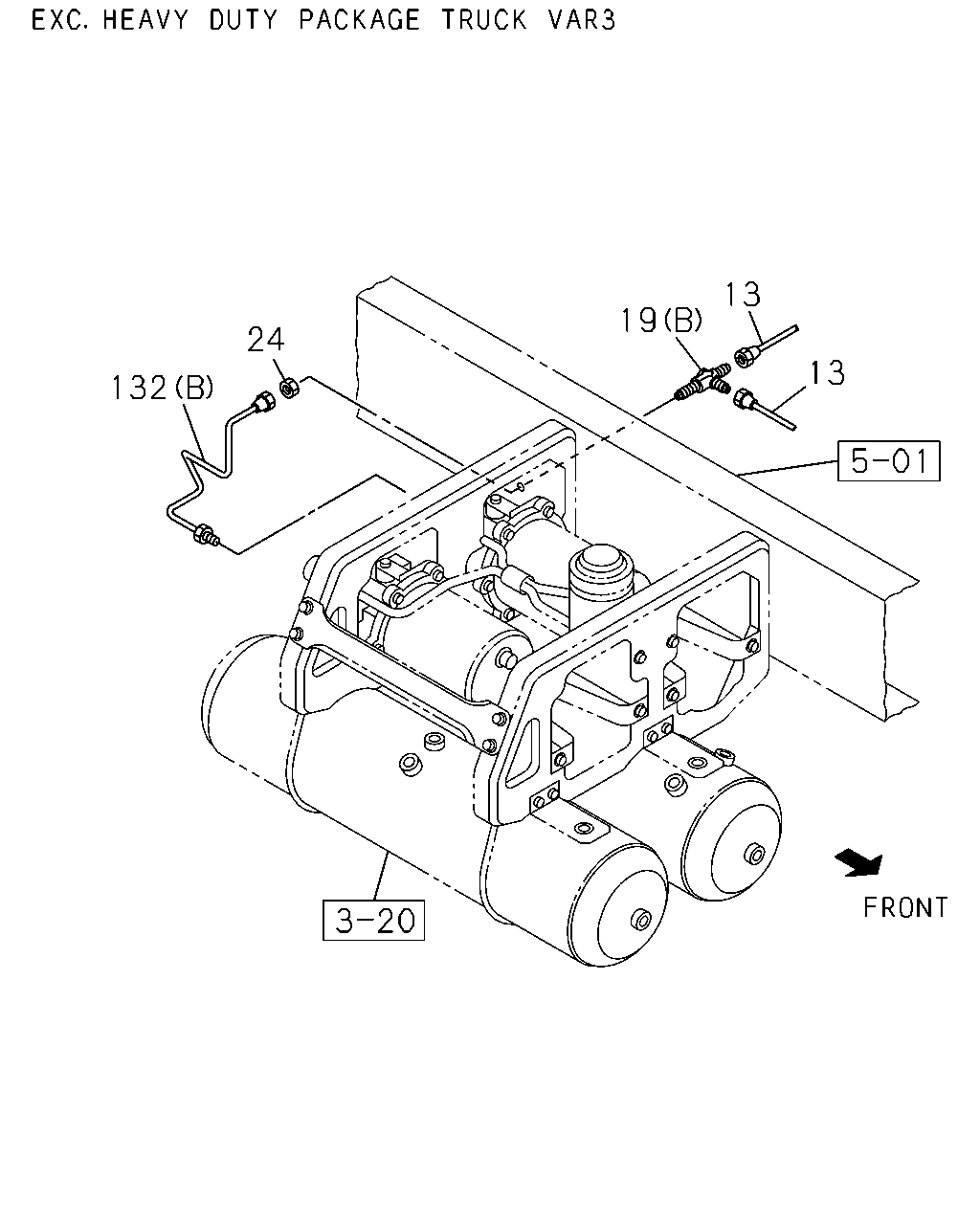

3-52 — BRAKE PIPING; OIL,FRONT (#114351) — 117 parça

1 3 2 4 8 6 18 18 19 13 19 13 18 1 18 71 71 13 18 13 19 4 6 18 8 2 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98187-085-0	02	1	1302-
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	1302-
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98213-219-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	1302-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1302-
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1302-
6	NUT; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	02	1	1302-
8	GASKET; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=9 OD=17	9-09920-472-0	02	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1826	8-98173-027-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1267	8-98125-568-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2071 SERVICED BY L=2200	1-47428-740-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1328 SERVICED BY L=1370	1-47428-734-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1111	8-98134-927-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=689	8-98134-926-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=721 SERVICED BY L=800	1-47428-728-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=562 SERVICED BY L=600	1-47428-725-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	1302-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	1302-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	1302-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	1302-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10 STRAIGHT	0-92107-005-0	02	1	1302-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-

1 82 18 2 3 71 4 19 18 18 71 1 2 4 3 82 1 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98187-085-0	02	1	1302-
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	1302-
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98213-219-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	1302-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1302-
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1111	8-98134-927-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=689	8-98134-926-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=721 SERVICED BY L=800	1-47428-728-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=562 SERVICED BY L=600	1-47428-725-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	1302-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	1302-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	1302-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	1302-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10 STRAIGHT	0-92107-005-0	02	1	1302-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-
82	PLATE; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	02	1	1302-

1 3 2 4 82 18 71 18 19 13 18 18 13 19 1 71 13 18 13 19 2 4 3 1 82 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98187-085-0	02	1	1302-
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	1302-
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98213-219-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	1302-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1302-
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1826	8-98173-027-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1267	8-98125-568-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2071 SERVICED BY L=2200	1-47428-740-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1328 SERVICED BY L=1370	1-47428-734-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1111	8-98134-927-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=689	8-98134-926-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=721 SERVICED BY L=800	1-47428-728-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=562 SERVICED BY L=600	1-47428-725-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	1302-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	1302-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	1302-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	1302-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10 STRAIGHT	0-92107-005-0	02	1	1302-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-
82	PLATE; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	02	1	1302-

24 13 18 19 18 13 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1826	8-98173-027-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1267	8-98125-568-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2071 SERVICED BY L=2200	1-47428-740-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1328 SERVICED BY L=1370	1-47428-734-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1111	8-98134-927-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=689	8-98134-926-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=721 SERVICED BY L=800	1-47428-728-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=562 SERVICED BY L=600	1-47428-725-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	1302-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	1302-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	1302-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	1302-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10 STRAIGHT	0-92107-005-0	02	1	1302-
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	1302-
24	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1505	8-98213-211-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=662	8-98208-565-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=407	8-98120-162-0	01	1	1302-

19 13 13 24 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1826	8-98173-027-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1267	8-98125-568-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2071 SERVICED BY L=2200	1-47428-740-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1328 SERVICED BY L=1370	1-47428-734-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	1302-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	1302-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	1302-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	1302-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10 STRAIGHT	0-92107-005-0	02	1	1302-
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	1302-
24	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1505	8-98213-211-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=662	8-98208-565-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=407	8-98120-162-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
