3-52 — BRAKE PIPING; OIL,FRONT (#114350) — 23 parça

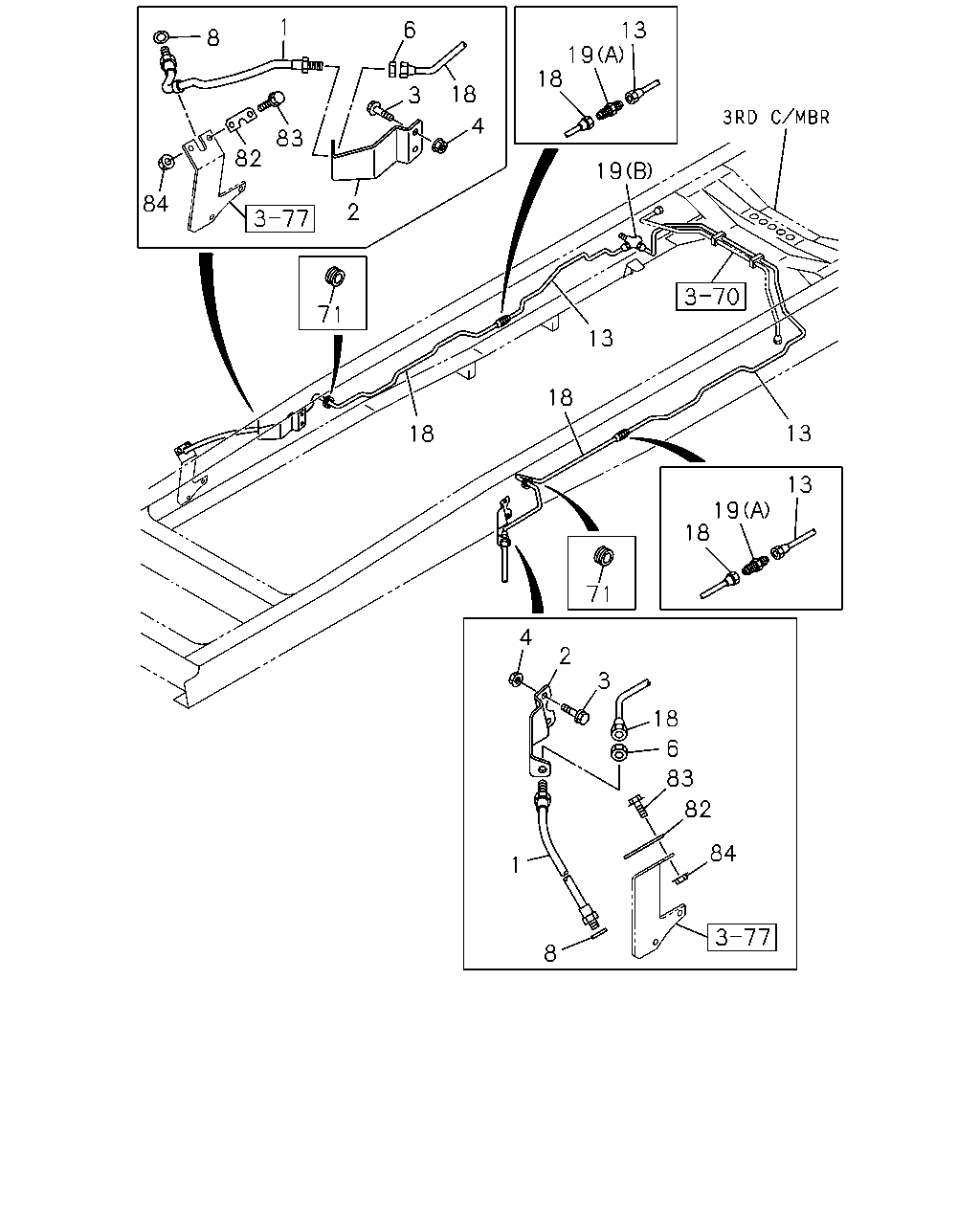

8 1 6 18 4 83 82 84 2 3 13 19 18 71 19 13 18 18 13 71 18 19 13 4 2 3 18 6 83 82 84 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK	8-97623-929-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK	8-98089-851-0	01	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK	8-98113-700-0	01	1	1302-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1302-
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1302-
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1302-
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1302-
13	PIPE; OIL,UNION TO UNION L=1759 SERVICED BY L=1820	1-47428-738-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1302-
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1302-
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1302-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	1302-
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	1302-
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1302-

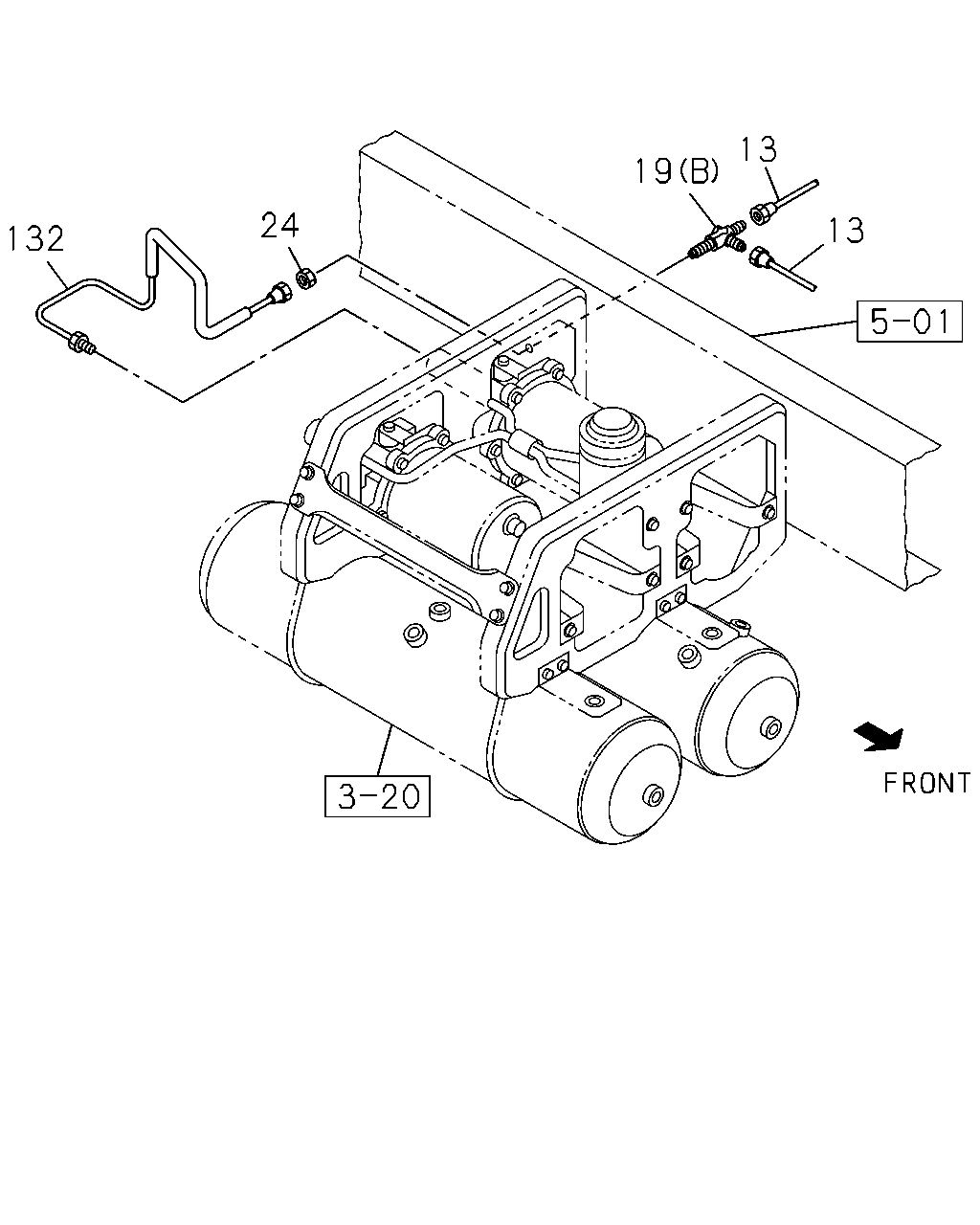

132 24 19 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION L=1759 SERVICED BY L=1820	1-47428-738-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1302-
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1302-
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1302-
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT L=511	8-98217-253-0	01	1	1302-
