3-80 — BRAKE PIPING; TRAILER (#11435) — 37 parça

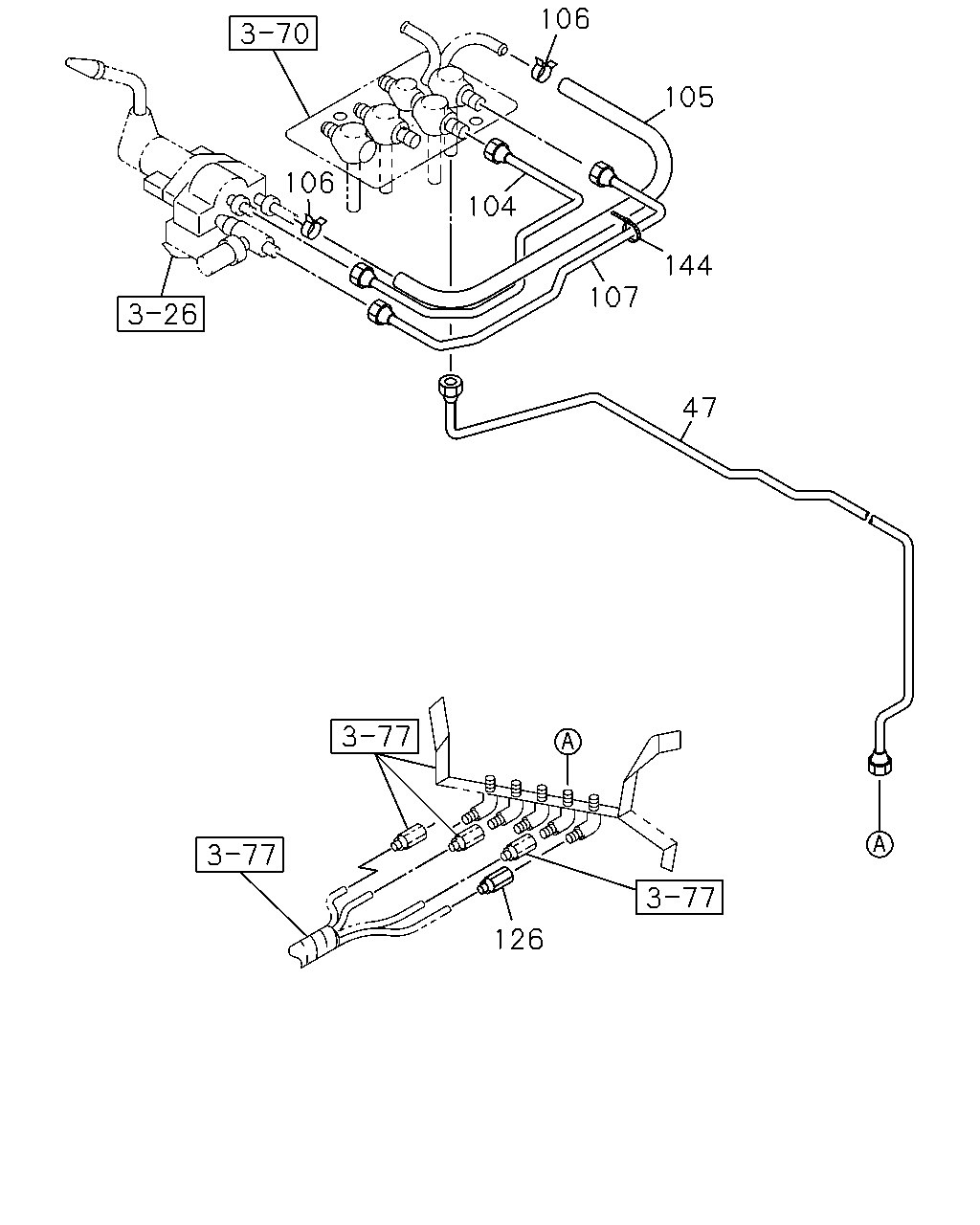

çizim 20788
126 47 144 107 105 106 104 106
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-473-0 01 1 0106-0206
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-159-0 01 1 0106-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0106-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-160-0 01 1 0106-
126 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0206
144 CLIP; BAND
L=140 		5-09707-031-1 01 1 0112-

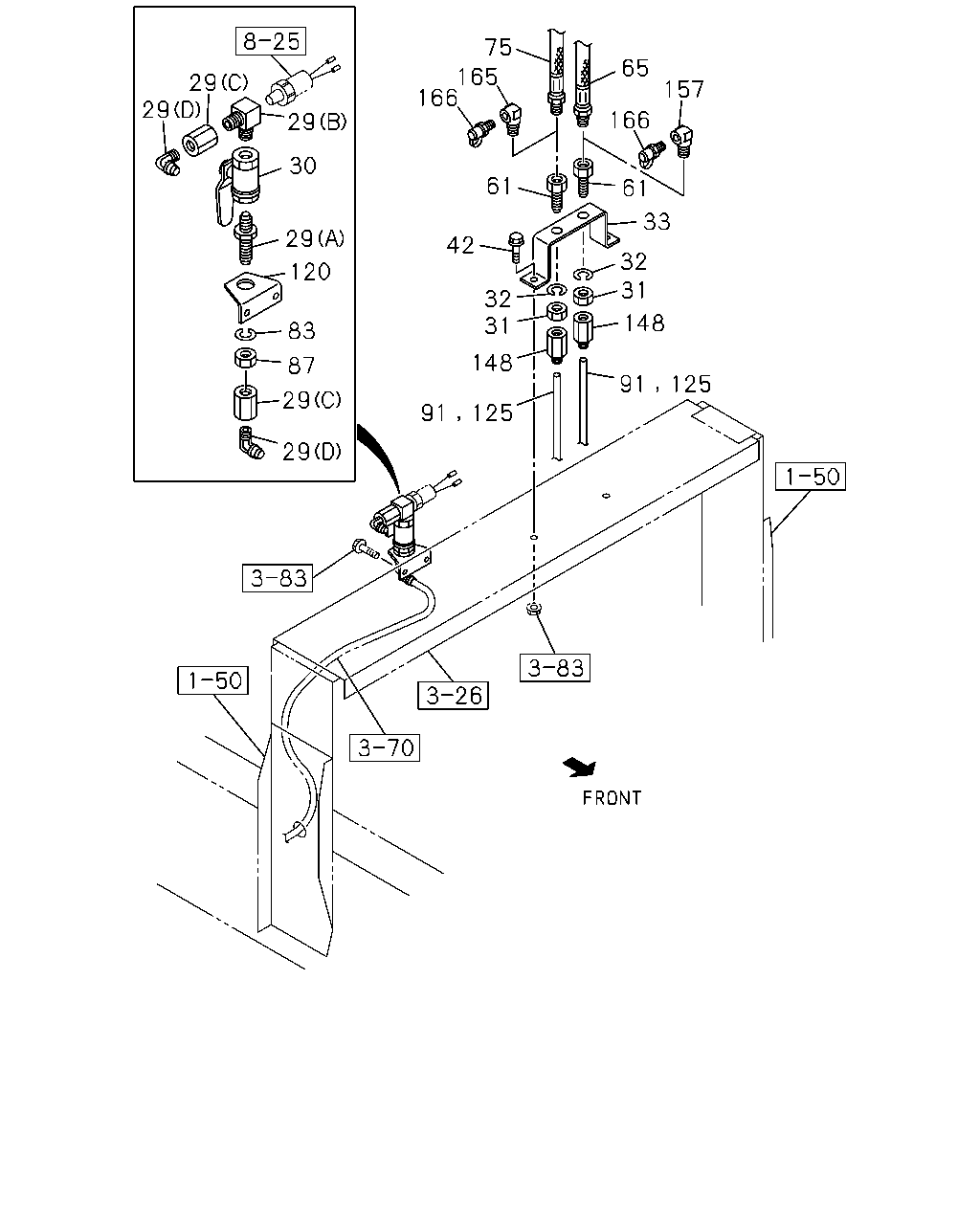

çizim 73184
91 125 148 125 91 148 31 32 33 61 157 166 65 75 165 166 61 42 31 32 29 29 87 83 120 29 30 29 29 29
BalonParca AdiParca NoAdetTipApplied Date
29 CONNECTOR; COCK
(A) M22 & PT1/2 STRAIGHT 		1-09650-220-1 01 1 0106-
29 CONNECTOR; COCK
(B) 		1-09656-332-1 01 1 0106-
29 CONNECTOR; COCK
(C) 		1-09660-884-0 02 1 0106-
29 CONNECTOR; COCK
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0106-
30 COCK; AIR HOSE
BLUE 		1-09680-092-0 01 1 0106-
31 NUT; UNION
M16 		9-99111-416-0 02 1 0106-0512
31 NUT; UNION
M16 		0-91111-516-0 02 1 0601-
32 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 0106-0603
32 WASHER; LK,UNION
ID=16.2 		0-91510-516-0 02 1 0604-
33 BRACKET 1-47475-388-0 01 1 0106-
42 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0106-0512
42 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
61 UNION; NYLON TUBE 1-09650-222-1 02 1 0106-
65 HOSE; AIR
EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4136 		1-09363-148-0 01 1 0106-
75 HOSE; FLEX,TRAILER EMERGENCY
EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4140 		1-09363-149-0 01 1 0106-
83 WASHER; LK,CONNECTOR
ID=22.5 		9-09150-522-0 01 1 0106-0603
83 WASHER; LK,CONNECTOR
ID=22.5 		0-91510-522-0 01 1 0604-
87 NUT
M22 		9-09111-422-0 01 1 0106-0512
87 NUT
M22 		0-91111-522-0 01 1 0601-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
120 BRACKET; COCK 1-48499-001-1 01 1 0106-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-0304
125 TUBE; CORRUGATE
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0305-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0305-
148 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0106-
157 ADAPTER
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 & NPTF1/2 2WAY 		1-09660-695-0 01 1 0106-
165 CONNECTOR; ELBOW
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 & NPTF1/2 2WAY 		1-09660-695-0 01 1 0106-
166 CONNECTOR; TEST
JUMPER HOSE & CABLE DELETE<SJK> 		1-47459-013-0 02 1 0106-
