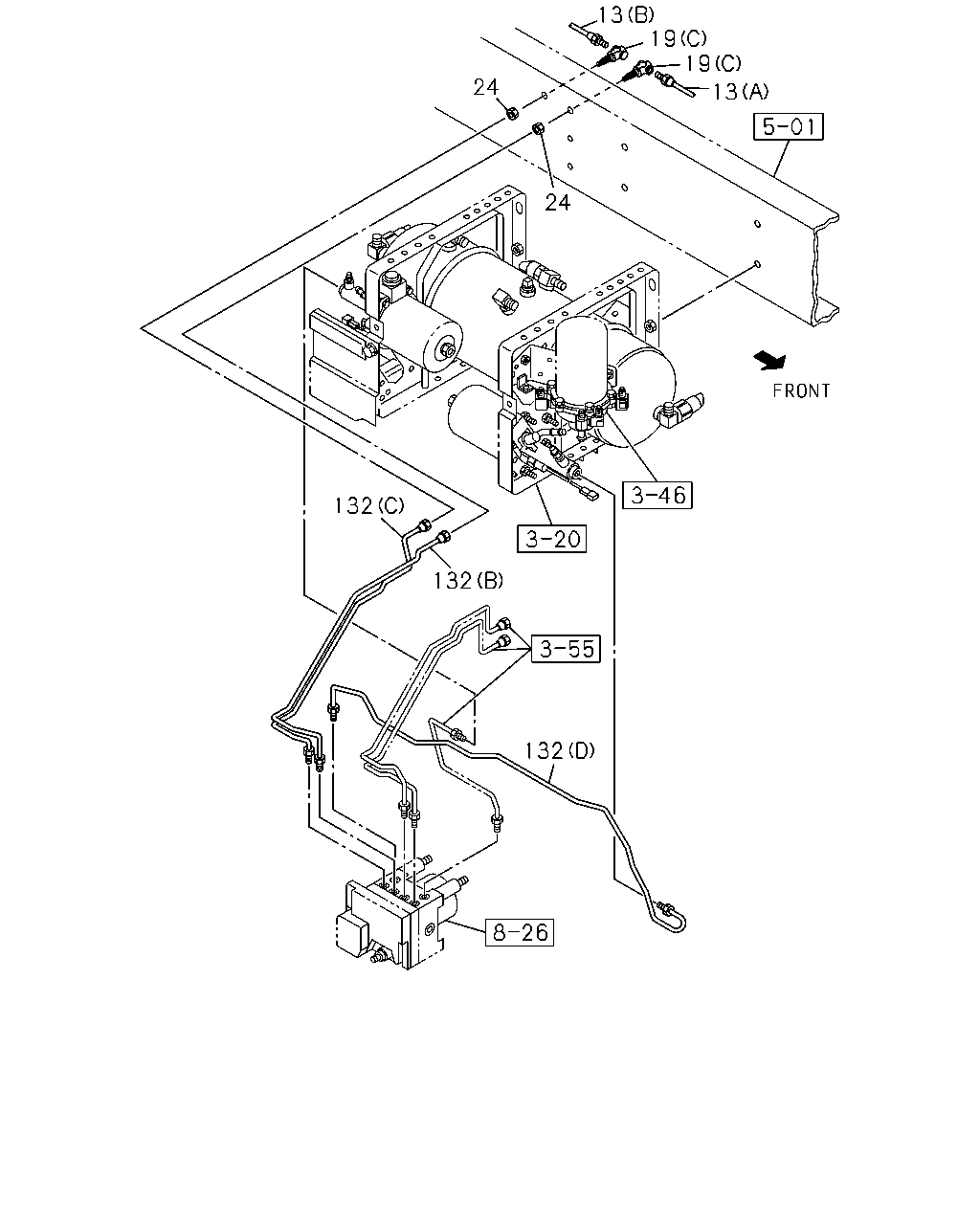

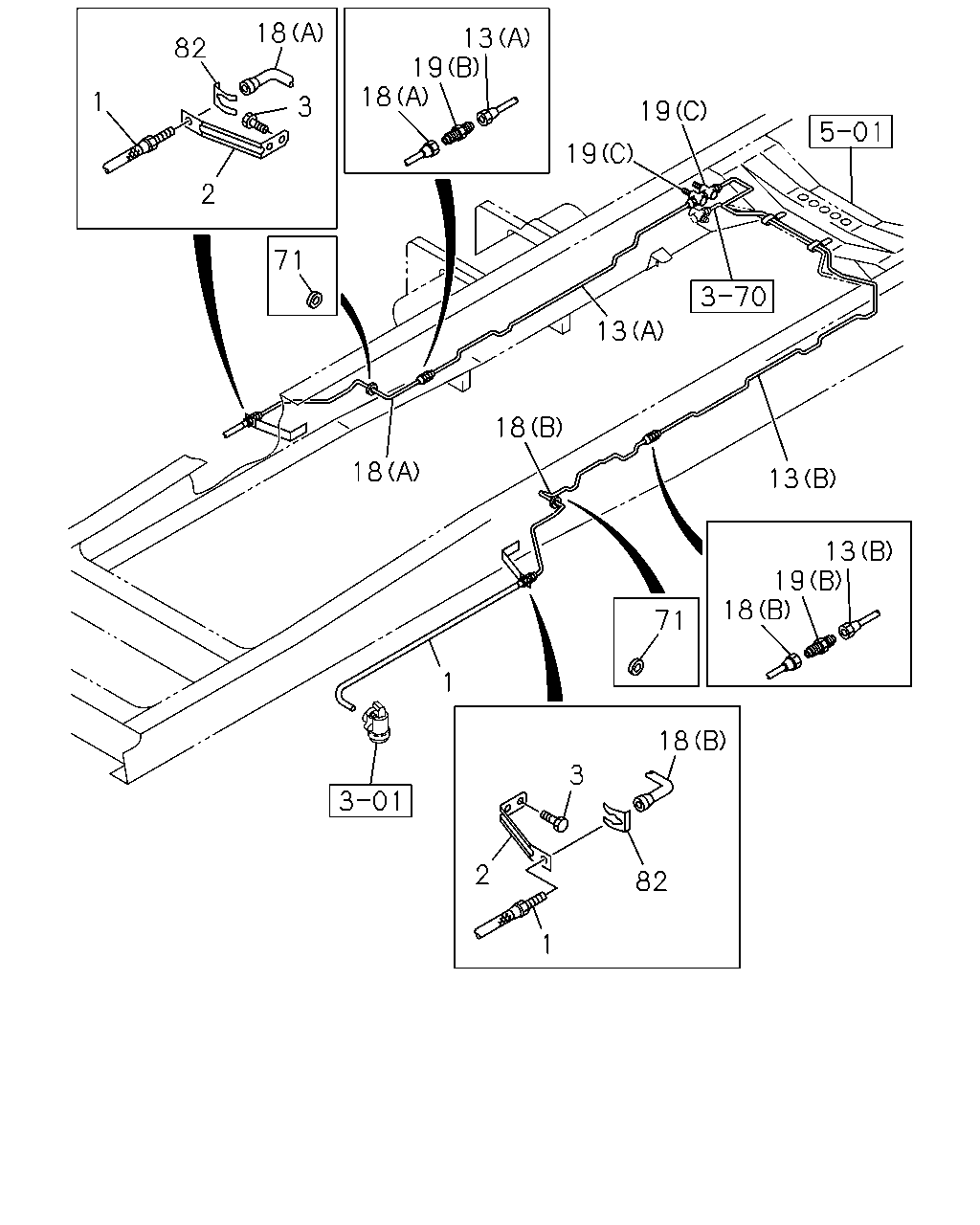

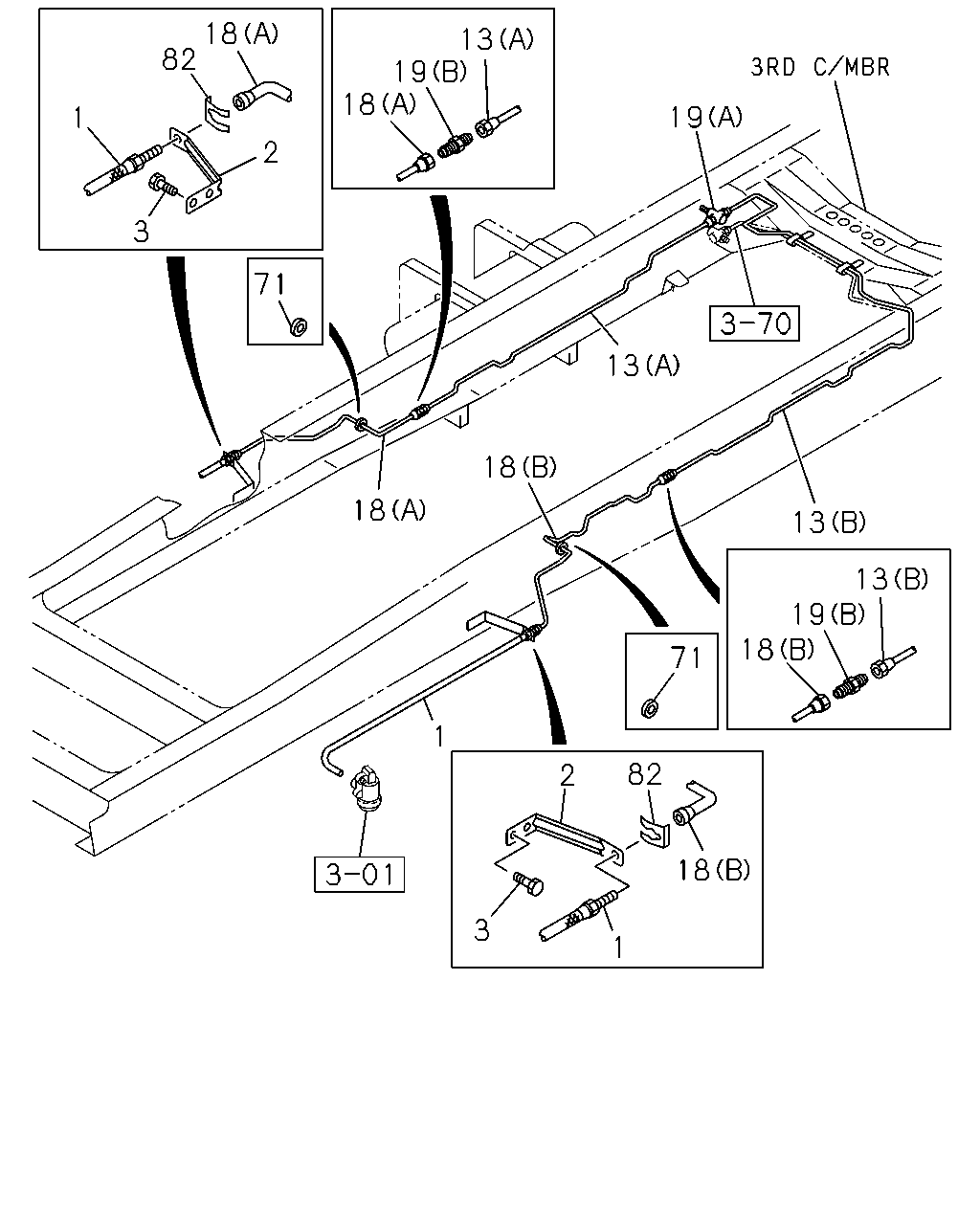

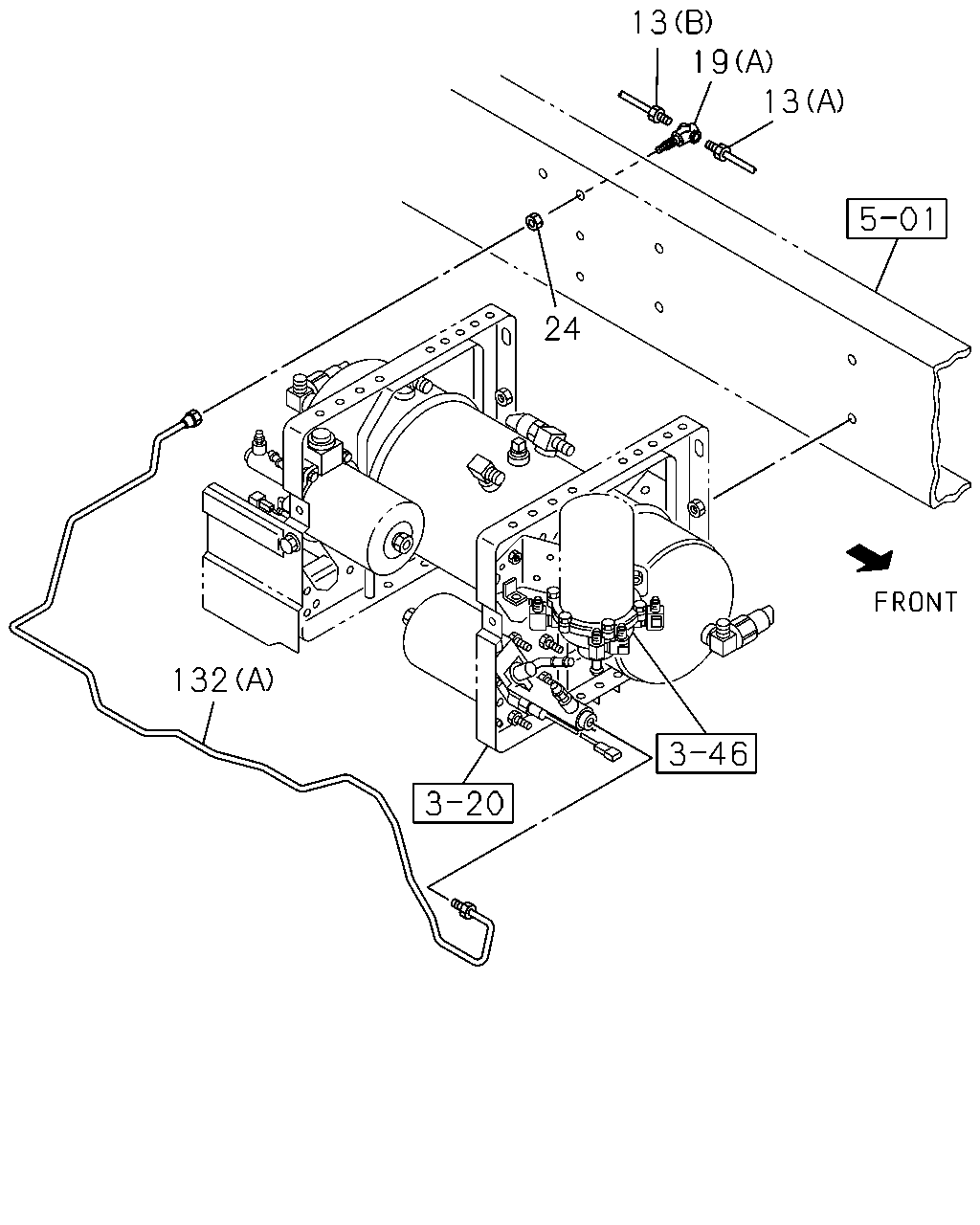

3-52 — BRAKE PIPING; OIL,FRONT (#114346) — 56 parça

18 82 1 3 2 19 13 18 19 13 18 18 71 13 71 18 19 13 2 1 82 18 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK VIN MODEL YEAR 2015<VZF> ALGERIA EQUIPMENT(WN1) EXC. BRAKE ADJUSTER MANUAL<BJR> L=450	8-98242-141-0	02	1	1511-
1	HOSE; FLEX,FRT BRK BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	02	1	1302-
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=660	8-98232-626-0	02	1	1302-1510
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ALGERIA EQUIPMENT(WN1) L=660	8-98232-626-0	02	1	1511-
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-946-1	02	1	1302-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1302-
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=967	8-98067-417-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891	8-98113-684-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833	8-98158-297-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=1016	8-98065-376-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=567	8-98067-426-0	01	1	1302-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1302-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (C) M10X2 ELBOW	8-98018-438-0	02	1	1302-
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1302-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	1302-

24 13 19 19 13 24 132 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=967	8-98067-417-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891	8-98113-684-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833	8-98158-297-0	01	1	1302-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1302-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (C) M10X2 ELBOW	8-98018-438-0	02	1	1302-
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1302-
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1302-
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (D) L=948	8-98213-849-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) LH LINE L=625	8-98116-095-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=661	8-98213-363-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (A) L=1505	8-98213-211-0	01	1	1302-

82 18 1 2 3 18 19 13 71 18 18 13 19 19 71 13 18 13 19 3 1 2 18 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK VIN MODEL YEAR 2015<VZF> ALGERIA EQUIPMENT(WN1) EXC. BRAKE ADJUSTER MANUAL<BJR> L=450	8-98242-141-0	02	1	1511-
1	HOSE; FLEX,FRT BRK BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	02	1	1302-
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=660	8-98232-626-0	02	1	1302-1510
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ALGERIA EQUIPMENT(WN1) L=660	8-98232-626-0	02	1	1511-
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-946-1	02	1	1302-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1302-
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=967	8-98067-417-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891	8-98113-684-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833	8-98158-297-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=1016	8-98065-376-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=567	8-98067-426-0	01	1	1302-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1302-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (C) M10X2 ELBOW	8-98018-438-0	02	1	1302-
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1302-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	1302-

13 19 13 132 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=967	8-98067-417-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891	8-98113-684-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833	8-98158-297-0	01	1	1302-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1302-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (C) M10X2 ELBOW	8-98018-438-0	02	1	1302-
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1302-
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1302-
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (D) L=948	8-98213-849-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) LH LINE L=625	8-98116-095-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=661	8-98213-363-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (A) L=1505	8-98213-211-0	01	1	1302-
