Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#114345) — 193 parça

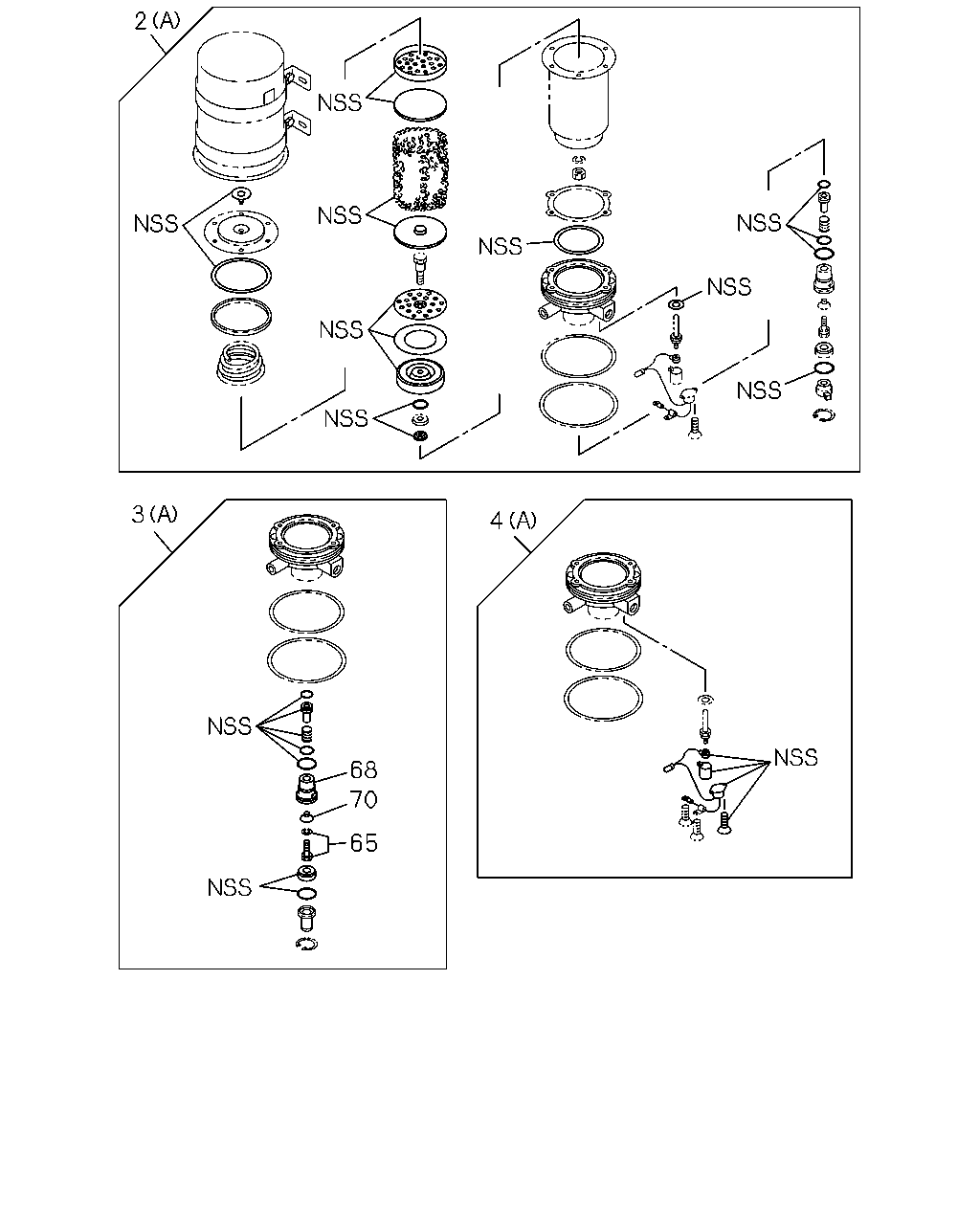

2 4 3 68 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-85576-217-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98226-323-0	01	1	1305-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-85576-226-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-85576-193-0	01	1	1302-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98226-322-0	01	1	1305-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-85576-057-1	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-85576-218-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-85576-443-0	01	1	1305-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-85576-254-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-517-0	01	1	1305-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-408-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-515-0	01	1	1305-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-504-0	01	1	1305-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-105-0	01	1	1302-

13 9 54 1 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98225-285-0	01	1	1305-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48190-277-1	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1305-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M10X20 FLANGE	0-28051-020-0	03	1	1302-
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M10X25 FLANGE	0-28051-025-0	03	1	1305-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 FLANGE	0-28651-025-0	04	1	1302-
13	NUT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	1302-1303
13	NUT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	1304-
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	1304-
54	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1302-

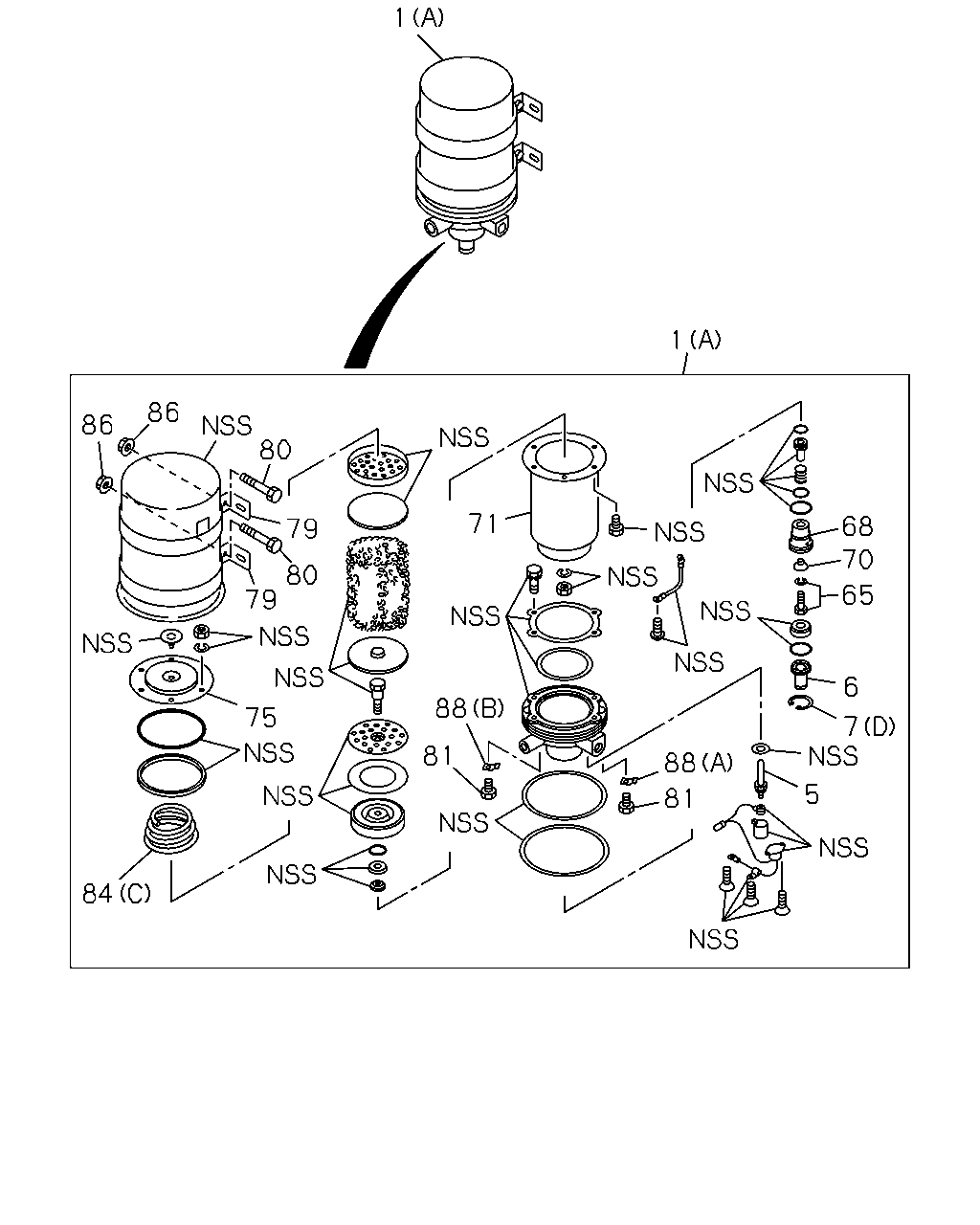

1 1 71 86 86 80 79 79 75 80 84 81 88 88 81 6 7 5 65 68 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98225-285-0	01	1	1305-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48190-277-1	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-085-0	01	1	1302-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-530-0	01	1	1305-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	1302-
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-404-0	01	1	1302-
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (E)	1-48199-403-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-520-0	02	1	1305-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-529-0	01	1	1305-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-579-0	01	1	1305-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D)	1-48199-154-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-517-0	01	1	1305-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-408-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-515-0	01	1	1305-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-504-0	01	1	1305-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-105-0	01	1	1302-
71	CASE; INNER,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	1302-
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	1302-
79	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-189-0	02	1	1302-
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	1302-
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	1302-
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-523-0	01	1	1305-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-48199-166-0	01	1	1302-
86	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-320-0	02	1	1302-
88	PLATE; STOPPER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-178-0	01	1	1302-
88	PLATE; STOPPER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48199-179-0	01	1	1302-

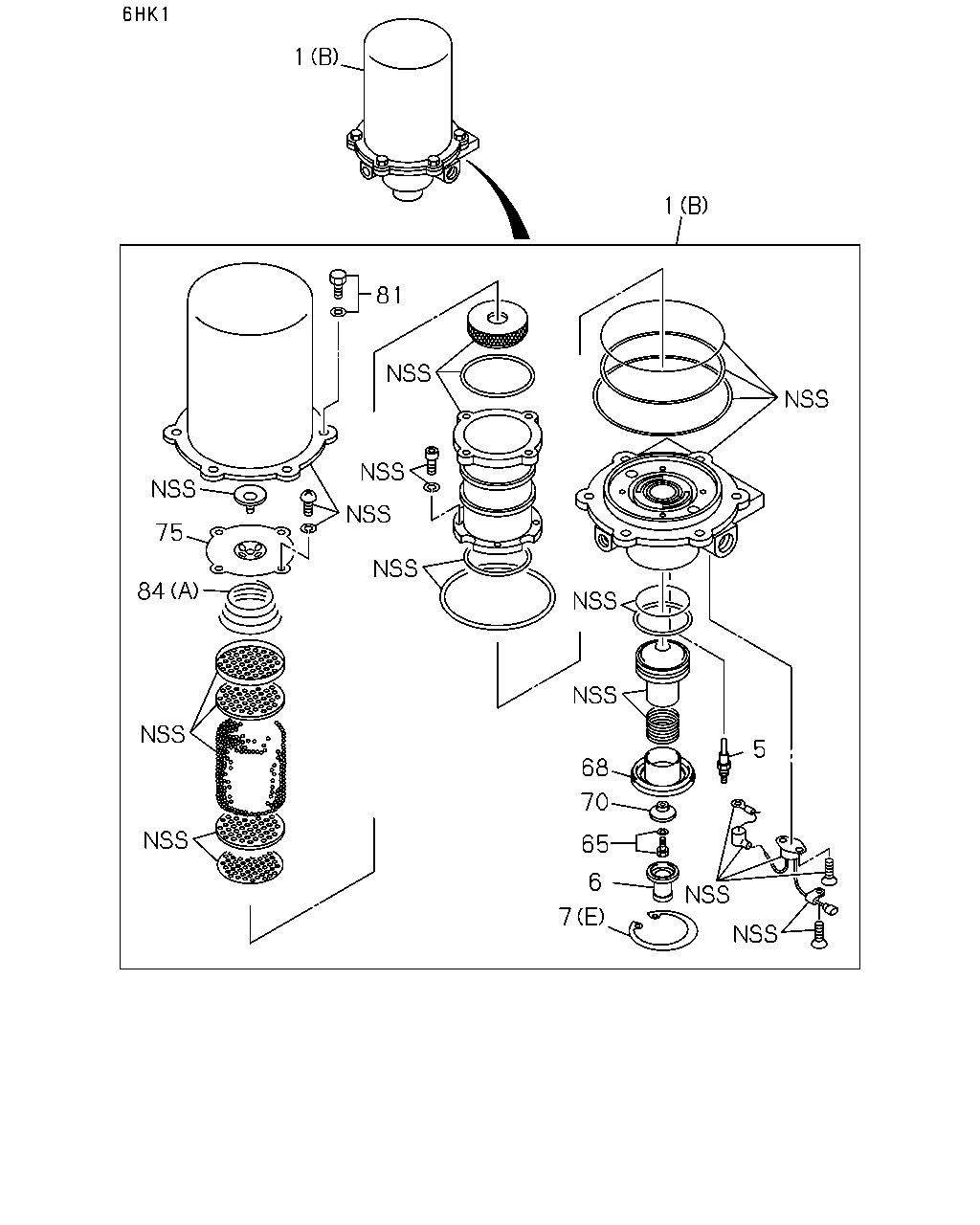

1 1 81 75 84 68 70 65 7 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98225-285-0	01	1	1305-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48190-277-1	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-085-0	01	1	1302-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-530-0	01	1	1305-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	1302-
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-404-0	01	1	1302-
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (E)	1-48199-403-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-520-0	02	1	1305-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-529-0	01	1	1305-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-579-0	01	1	1305-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D)	1-48199-154-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-517-0	01	1	1305-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-408-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-515-0	01	1	1305-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-504-0	01	1	1305-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-105-0	01	1	1302-
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	1302-
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	1302-
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-523-0	01	1	1305-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-48199-166-0	01	1	1302-

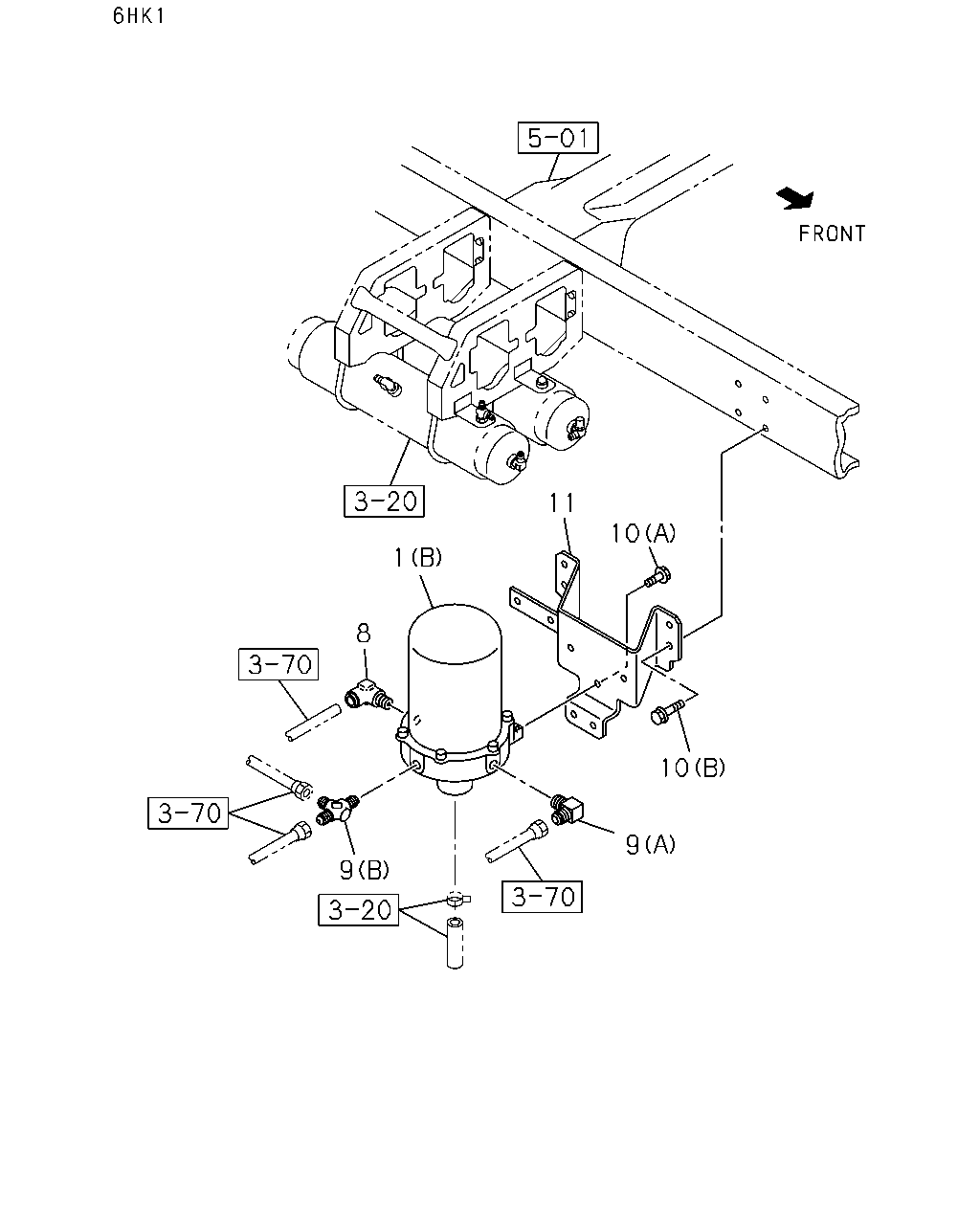

1 11 10 10 9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98225-285-0	01	1	1305-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48190-277-1	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1305-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M10X20 FLANGE	0-28051-020-0	03	1	1302-
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M10X25 FLANGE	0-28051-025-0	03	1	1305-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 FLANGE	0-28651-025-0	04	1	1302-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	8-98120-190-0	01	1	1302-
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	8-98225-807-0	01	1	1305-

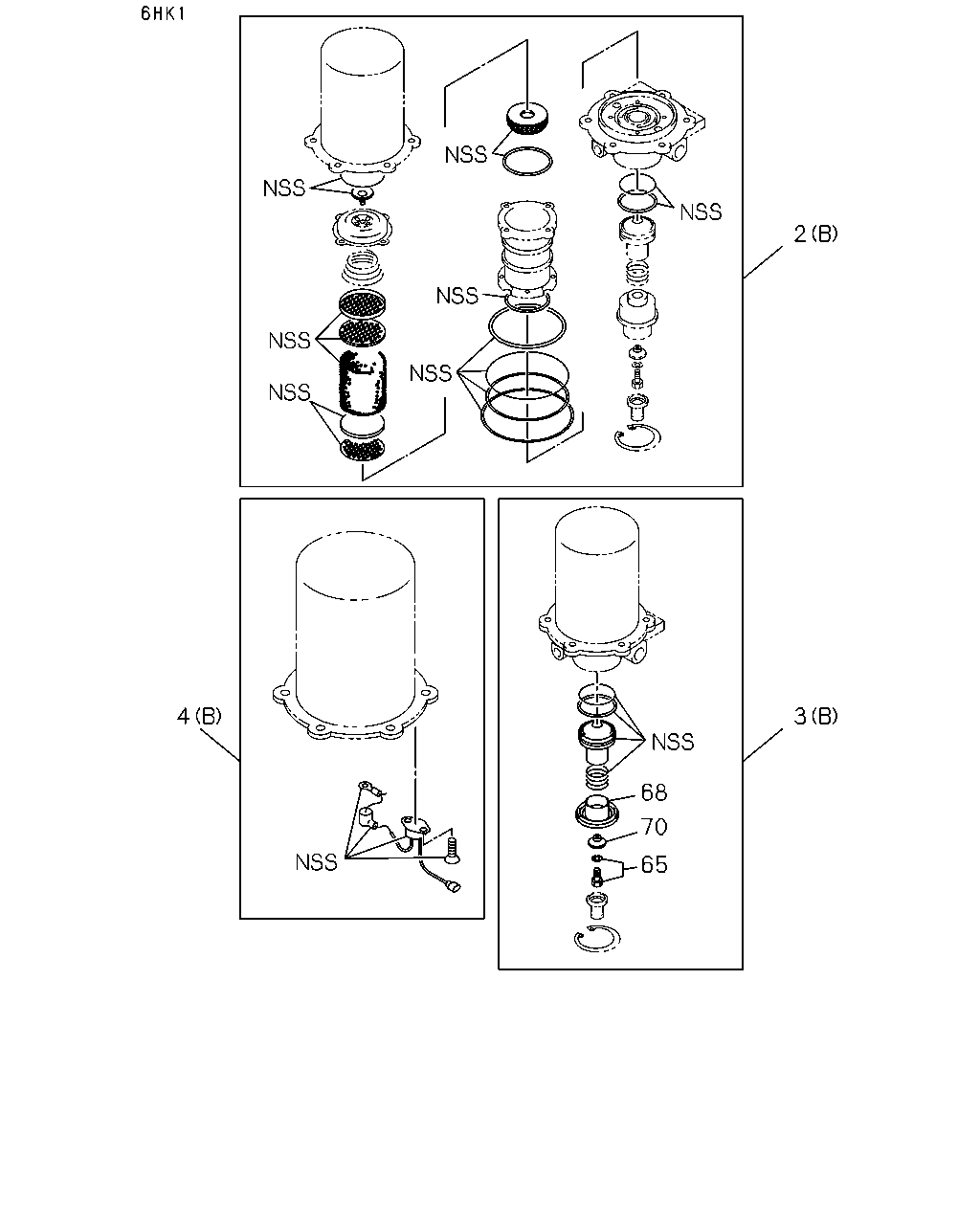

2 3 4 68 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-85576-217-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98226-323-0	01	1	1305-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-85576-226-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-85576-193-0	01	1	1302-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98226-322-0	01	1	1305-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-85576-057-1	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-85576-218-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-85576-443-0	01	1	1305-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-85576-254-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-517-0	01	1	1305-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-408-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-515-0	01	1	1305-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-504-0	01	1	1305-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-105-0	01	1	1302-

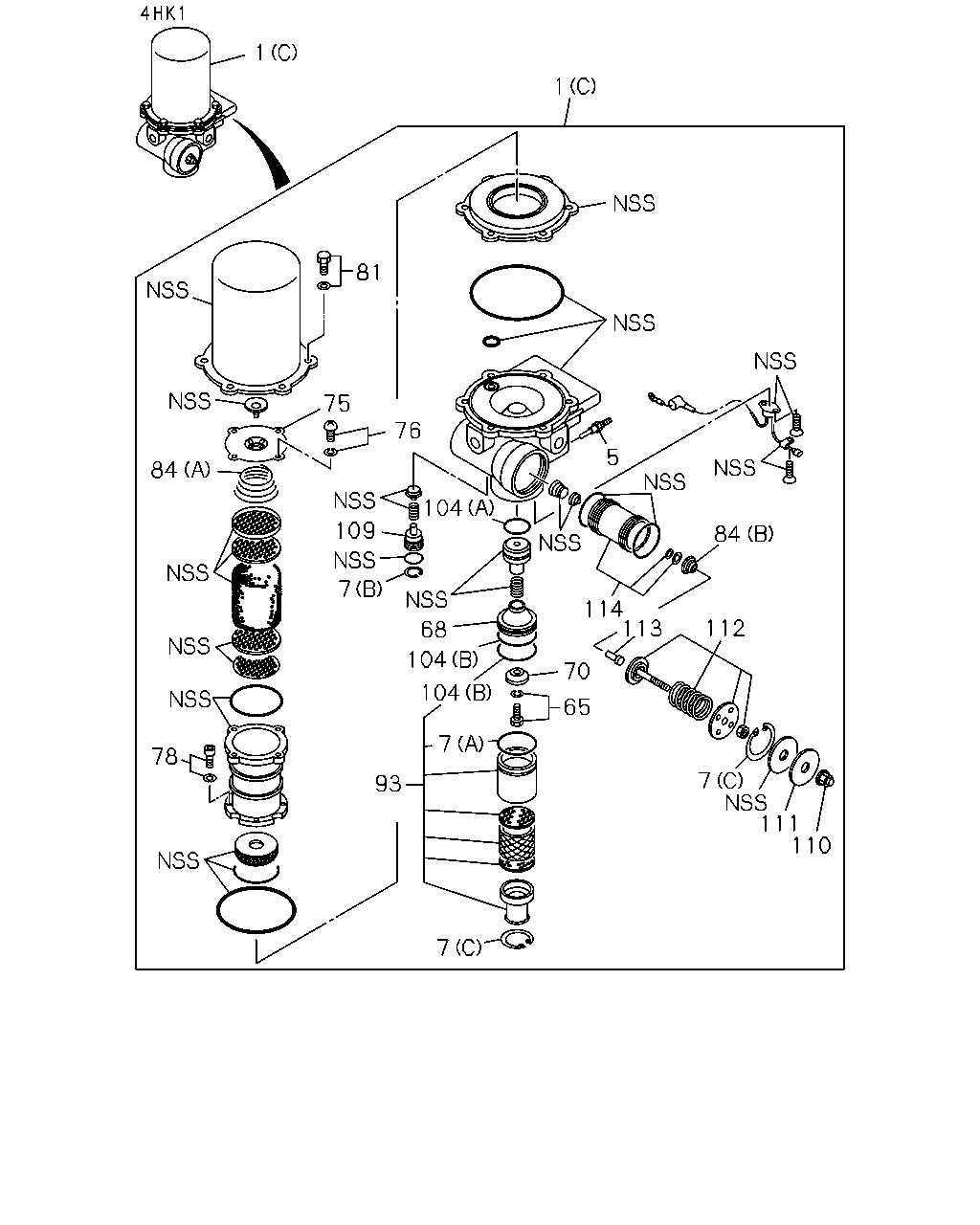

1 1 81 84 75 109 78 93 65 70 104 104 7 68 114 113 112 7 111 110 84 5 76 104 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98225-285-0	01	1	1305-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48190-277-1	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-085-0	01	1	1302-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-530-0	01	1	1305-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (E)	1-48199-403-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-520-0	02	1	1305-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-529-0	01	1	1305-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-579-0	01	1	1305-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D)	1-48199-154-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-517-0	01	1	1305-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-408-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-515-0	01	1	1305-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-504-0	01	1	1305-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-105-0	01	1	1302-
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	1302-
76	BOLT; COVER,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-412-0	04	1	1305-
78	BOLT; OIL FILTER,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-417-0	04	1	1305-
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	1302-
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-523-0	01	1	1305-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-48199-166-0	01	1	1302-
93	SILENCER; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-619-0	01	1	1305-
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-496-0	02	1	1305-
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	8-98226-321-0	01	1	1305-
109	STOPPER; CHECK VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-539-0	01	1	1305-
110	NUT; CAP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-527-0	01	1	1305-
111	PLATE; GOVERNOR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-526-0	01	1	1305-
112	SCREW & SPRING ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-524-0	01	1	1305-
113	STEM; EXHAUST 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-522-0	01	1	1305-
114	PISTON ASM; GOVERNOR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-521-0	01	1	1305-

3 2 104 68 70 104 104 4 65 70 104 104 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-85576-217-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98226-323-0	01	1	1305-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-85576-226-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-85576-193-0	01	1	1302-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98226-322-0	01	1	1305-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-85576-057-1	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-85576-218-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-85576-443-0	01	1	1305-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-85576-254-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-517-0	01	1	1305-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-408-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-515-0	01	1	1305-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-504-0	01	1	1305-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7>	1-48199-105-0	01	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-496-0	02	1	1305-
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	8-98226-321-0	01	1	1305-

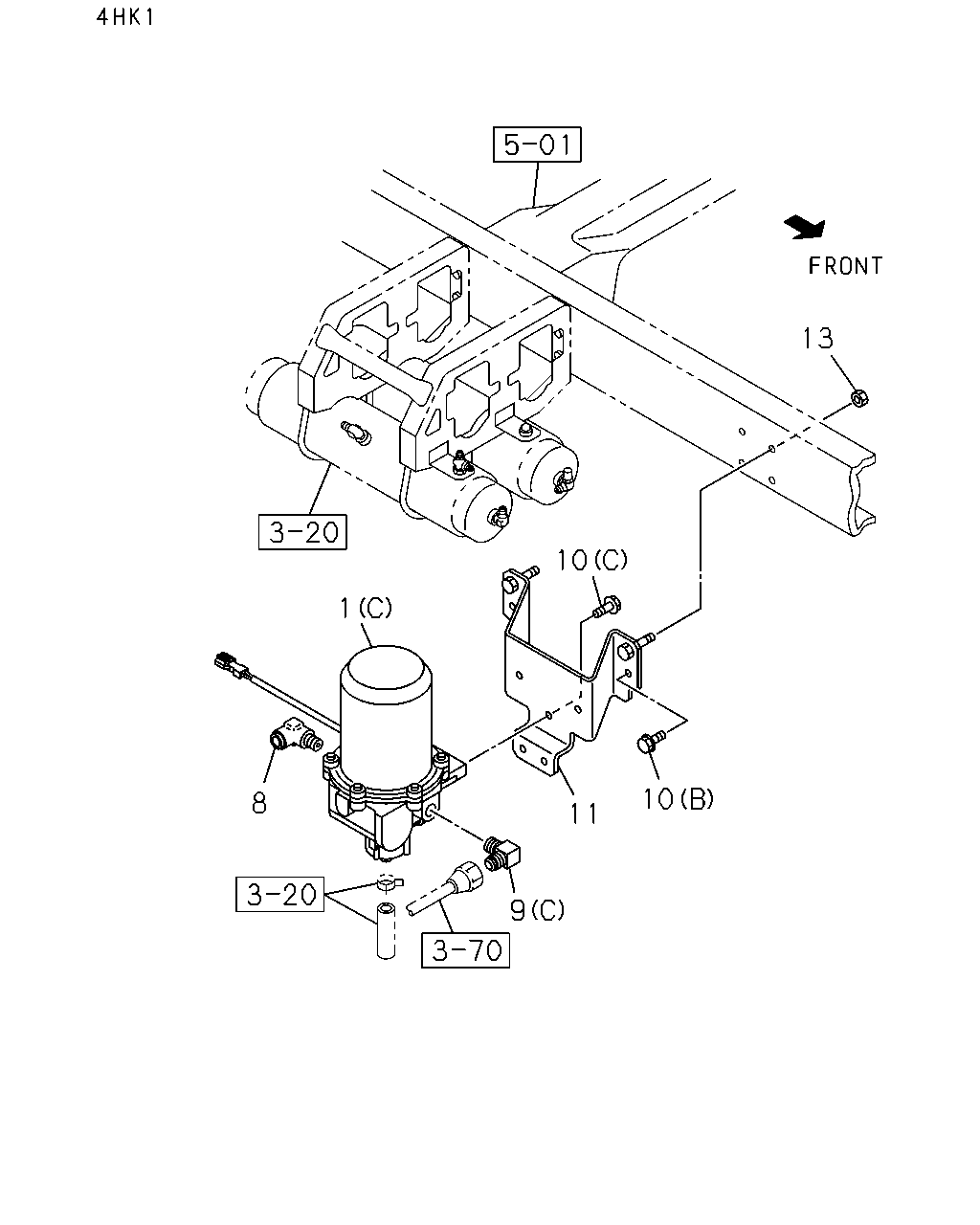

13 1 10 11 10 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	8-98225-285-0	01	1	1305-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48190-277-1	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1305-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M10X20 FLANGE	0-28051-020-0	03	1	1302-
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M10X25 FLANGE	0-28051-025-0	03	1	1305-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 FLANGE	0-28651-025-0	04	1	1302-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	8-98120-190-0	01	1	1302-
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	8-98225-807-0	01	1	1305-
13	NUT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	1302-1303
13	NUT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	1304-
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
