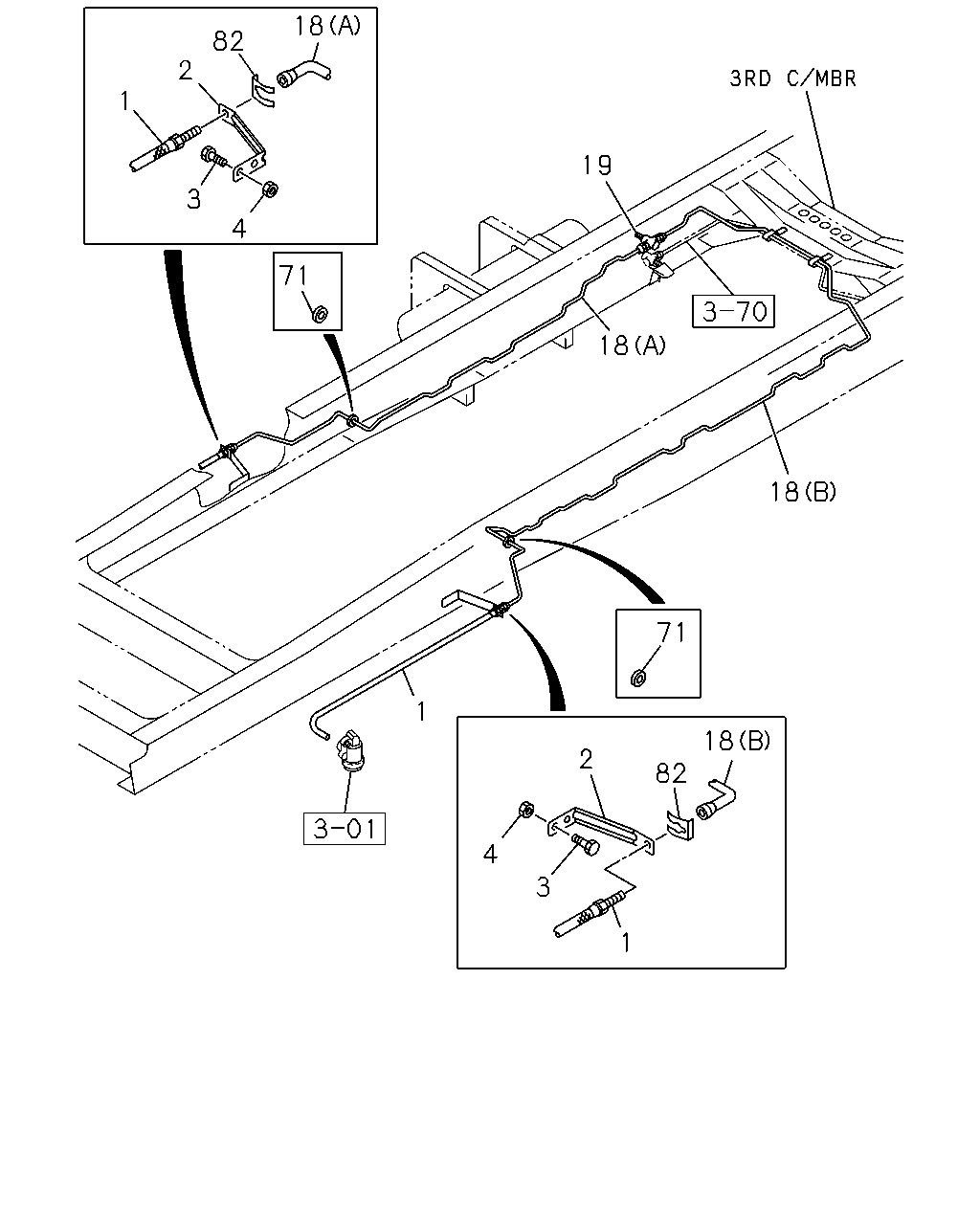

3-52 — BRAKE PIPING; OIL,FRONT (#114343) — 15 parça

1 2 82 18 19 18 18 1 4 2 82 18 1 3 71 3 4 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	02	1	1302-
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=660	8-98232-626-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-947-1	02	1	1302-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1302-
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3162	8-98113-896-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1821	8-98067-419-0	01	1	1302-
19	UNION; OIL PIPE	8-98113-738-0	01	1	1302-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	1302-

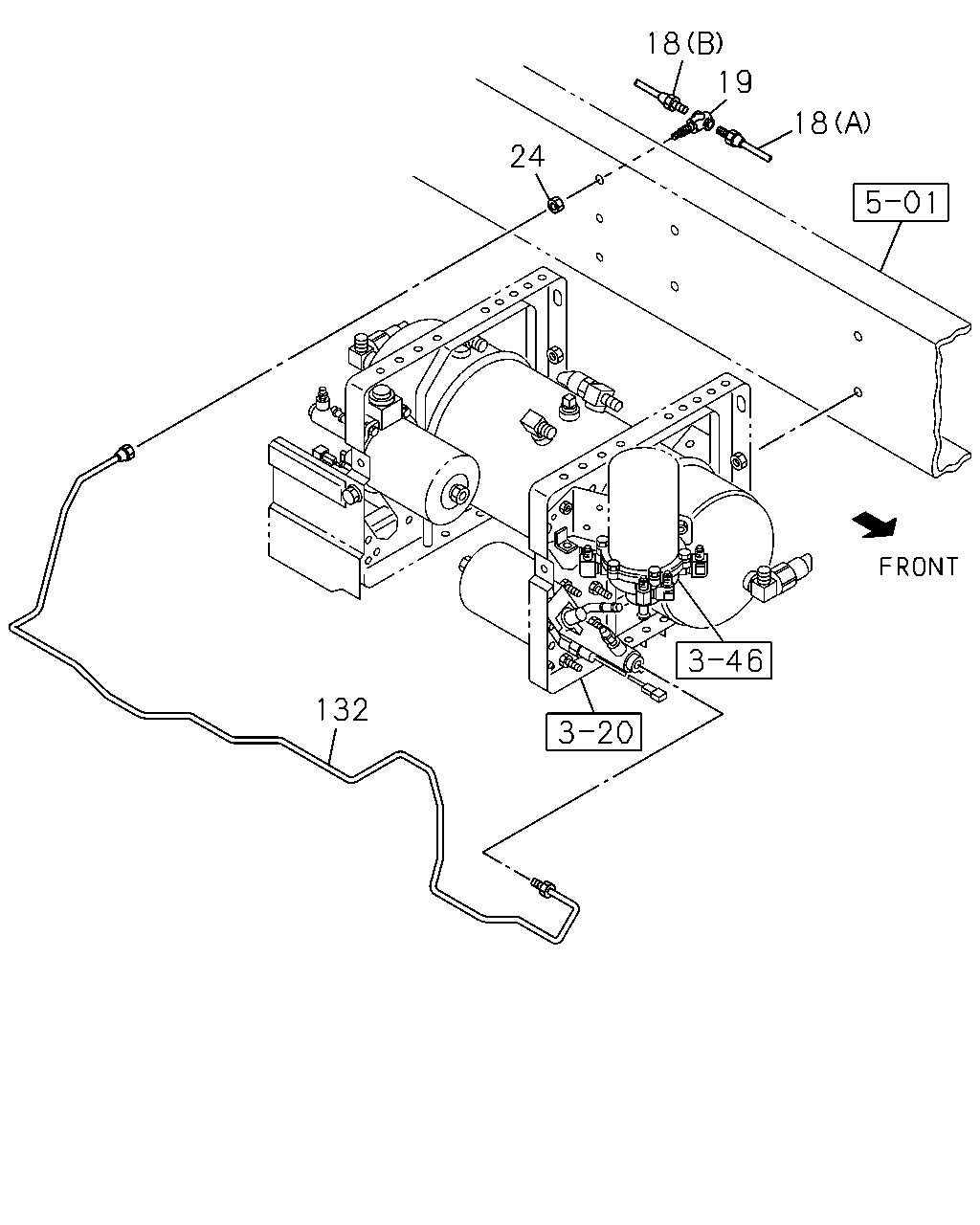

24 18 19 18 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3162	8-98113-896-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1821	8-98067-419-0	01	1	1302-
19	UNION; OIL PIPE	8-98113-738-0	01	1	1302-
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT L=1505	8-98213-211-0	01	1	1302-
