Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#114342) — 334 parça

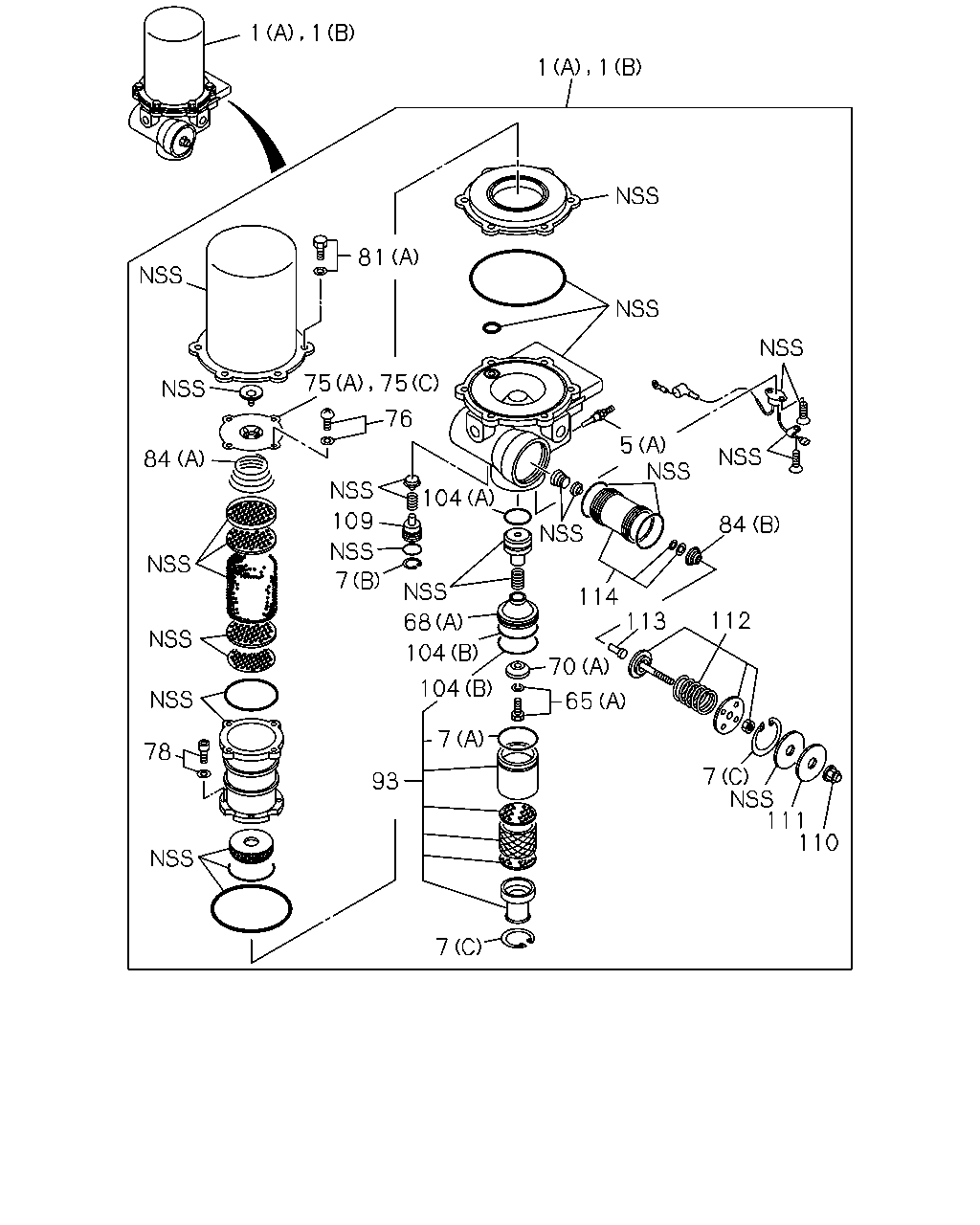

1 1 1 1 81 84 78 93 104 68 104 76 75 75 114 113 112 7 111 110 65 7 70 7 84 5 104 109 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48190-277-1	01	1	1302-
1	DRYER; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-292-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-48190-210-1	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-085-0	02	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-085-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-48199-154-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	1-48199-403-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-216-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-408-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-
75	COVER; CASE,AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-167-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-562-0	01	1	1302-
76	BOLT; COVER,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-412-0	04	1	1302-
76	BOLT; COVER,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-412-0	04	1	1302-
76	BOLT; COVER,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-561-0	06	1	1302-
78	BOLT; OIL FILTER,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-417-0	04	1	1302-
78	BOLT; OIL FILTER,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-417-0	04	1	1302-
78	BOLT; OIL FILTER,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-557-0	04	1	1302-
81	BOLT; CASE,AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-177-0	02	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-436-0	08	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-166-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-564-0	01	1	1302-
93	SILENCER; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-619-0	01	1	1302-
93	SILENCER; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-619-0	01	1	1302-
93	SILENCER; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-619-0	01	1	1302-
104	GASKET 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	02	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-496-0	02	1	1302-
104	GASKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	01	1	1302-
104	GASKET 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-321-0	01	1	1302-
104	GASKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-321-0	01	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	8-98226-321-0	01	1	1302-
109	STOPPER; CHECK VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-539-0	01	1	1302-
109	STOPPER; CHECK VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-539-0	01	1	1302-
109	STOPPER; CHECK VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-539-0	01	1	1302-
110	NUT; CAP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-527-0	01	1	1302-
110	NUT; CAP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-527-0	01	1	1302-
110	NUT; CAP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-527-0	01	1	1302-
111	PLATE; GOVERNOR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-526-0	01	1	1302-
111	PLATE; GOVERNOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-526-0	01	1	1302-
111	PLATE; GOVERNOR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-526-0	01	1	1302-
112	SCREW & SPRING ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-524-0	01	1	1302-
112	SCREW & SPRING ASM; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-524-0	01	1	1302-
112	SCREW & SPRING ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-524-0	01	1	1302-
113	STEM; EXHAUST 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-522-0	01	1	1302-
113	STEM; EXHAUST 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-522-0	01	1	1302-
113	STEM; EXHAUST 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-522-0	01	1	1302-
114	PISTON ASM; GOVERNOR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-521-0	01	1	1302-
114	PISTON ASM; GOVERNOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-521-0	01	1	1302-
114	PISTON ASM; GOVERNOR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-521-0	01	1	1302-

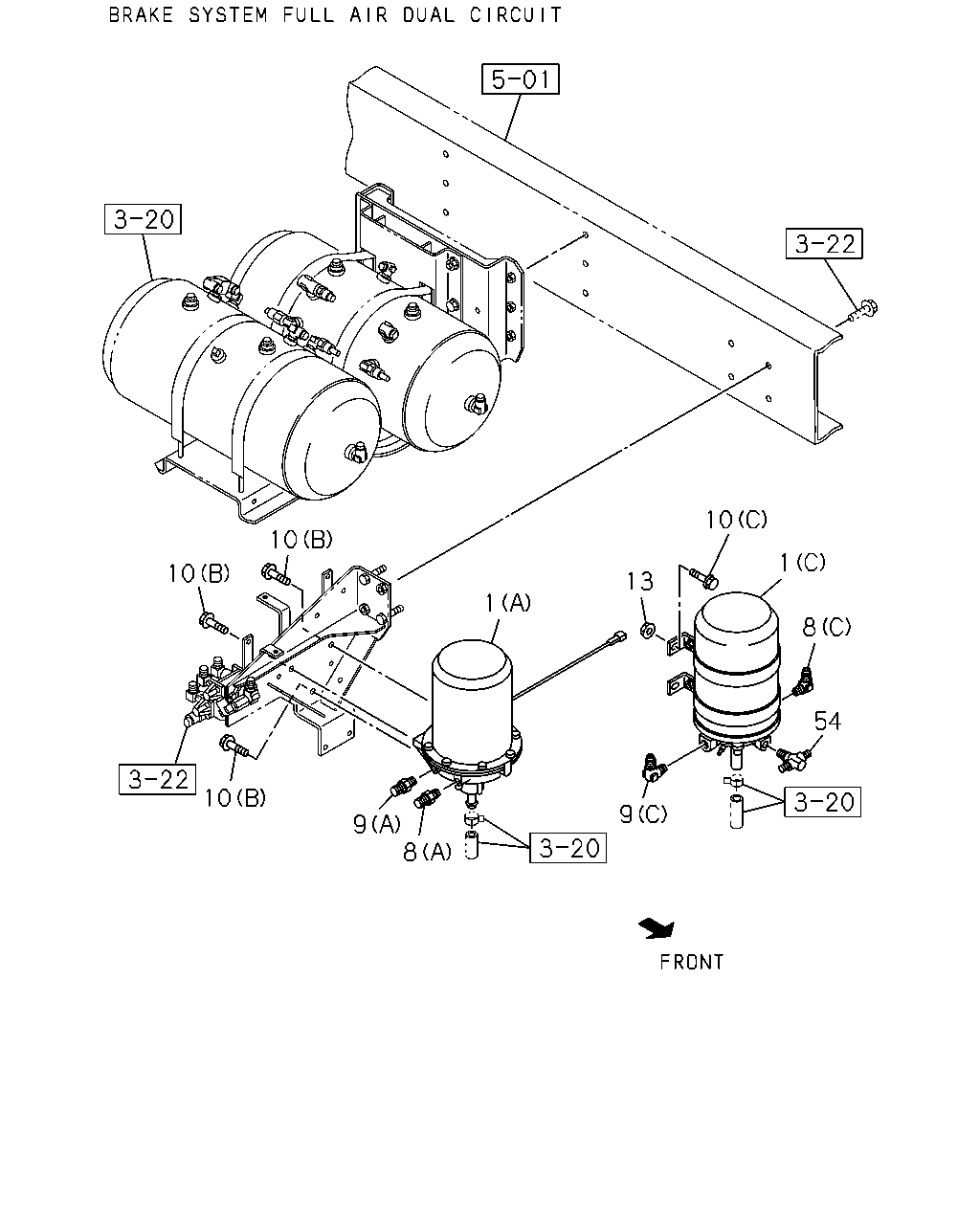

10 10 1 13 10 10 9 8 9 1 8 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48190-277-1	01	1	1302-
1	DRYER; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-292-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-48190-210-1	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE	0-28051-025-0	03	1	1302-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M10X25 FLANGE	0-28051-025-0	03	1	1302-
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
10	BOLT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M10X25 FLANGE	0-28651-025-0	04	1	1302-
10	BOLT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) M12X25 FLANGE	0-28051-225-0	03	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M10X20 FLANGE	0-28051-020-0	03	1	1302-
13	NUT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	1302-1303
13	NUT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	04	1	1302-1303
13	NUT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	04	1	1304-
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	1304-
54	CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1302-

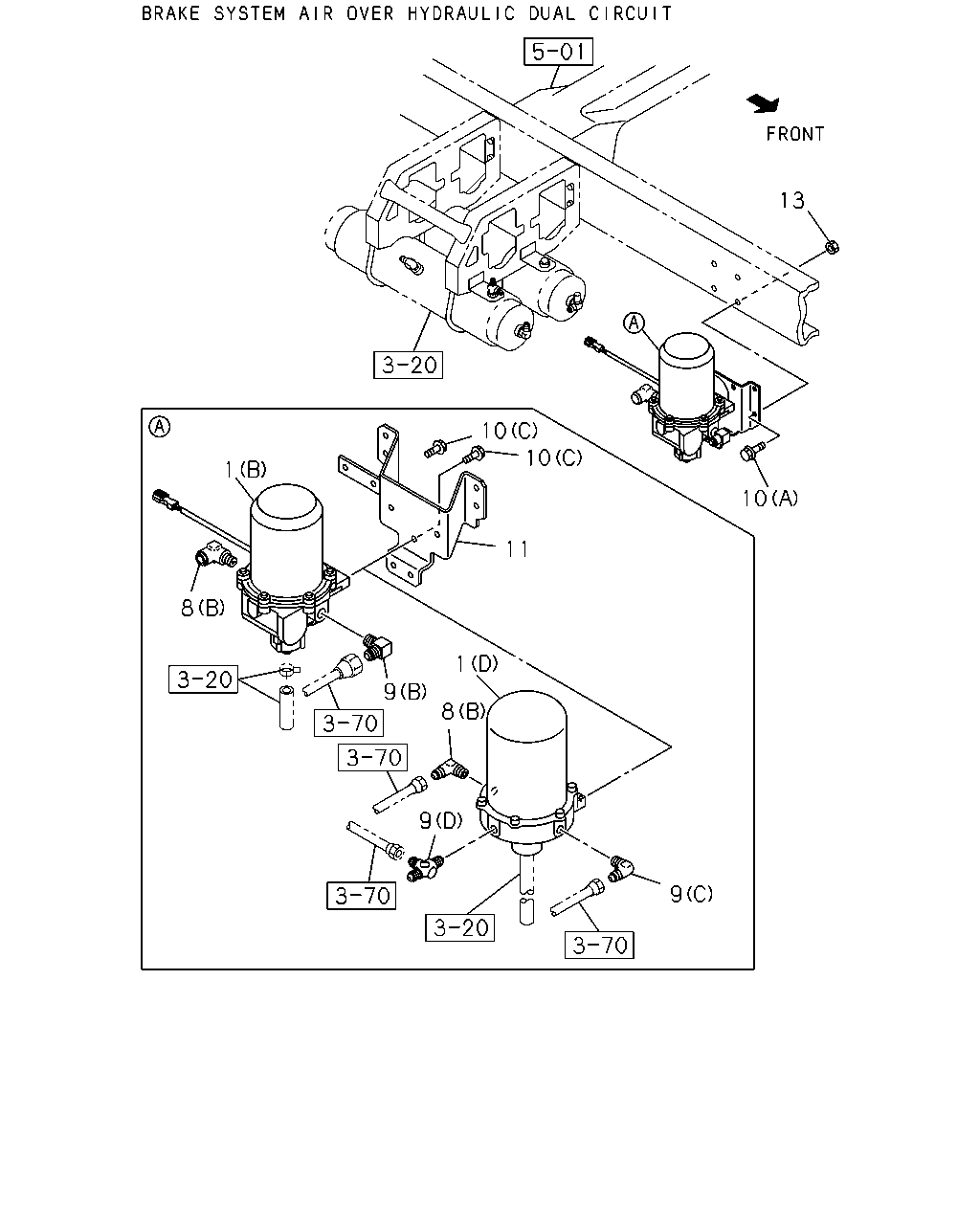

13 10 10 10 11 1 8 8 9 1 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48190-277-1	01	1	1302-
1	DRYER; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-292-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-48190-210-1	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE	0-28051-025-0	03	1	1302-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M10X25 FLANGE	0-28051-025-0	03	1	1302-
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
10	BOLT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M10X25 FLANGE	0-28651-025-0	04	1	1302-
10	BOLT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) M12X25 FLANGE	0-28051-225-0	03	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M10X20 FLANGE	0-28051-020-0	03	1	1302-
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	8-98225-807-0	01	1	1302-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	8-98120-190-0	01	1	1302-
13	NUT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	1302-1303
13	NUT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	04	1	1302-1303
13	NUT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	04	1	1304-
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	1304-

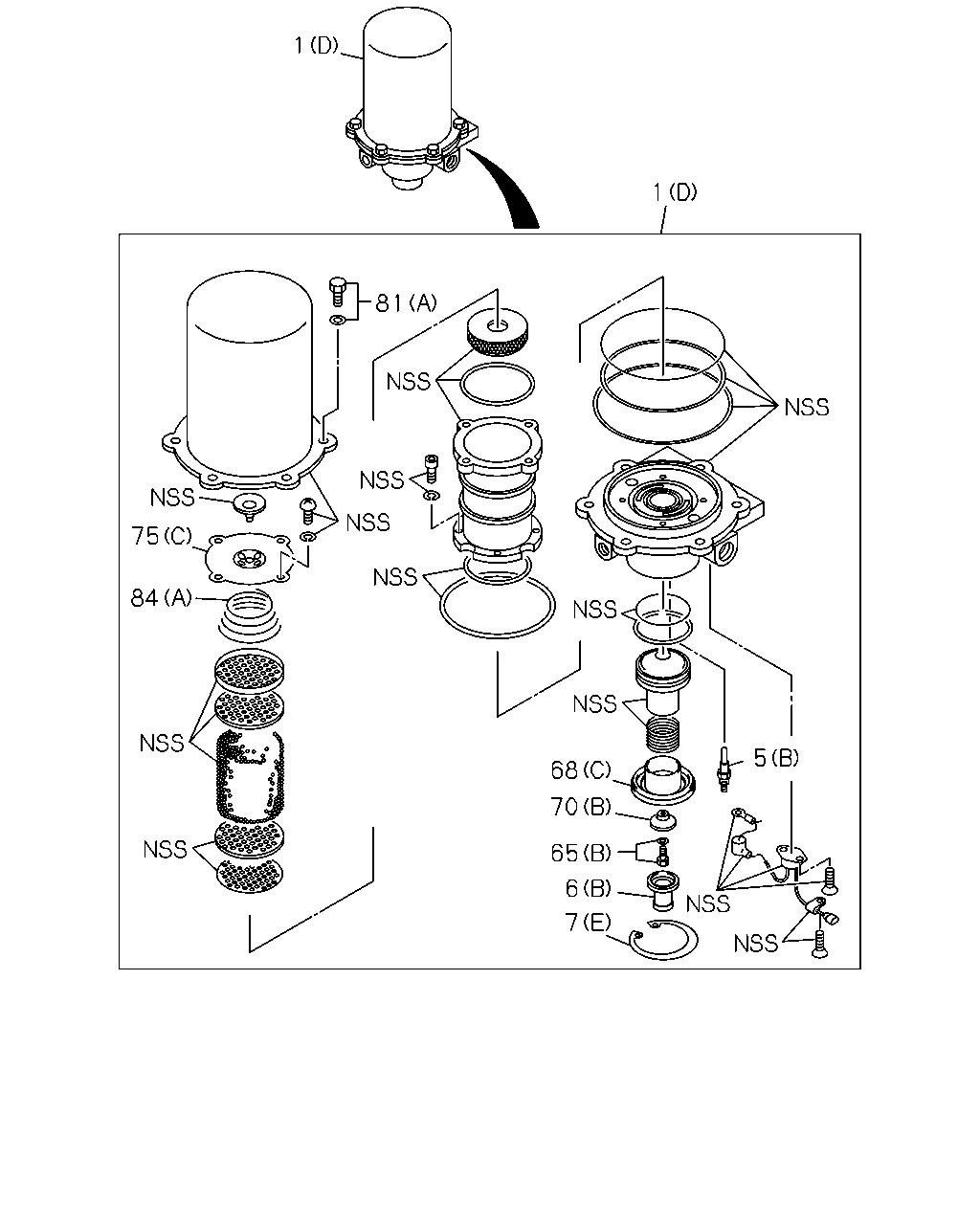

1 1 75 84 81 68 70 65 6 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48190-277-1	01	1	1302-
1	DRYER; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-292-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-48190-210-1	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-085-0	02	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-085-0	01	1	1302-
6	COVER; EXH,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	1-48199-101-0	01	1	1302-
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-404-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-48199-154-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	1-48199-403-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-216-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-408-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-
75	COVER; CASE,AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-167-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-562-0	01	1	1302-
81	BOLT; CASE,AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-177-0	02	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-436-0	08	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-166-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-564-0	01	1	1302-

3 2 2 104 70 104 104 68 104 104 104 65 70 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

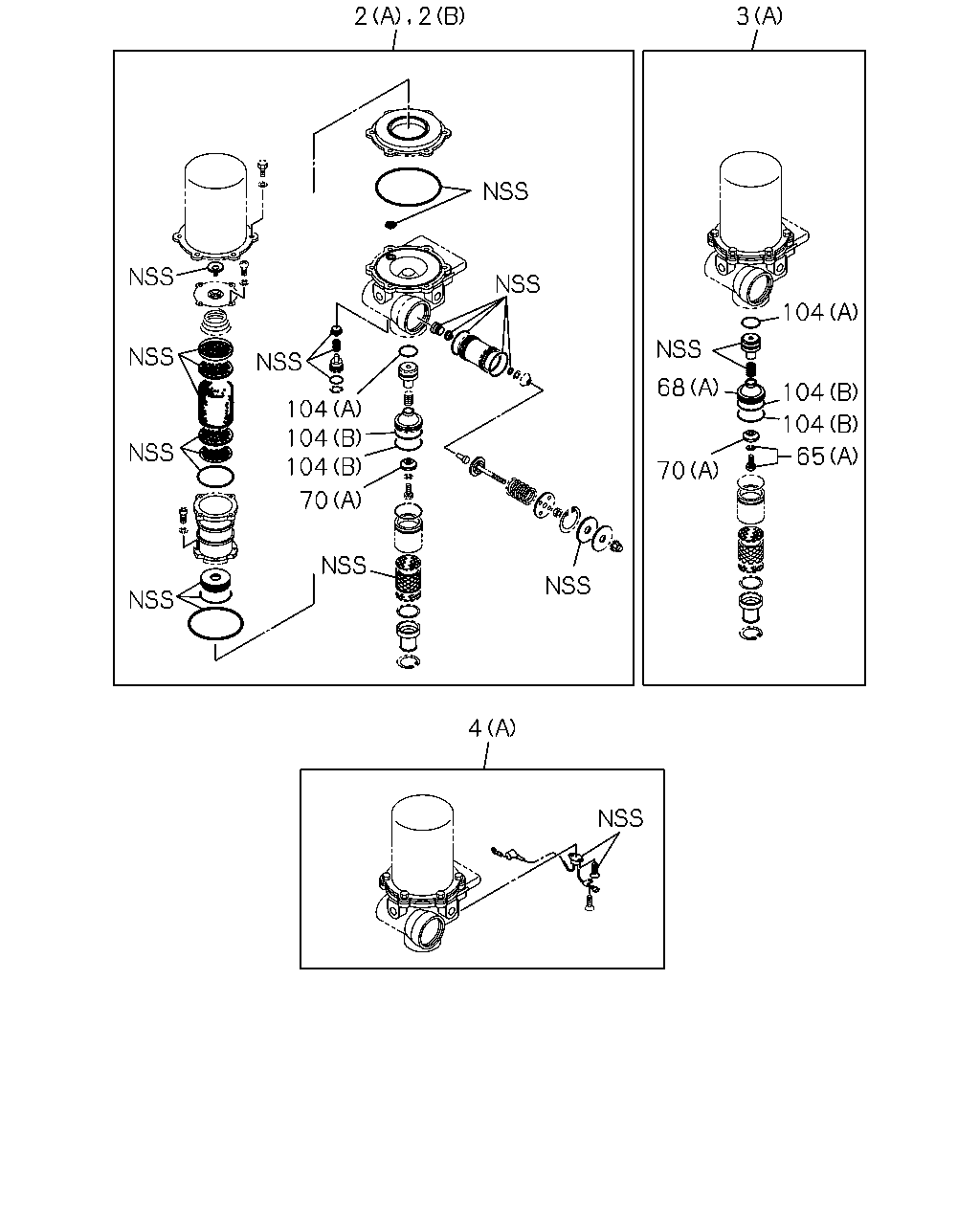

2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-85576-226-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-328-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-85576-217-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-057-1	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-85576-193-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-254-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-444-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-85576-218-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-216-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-408-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-
104	GASKET 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	02	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-496-0	02	1	1302-
104	GASKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	01	1	1302-
104	GASKET 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-321-0	01	1	1302-
104	GASKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-321-0	01	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	8-98226-321-0	01	1	1302-

1 1 86 86 79 79 80 80 71 88 81 88 81 5 7 6 65 70 68 75 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

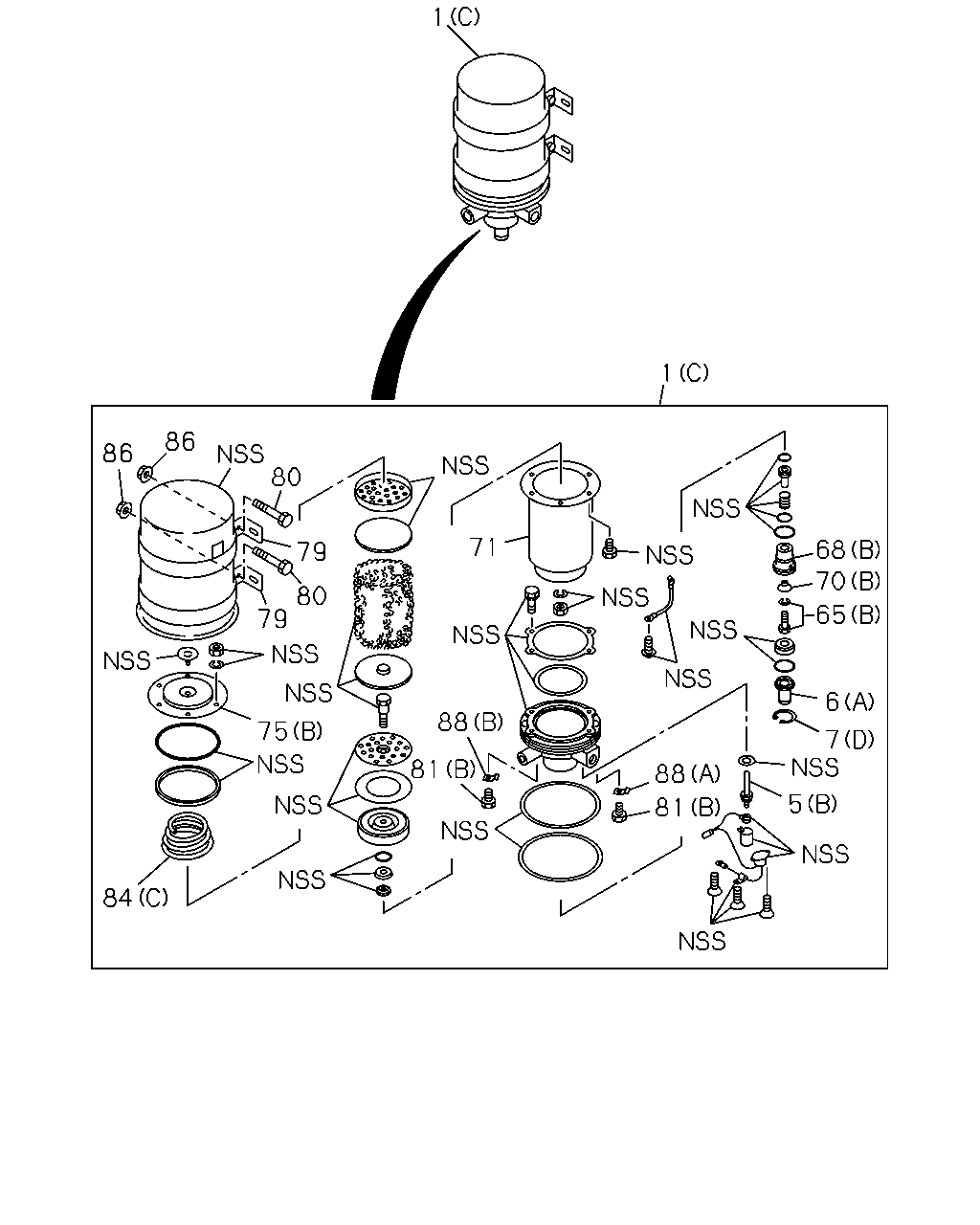

1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48190-277-1	01	1	1302-
1	DRYER; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-292-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-48190-210-1	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-085-0	02	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-085-0	01	1	1302-
6	COVER; EXH,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	1-48199-101-0	01	1	1302-
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-404-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-48199-154-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	1-48199-403-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-216-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-408-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-
71	CASE; INNER,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-156-1	01	1	1302-
75	COVER; CASE,AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-167-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-562-0	01	1	1302-
79	BRACKET; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-189-0	02	1	1302-
80	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-190-0	02	1	1302-
81	BOLT; CASE,AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-177-0	02	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-436-0	08	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-166-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-564-0	01	1	1302-
86	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-320-0	02	1	1302-
88	PLATE; STOPPER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	1-48199-178-0	01	1	1302-
88	PLATE; STOPPER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-179-0	01	1	1302-

2 3 4 68 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

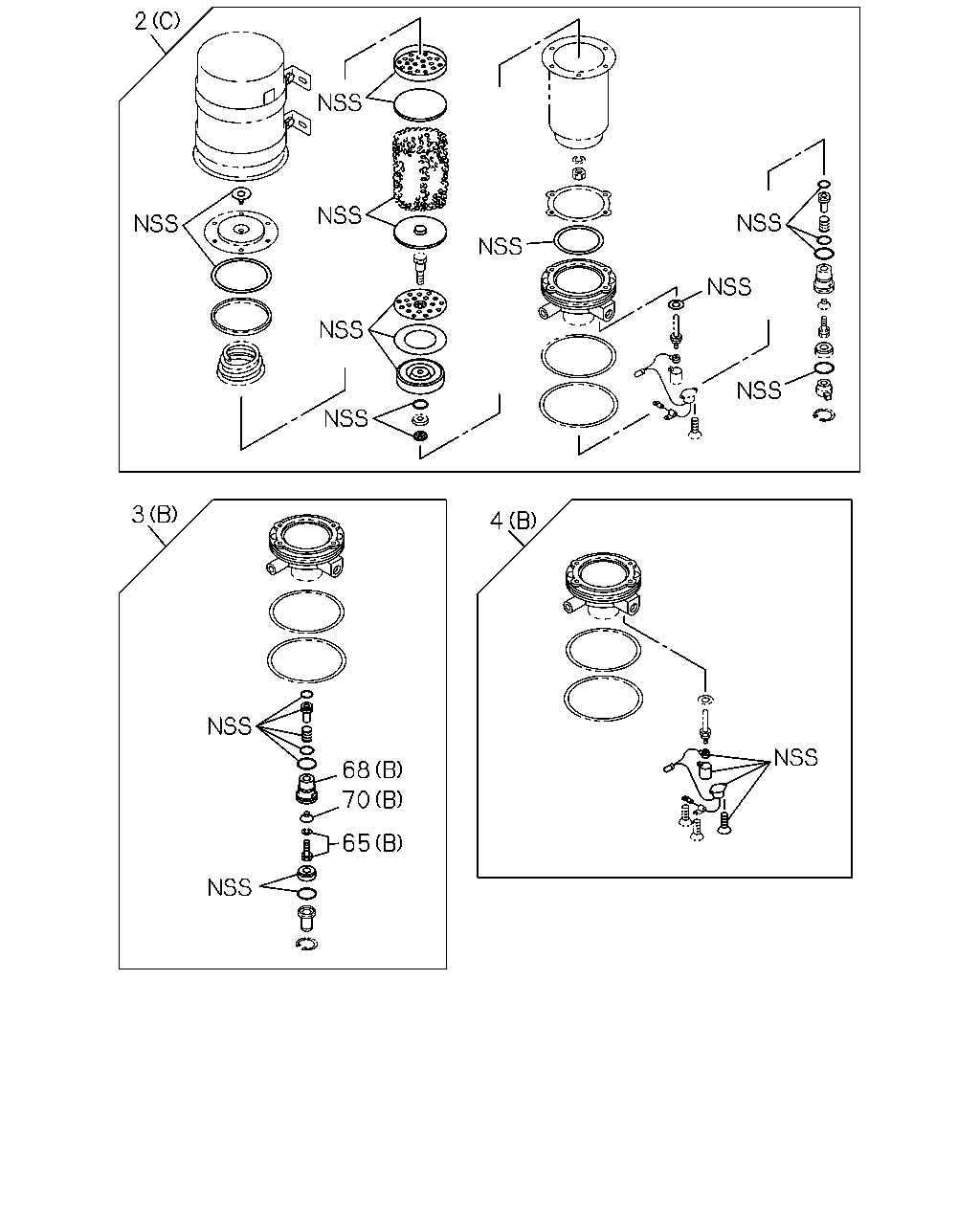

2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-85576-226-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-328-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-85576-217-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-057-1	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-85576-193-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-254-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-444-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-85576-218-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-216-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-408-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-

2 3 68 70 65 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

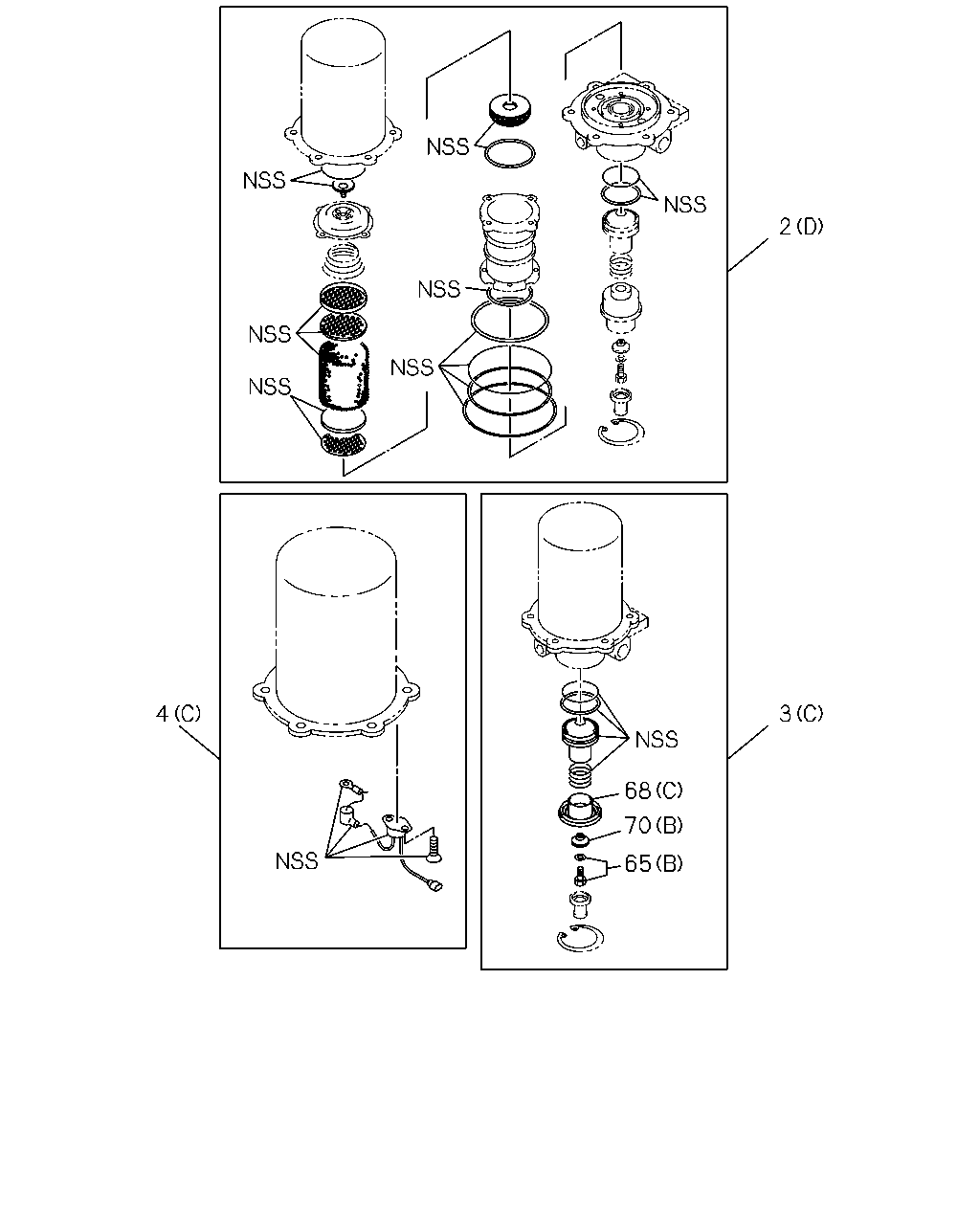

2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-85576-226-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-328-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	1-85576-217-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-057-1	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-85576-193-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-254-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-444-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-85576-218-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-216-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	1-48199-408-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
