Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#11434) — 244 parça

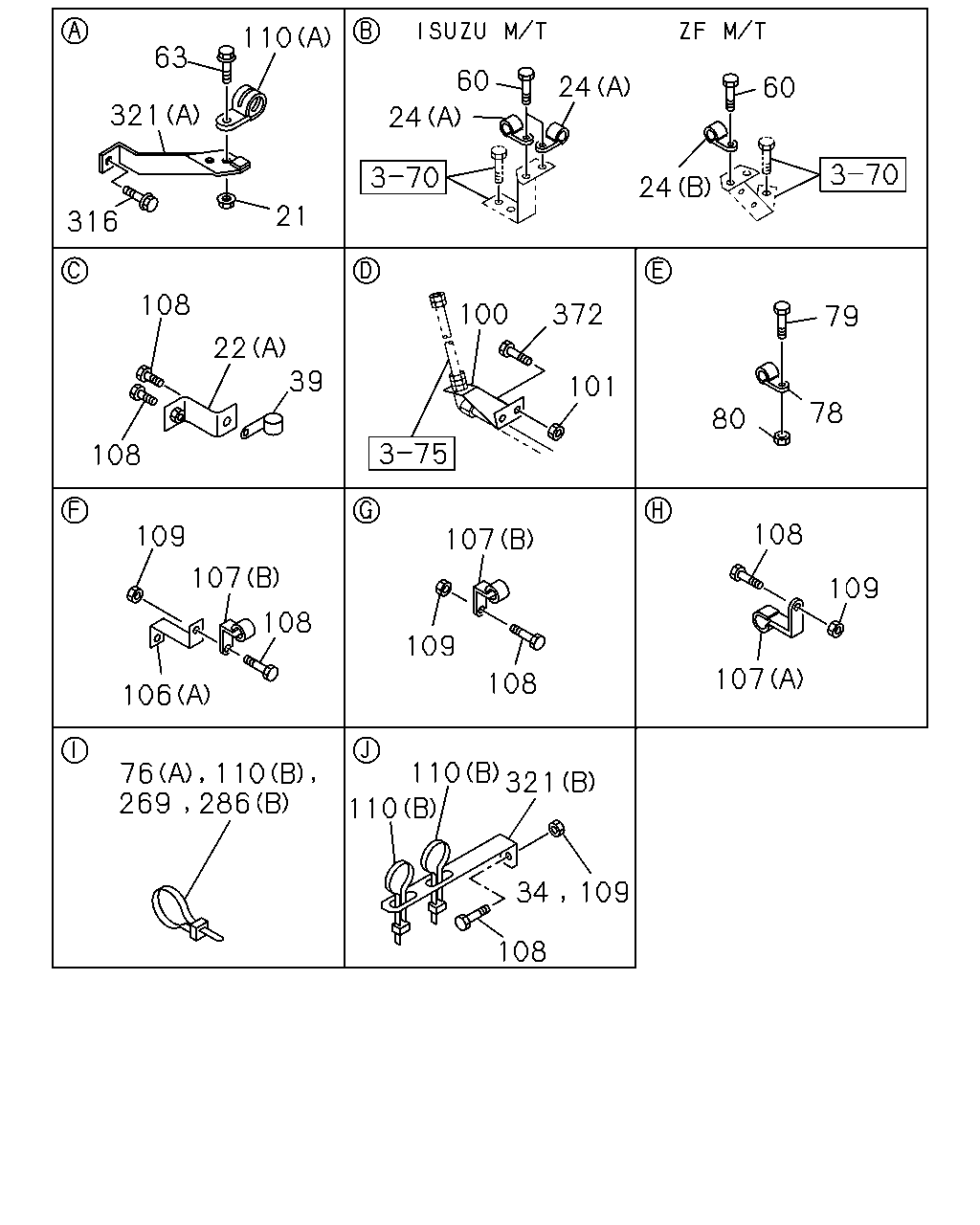

79 78 80 108 107 109 109 108 110 110 321 34 286 269 110 76 108 109 107 106 108 107 109 101 372 100 39 22 108 108 60 24 24 60 24 21 316 321 63 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
22	BRACKET; CLIP ZF M/T<X9E> (A)	1-47477-088-1	01	1	0106-0106
22	BRACKET; CLIP (A)	1-47477-088-1	01	1	0107-
22	BRACKET; CLIP (B)	1-47477-514-3	02	1	0106-
22	BRACKET; CLIP ZF M/T<X9E> (C) L=100 H=30	1-47477-645-2	01	1	0106-0106
22	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0107-
22	BRACKET; CLIP ISUZU M/T<X9A> (A)	1-47475-689-0	01	1	0106-0106
24	CLIP; PIPE ZF M/T<X9E> (B) ID=16 L=28	9-09525-556-0	01	1	0106-0108
24	CLIP; PIPE MJD7R M/T(Y2X) (A) ID=16 L=20	9-09525-535-0	02	1	0106-0108
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	0109-0606
24	CLIP; PIPE (A) ID=16 L=20	0-95235-535-0	02	1	0607-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0602
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
39	CLIP; AIR PIPE L=250	1-09707-126-0	02	1	0106-
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0106-0108
60	BOLT; CLIP FIX MJD7R M/T(Y2X) M8X25 FLANGE	0-28680-825-0	02	1	0106-0108
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0512
60	BOLT; CLIP FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
63	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	0106-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	0106-
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	0106-
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	02	1	0106-
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	0106-0606
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 L=28	0-95235-556-0	01	1	0607-
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	0601-
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0106-0602
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	0106-
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	0106-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0106-0602
101	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
106	BRACKET; TUBE CLIP (B) L=85	1-47476-758-0	01	1	0108-
106	BRACKET; TUBE CLIP (A)	1-47477-694-0	01	1	0106-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (D) ID=35 L=35	1-09700-895-0	01	1	0108-0108
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (D) ID=35 L=35	1-09700-895-0	01	1	0108-0108
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=35 L=35	1-09700-895-0	01	1	0109-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 L=35	5-09700-293-1	01	1	0108-0108
107	CLIP; NYLON TUBE EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 L=35	5-09700-293-1	01	1	0109-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-0108
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-0108
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0109-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0106-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0106-0107
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-0108
107	CLIP; NYLON TUBE EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0109-
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0106-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0106-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	04	1	0108-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28050-825-0	04	1	0601-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-0108
108	BOLT; TUBE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-0108
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0109-0512
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
109	NUT; TUBE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0108
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	01	1	0112-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0106-0108
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0106-0108
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0106-0108
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0109-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0109-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0205-0304
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0305-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0305-
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09701-261-0	01	1	0106-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	07	1	0106-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	17	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	19	1	0205-0304
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	21	1	0305-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	09	1	0106-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0106-0108
286	CLIP; NYLON TUBE (A) L=250	5-09707-030-1	01	1	0109-0109
286	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	01	1	0110-
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	05	1	0106-0108
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
316	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
316	BOLT; CLIP M8X35 FLANGE	0-28650-835-0	01	1	0601-
321	BRACKET; CLIP (C)	1-47477-386-2	01	1	0106-
321	BRACKET; CLIP (B) L=150	1-47477-629-2	01	1	0106-0106
321	BRACKET; CLIP (B)	1-47477-088-1	01	1	0107-
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	0106-
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (B) L=100 H=30	1-47477-645-2	01	1	0106-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0106-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-

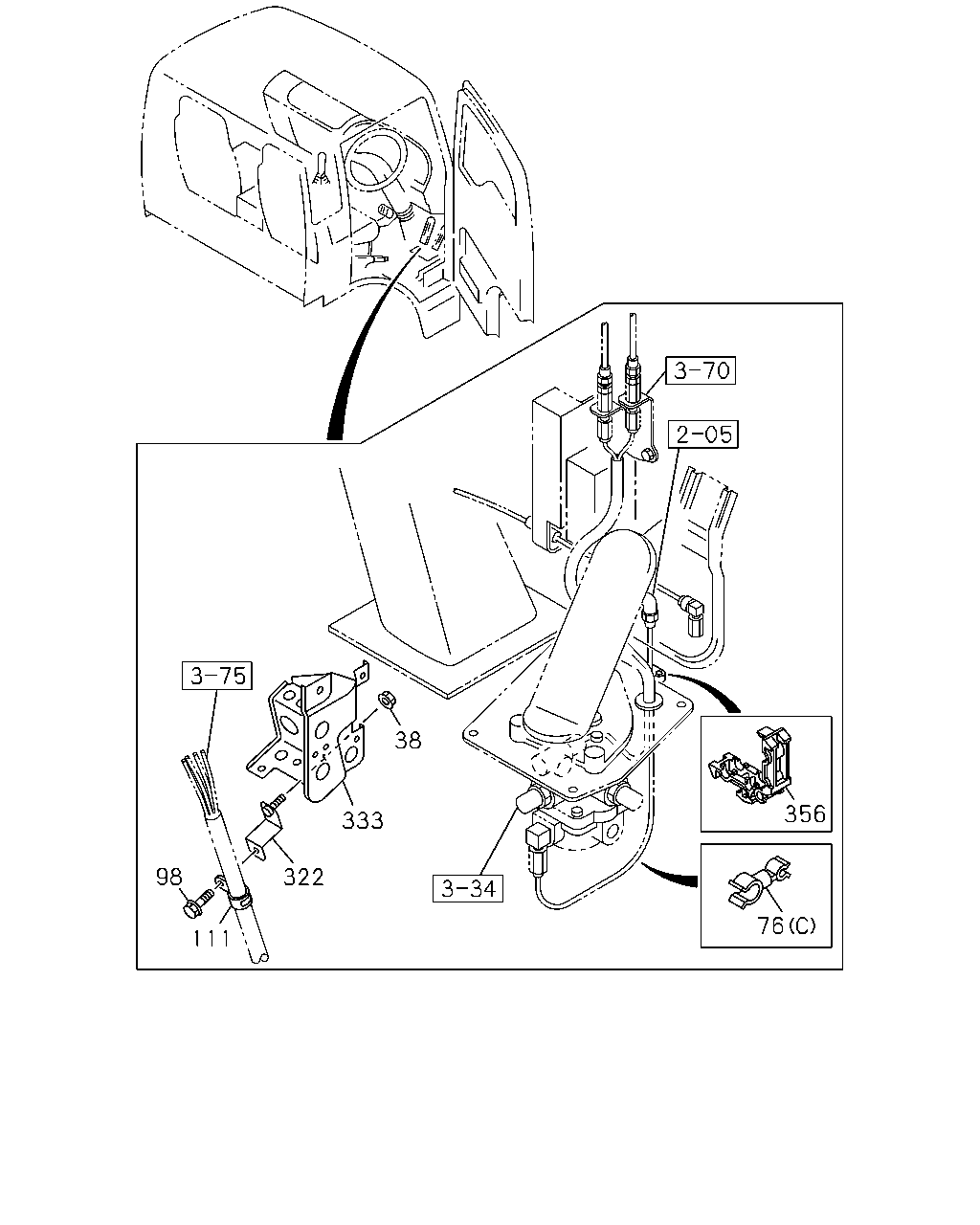

356 76 333 38 322 111 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0602
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	0106-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	0106-
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	0106-
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	02	1	0106-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0106-
322	BRACKET; CLIP	1-79996-360-0	01	1	0106-0601
322	BRACKET; CLIP	1-79996-659-1	01	1	0602-
333	BRACKET; BRK AIR PIPE	1-79997-360-6	01	1	0106-
356	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0106-0108
356	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0106-0108
356	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0109-

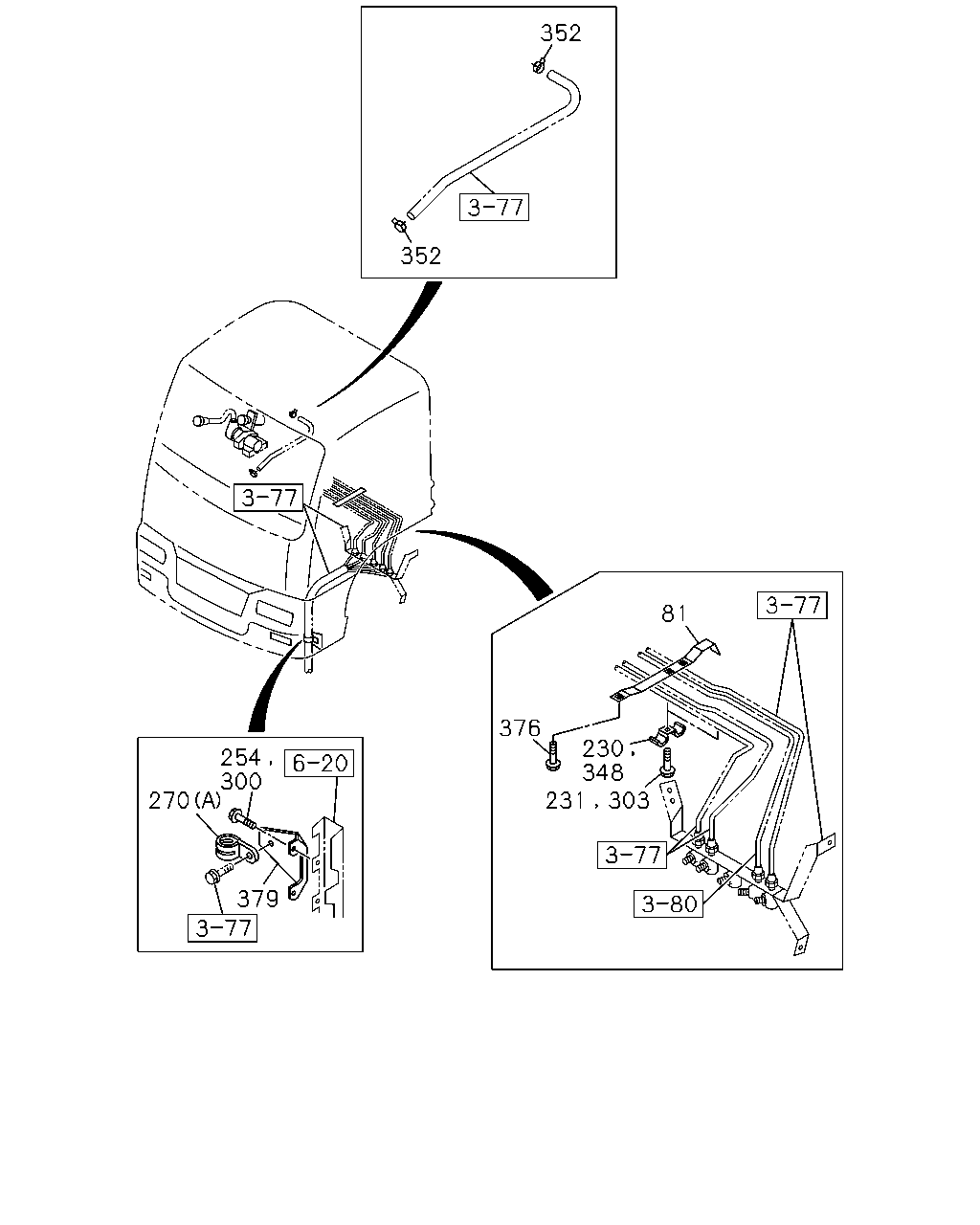

352 352 254 300 270 379 81 376 230 231 303 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP	1-47477-483-0	01	1	0106-0206
81	BRACKET; CLIP	1-47477-483-0	01	1	0106-0206
81	BRACKET; CLIP	1-47477-483-0	01	1	0207-
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0106-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	0106-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	0205-0205
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	02	1	0106-0308
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	01	1	0309-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0206-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0206-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0106-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0106-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0106-0206
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0207-
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28650-830-0	01	1	0601-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0106-

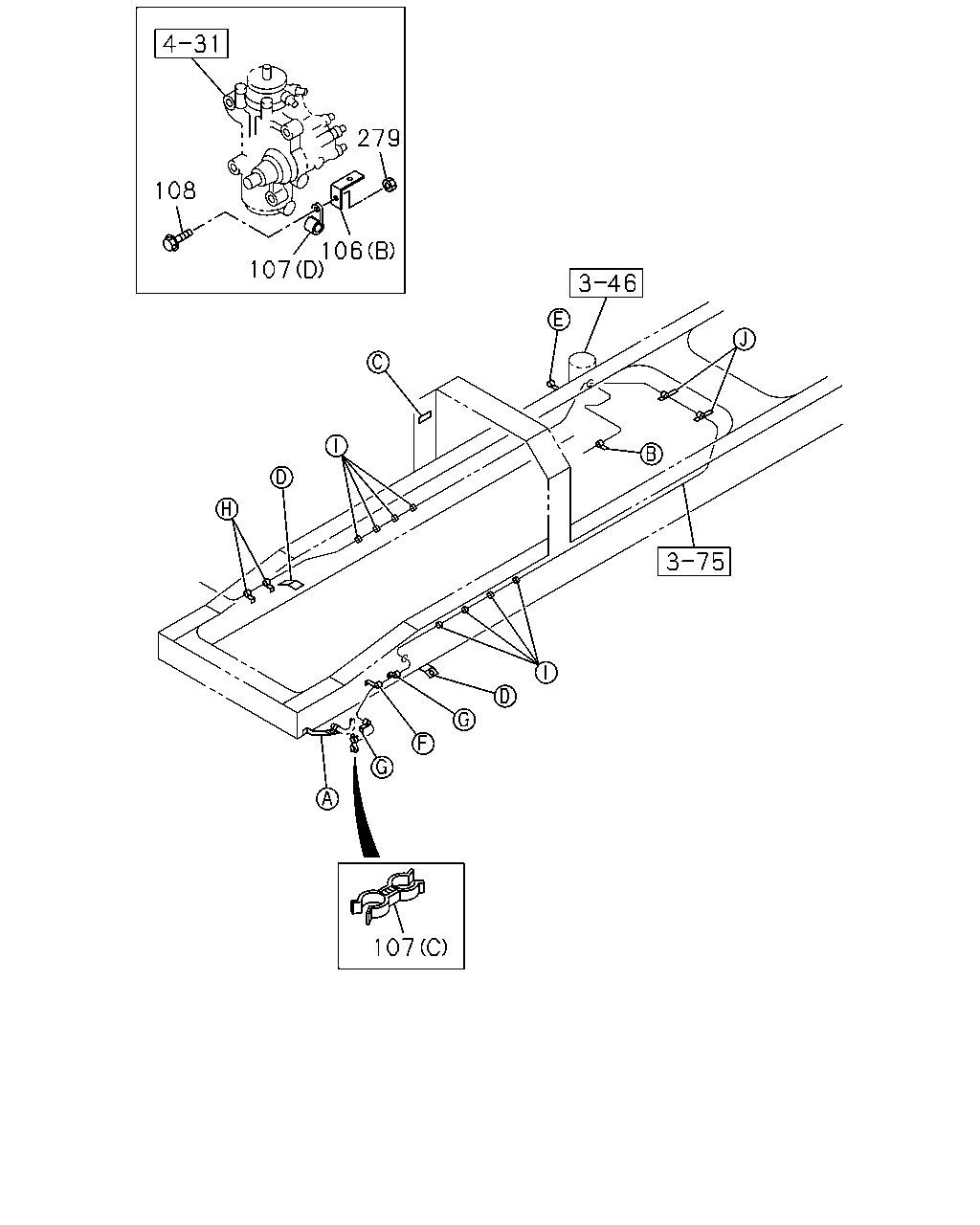

108 279 106 107 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	BRACKET; TUBE CLIP (B) L=85	1-47476-758-0	01	1	0108-
106	BRACKET; TUBE CLIP (A)	1-47477-694-0	01	1	0106-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (D) ID=35 L=35	1-09700-895-0	01	1	0108-0108
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (D) ID=35 L=35	1-09700-895-0	01	1	0108-0108
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=35 L=35	1-09700-895-0	01	1	0109-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 L=35	5-09700-293-1	01	1	0108-0108
107	CLIP; NYLON TUBE EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 L=35	5-09700-293-1	01	1	0109-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-0108
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-0108
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0109-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0106-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0106-0107
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-0108
107	CLIP; NYLON TUBE EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0109-
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0106-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0106-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	04	1	0108-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28050-825-0	04	1	0601-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-0108
108	BOLT; TUBE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-0108
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0109-0512
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0106-0108
279	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0109-0602
279	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-

297 22 411 27 22 270 110 286 296 20 76 293 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0106-0512
20	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
22	BRACKET; CLIP ZF M/T<X9E> (A)	1-47477-088-1	01	1	0106-0106
22	BRACKET; CLIP (A)	1-47477-088-1	01	1	0107-
22	BRACKET; CLIP (B)	1-47477-514-3	02	1	0106-
22	BRACKET; CLIP ZF M/T<X9E> (C) L=100 H=30	1-47477-645-2	01	1	0106-0106
22	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0107-
22	BRACKET; CLIP ISUZU M/T<X9A> (A)	1-47475-689-0	01	1	0106-0106
27	CLIP; FLEX HOSE ID=10 & 10	1-09709-277-1	01	1	0106-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	0106-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	0106-
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	0106-
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	02	1	0106-
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	01	1	0112-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0106-0108
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0106-0108
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0106-0108
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0109-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0109-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0205-0304
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0305-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0305-
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09701-261-0	01	1	0106-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	07	1	0106-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	17	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	19	1	0205-0304
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	21	1	0305-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	02	1	0106-0308
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	01	1	0309-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0106-0108
286	CLIP; NYLON TUBE (A) L=250	5-09707-030-1	01	1	0109-0109
286	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	01	1	0110-
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	05	1	0106-0108
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	0106-
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0106-0108
297	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0109-0602
297	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0106-0602
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
411	SLEEVE; RUBBER AIR DRYER<PS7> ID=29 OD=39 L=40	1-09337-013-0	01	1	0110-

375 299 298 133 279 1 2 3 133 42 41 69 321 3 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	0106-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0106-0602
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
41	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-
42	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
42	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	01	1	0601-
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0106-0602
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
133	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
133	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
133	BOLT; BRKT ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	0106-0108
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0106-0108
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0109-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-0512
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0106-0108
279	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0109-0602
279	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
298	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
298	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
299	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
299	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
321	BRACKET; CLIP (C)	1-47477-386-2	01	1	0106-
321	BRACKET; CLIP (B) L=150	1-47477-629-2	01	1	0106-0106
321	BRACKET; CLIP (B)	1-47477-088-1	01	1	0107-
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	0106-
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (B) L=100 H=30	1-47477-645-2	01	1	0106-
375	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
