Isuzu WW
▶
TRUCKS
▶
FVM
▶
11516 - FVM(RHD)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#114339) — 28 parça
◀

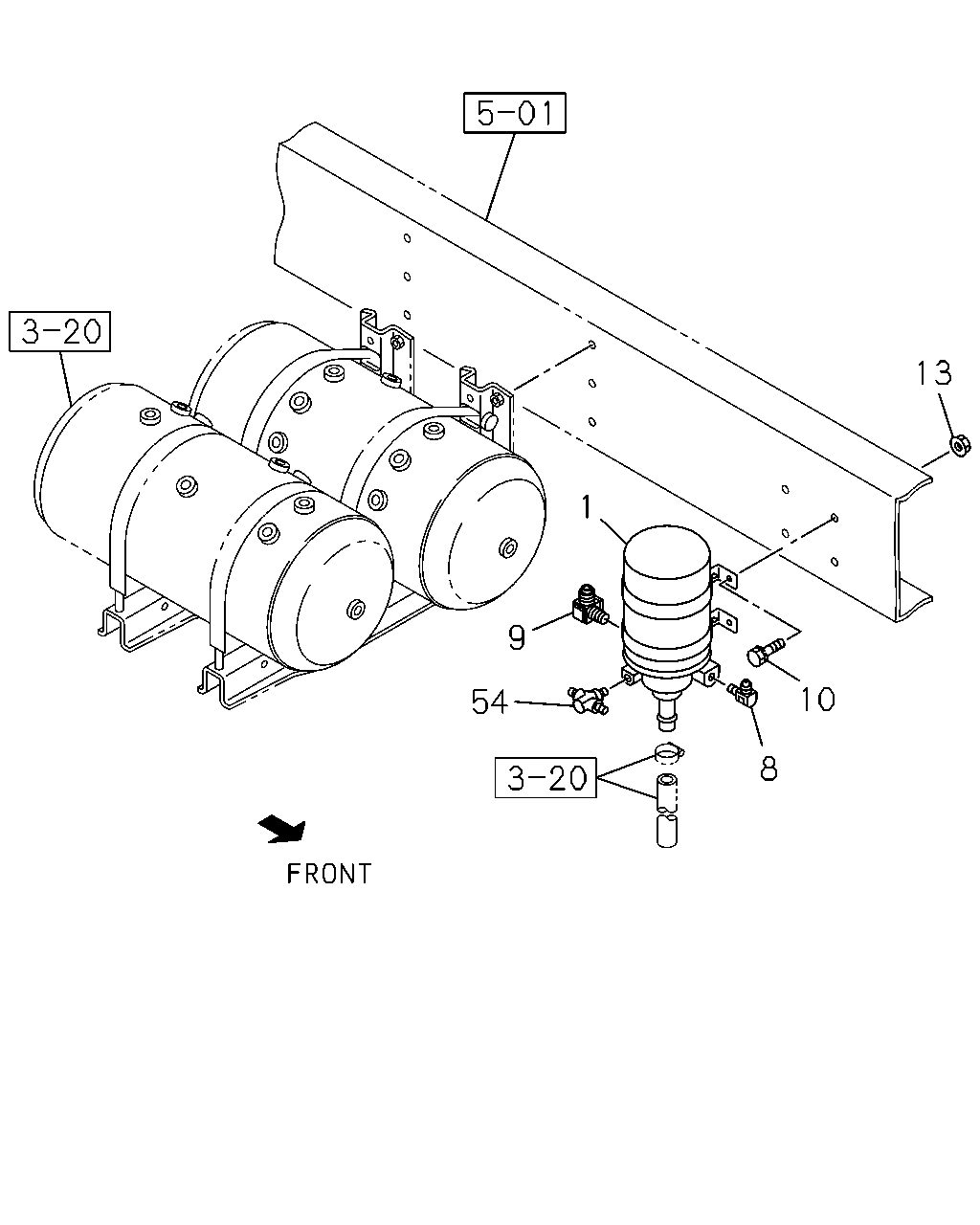

[346A] FIXING (6 parça)

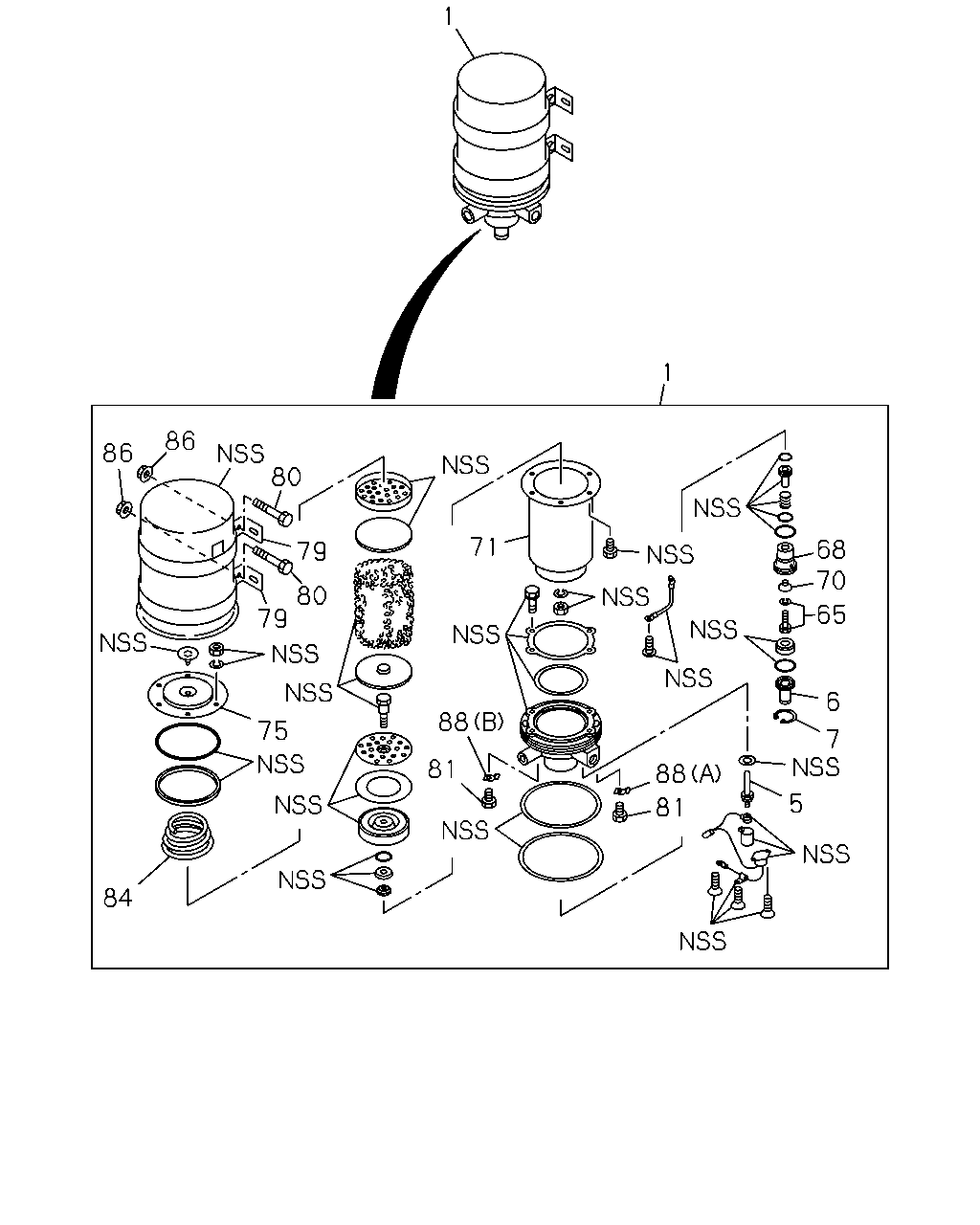

[346A] COMPONENT (16 parça)

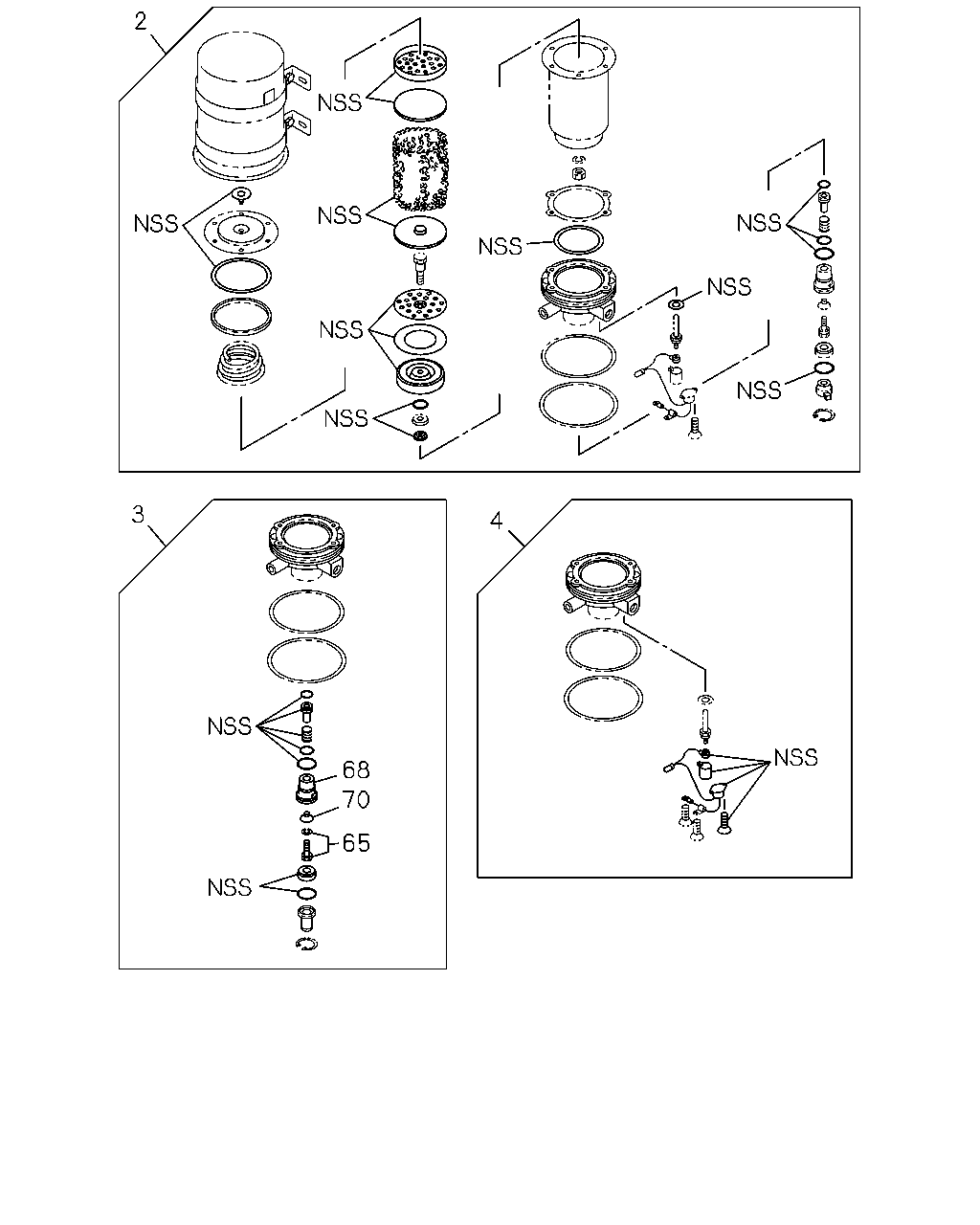

[346A] THERMOSTAT,PISTON AND REPAIR KIT (6 parça)
▶
54
9
8
10
1
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-277-1
01
1
1302-
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW
1-09650-443-0
01
1
1302-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> M22 & R1/2 W/VALVE
1-48320-026-2
01
1
1302-
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X25 FLANGE
0-28651-025-0
04
1
1302-
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
1302-
54
CONNECTOR
AIR DRYER<PS7> M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
1302-
1
1
86
86
79
80
80
79
75
84
81
71
88
88
81
5
7
65
6
70
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-277-1
01
1
1302-
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
02
1
1302-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-101-0
01
1
1302-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-154-0
01
1
1302-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
1302-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
1302-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
1302-
71
CASE; INNER,AIR DRYER
AIR DRYER<PS7>
1-48199-156-1
01
1
1302-
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-167-0
01
1
1302-
79
BRACKET; AIR DRYER
AIR DRYER<PS7>
1-48199-189-0
02
1
1302-
80
BOLT; BRKT
AIR DRYER<PS7>
1-48199-190-0
02
1
1302-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-177-0
02
1
1302-
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-166-0
01
1
1302-
86
NUT; BRKT
AIR DRYER<PS7>
1-48199-320-0
02
1
1302-
88
PLATE; STOPPER
AIR DRYER<PS7> (A)
1-48199-178-0
01
1
1302-
88
PLATE; STOPPER
AIR DRYER<PS7> (B)
1-48199-179-0
01
1
1302-
2
3
4
68
65
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-226-0
01
1
1302-
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-057-1
01
1
1302-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-254-0
01
1
1302-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
1302-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
1302-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
1302-
