3-46 — AIR DRYER (#114338) — 280 parça

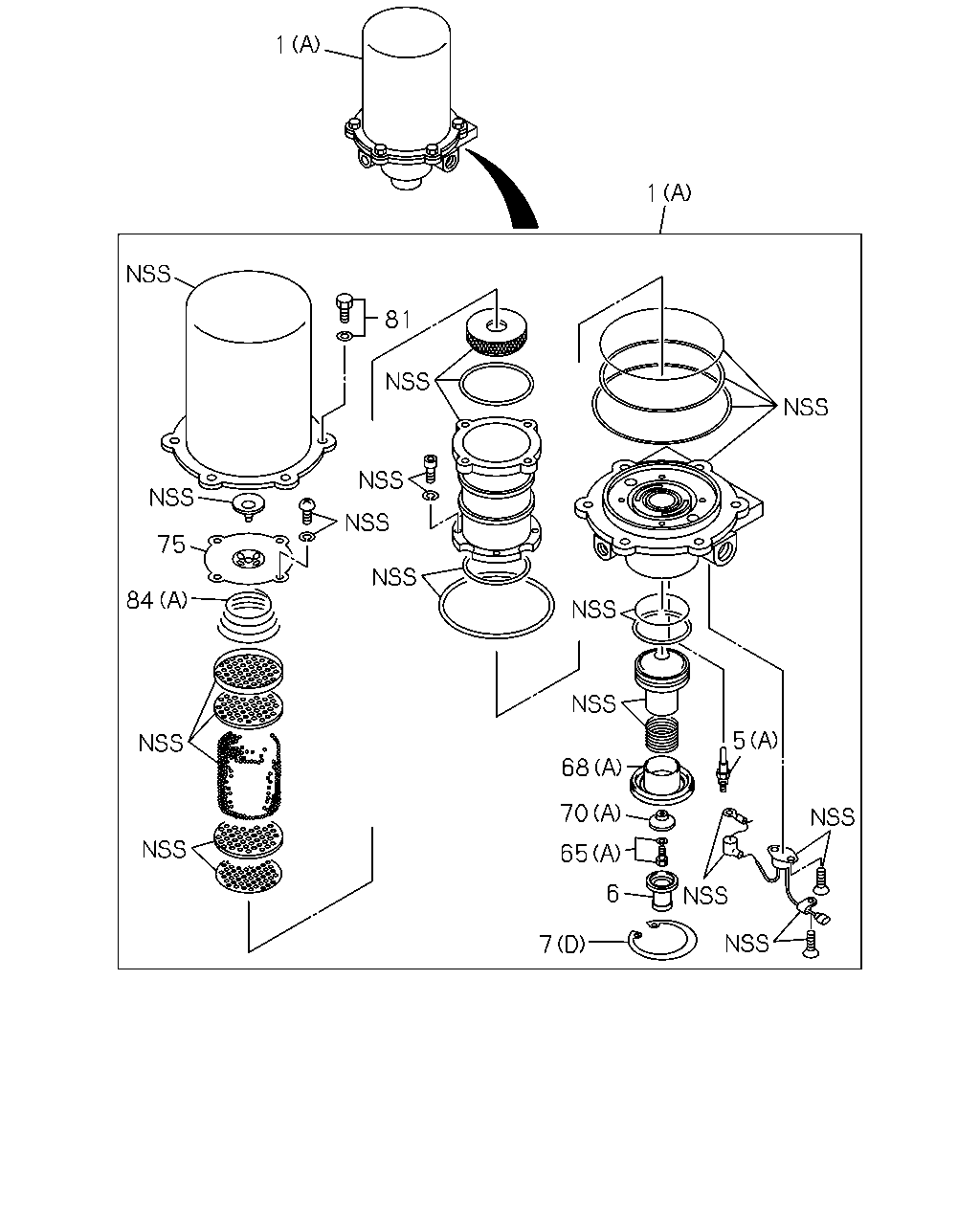

1 1 81 75 84 68 70 65 6 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98225-289-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	8-98225-289-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48190-215-1	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-085-0	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-085-0	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-530-0	01	1	1302-
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-404-0	01	1	1302-
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-404-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48199-403-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48199-403-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (A)	1-48199-579-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) (B)	1-48199-517-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-408-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-408-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) (B)	1-48199-515-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-504-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	1302-
75	COVER; CASE,AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>	1-48199-395-0	01	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-365-0	06	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-396-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-396-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	1-48199-396-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-523-0	01	1	1302-

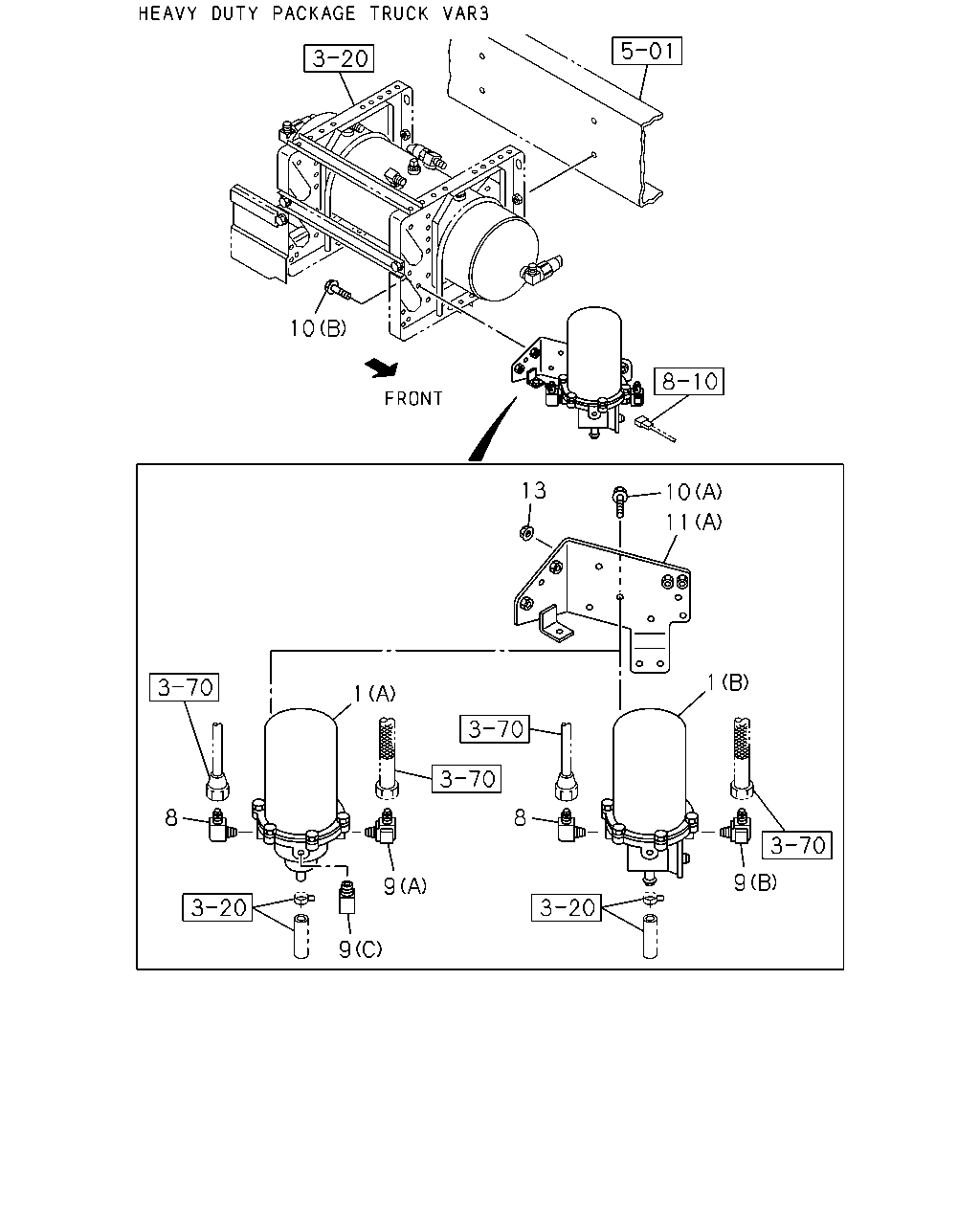

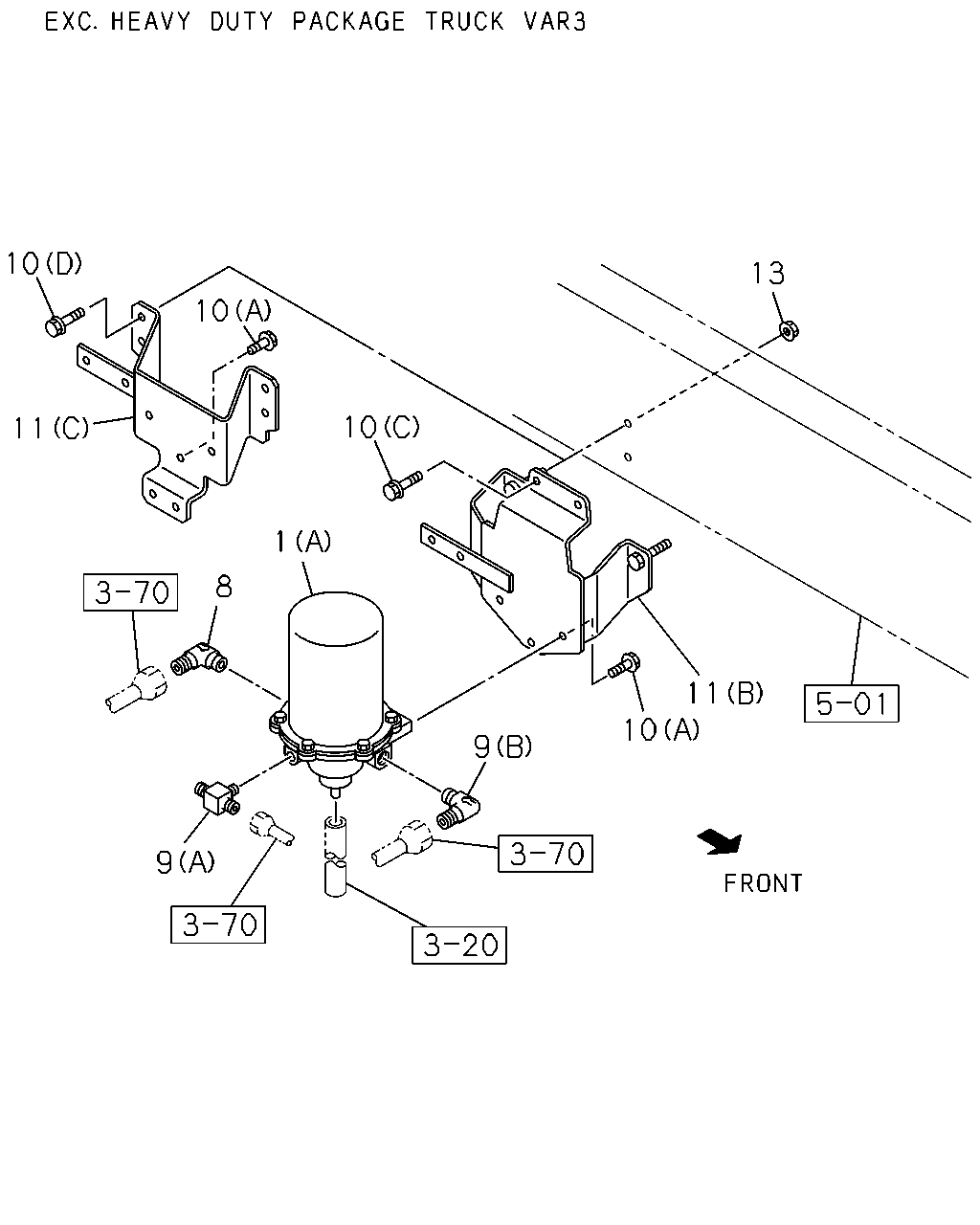

10 10 10 1 8 11 9 9 10 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98225-289-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	8-98225-289-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48190-215-1	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09656-676-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-09656-676-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09650-516-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) (C) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
10	BOLT; AIR DRYER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28050-820-0	02	1	1302-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10X30 FLANGE	0-28651-030-0	02	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X25 FLANGE	0-28050-825-0	02	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10X20 FLANGE	0-28051-020-0	03	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10X20 FLANGE	0-28051-020-0	03	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE	0-28051-025-0	03	1	1302-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) (A) M10X25 FLANGE	0-28051-025-0	03	1	1302-
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97621-375-2	01	1	1302-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98120-396-0	01	1	1302-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-548-4	01	1	1302-
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-548-4	01	1	1302-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98044-548-4	01	1	1302-
13	NUT; AIR DRYER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1302-
13	NUT; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	04	1	1302-
13	NUT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1302-

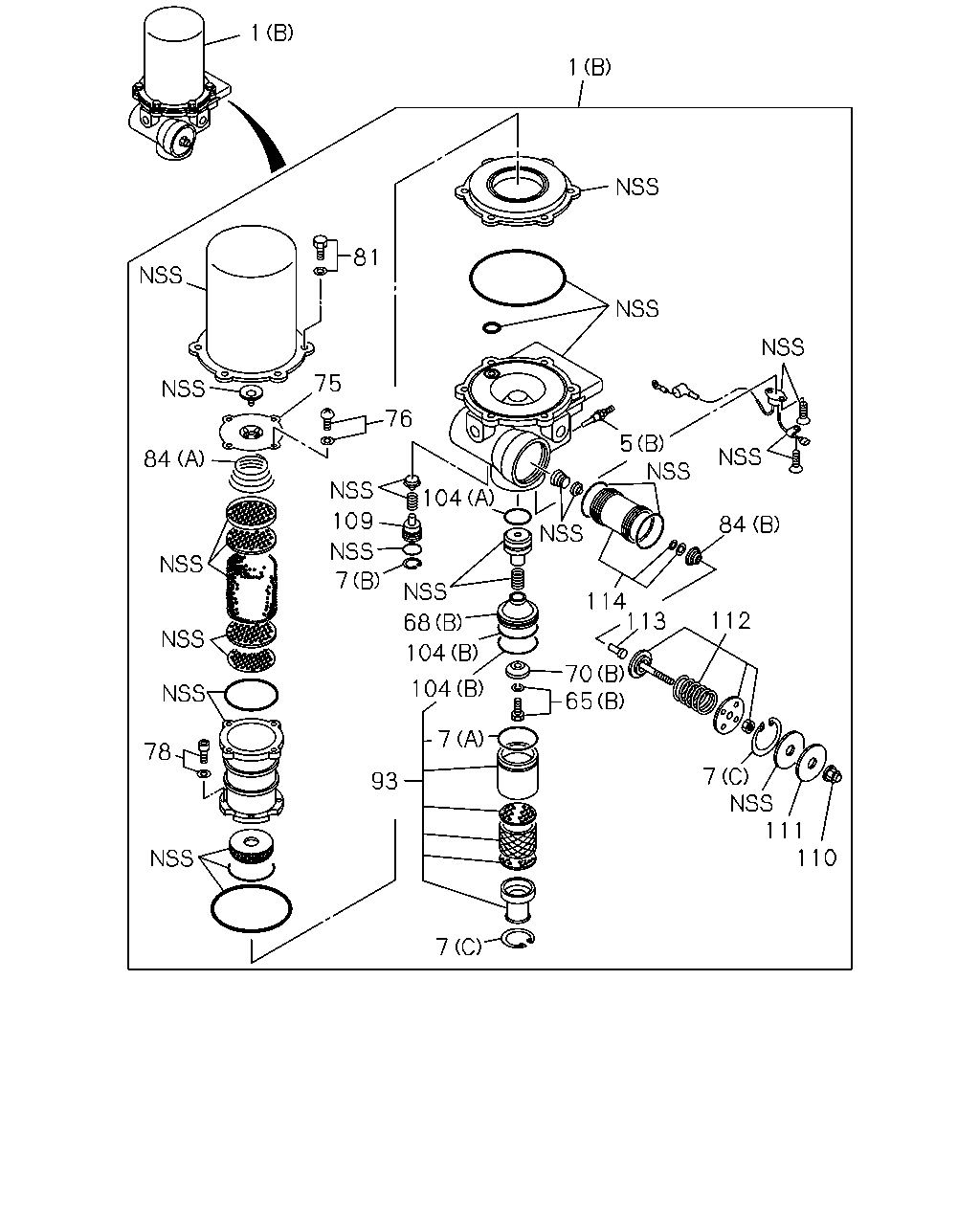

1 1 84 75 78 93 7 7 7 70 111 110 112 113 114 84 5 104 104 68 7 109 76 104 81 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98225-289-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	8-98225-289-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48190-215-1	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-085-0	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-085-0	01	1	1302-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-530-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48199-403-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48199-403-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (A)	1-48199-579-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) (B)	1-48199-517-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-408-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-408-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) (B)	1-48199-515-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-504-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	1302-
75	COVER; CASE,AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	1302-
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>	1-48199-395-0	01	1	1302-
76	BOLT; COVER,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-412-0	04	1	1302-
76	BOLT; COVER,AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-412-0	04	1	1302-
78	BOLT; OIL FILTER,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-417-0	04	1	1302-
78	BOLT; OIL FILTER,AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-417-0	04	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-365-0	06	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-396-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-396-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	1-48199-396-0	01	1	1302-
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-523-0	01	1	1302-
93	SILENCER; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-619-0	01	1	1302-
93	SILENCER; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-619-0	01	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48199-496-0	02	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48199-496-0	02	1	1302-
104	GASKET 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	02	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-496-0	01	1	1302-
104	GASKET 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	01	1	1302-
104	GASKET 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-321-0	01	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) (A)	8-98226-321-0	01	1	1302-
109	STOPPER; CHECK VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-539-0	01	1	1302-
109	STOPPER; CHECK VALVE 4HK1-TCS ENG(RJS)	1-48199-539-0	01	1	1302-
110	NUT; CAP 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-527-0	01	1	1302-
110	NUT; CAP 4HK1-TCS ENG(RJS)	1-48199-527-0	01	1	1302-
111	PLATE; GOVERNOR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-526-0	01	1	1302-
111	PLATE; GOVERNOR 4HK1-TCS ENG(RJS)	1-48199-526-0	01	1	1302-
112	SCREW & SPRING ASM; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-524-0	01	1	1302-
112	SCREW & SPRING ASM; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-524-0	01	1	1302-
113	STEM; EXHAUST 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-522-0	01	1	1302-
113	STEM; EXHAUST 4HK1-TCS ENG(RJS)	1-48199-522-0	01	1	1302-
114	PISTON ASM; GOVERNOR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-521-0	01	1	1302-
114	PISTON ASM; GOVERNOR 4HK1-TCS ENG(RJS)	1-48199-521-0	01	1	1302-

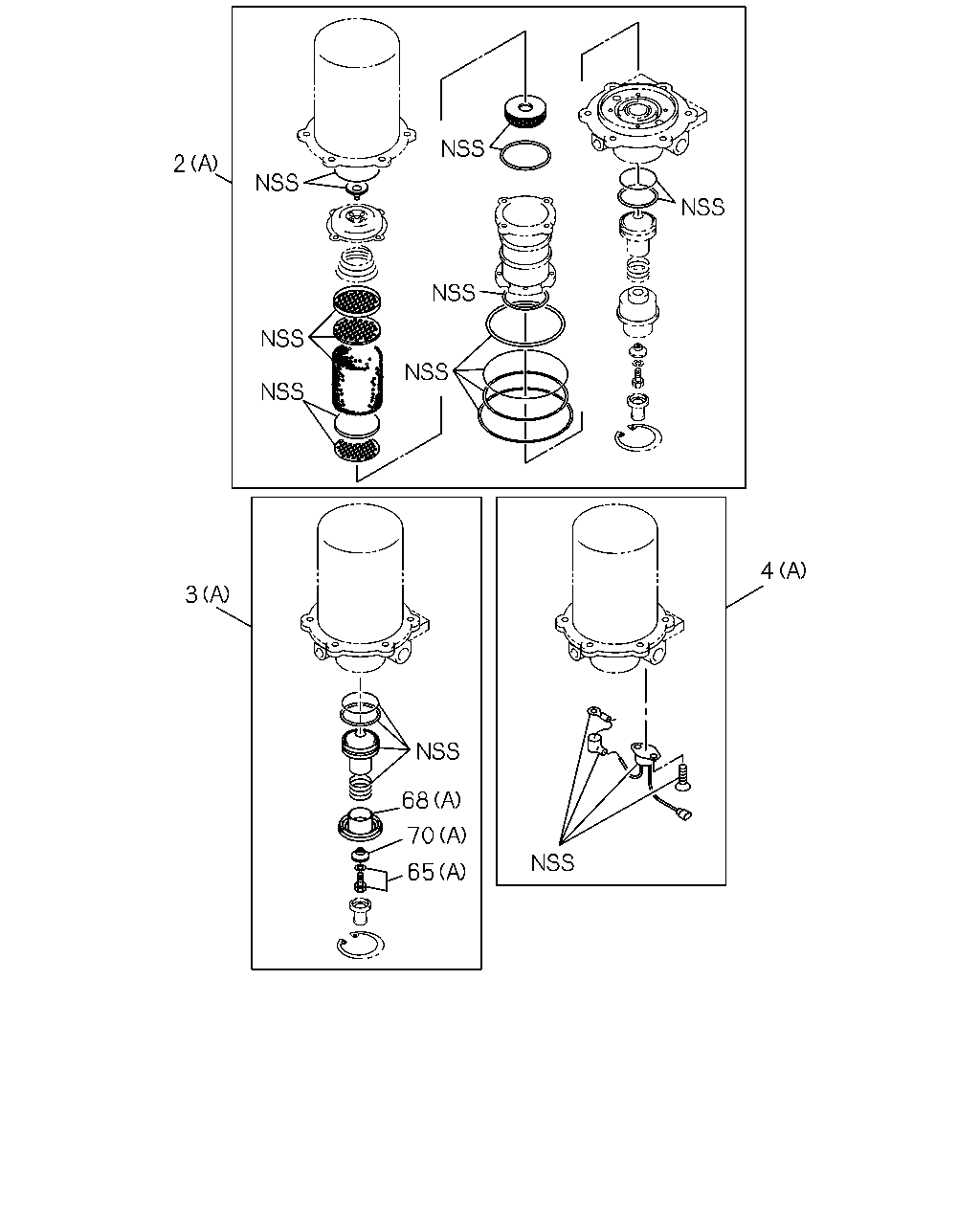

2 3 4 68 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98226-326-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	8-98226-326-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-217-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-217-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-85576-194-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-193-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-193-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) (B)	8-98226-322-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-85576-386-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	1-85576-386-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-218-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-218-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-85576-213-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) (B)	1-48199-517-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-408-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-408-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) (B)	1-48199-515-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-504-0	01	1	1302-

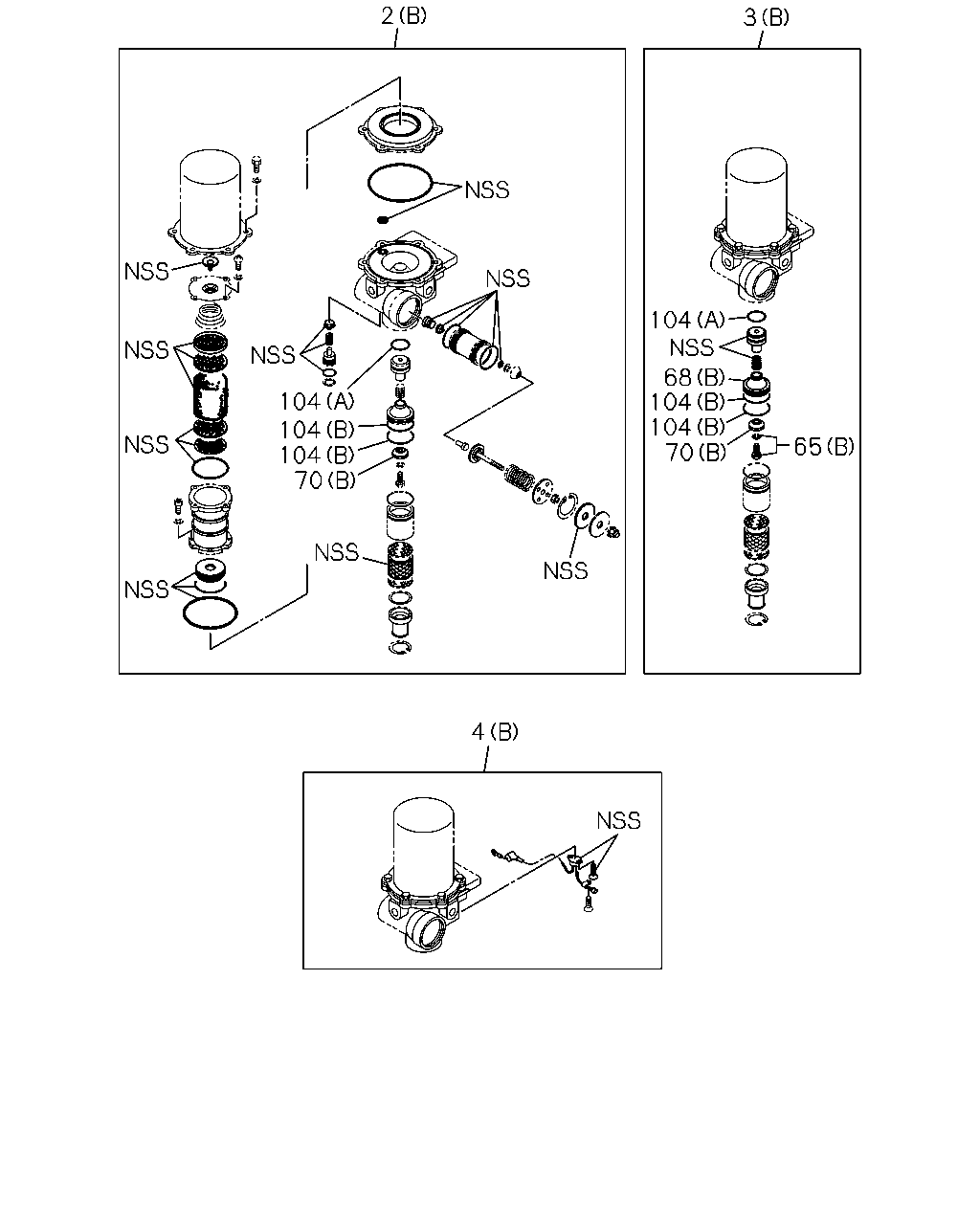

2 3 104 104 104 70 104 68 104 104 70 65 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98226-326-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	8-98226-326-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-217-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-217-0	01	1	1302-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-85576-194-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-193-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-193-0	01	1	1302-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) (B)	8-98226-322-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-85576-386-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	1-85576-386-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-218-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-85576-218-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-85576-213-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-393-0	01	1	1302-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) (B)	1-48199-517-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-408-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-408-0	01	1	1302-
68	BODY; VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-515-0	01	1	1302-
68	BODY; VALVE 4HK1-TCS ENG(RJS) (B)	1-48199-515-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48199-105-0	01	1	1302-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-504-0	01	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48199-496-0	02	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48199-496-0	02	1	1302-
104	GASKET 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	02	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-496-0	01	1	1302-
104	GASKET 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	01	1	1302-
104	GASKET 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-321-0	01	1	1302-
104	GASKET 4HK1-TCS ENG(RJS) (A)	8-98226-321-0	01	1	1302-

10 10 13 11 1 9 8 9 1 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98225-289-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	8-98225-289-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-285-0	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48190-210-1	01	1	1302-
1	DRYER; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48190-215-1	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09656-676-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-09656-676-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09650-516-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) (C) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
10	BOLT; AIR DRYER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28050-820-0	02	1	1302-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10X30 FLANGE	0-28651-030-0	02	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X25 FLANGE	0-28050-825-0	02	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10X20 FLANGE	0-28051-020-0	03	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10X20 FLANGE	0-28051-020-0	03	1	1302-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE	0-28051-025-0	03	1	1302-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) (A) M10X25 FLANGE	0-28051-025-0	03	1	1302-
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97621-375-2	01	1	1302-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98120-396-0	01	1	1302-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-548-4	01	1	1302-
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-548-4	01	1	1302-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98044-548-4	01	1	1302-
13	NUT; AIR DRYER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1302-
13	NUT; AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	04	1	1302-
13	NUT; AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
