◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11505 - FRR(LHD) SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶

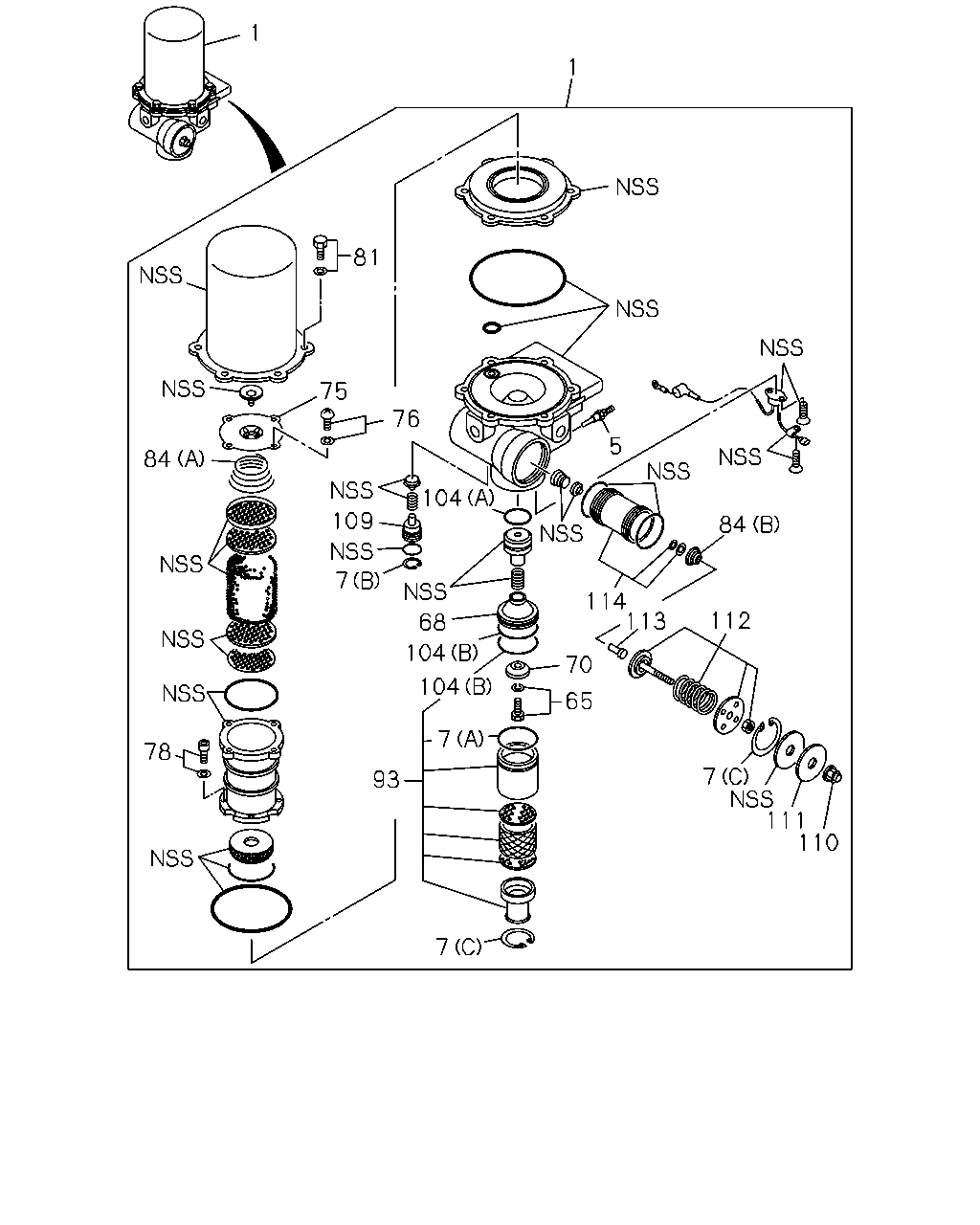

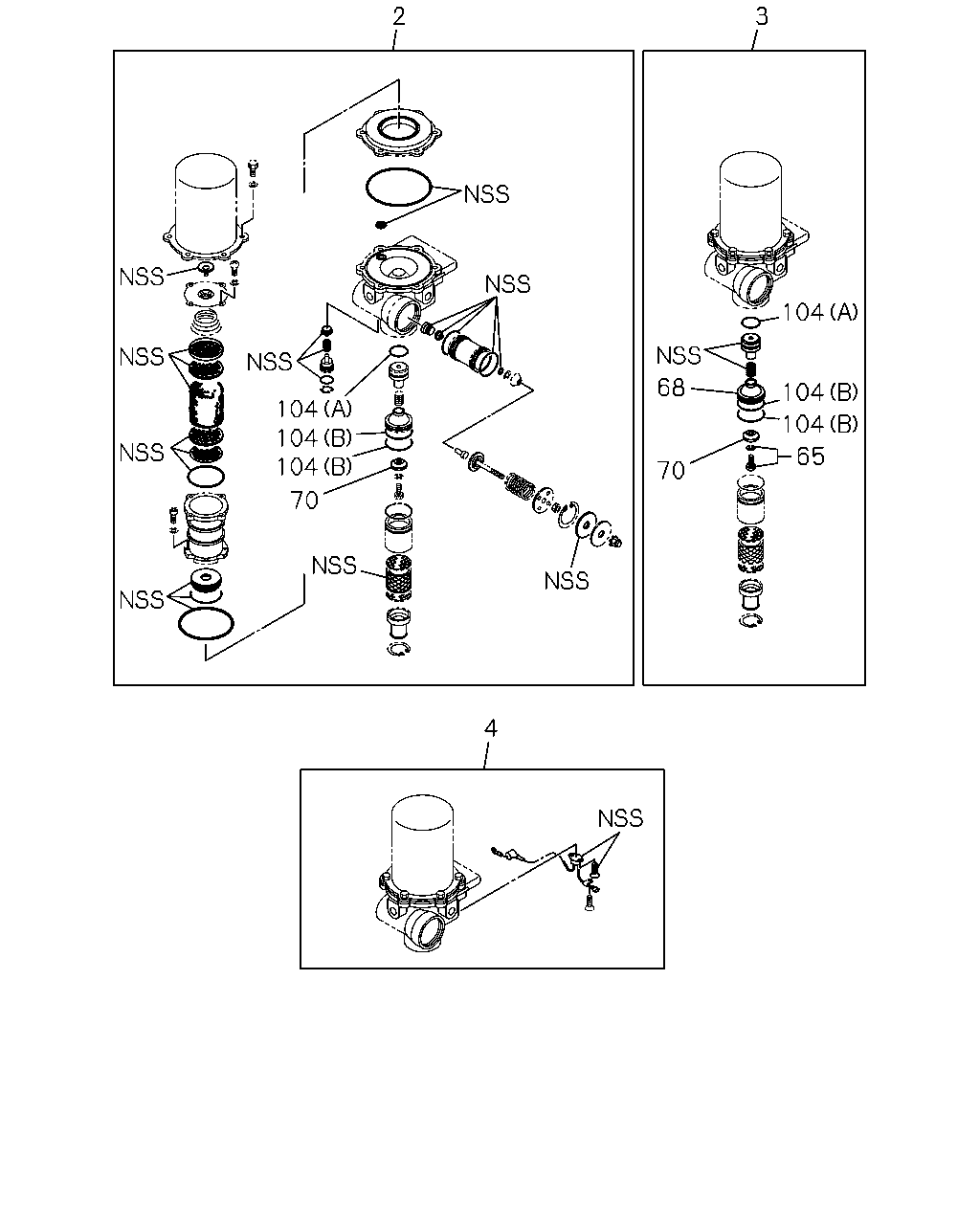

3-46 — AIR DRYER (#114337) — 110 parça

2 3 104 104 104 104 68 70 65 104 104 4 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	8-98226-323-0	01	1	1302-
2	REPAIR KIT; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	8-98226-326-0	01	1	1302-
2	REPAIR KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	8-98226-326-0	01	1	1302-
3	PISTON KIT; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	8-98226-322-0	01	1	1302-
3	PISTON KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	8-98226-322-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-85576-443-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-85576-386-0	01	1	1302-
4	THERMOSTAT KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-85576-386-0	01	1	1302-
65	BOLT; PURGE VLV TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-517-0	01	1	1302-
68	BODY; VALVE TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-515-0	01	1	1302-
68	BODY; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-515-0	01	1	1302-
68	BODY; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-515-0	01	1	1302-
70	VALVE; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-504-0	01	1	1302-
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B)	1-48199-496-0	02	1	1302-
104	GASKET TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B)	1-48199-496-0	01	1	1302-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B)	1-48199-496-0	01	1	1302-
104	GASKET TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A)	8-98226-321-0	01	1	1302-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (A)	8-98226-321-0	01	1	1302-
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98226-321-0	01	1	1302-

1 1 81 84 78 109 7 76 75 104 68 104 104 7 93 7 65 70 114 113 112 84 5 7 111 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	8-98225-285-0	01	1	1302-
1	DRYER; AIR TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	8-98225-289-0	01	1	1302-
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	8-98225-289-0	01	1	1302-
5	HEATER ASM; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-530-0	01	1	1302-
5	HEATER ASM; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-530-0	01	1	1302-
7	RING; SNAP,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (C)	1-48199-520-0	02	1	1302-
7	RING; SNAP,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B)	1-48199-529-0	01	1	1302-
7	RING; SNAP,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (A)	1-48199-579-0	01	1	1302-
7	RING; SNAP,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A)	1-48199-579-0	01	1	1302-
65	BOLT; PURGE VLV TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-517-0	01	1	1302-
65	BOLT; PURGE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-517-0	01	1	1302-
68	BODY; VALVE TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-515-0	01	1	1302-
68	BODY; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-515-0	01	1	1302-
68	BODY; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-515-0	01	1	1302-
70	VALVE; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-504-0	01	1	1302-
70	VALVE; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-504-0	01	1	1302-
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-427-0	01	1	1302-
75	COVER; CASE,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-395-0	01	1	1302-
75	COVER; CASE,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-395-0	01	1	1302-
76	BOLT; COVER,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-412-0	04	1	1302-
76	BOLT; COVER,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-412-0	04	1	1302-
76	BOLT; COVER,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-412-0	04	1	1302-
78	BOLT; OIL FILTER,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-417-0	04	1	1302-
78	BOLT; OIL FILTER,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-417-0	04	1	1302-
78	BOLT; OIL FILTER,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-417-0	04	1	1302-
81	BOLT; CASE,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-436-0	06	1	1302-
81	BOLT; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-436-0	06	1	1302-
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A)	1-48199-425-0	01	1	1302-
84	SPRING; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A)	1-48199-396-0	01	1	1302-
84	SPRING; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (A)	1-48199-396-0	01	1	1302-
84	SPRING; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B)	1-48199-523-0	01	1	1302-
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B)	1-48199-523-0	01	1	1302-
93	SILENCER; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-619-0	01	1	1302-
93	SILENCER; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-619-0	01	1	1302-
93	SILENCER; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-619-0	01	1	1302-
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B)	1-48199-496-0	02	1	1302-
104	GASKET TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B)	1-48199-496-0	01	1	1302-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B)	1-48199-496-0	01	1	1302-
104	GASKET TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A)	8-98226-321-0	01	1	1302-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (A)	8-98226-321-0	01	1	1302-
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98226-321-0	01	1	1302-
109	STOPPER; CHECK VALVE TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-539-0	01	1	1302-
109	STOPPER; CHECK VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-539-0	01	1	1302-
109	STOPPER; CHECK VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-539-0	01	1	1302-
110	NUT; CAP TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-527-0	01	1	1302-
110	NUT; CAP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-527-0	01	1	1302-
110	NUT; CAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-527-0	01	1	1302-
111	PLATE; GOVERNOR TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-526-0	01	1	1302-
111	PLATE; GOVERNOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-526-0	01	1	1302-
111	PLATE; GOVERNOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-526-0	01	1	1302-
112	SCREW & SPRING ASM; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-524-0	01	1	1302-
112	SCREW & SPRING ASM; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-524-0	01	1	1302-
112	SCREW & SPRING ASM; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-524-0	01	1	1302-
113	STEM; EXHAUST TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-522-0	01	1	1302-
113	STEM; EXHAUST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-522-0	01	1	1302-
113	STEM; EXHAUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-522-0	01	1	1302-
114	PISTON ASM; GOVERNOR TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48199-521-0	01	1	1302-
114	PISTON ASM; GOVERNOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	1-48199-521-0	01	1	1302-
114	PISTON ASM; GOVERNOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48199-521-0	01	1	1302-

10 13 11 10 9 8 1

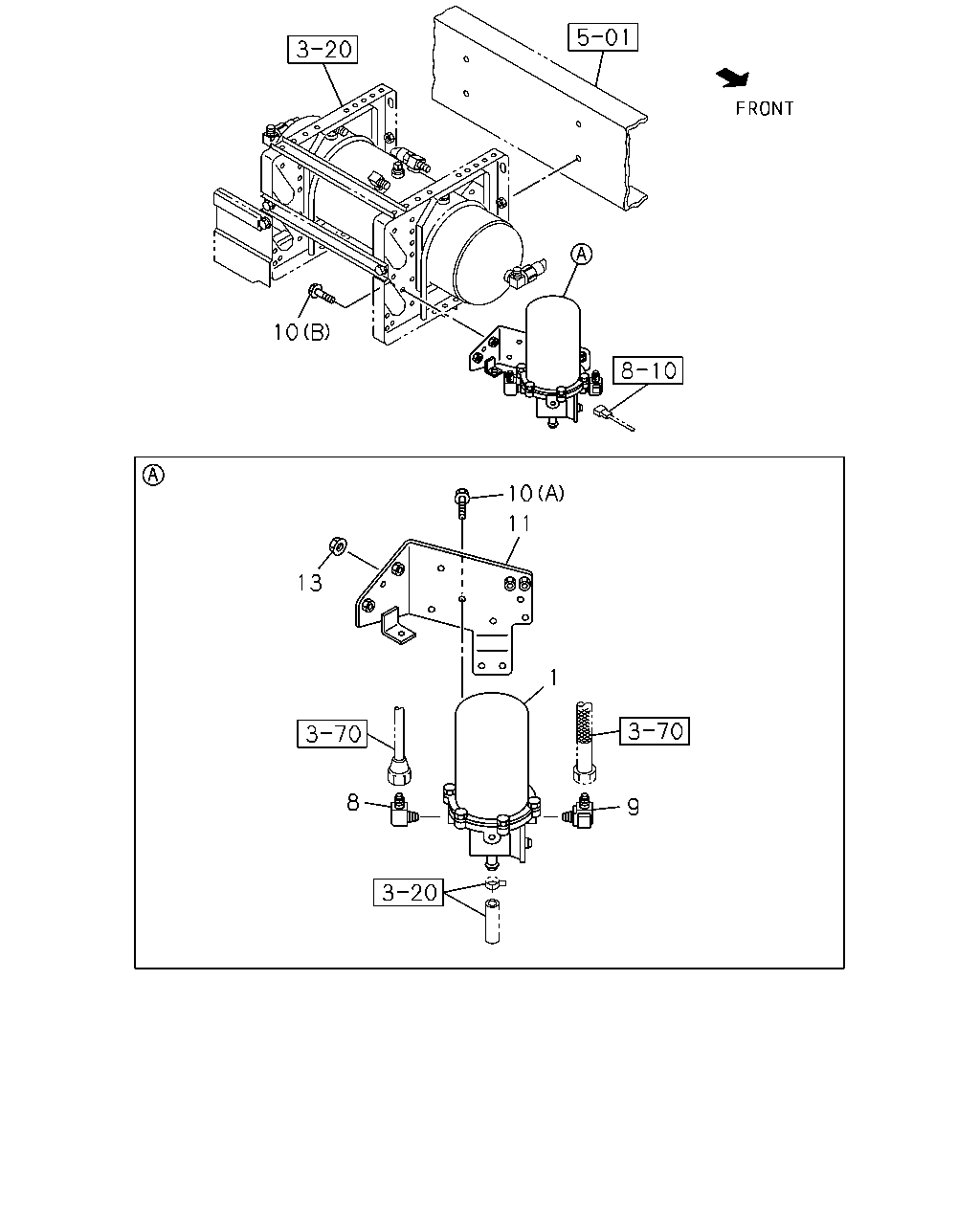

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	8-98225-285-0	01	1	1302-
1	DRYER; AIR TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	8-98225-289-0	01	1	1302-
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	8-98225-289-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1302-
8	CONNECTOR; OUT,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	1-09656-676-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
9	CONNECTOR; PIPE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1302-
10	BOLT; AIR DRYER (B) M8X20 FLANGE	0-28050-820-0	02	1	1302-
10	BOLT; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A) M10X25 FLANGE	0-28051-025-0	03	1	1302-
10	BOLT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (A) M10X25 FLANGE	0-28051-025-0	03	1	1302-
10	BOLT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) M10X25 FLANGE	0-28051-025-0	03	1	1302-
11	BRACKET; AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	8-98044-548-4	01	1	1302-
11	BRACKET; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>	8-98044-548-4	01	1	1302-
11	BRACKET; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	8-98044-548-4	01	1	1302-
13	NUT; AIR DRYER M8 FLANGE	0-91180-108-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
