Isuzu WW
▶
TRUCKS
▶
FSS
▶
11511 - FSS(LHD)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#114334) — 38 parça
◀
[346A] THEROSTAT,PISTON AND REPAIR KIT (8 parça)

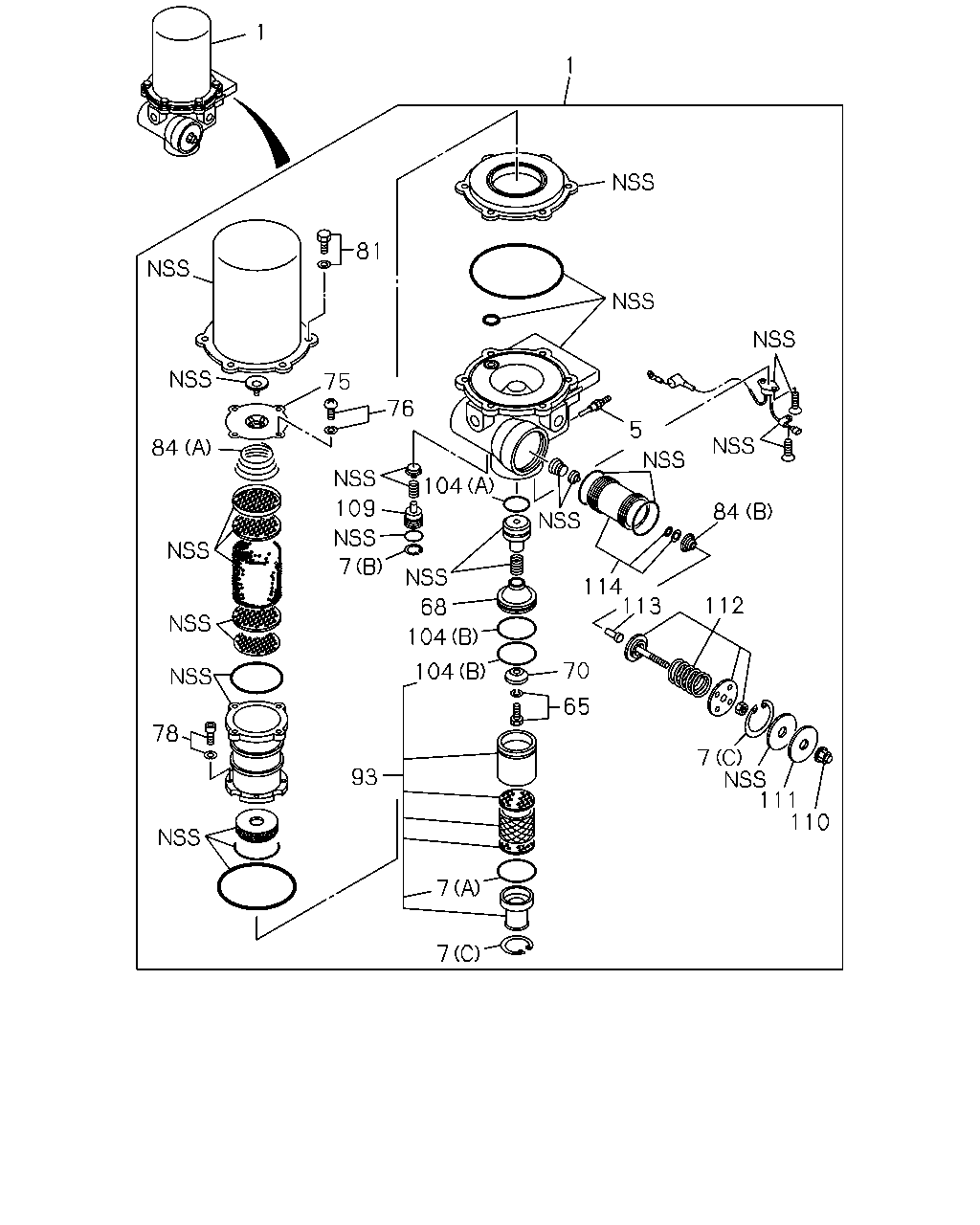

[346A] COMPONENT (23 parça)

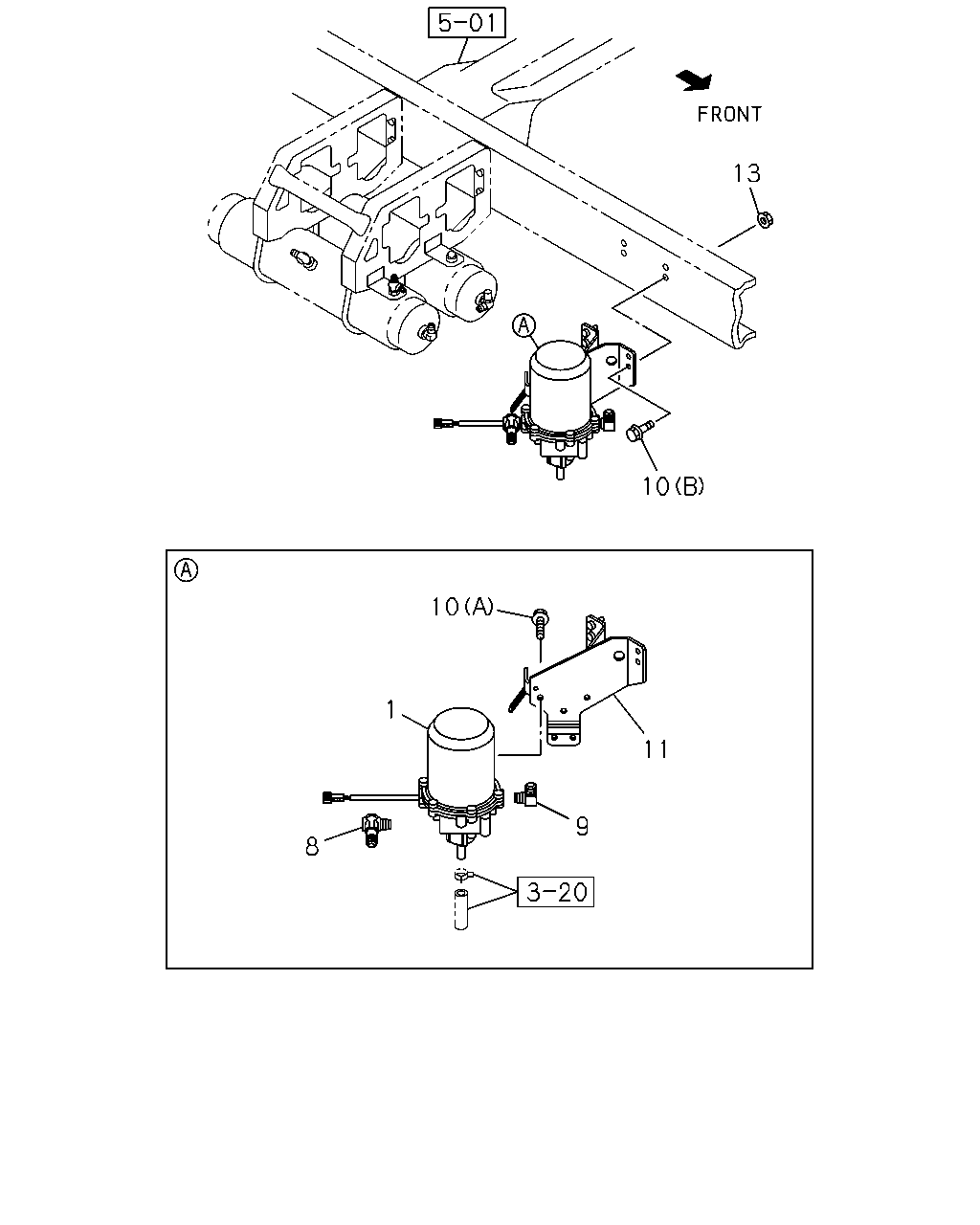

[346A] FIXING (7 parça)
▶
2
3
4
104
104
104
70
68
70
65
104
104
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
8-98226-323-0
01
1
1302-
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1302-
4
THERMOSTAT KIT; AIR DRYER
1-85576-443-0
01
1
1302-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1302-
68
BODY; VALVE
1-48199-515-0
01
1
1302-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1302-
104
GASKET
(B)
1-48199-496-0
02
1
1302-
104
GASKET
(A)
8-98226-321-0
01
1
1302-
1
1
81
84
75
109
7
78
93
65
7
7
70
114
113
112
7
111
110
84
5
76
104
68
104
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-285-0
01
1
1302-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1302-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1302-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1302-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1302-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1302-
68
BODY; VALVE
1-48199-515-0
01
1
1302-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1302-
75
COVER; CASE,AIR DRYER
1-48199-427-0
01
1
1302-
76
BOLT; COVER,AIR DRYER
1-48199-412-0
04
1
1302-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-417-0
04
1
1302-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
1302-
84
SPRING; AIR DRYER
(A)
1-48199-425-0
01
1
1302-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1302-
93
SILENCER; AIR DRYER
1-48199-619-0
01
1
1302-
104
GASKET
(B)
1-48199-496-0
02
1
1302-
104
GASKET
(A)
8-98226-321-0
01
1
1302-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1302-
110
NUT; CAP
1-48199-527-0
01
1
1302-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1302-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1302-
113
STEM; EXHAUST
1-48199-522-0
01
1
1302-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1302-
10
13
10
11
9
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-285-0
01
1
1302-
8
CONNECTOR; OUT,AIR DRYER
1-09650-516-0
01
1
1302-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1302-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE
0-28051-025-0
03
1
1302-
10
BOLT; AIR DRYER
(B) M10X30 FLANGE
0-28051-030-0
02
1
1302-
11
BRACKET; AIR DRYER
8-97622-759-1
01
1
1302-
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
1302-
