Isuzu WW
▶
TRUCKS
▶
FRR
▶
11506 - FRR RHD EURO2 EXC.SPACECAB
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#114330) — 31 parça
◀

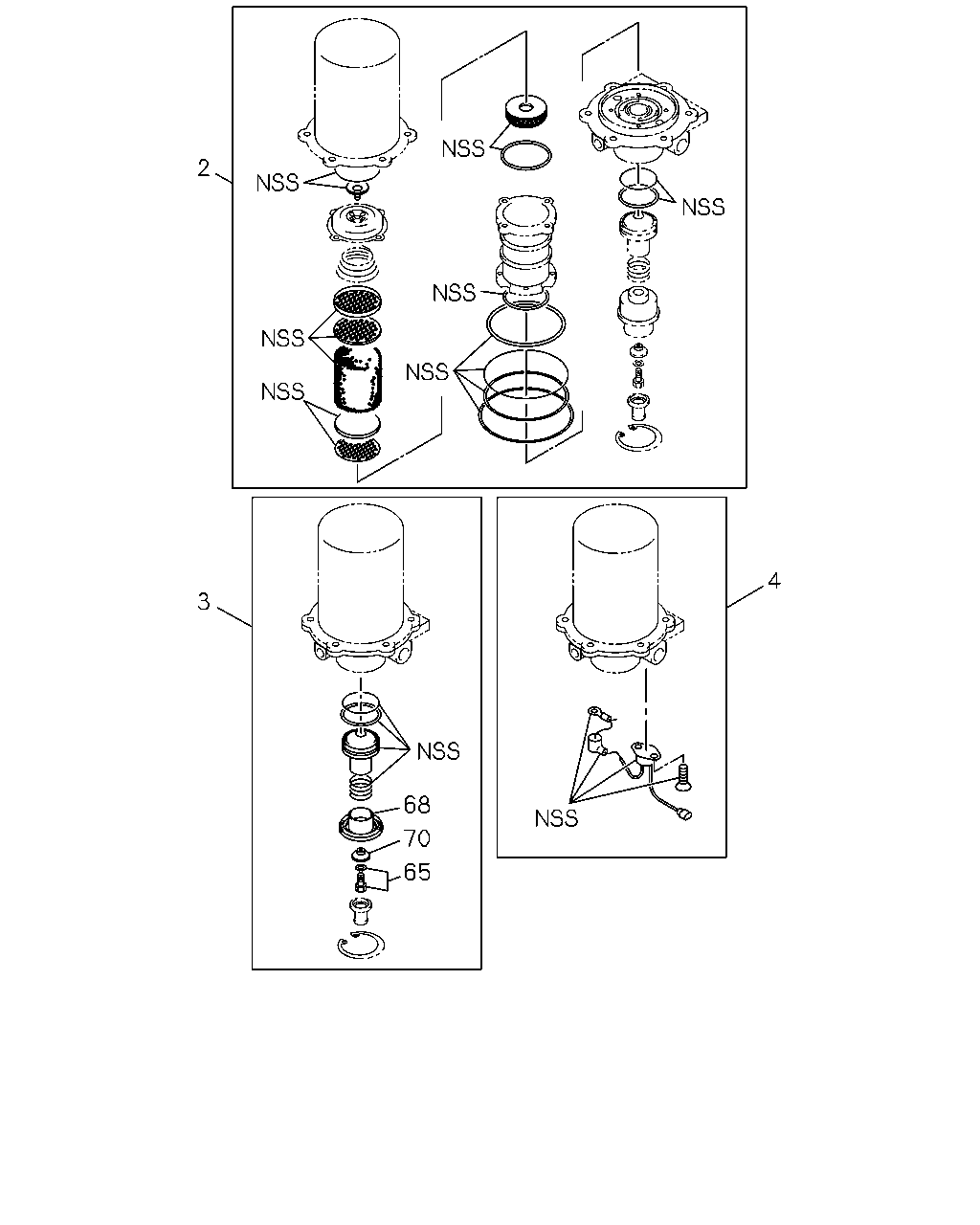

[346A] THERMOSTAT,PISTON AND REPAIR KIT (8 parça)

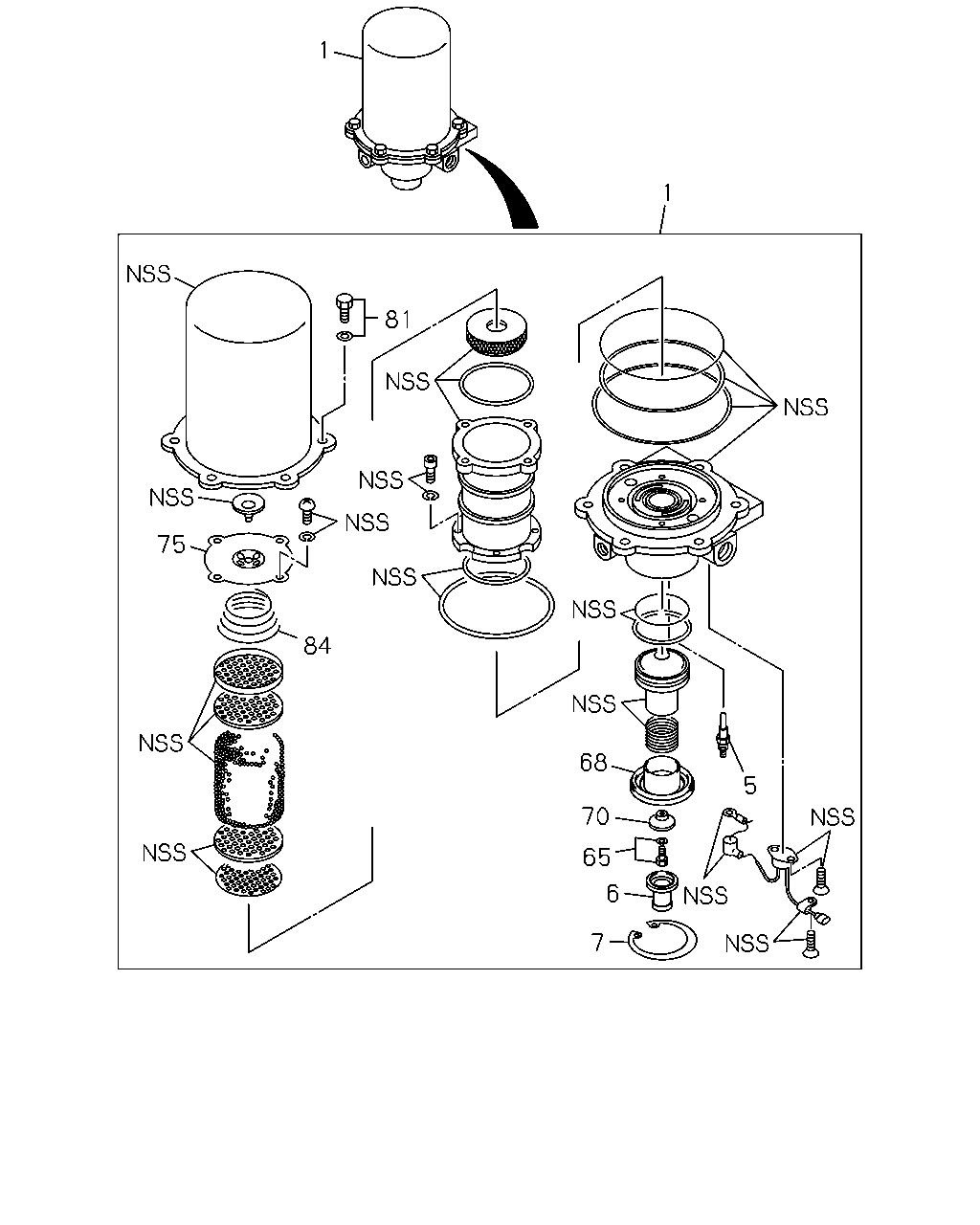

[346A] COMPONENT (14 parça)

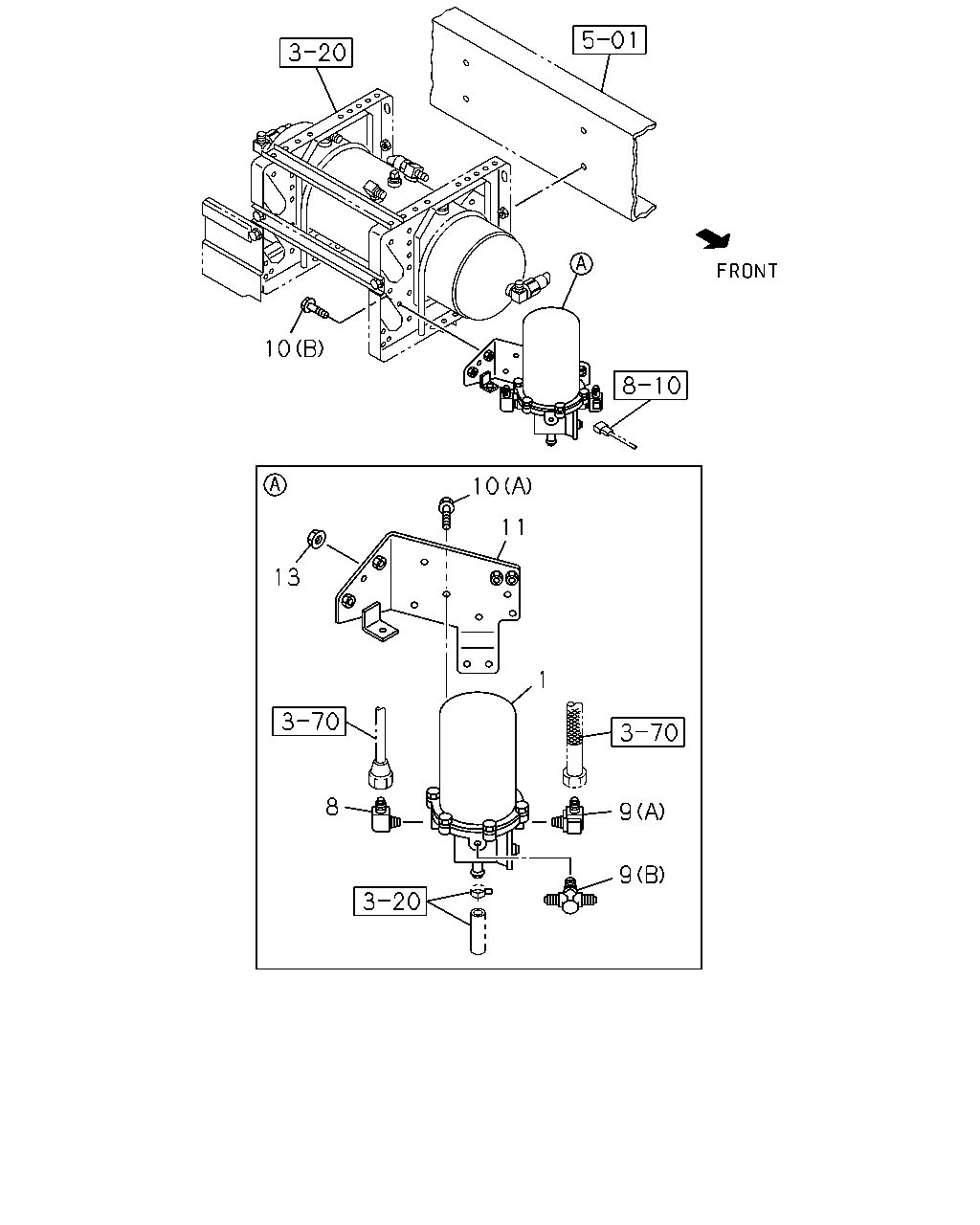

[346A] FIXING (9 parça)
▶
2
3
4
68
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-194-0
01
1
1302-
2
REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7>
1-85576-217-0
01
1
1302-
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-193-0
01
1
1302-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-213-0
01
1
1302-
4
THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7>
1-85576-218-0
01
1
1302-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
1302-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-408-0
01
1
1302-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
1302-
1
1
81
75
84
68
70
5
65
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48190-215-1
01
1
1302-
1
DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7>
1-48190-210-1
01
1
1302-
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
01
1
1302-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-404-0
01
1
1302-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-403-0
01
1
1302-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
1302-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-408-0
01
1
1302-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
1302-
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48199-395-0
01
1
1302-
75
COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7>
1-48199-427-0
01
1
1302-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48199-365-0
06
1
1302-
81
BOLT; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7>
1-48199-436-0
06
1
1302-
84
SPRING; AIR DRYER
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48199-396-0
01
1
1302-
84
SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7>
1-48199-425-0
01
1
1302-
10
13
8
9
9
1
11
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48190-215-1
01
1
1302-
1
DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7>
1-48190-210-1
01
1
1302-
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW
1-09650-443-0
01
1
1302-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
1302-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE
1-48320-026-2
01
1
1302-
10
BOLT; AIR DRYER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1302-
10
BOLT; AIR DRYER
AIR DRYER<PS7> (A) M10X20 FLANGE
0-28051-020-0
03
1
1302-
11
BRACKET; AIR DRYER
AIR DRYER<PS7>
8-98044-548-4
01
1
1302-
13
NUT; AIR DRYER
M8 FLANGE
0-91180-108-0
02
1
1302-
