◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 3 - Brakes, Brake System ▶ 3-45 - LOAD SENSING PROPORTIONING VALVE ▶
3-45 — LOAD SENSING PROPORTIONING VALVE (#114328) — 24 parça

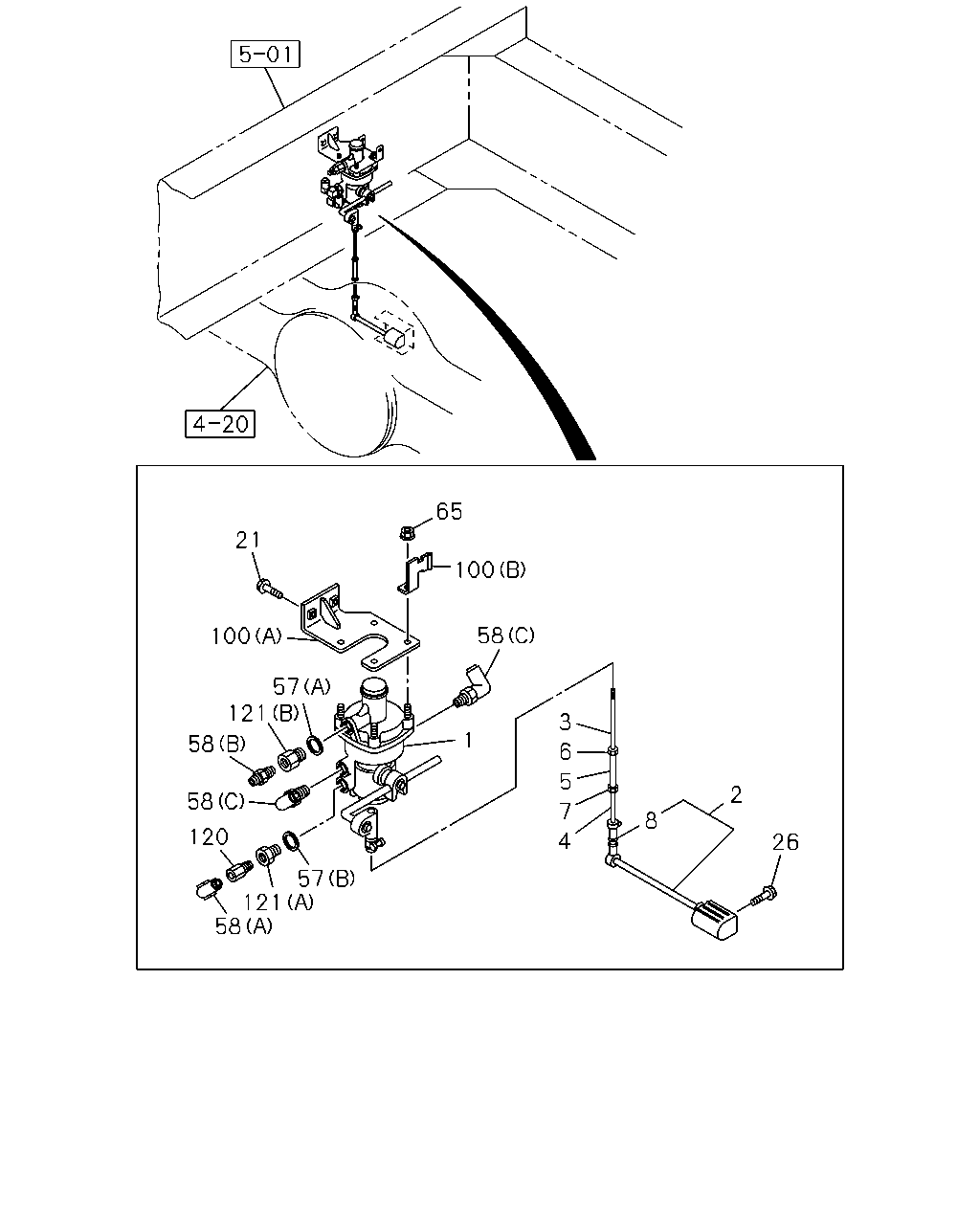

çizim 327853
26 2 8 4 3 6 5 7 1 58 100 65 21 100 57 121 58 57 121 58 120 58
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING
6HK1-TCS ENG(80L) 		1-47720-153-0 01 1 1302-
2 DAMPER 1-47725-012-0 01 1 1302-
3 ROD; UPR 1-09765-290-0 01 1 1302-
4 ROD; LWR 1-09765-283-0 01 1 1302-
5 JOINT 1-09768-091-0 01 1 1302-
6 NUT; LK,UPR
M8 		0-91111-508-0 01 1 1302-
7 NUT; LK,LWR
LH THREAD 		1-09409-002-0 01 1 1302-
8 ROD END 1-47723-001-0 02 1 1302-
21 BOLT; BRKT
6HK1-TCS ENG(80L) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
26 BOLT; DAMPER
M8X12 FLANGE 		0-28050-812-0 02 1 1302-
57 GASKET; CONNECTOR
6HK1-TCS ENG(80L) (A) ID=16.2 OD=24 		9-09571-416-0 01 1 1302-
57 GASKET; CONNECTOR
6HK1-TCS ENG(80L) (B) ID=22.5 		9-09571-422-0 01 1 1302-
58 CONNECTOR; LSPV
6HK1-TCS ENG(80L) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1302-
58 CONNECTOR; LSPV
6HK1-TCS ENG(80L) (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1302-
58 CONNECTOR; LSPV
6HK1-TCS ENG(80L) (C) DIN12 & M22 ELBOW 		1-09661-521-0 02 1 1302-
65 NUT; LSPV
6HK1-TCS ENG(80L) M8 FLANGE 		0-91180-108-0 04 1 1302-
100 BRACKET; LSPV
6HK1-TCS ENG(80L) (A) 		8-98085-133-0 01 1 1302-
100 BRACKET; LSPV
6HK1-TCS ENG(80L) (B) 		8-98157-748-0 01 1 1302-
120 CONNECTOR
6HK1-TCS ENG(80L) PT3/8 		1-09664-210-0 01 1 1302-
121 ADAPTER
6HK1-TCS ENG(80L) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1302-
121 ADAPTER
6HK1-TCS ENG(80L) (B) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 1302-

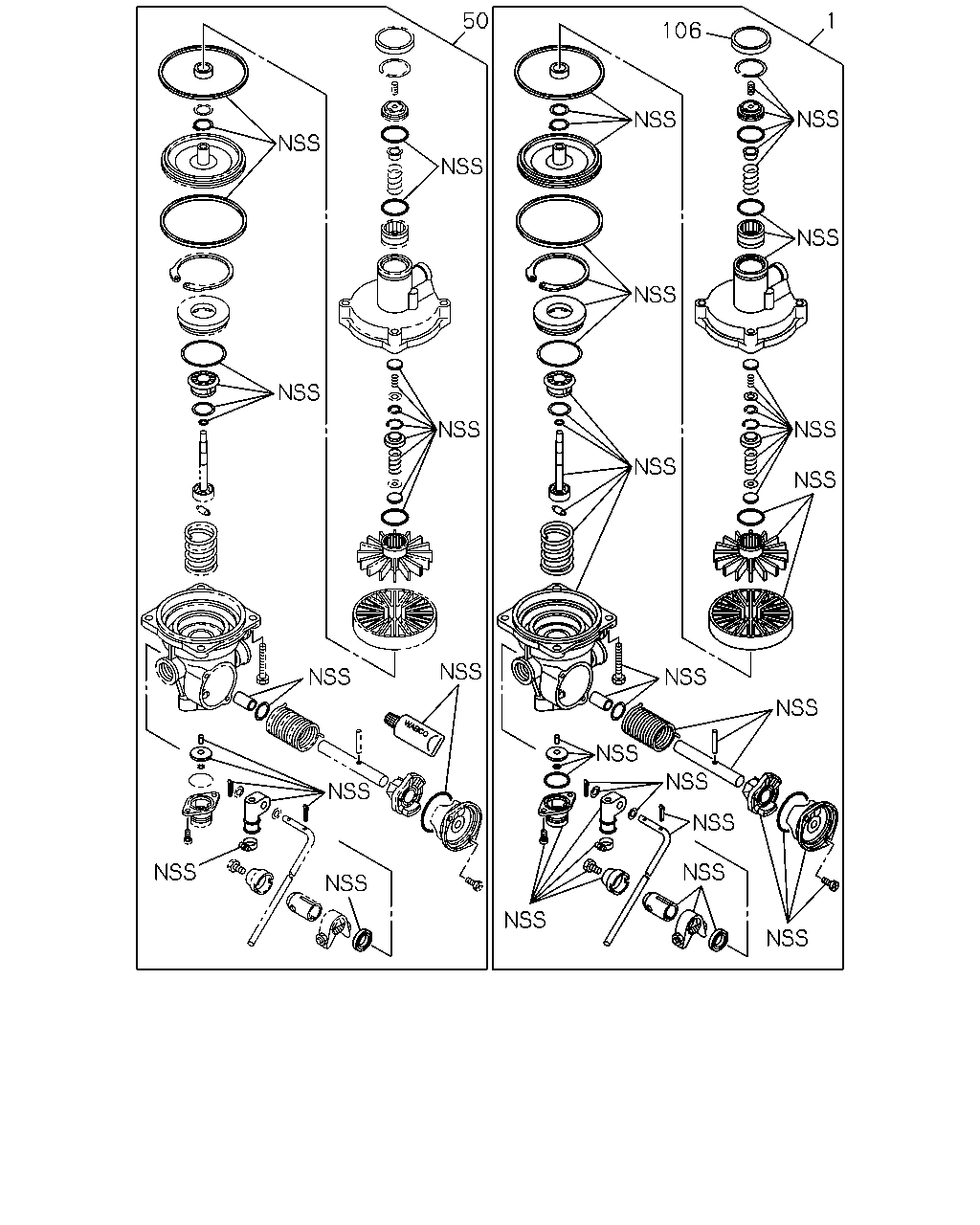

çizim 331681
50 106 1
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING
6HK1-TCS ENG(80L) 		1-47720-153-0 01 1 1302-
50 REPAIR KIT; LSPV
6HK1-TCS ENG(80L) 		1-85576-393-0 01 1 1302-
106 COVER; PISTON
6HK1-TCS ENG(80L) 		1-47729-001-0 01 1 1302-
