◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#114322) — 101 parça

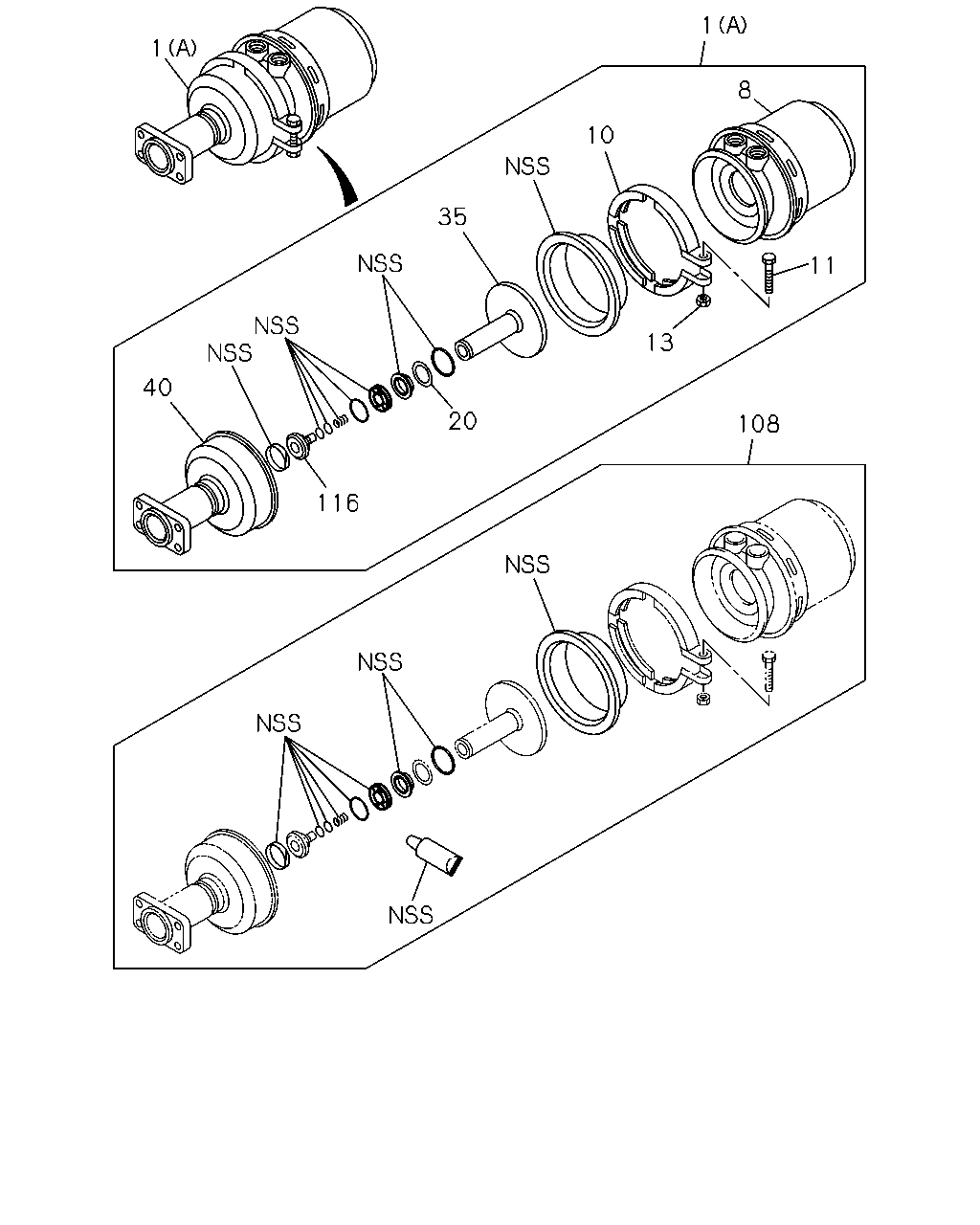

çizim 327719
1 1 10 35 40 116 20 13 11 108 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 40/6 18.5"(W3G) (A) 		8-98236-220-0 01 1 1406-1408 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE> (A) 		8-98236-220-0 01 1 1409-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		8-98236-220-0 01 1 1410- ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 40/6 18.5"(W3G) (A) 		8-98236-221-0 01 1 1406-1408 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE> (A) 		8-98236-221-0 01 1 1409-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		8-98236-221-0 01 1 1410- ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48250-877-4 01 1 1302-1405 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE> (A) 		1-48250-877-4 01 1 1406-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		1-48250-877-4 01 1 1410- ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48250-878-4 01 1 1302-1405 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE> (A) 		1-48250-878-4 01 1 1406-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		1-48250-878-4 01 1 1410- ●
1 CHAMBER ASM; SPRING
(B) 		1-87412-097-0 01 1 1302- ●
1 CHAMBER ASM; SPRING
(B) 		1-87412-098-0 01 1 1302- ●
8 SHELL; CYL,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-173-2 01 1 1302-1512 ●
8 SHELL; CYL,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-173-1 01 1 1601- ●
8 SHELL; CYL,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-174-2 01 1 1302-1512 ●
8 SHELL; CYL,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-174-1 01 1 1601- ●
10 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-231-0 02 1 1302- ●
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1302- ●
11 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-232-0 02 1 1302- ●
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1302- ●
13 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-233-0 02 1 1302- ●
13 NUT; CLAMP RING 1-48269-147-0 02 1 1302- ●
20 RING; RET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-236-0 02 1 1302- ●
35 PLATE; ROD END,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-253-0 02 1 1302- ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 02 1 1302- ●
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-179-0 01 1 1302-1512 ●
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-179-0 01 1 1601- ●
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-180-0 01 1 1302-1512 ●
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-180-0 01 1 1601- ●
40 COVER ASM; LWR,SPR CHAMBER 1-48251-140-1 01 1 1302- ●
40 COVER ASM; LWR,SPR CHAMBER 1-48251-141-1 01 1 1302- ●
108 REPAIR KIT; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-407-1 02 1 1302- ●
108 REPAIR KIT; SPR CHAMBER 8-98146-982-0 02 1 1302- ●
116 GUIDE; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-237-0 02 1 1302- ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1302- ●

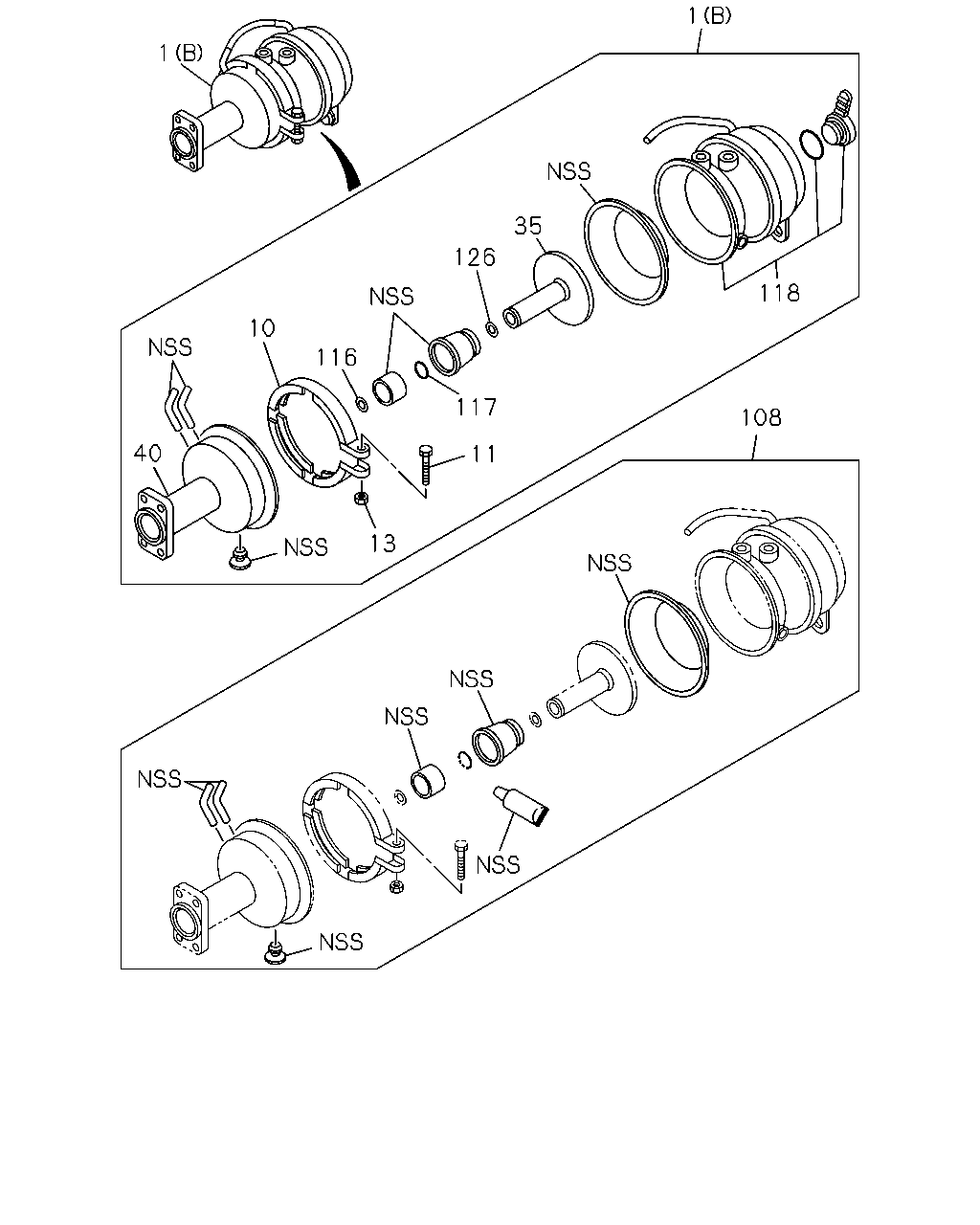

çizim 327809
108 118 13 11 117 116 10 40 1 1 35 126
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 40/6 18.5"(W3G) (A) 		8-98236-220-0 01 1 1406-1408 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE> (A) 		8-98236-220-0 01 1 1409-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		8-98236-220-0 01 1 1410- ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 40/6 18.5"(W3G) (A) 		8-98236-221-0 01 1 1406-1408 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE> (A) 		8-98236-221-0 01 1 1409-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		8-98236-221-0 01 1 1410- ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48250-877-4 01 1 1302-1405 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE> (A) 		1-48250-877-4 01 1 1406-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		1-48250-877-4 01 1 1410- ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48250-878-4 01 1 1302-1405 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE> (A) 		1-48250-878-4 01 1 1406-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		1-48250-878-4 01 1 1410- ●
1 CHAMBER ASM; SPRING
(B) 		1-87412-097-0 01 1 1302- ●
1 CHAMBER ASM; SPRING
(B) 		1-87412-098-0 01 1 1302- ●
10 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-231-0 02 1 1302- ●
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1302- ●
11 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-232-0 02 1 1302- ●
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1302- ●
13 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-233-0 02 1 1302- ●
13 NUT; CLAMP RING 1-48269-147-0 02 1 1302- ●
35 PLATE; ROD END,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-253-0 02 1 1302- ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 02 1 1302- ●
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-179-0 01 1 1302-1512 ●
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-179-0 01 1 1601- ●
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-180-0 01 1 1302-1512 ●
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-180-0 01 1 1601- ●
40 COVER ASM; LWR,SPR CHAMBER 1-48251-140-1 01 1 1302- ●
40 COVER ASM; LWR,SPR CHAMBER 1-48251-141-1 01 1 1302- ●
108 REPAIR KIT; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-407-1 02 1 1302- ●
108 REPAIR KIT; SPR CHAMBER 8-98146-982-0 02 1 1302- ●
116 GUIDE; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-237-0 02 1 1302- ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1302- ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1302- ●
118 CHAMBER; PIGGY BACK 1-87412-113-0 01 1 1302- ●
118 CHAMBER; PIGGY BACK 1-87412-114-0 01 1 1302- ●
126 SHIM 8-98146-965-0 AR 1 1302- ●

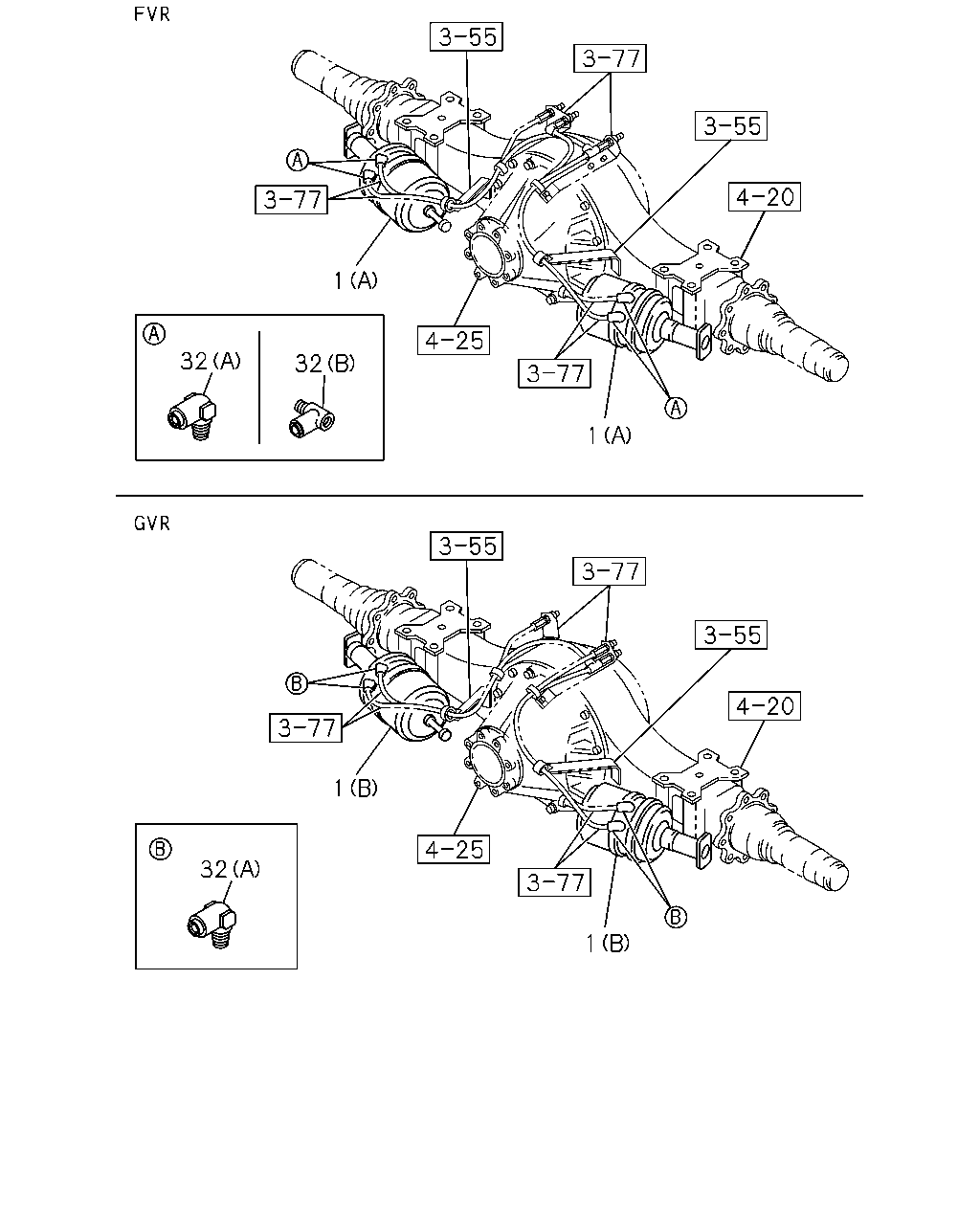

çizim 327832
1 1 32 32 32 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 40/6 18.5"(W3G) (A) 		8-98236-220-0 01 1 1406-1408 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE> (A) 		8-98236-220-0 01 1 1409-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		8-98236-220-0 01 1 1410- ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 40/6 18.5"(W3G) (A) 		8-98236-221-0 01 1 1406-1408 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE> (A) 		8-98236-221-0 01 1 1409-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		8-98236-221-0 01 1 1410- ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48250-877-4 01 1 1302-1405 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE> (A) 		1-48250-877-4 01 1 1406-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		1-48250-877-4 01 1 1410- ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48250-878-4 01 1 1302-1405 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE> (A) 		1-48250-878-4 01 1 1406-1409 ●
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) 		1-48250-878-4 01 1 1410- ●
1 CHAMBER ASM; SPRING
(B) 		1-87412-097-0 01 1 1302- ●
1 CHAMBER ASM; SPRING
(B) 		1-87412-098-0 01 1 1302- ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1302- ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ADR(TDU) (B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1302- ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1302-1405 ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1406- ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1406- ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1302- ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE REGULATION ECE(TDV) (B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 02 1 1302-1405 ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2014<VZE> (B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 02 1 1406-1409 ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2014<VZE> (B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 02 1 1406-1409 ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 02 1 1410- ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 02 1 1410- ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) BRAKE REGULATION ECE(TDV) (B) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-776-1 02 1 1302-1405 ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2014<VZE> (B) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-776-1 02 1 1406-1409 ●
32 CONNECTOR; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (B) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-776-1 02 1 1410- ●
