Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#11431) — 531 parça

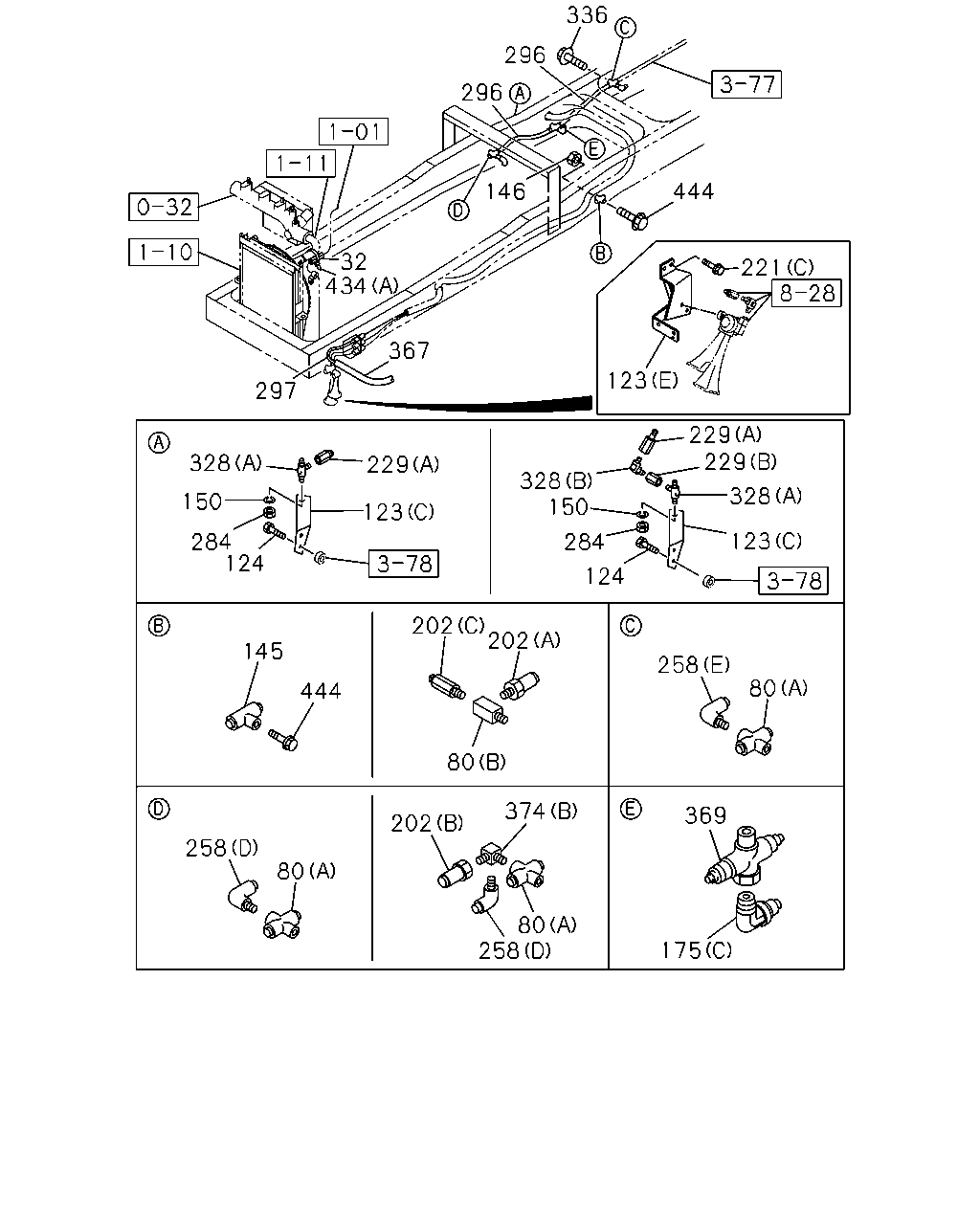

369 374 202 80 258 80 175 258 80 444 145 202 258 80 123 328 229 229 124 284 150 328 123 229 124 284 150 328 123 367 297 434 32 146 444 296 296 336 202 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	SLEEVE; RUBBER,AIR PIPE RLD GOVERNOR(SD7) ID=6 L=30	5-09360-352-0	01	1	0106-0108
32	SLEEVE; RUBBER,AIR PIPE ID=6 L=30	5-09360-352-0	01	1	0109-
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0106-0108
80	UNION; 3 WAY PTO ZF TRANS RR(BDM) (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0106-0108
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0109-
80	UNION; 3 WAY ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M12 2WAY	1-09654-059-2	01	1	0106-0108
80	UNION; 3 WAY EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M12 2WAY	1-09654-059-2	01	1	0109-
123	BRACKET; UNION EXC. FULL FLOATING CAB(W16) (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0106-0108
123	BRACKET; UNION MJD7R M/T(Y2X) (B)	1-47477-396-1	01	1	0106-0108
123	BRACKET; UNION (B)	1-47477-396-1	01	1	0109-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0106-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0106-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
124	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
124	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
145	UNION; NYLON TUBE ZF M/T<X9E>	1-09661-133-0	01	1	0106-0108
146	NUT; UNION ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 FLANGE	0-91150-212-0	01	1	0106-0108
146	NUT; UNION EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 FLANGE	0-91150-212-0	01	1	0109-0602
146	NUT; UNION EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 FLANGE	0-91180-212-0	01	1	0603-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0106-0603
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-0108
175	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0109-
175	CONNECTOR; AIR PIPE (A)	1-09650-070-3	01	1	0106-
175	CONNECTOR; AIR PIPE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0106-
202	ADAPTER ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-0108
202	ADAPTER EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0109-
202	ADAPTER ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0106-0108
202	ADAPTER EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0109-
202	ADAPTER ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0108
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0108
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0109-
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
229	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0106-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0106-0302
258	CONNECTOR; NYLON TUBE (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0109-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0109-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0109-
284	NUT; UNION M12	9-99111-412-0	01	1	0106-0512
284	NUT; UNION M12	0-91111-512-0	01	1	0601-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0106-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0106-0202
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
328	UNION; AIR PIPE (A) M12 2WAY	1-09654-059-2	01	1	0106-
328	UNION; AIR PIPE (C)	1-47470-442-0	01	1	0106-
328	UNION; AIR PIPE EXC. AIR DRYER<PS7> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
336	BOLT; PIPE UNION M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
336	BOLT; PIPE UNION M8X20 FLANGE	0-28650-820-0	01	1	0601-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0106-0202
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0203-
369	UNION; AIR PIPE ISUZU M/T<X9A> DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0106-0108
369	UNION; AIR PIPE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0109-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0106-0108
374	CONNECTOR (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0109-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0106-0108
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0106-0108
434	CLIP RLD GOVERNOR(SD7) (A) L=140	5-09707-031-1	01	1	0106-0108
434	CLIP (A) L=140	5-09707-031-1	01	1	0109-
434	CLIP (B) ID=17	8-94449-734-1	01	1	0106-
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	0106-0108
444	BOLT; UNION ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	0106-0108
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	0109-0512
444	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	0601-

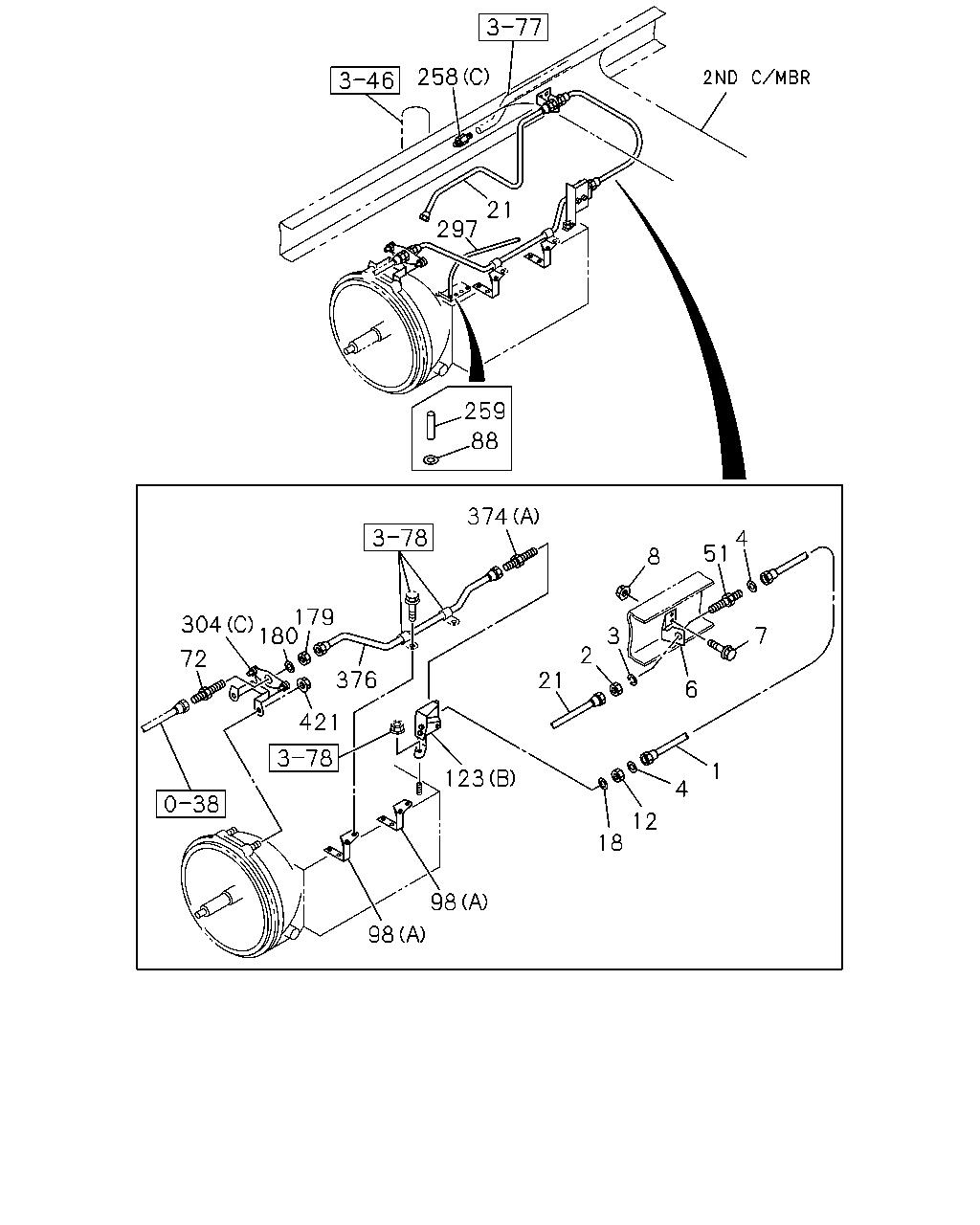

18 12 4 1 7 6 4 51 8 3 2 21 374 123 98 98 421 179 180 72 376 304 88 259 21 297 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> L=400	0-07846-400-1	01	1	0106-0605
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> L=400	0-57846-400-1	01	1	0606-
1	HOSE; FLEX,AIR TANK ZF M/T<X9E> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	0106-0108
1	HOSE; FLEX,AIR TANK MJD7 M/T<X9J> EXC. AIR DRYER<PS7> L=500	0-07846-500-1	01	1	0106-0108
1	HOSE; FLEX,AIR TANK EXC. AIR DRYER<PS7> L=500	0-07846-500-1	01	1	0109-0605
1	HOSE; FLEX,AIR TANK EXC. AIR DRYER<PS7> L=500	0-57846-500-1	01	1	0606-
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M22	9-09111-422-0	01	1	0106-0512
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M22	0-91111-522-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	0106-0603
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=22.5	0-91510-522-0	01	1	0604-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0106-
6	BRACKET; FLEX HOSE,AIR TANK AIR DRYER<PS7>	1-47477-432-0	01	1	0106-
6	BRACKET; FLEX HOSE,AIR TANK EXC. AIR DRYER<PS7>	1-47477-606-0	01	1	0106-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0106-0602
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0603-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0106-0108
12	NUT; UNION M20	9-99111-420-0	01	1	0109-0512
12	NUT; UNION M20	0-91111-520-0	01	1	0601-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	0106-0108
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0108
18	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	0109-0603
18	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0604-
18	WASHER; LK,UNION ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0106-0108
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-141-0	01	1	0106-
51	UNION AIR DRYER<PS7>	1-09654-202-1	01	1	0106-
72	UNION; AIR PIPE	1-09654-318-1	01	1	0106-
88	GASKET; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	01	1	0106-0108
88	GASKET; NYLON TUBE ID=11 OD=18	9-09572-510-0	01	1	0109-
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (A)	1-47477-840-0	02	1	0106-0108
98	BRACKET; AIR PIPE (A)	1-47477-840-0	02	1	0109-
98	BRACKET; AIR PIPE ZF M/T<X9E> (B)	1-47477-902-0	01	1	0106-0108
98	BRACKET; AIR PIPE (C)	1-47477-471-0	01	1	0106-
123	BRACKET; UNION EXC. FULL FLOATING CAB(W16) (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0106-0108
123	BRACKET; UNION MJD7R M/T(Y2X) (B)	1-47477-396-1	01	1	0106-0108
123	BRACKET; UNION (B)	1-47477-396-1	01	1	0109-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0106-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0106-
179	NUT; UNION M22	9-09111-422-0	01	1	0106-0512
179	NUT; UNION M22	0-91111-522-0	01	1	0601-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0106-0603
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0106-0302
258	CONNECTOR; NYLON TUBE (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0109-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0109-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0109-
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> ID=23 OD=27 L=40	1-09337-015-0	02	1	0106-0108
259	SLEEVE; RUBBER,NYLON TUBE L=175	1-09707-178-0	01	1	0109-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0106-0108
304	BRACKET; UNION (C)	1-47477-182-1	01	1	0109-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-0108
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0106-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0106-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0106-0108
374	CONNECTOR (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0109-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0106-0108
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE MJD7R M/T(Y2X) L=741	1-49112-563-0	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE L=741	1-49112-563-0	01	1	0109-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0106-0602
421	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-

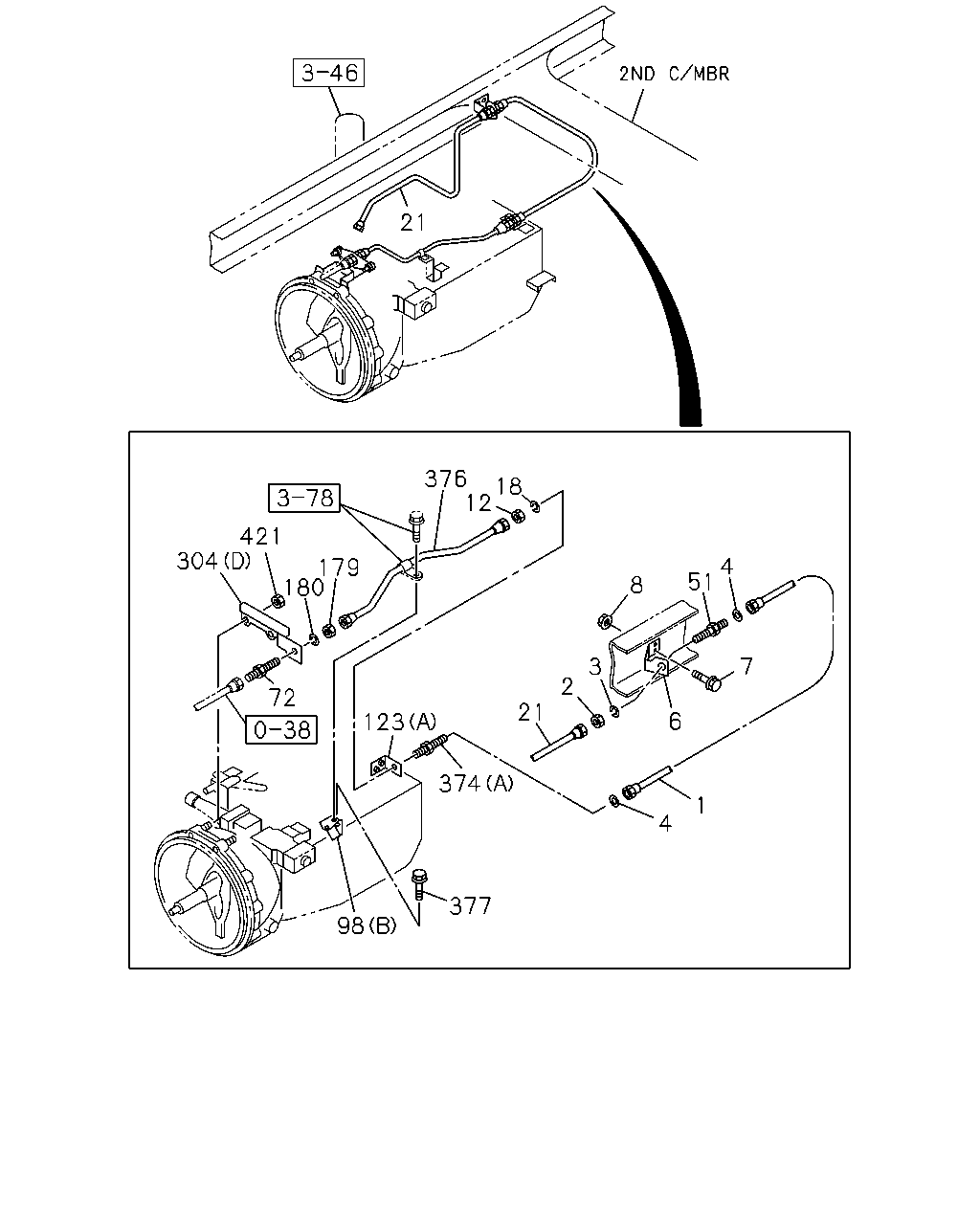

4 51 7 8 6 3 2 21 1 4 374 377 98 123 12 18 376 421 304 179 180 72 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> L=400	0-07846-400-1	01	1	0106-0605
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> L=400	0-57846-400-1	01	1	0606-
1	HOSE; FLEX,AIR TANK ZF M/T<X9E> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	0106-0108
1	HOSE; FLEX,AIR TANK MJD7 M/T<X9J> EXC. AIR DRYER<PS7> L=500	0-07846-500-1	01	1	0106-0108
1	HOSE; FLEX,AIR TANK EXC. AIR DRYER<PS7> L=500	0-07846-500-1	01	1	0109-0605
1	HOSE; FLEX,AIR TANK EXC. AIR DRYER<PS7> L=500	0-57846-500-1	01	1	0606-
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M22	9-09111-422-0	01	1	0106-0512
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M22	0-91111-522-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	0106-0603
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=22.5	0-91510-522-0	01	1	0604-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0106-
6	BRACKET; FLEX HOSE,AIR TANK AIR DRYER<PS7>	1-47477-432-0	01	1	0106-
6	BRACKET; FLEX HOSE,AIR TANK EXC. AIR DRYER<PS7>	1-47477-606-0	01	1	0106-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0106-0602
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0603-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0106-0108
12	NUT; UNION M20	9-99111-420-0	01	1	0109-0512
12	NUT; UNION M20	0-91111-520-0	01	1	0601-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	0106-0108
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0108
18	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	0109-0603
18	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0604-
18	WASHER; LK,UNION ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0106-0108
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-141-0	01	1	0106-
51	UNION AIR DRYER<PS7>	1-09654-202-1	01	1	0106-
72	UNION; AIR PIPE	1-09654-318-1	01	1	0106-
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (A)	1-47477-840-0	02	1	0106-0108
98	BRACKET; AIR PIPE (A)	1-47477-840-0	02	1	0109-
98	BRACKET; AIR PIPE ZF M/T<X9E> (B)	1-47477-902-0	01	1	0106-0108
98	BRACKET; AIR PIPE (C)	1-47477-471-0	01	1	0106-
123	BRACKET; UNION EXC. FULL FLOATING CAB(W16) (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0106-0108
123	BRACKET; UNION MJD7R M/T(Y2X) (B)	1-47477-396-1	01	1	0106-0108
123	BRACKET; UNION (B)	1-47477-396-1	01	1	0109-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0106-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0106-
179	NUT; UNION M22	9-09111-422-0	01	1	0106-0512
179	NUT; UNION M22	0-91111-522-0	01	1	0601-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0106-0603
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0106-0108
304	BRACKET; UNION (C)	1-47477-182-1	01	1	0109-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-0108
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0106-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0106-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0106-0108
374	CONNECTOR (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0109-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0106-0108
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE MJD7R M/T(Y2X) L=741	1-49112-563-0	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE L=741	1-49112-563-0	01	1	0109-
377	BOLT; BRKT FIX ZF M/T<X9E> M12X16	0-28181-216-0	01	1	0106-0108
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
377	BOLT; BRKT FIX M8X35 FLANGE	0-28650-835-0	02	1	0601-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0106-0602
421	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-

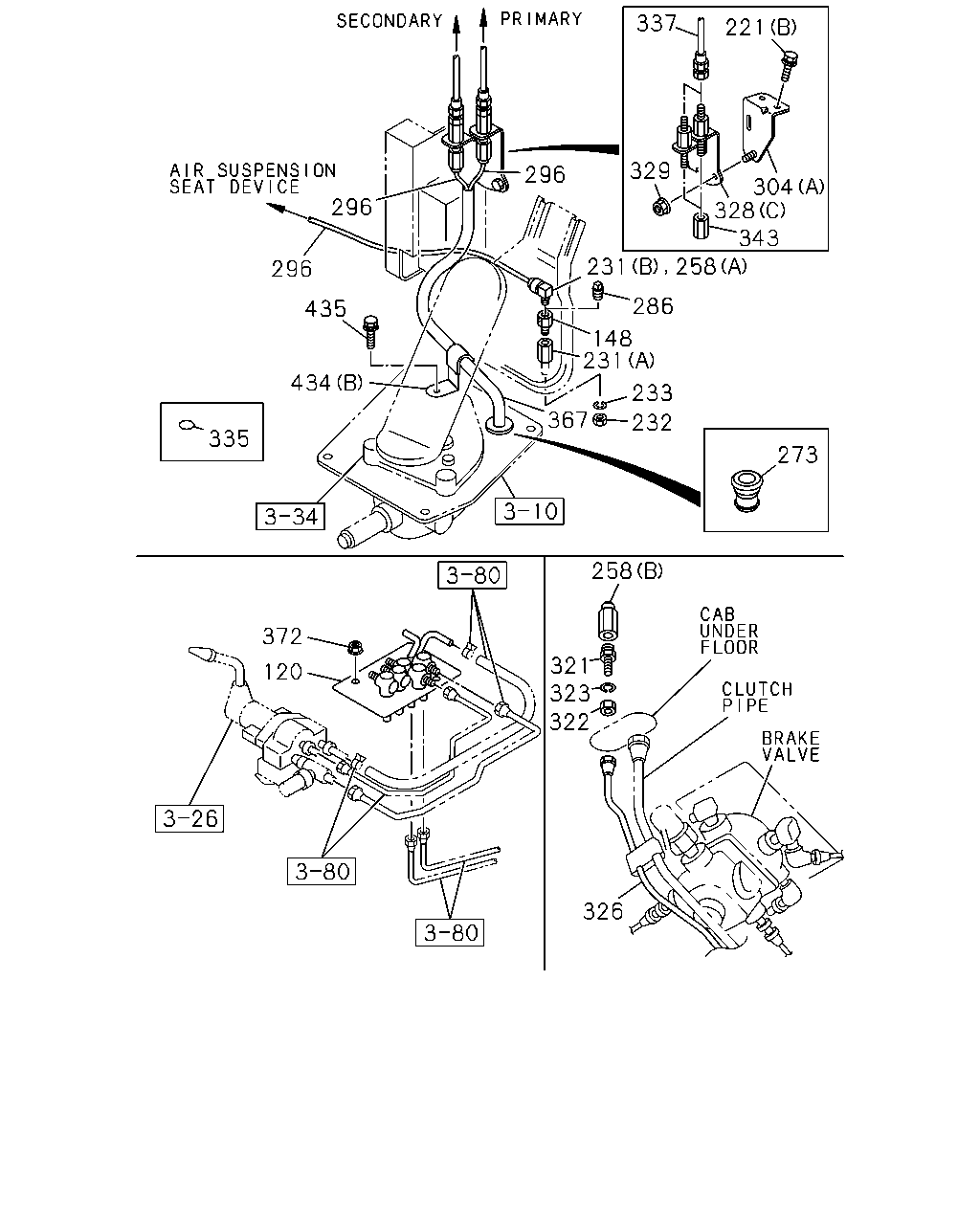

273 258 326 322 321 323 372 120 232 233 367 231 148 286 258 231 343 328 329 221 337 296 296 296 435 434 335 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE	1-47470-405-1	01	1	0106-
148	CONNECTOR; UNION	8-94338-417-0	01	1	0106-0108
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09656-682-0	01	1	0106-0108
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09656-682-0	01	1	0106-0108
231	UNION; AIR PIPE (B)	1-09656-682-0	01	1	0109-0303
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	0106-0108
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	0106-0108
231	UNION; AIR PIPE (A)	1-09656-713-2	01	1	0109-
231	UNION; AIR PIPE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09654-356-0	01	1	0106-0108
231	UNION; AIR PIPE EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09654-356-0	01	1	0109-0303
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0106-0108
232	NUT; UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0106-0108
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	0109-
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0106-0108
233	WASHER; LK,UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0106-0108
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	0109-0603
233	WASHER; LK,UNION,AIR PIPE ID=10.2	0-91510-510-0	01	1	0604-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0106-0302
258	CONNECTOR; NYLON TUBE (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0109-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0109-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0109-
273	GROMMET	1-09332-135-0	01	1	0106-
286	PLUG; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0106-0108
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0106-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0106-0202
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0106-0108
304	BRACKET; UNION (C)	1-47477-182-1	01	1	0109-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-0108
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0106-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0106-
321	JOINT; FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0106-0108
321	JOINT; FLEX HOSE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0106-0108
321	JOINT; FLEX HOSE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0109-
322	NUT; JOINT,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0106-0108
322	NUT; JOINT,FLEX HOSE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0106-0108
322	NUT; JOINT,FLEX HOSE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0109-
323	WASHER; LK,JOINT TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0106-0108
323	WASHER; LK,JOINT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0106-0108
323	WASHER; LK,JOINT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0109-0603
323	WASHER; LK,JOINT ID=10.2	0-91510-510-0	01	1	0604-
326	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0106-0108
326	PIPE; AIR,FLEX HOSE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0106-0108
326	PIPE; AIR,FLEX HOSE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0109-
328	UNION; AIR PIPE (A) M12 2WAY	1-09654-059-2	01	1	0106-
328	UNION; AIR PIPE (C)	1-47470-442-0	01	1	0106-
328	UNION; AIR PIPE EXC. AIR DRYER<PS7> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
329	NUT; UNION,AIR PIPE M6 FLANGE	0-91150-106-0	01	1	0106-0602
329	NUT; UNION,AIR PIPE M6 FLANGE	0-91180-106-0	01	1	0603-
335	SEAL; UNION ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0106-0108
335	SEAL; UNION EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0109-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=520	0-07210-520-0	02	1	0106-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=520	0-57210-520-0	02	1	0606-
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0106-0202
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0203-
372	NUT M8 FLANGE	0-91150-108-0	02	1	0106-0602
372	NUT M8 FLANGE	0-91180-108-0	02	1	0603-
434	CLIP RLD GOVERNOR(SD7) (A) L=140	5-09707-031-1	01	1	0106-0108
434	CLIP (A) L=140	5-09707-031-1	01	1	0109-
434	CLIP (B) ID=17	8-94449-734-1	01	1	0106-
435	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0106-

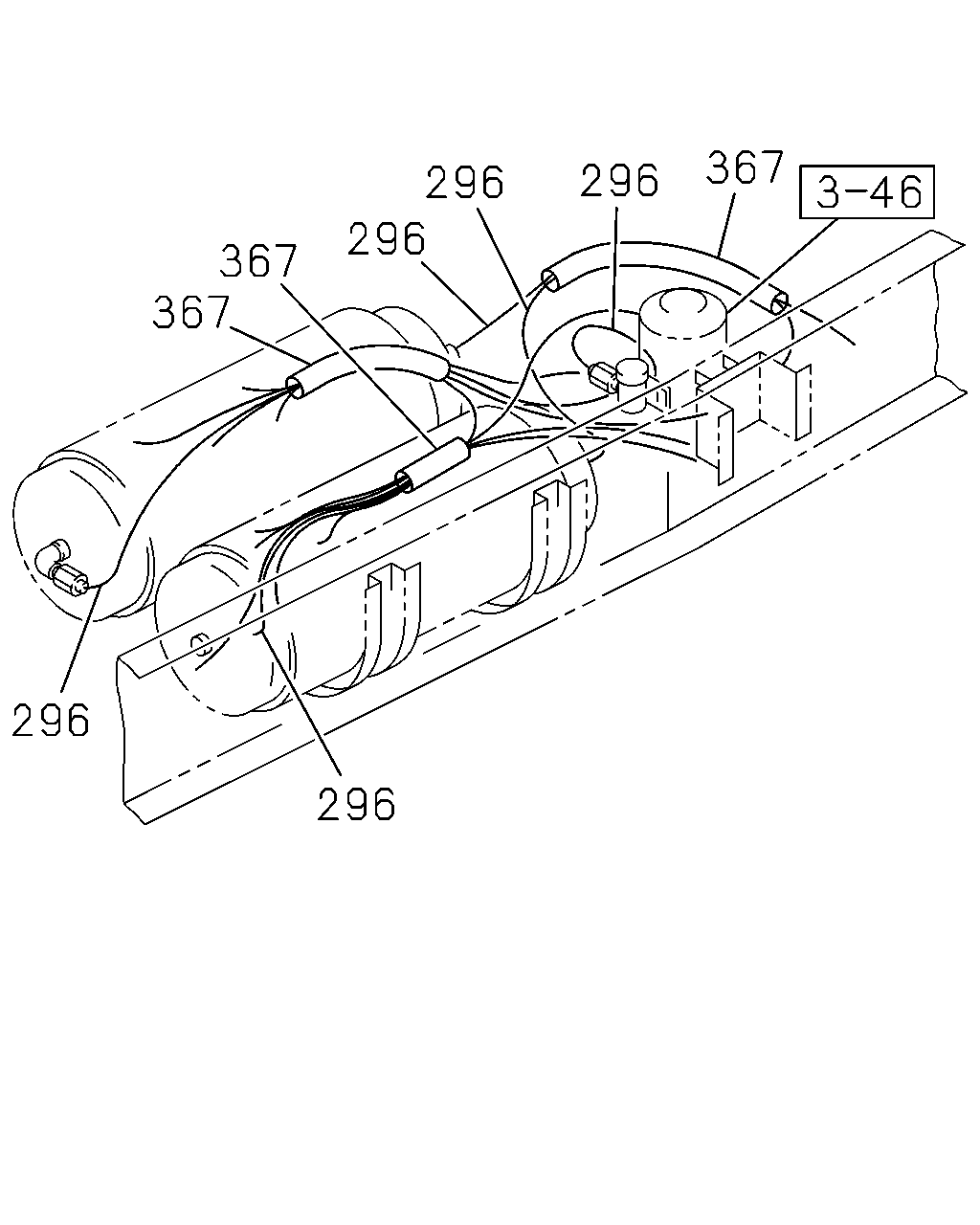

367 296 296 296 367 367 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0106-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0106-0202
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0106-0202
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0203-

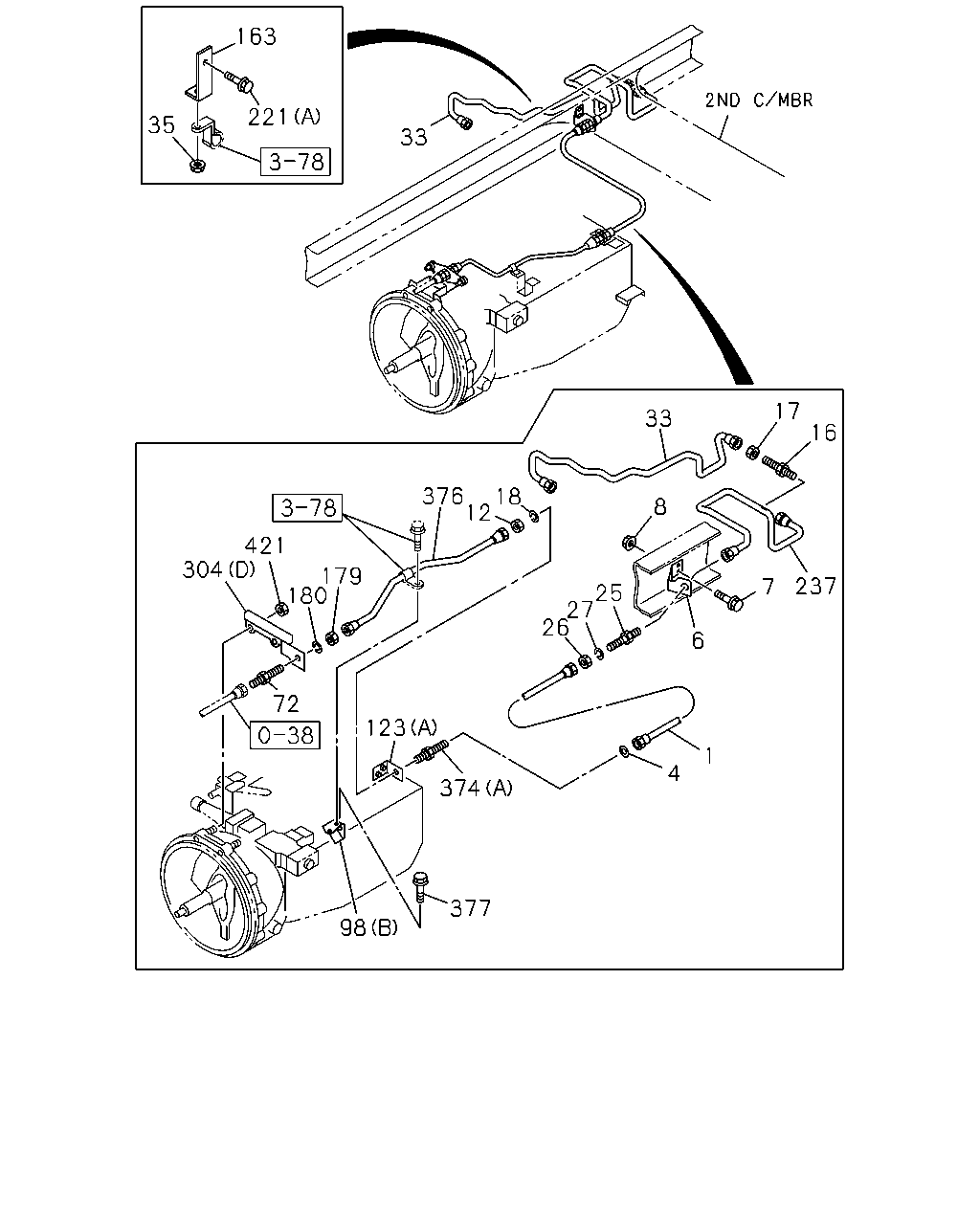

237 4 1 6 7 16 17 33 8 25 27 26 374 377 123 72 179 180 421 304 12 18 376 33 163 35 221 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> L=400	0-07846-400-1	01	1	0106-0605
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> L=400	0-57846-400-1	01	1	0606-
1	HOSE; FLEX,AIR TANK ZF M/T<X9E> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	0106-0108
1	HOSE; FLEX,AIR TANK MJD7 M/T<X9J> EXC. AIR DRYER<PS7> L=500	0-07846-500-1	01	1	0106-0108
1	HOSE; FLEX,AIR TANK EXC. AIR DRYER<PS7> L=500	0-07846-500-1	01	1	0109-0605
1	HOSE; FLEX,AIR TANK EXC. AIR DRYER<PS7> L=500	0-57846-500-1	01	1	0606-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0106-
6	BRACKET; FLEX HOSE,AIR TANK AIR DRYER<PS7>	1-47477-432-0	01	1	0106-
6	BRACKET; FLEX HOSE,AIR TANK EXC. AIR DRYER<PS7>	1-47477-606-0	01	1	0106-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0106-0602
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0603-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0106-0108
12	NUT; UNION M20	9-99111-420-0	01	1	0109-0512
12	NUT; UNION M20	0-91111-520-0	01	1	0601-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	0106-0108
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	0106-0607
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	0-92123-315-0	01	1	0608-
17	NUT; UNION EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	0106-0512
17	NUT; UNION EXC. AIR DRYER<PS7> M22	0-91111-522-0	01	1	0601-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0108
18	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	0109-0603
18	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0604-
18	WASHER; LK,UNION ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0106-0108
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	0106-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	0106-0512
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	0-91111-520-0	01	1	0601-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0106-0603
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	0-91510-520-0	01	1	0604-
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49122-443-0	01	1	0106-0204
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49123-434-0	01	1	0205-
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0106-0602
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
72	UNION; AIR PIPE	1-09654-318-1	01	1	0106-
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (A)	1-47477-840-0	02	1	0106-0108
98	BRACKET; AIR PIPE (A)	1-47477-840-0	02	1	0109-
98	BRACKET; AIR PIPE ZF M/T<X9E> (B)	1-47477-902-0	01	1	0106-0108
98	BRACKET; AIR PIPE (C)	1-47477-471-0	01	1	0106-
123	BRACKET; UNION EXC. FULL FLOATING CAB(W16) (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0106-0108
123	BRACKET; UNION MJD7R M/T(Y2X) (B)	1-47477-396-1	01	1	0106-0108
123	BRACKET; UNION (B)	1-47477-396-1	01	1	0109-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0106-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0106-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=55	1-47475-304-0	01	1	0106-
179	NUT; UNION M22	9-09111-422-0	01	1	0106-0512
179	NUT; UNION M22	0-91111-522-0	01	1	0601-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0106-0603
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. AIR DRYER<PS7> L=373	1-49116-157-1	01	1	0106-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0106-0108
304	BRACKET; UNION (C)	1-47477-182-1	01	1	0109-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-0108
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0106-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0106-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0106-0108
374	CONNECTOR (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0109-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0106-0108
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE MJD7R M/T(Y2X) L=741	1-49112-563-0	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE L=741	1-49112-563-0	01	1	0109-
377	BOLT; BRKT FIX ZF M/T<X9E> M12X16	0-28181-216-0	01	1	0106-0108
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
377	BOLT; BRKT FIX M8X35 FLANGE	0-28650-835-0	02	1	0601-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0106-0602
421	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-

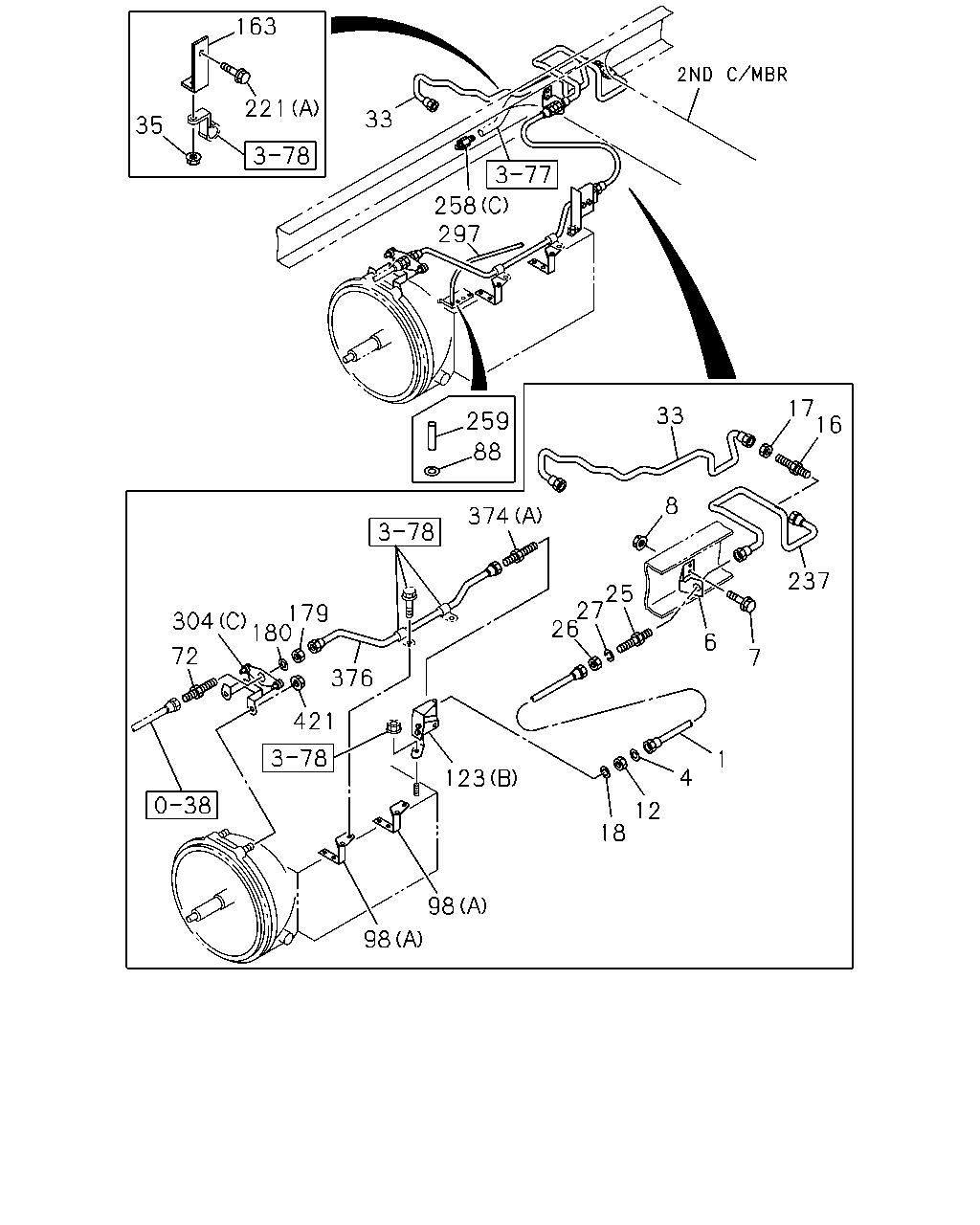

16 17 33 8 237 7 6 1 4 12 18 26 25 27 374 88 259 123 98 98 376 421 179 180 304 72 297 258 33 163 221 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> L=400	0-07846-400-1	01	1	0106-0605
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> L=400	0-57846-400-1	01	1	0606-
1	HOSE; FLEX,AIR TANK ZF M/T<X9E> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	0106-0108
1	HOSE; FLEX,AIR TANK MJD7 M/T<X9J> EXC. AIR DRYER<PS7> L=500	0-07846-500-1	01	1	0106-0108
1	HOSE; FLEX,AIR TANK EXC. AIR DRYER<PS7> L=500	0-07846-500-1	01	1	0109-0605
1	HOSE; FLEX,AIR TANK EXC. AIR DRYER<PS7> L=500	0-57846-500-1	01	1	0606-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0106-
6	BRACKET; FLEX HOSE,AIR TANK AIR DRYER<PS7>	1-47477-432-0	01	1	0106-
6	BRACKET; FLEX HOSE,AIR TANK EXC. AIR DRYER<PS7>	1-47477-606-0	01	1	0106-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0106-0602
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0603-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0106-0108
12	NUT; UNION M20	9-99111-420-0	01	1	0109-0512
12	NUT; UNION M20	0-91111-520-0	01	1	0601-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	0106-0108
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	0106-0607
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	0-92123-315-0	01	1	0608-
17	NUT; UNION EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	0106-0512
17	NUT; UNION EXC. AIR DRYER<PS7> M22	0-91111-522-0	01	1	0601-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0108
18	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	0109-0603
18	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0604-
18	WASHER; LK,UNION ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0106-0108
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	0106-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	0106-0512
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	0-91111-520-0	01	1	0601-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0106-0603
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	0-91510-520-0	01	1	0604-
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49122-443-0	01	1	0106-0204
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49123-434-0	01	1	0205-
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0106-0602
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
72	UNION; AIR PIPE	1-09654-318-1	01	1	0106-
88	GASKET; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	01	1	0106-0108
88	GASKET; NYLON TUBE ID=11 OD=18	9-09572-510-0	01	1	0109-
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (A)	1-47477-840-0	02	1	0106-0108
98	BRACKET; AIR PIPE (A)	1-47477-840-0	02	1	0109-
98	BRACKET; AIR PIPE ZF M/T<X9E> (B)	1-47477-902-0	01	1	0106-0108
98	BRACKET; AIR PIPE (C)	1-47477-471-0	01	1	0106-
123	BRACKET; UNION EXC. FULL FLOATING CAB(W16) (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0106-0108
123	BRACKET; UNION MJD7R M/T(Y2X) (B)	1-47477-396-1	01	1	0106-0108
123	BRACKET; UNION (B)	1-47477-396-1	01	1	0109-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0106-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0106-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=55	1-47475-304-0	01	1	0106-
179	NUT; UNION M22	9-09111-422-0	01	1	0106-0512
179	NUT; UNION M22	0-91111-522-0	01	1	0601-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0106-0603
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. AIR DRYER<PS7> L=373	1-49116-157-1	01	1	0106-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0106-0302
258	CONNECTOR; NYLON TUBE (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0109-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0109-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-0108
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0109-
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> ID=23 OD=27 L=40	1-09337-015-0	02	1	0106-0108
259	SLEEVE; RUBBER,NYLON TUBE L=175	1-09707-178-0	01	1	0109-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0106-0108
304	BRACKET; UNION (C)	1-47477-182-1	01	1	0109-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-0108
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0106-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0106-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0106-0108
374	CONNECTOR (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0109-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0106-0108
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE MJD7R M/T(Y2X) L=741	1-49112-563-0	01	1	0106-0108
376	PIPE; AIR,FLEX HOSE L=741	1-49112-563-0	01	1	0109-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0106-0602
421	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-

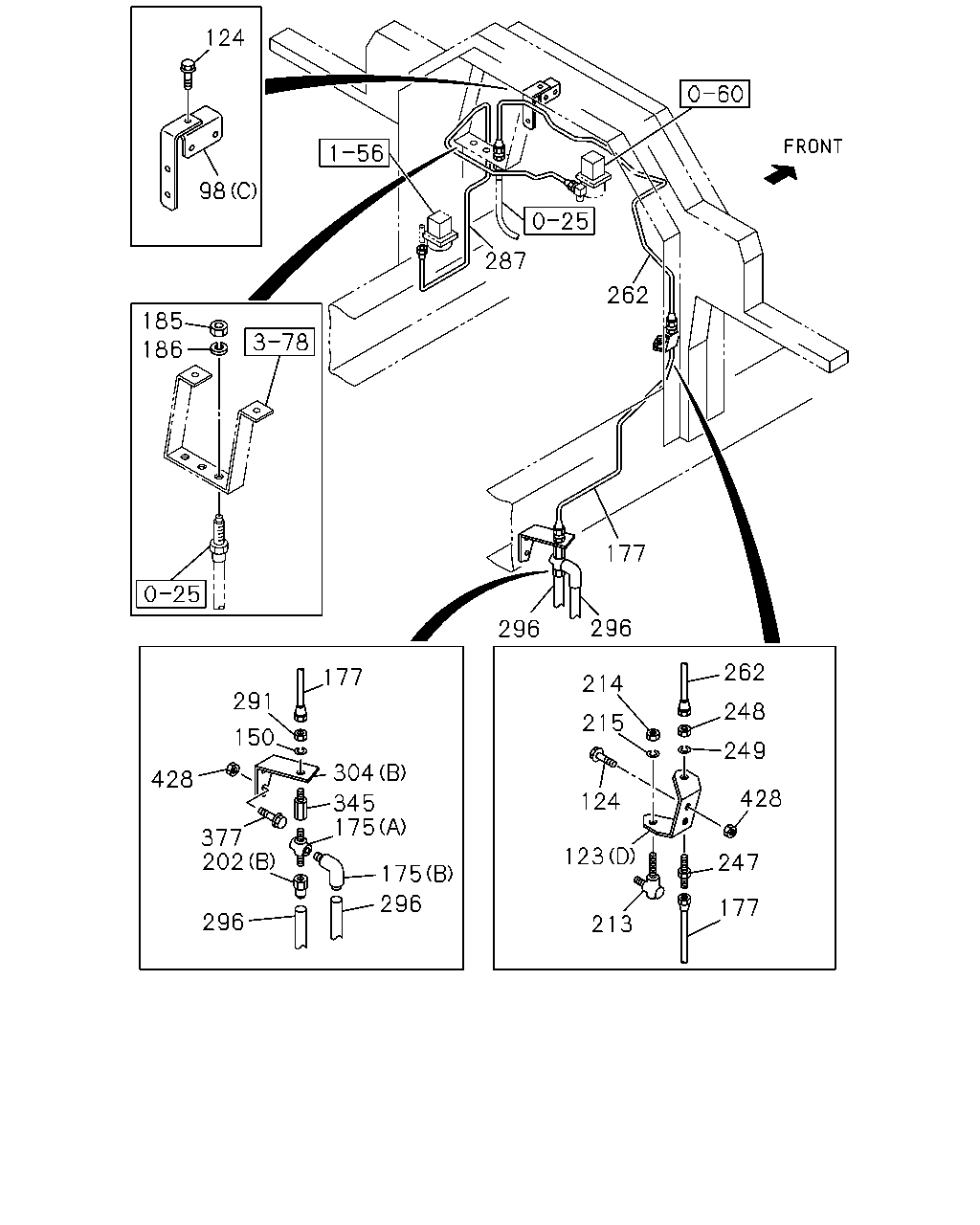

262 287 124 98 185 186 177 291 150 428 296 296 177 262 214 215 124 248 249 428 247 177 213 123 296 175 175 345 304 296 202 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (A)	1-47477-840-0	02	1	0106-0108
98	BRACKET; AIR PIPE (A)	1-47477-840-0	02	1	0109-
98	BRACKET; AIR PIPE ZF M/T<X9E> (B)	1-47477-902-0	01	1	0106-0108
98	BRACKET; AIR PIPE (C)	1-47477-471-0	01	1	0106-
123	BRACKET; UNION EXC. FULL FLOATING CAB(W16) (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0106-0108
123	BRACKET; UNION MJD7R M/T(Y2X) (B)	1-47477-396-1	01	1	0106-0108
123	BRACKET; UNION (B)	1-47477-396-1	01	1	0109-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0106-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0106-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
124	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
124	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0106-0603
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-0108
175	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0109-
175	CONNECTOR; AIR PIPE (A)	1-09650-070-3	01	1	0106-
175	CONNECTOR; AIR PIPE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0106-
177	PIPE; AIR,UNION TO UNION L=548	1-49122-243-0	01	1	0106-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0106-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0106-0603
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-
202	ADAPTER ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-0108
202	ADAPTER EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0109-
202	ADAPTER ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0106-0108
202	ADAPTER EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0109-
202	ADAPTER ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0108
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0108
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0109-
213	UNION; AIR PIPE M12 3WAY	9-09228-906-1	01	1	0106-0607
213	UNION; AIR PIPE M12 3WAY	0-92138-906-0	01	1	0608-
213	UNION; AIR PIPE EXC. FULL FLOATING CAB(W16) M12 ELBOW	9-09225-206-1	01	1	0106-0607
213	UNION; AIR PIPE EXC. FULL FLOATING CAB(W16) M12 ELBOW	0-92125-206-0	01	1	0608-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0106-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	0106-0603
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	01	1	0604-
247	UNION; AIR PIPE M12 L=66.5	9-09223-306-1	01	1	0106-0607
247	UNION; AIR PIPE M12 L=66.5	0-92113-306-0	01	1	0608-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0106-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	0106-0603
249	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	0604-
262	PIPE; AIR,UNION TO FLEX L=896	1-49121-787-0	01	1	0106-
287	PIPE; AIR,MAG VLV L=1220	1-49121-788-0	01	1	0106-
291	NUT; UNION M12	9-09840-280-0	01	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0106-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0106-0202
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0106-0108
304	BRACKET; UNION (C)	1-47477-182-1	01	1	0109-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-0108
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0106-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0106-
345	UNION; AIR PIPE	1-09654-280-1	01	1	0106-
377	BOLT; BRKT FIX ZF M/T<X9E> M12X16	0-28181-216-0	01	1	0106-0108
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
377	BOLT; BRKT FIX M8X35 FLANGE	0-28650-835-0	02	1	0601-
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-0602
428	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
