◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#114308) — 23 parça

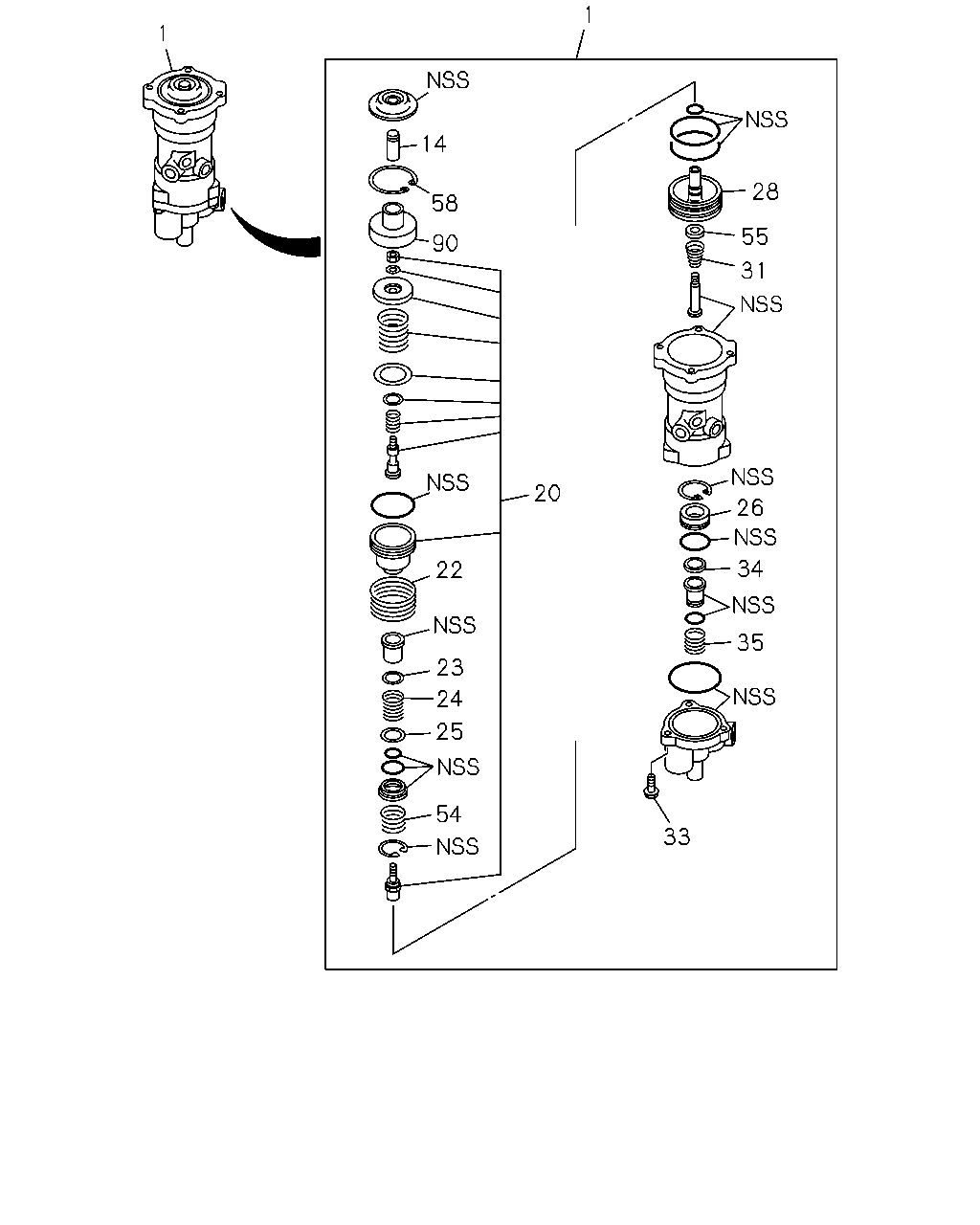

çizim 327877
1 14 58 90 20 22 23 24 25 54 28 55 31 26 34 35 33 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK
MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) MANUAL TRANSMISSION<X9C> 		8-98222-789-0 01 1 1302- ●
1 VALVE; BRK
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> 		8-98222-788-0 01 1 1302- ●
1 VALVE; BRK
FULLER FS8209HD DD M/T(Y3A) 		8-98222-788-0 01 1 1302- ●
14 PLUNGER; BRK VLV 1-48119-641-0 01 1 1302- ● ●
20 PISTON; UPR,BRK VLV
MZW6P M/T(RSZ) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) MANUAL TRANSMISSION<X9C> 		1-48119-644-0 01 1 1302- ●
20 PISTON; UPR,BRK VLV
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> 		1-48119-651-0 01 1 1302- ●
20 PISTON; UPR,BRK VLV
FULLER FS8209HD DD M/T(Y3A) 		1-48119-651-0 01 1 1302- ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-076-0 01 1 1302- ● ●
23 WASHER; UPR,BRK VLV 1-48129-299-0 01 1 1302- ● ●
24 SPRING; UPR,BRK VLV 1-48123-077-0 01 1 1302- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-300-0 01 1 1302- ● ●
26 RETAINER; VLV,BRK VLV 1-48129-308-0 01 1 1302- ● ●
28 PISTON; LWR,BRK VLV 1-48129-302-0 01 1 1302- ● ●
31 SPRING; VLV,BRK VLV 1-48123-079-0 01 1 1302- ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 03 1 1302- ● ●
34 RETAINER; VLV,BRK VLV 1-48129-307-0 01 1 1302- ● ●
35 SPRING; VLV,BRK VLV 1-48123-078-0 01 1 1302- ● ●
54 SPRING; PISTON,UPR,BRK VLV 1-48123-075-0 01 1 1302- ● ●
55 RETAINER; PLATE,BRK VLV 1-48129-305-0 01 1 1302- ● ●
58 RING; RET,EXH,BRK VLV 1-48219-198-0 01 1 1302- ● ●
90 GUIDE; PLUNGER 1-48119-642-0 01 1 1302- ● ●
çizim 331665
2 58
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK VLV 8-98222-820-0 01 1 1302- ● ●
58 RING; RET,EXH,BRK VLV 1-48219-198-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
