7-20 — MIRROR AND MIRROR STAY (#1143) — 130 parça

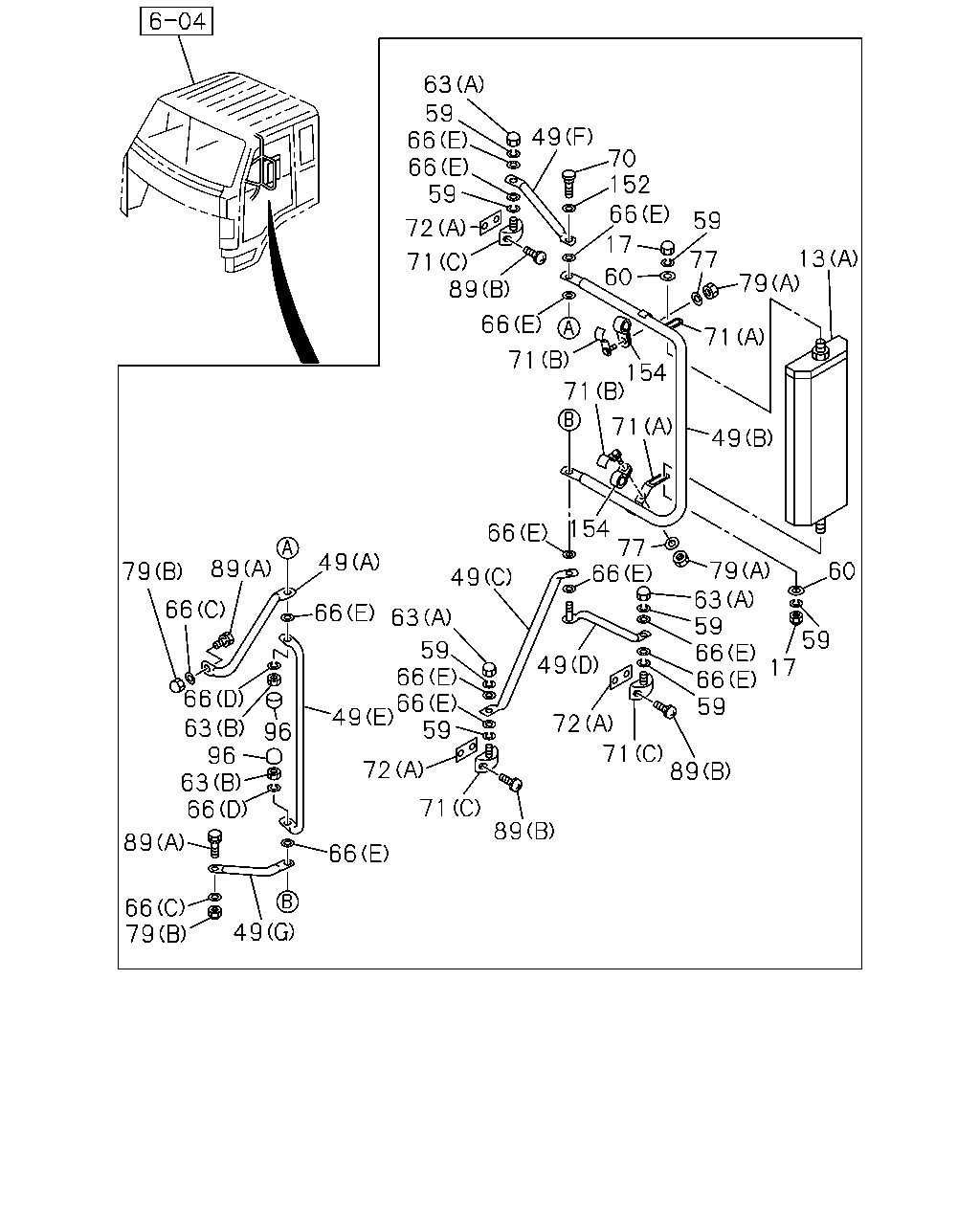

63 59 66 66 59 49 70 152 66 59 72 17 13 77 71 89 60 79 66 71 154 71 71 71 49 154 77 66 66 49 89 79 63 59 66 66 59 60 79 49 66 66 63 59 17 59 66 66 49 59 49 66 63 96 63 66 72 96 71 89 72 71 89 89 66 66 79 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-918-0	02	1	9202-	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32> M5	1-09984-124-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-562-1	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (G)	1-71736-564-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-624-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-561-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-566-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-568-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-658-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-560-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-563-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-565-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-567-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H) BLACK	1-71798-001-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-719-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-846-0	01	1	9202-	●	●
59	WASHER; LK DOOR MIRROR<D32> ID=8.2	1-09985-177-0	04	1	9202-	●	●
59	WASHER; LK DOOR MIRROR<D32> ID=10	1-09985-180-0	06	1	9202-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> ID=10	1-09985-180-0	03	1	9202-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> ID=10	1-09985-180-0	01	1	9202-	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	9202-	●	●
63	NUT; STAY DOOR MIRROR<D32> (A) M10	1-09984-134-0	06	1	9202-	●	●
63	NUT; STAY DOOR MIRROR<D32> (B) M10 H=8.3	1-09984-146-0	04	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (C) M10	1-09984-120-0	03	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (D) M8 FLANGE	1-09984-126-0	02	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (E) M10	1-09984-145-0	03	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (C) M10	1-09984-120-0	01	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (E) M10	1-09984-145-0	01	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (C) ID=8.4 OD=16 T=1.2	1-09985-174-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (D) ID=10.5 OD=26	1-09985-182-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (E) ID=10.5 OD=26	1-09985-204-0	26	1	9202-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (C) ID=8.4 OD=16 T=1.2	1-09985-174-0	02	1	9202-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.5 OD=16 T=1	1-09985-181-0	02	1	9202-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26	1-09985-204-0	13	1	9202-	●	●
70	BOLT; STAY TO BRKT DOOR MIRROR<D32> M10X52	1-71736-634-0	02	1	9202-	●	●
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (B)	1-71736-224-3	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (A)	1-71736-404-1	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C)	1-71737-441-4	06	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C)	1-71736-419-2	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (E) WHITE	1-71736-578-0	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (D) WHITE	1-71736-415-3	01	1	9202-	●	●
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	06	1	9202-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (C) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9202-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71737-428-0	02	1	9202-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (B) D=8 2-HOLE	1-71737-444-0	02	1	9202-	●	●
77	WASHER; PL,BRKT,STAY DOOR MIRROR<D32> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9202-	●	●
79	NUT; BRKT,STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
79	NUT; BRKT,STAY DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	04	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (A) M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9202-9207	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (B) M6X20	1-09981-494-0	12	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9202-	●	●
96	CAP; MIRROR STAY DOOR MIRROR<D32>	1-71736-199-0	04	1	9202-	●	●
152	SHEET; MIRROR STAY DOOR MIRROR<D32>	1-71736-357-0	02	1	9202-	●	●
154	SEAT; BRKT DOOR MIRROR<D32>	1-71736-479-0	04	1	9202-	●	●

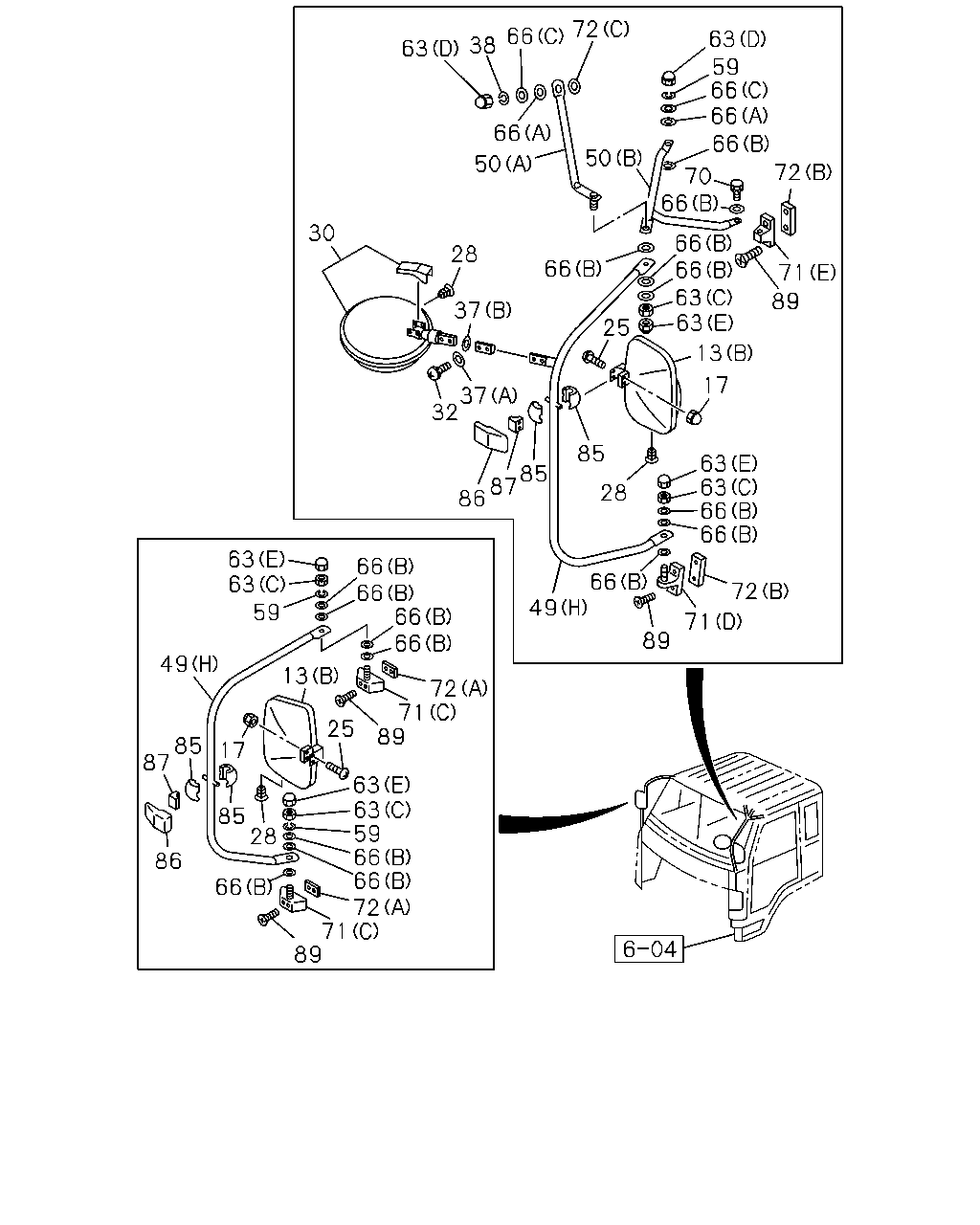

72 66 63 59 66 66 66 38 63 66 50 50 72 70 66 30 66 66 63 63 28 66 71 89 37 25 13 17 37 32 85 63 63 66 66 85 87 86 28 63 63 59 66 66 66 66 66 49 72 71 89 49 13 72 71 89 25 85 87 17 63 63 59 66 66 72 71 89 85 28 86 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-918-0	02	1	9202-	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32> M5	1-09984-124-0	02	1	9202-	●	●
25	SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M5X50	1-09981-444-0	02	1	9202-	●	●
28	GROMMET; UNDER MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-678-0	01	1	9202-	●	●
28	GROMMET; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	02	1	9202-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> BLACK	1-71736-662-4	01	1	9202-	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9202-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (B)	1-71736-661-0	01	1	9202-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-748-0	02	1	9202-	●	●
38	WASHER; LK,UNDER MIRROR EXC. DOOR MIRROR<D32> ID=8.2	1-09985-177-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-562-1	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (G)	1-71736-564-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-624-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-561-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-566-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-568-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-658-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-560-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-563-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-565-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-567-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H) BLACK	1-71798-001-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-719-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-846-0	01	1	9202-	●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71736-410-3	01	1	9202-	●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B) BLACK	1-71736-414-0	01	1	9202-	●	●
59	WASHER; LK DOOR MIRROR<D32> ID=8.2	1-09985-177-0	04	1	9202-	●	●
59	WASHER; LK DOOR MIRROR<D32> ID=10	1-09985-180-0	06	1	9202-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> ID=10	1-09985-180-0	03	1	9202-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> ID=10	1-09985-180-0	01	1	9202-	●	●
63	NUT; STAY DOOR MIRROR<D32> (A) M10	1-09984-134-0	06	1	9202-	●	●
63	NUT; STAY DOOR MIRROR<D32> (B) M10 H=8.3	1-09984-146-0	04	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (C) M10	1-09984-120-0	03	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (D) M8 FLANGE	1-09984-126-0	02	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (E) M10	1-09984-145-0	03	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (C) M10	1-09984-120-0	01	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (E) M10	1-09984-145-0	01	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (C) ID=8.4 OD=16 T=1.2	1-09985-174-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (D) ID=10.5 OD=26	1-09985-182-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (E) ID=10.5 OD=26	1-09985-204-0	26	1	9202-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (C) ID=8.4 OD=16 T=1.2	1-09985-174-0	02	1	9202-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.5 OD=16 T=1	1-09985-181-0	02	1	9202-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26	1-09985-204-0	13	1	9202-	●	●
70	BOLT; STAY TO BRKT DOOR MIRROR<D32> M10X52	1-71736-634-0	02	1	9202-	●	●
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (B)	1-71736-224-3	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (A)	1-71736-404-1	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C)	1-71737-441-4	06	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C)	1-71736-419-2	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (E) WHITE	1-71736-578-0	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (D) WHITE	1-71736-415-3	01	1	9202-	●	●
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	06	1	9202-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (C) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9202-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71737-428-0	02	1	9202-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (B) D=8 2-HOLE	1-71737-444-0	02	1	9202-	●	●
85	PIVOT; MAIN MIRROR EXC. DOOR MIRROR<D32> ID=22.2	1-71736-489-2	04	1	9202-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-760-0	02	1	9202-	●	●
87	SPACER EXC. DOOR MIRROR<D32>	1-71737-704-0	02	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (A) M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9202-9207	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (B) M6X20	1-09981-494-0	12	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9202-	●	●

133 13 132 134 6 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM	1-73117-026-1	01	1	9202-	●	●
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9202-	●	●
6	BUSHING; RR VIEW MIRROR DELUXE CAB(W14)	1-73318-342-0	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-918-0	02	1	9202-	●	●
132	RING; MIRROR EXC. DOOR MIRROR<D32>	1-71737-934-0	01	1	9202-	●	●
133	LENS; MIRROR,OUTSIDE EXC. DOOR MIRROR<D32>	1-71737-927-0	01	1	9202-	●	●
134	CLIP; MIRROR LENS EXC. DOOR MIRROR<D32>	1-71737-936-0	01	1	9202-	●	●
