3-22 — AIR CONTROL PARTS (#114284) — 163 parça

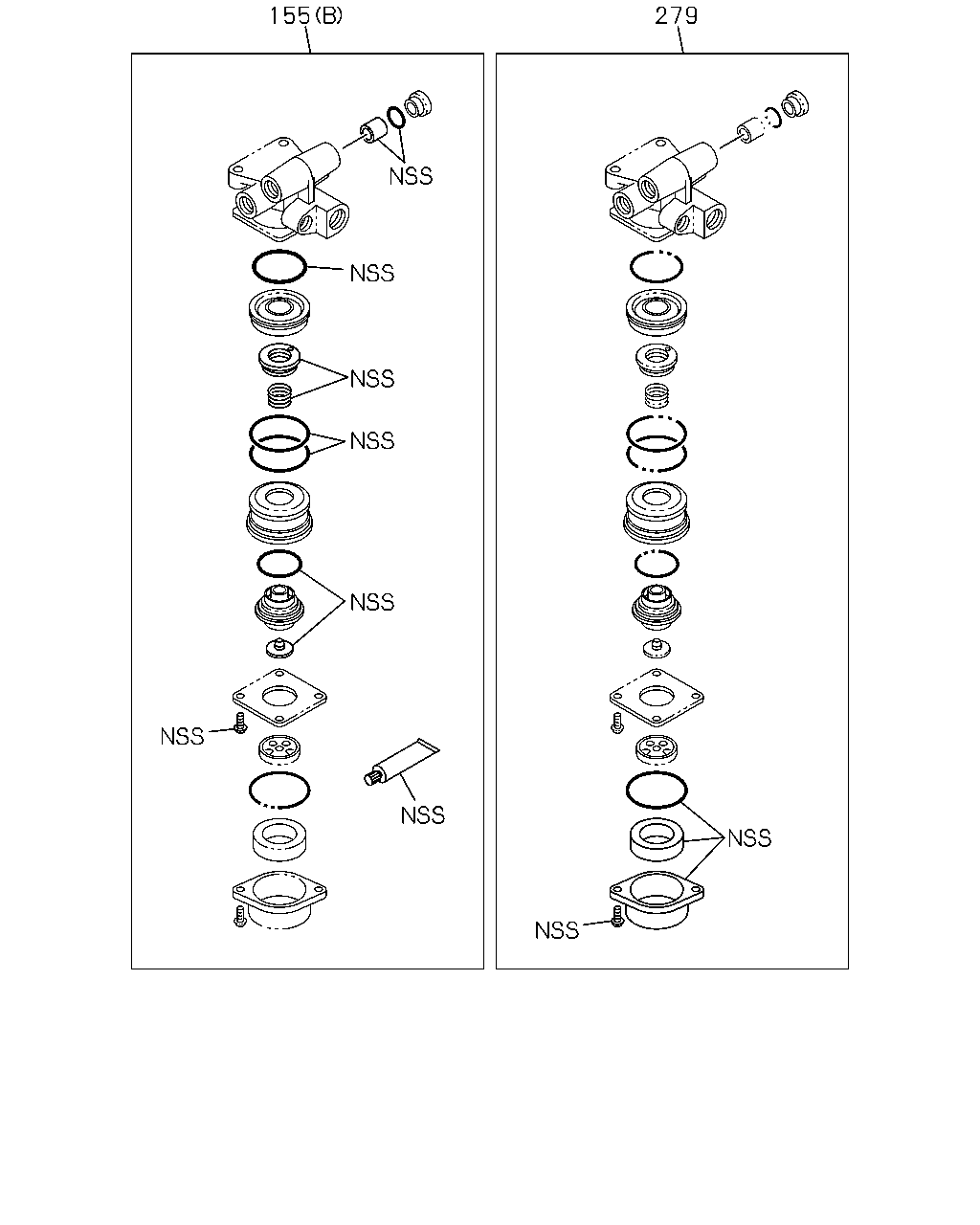

çizim 327685
155 279
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 01 1 1302-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 1302-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1302-
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 1302-

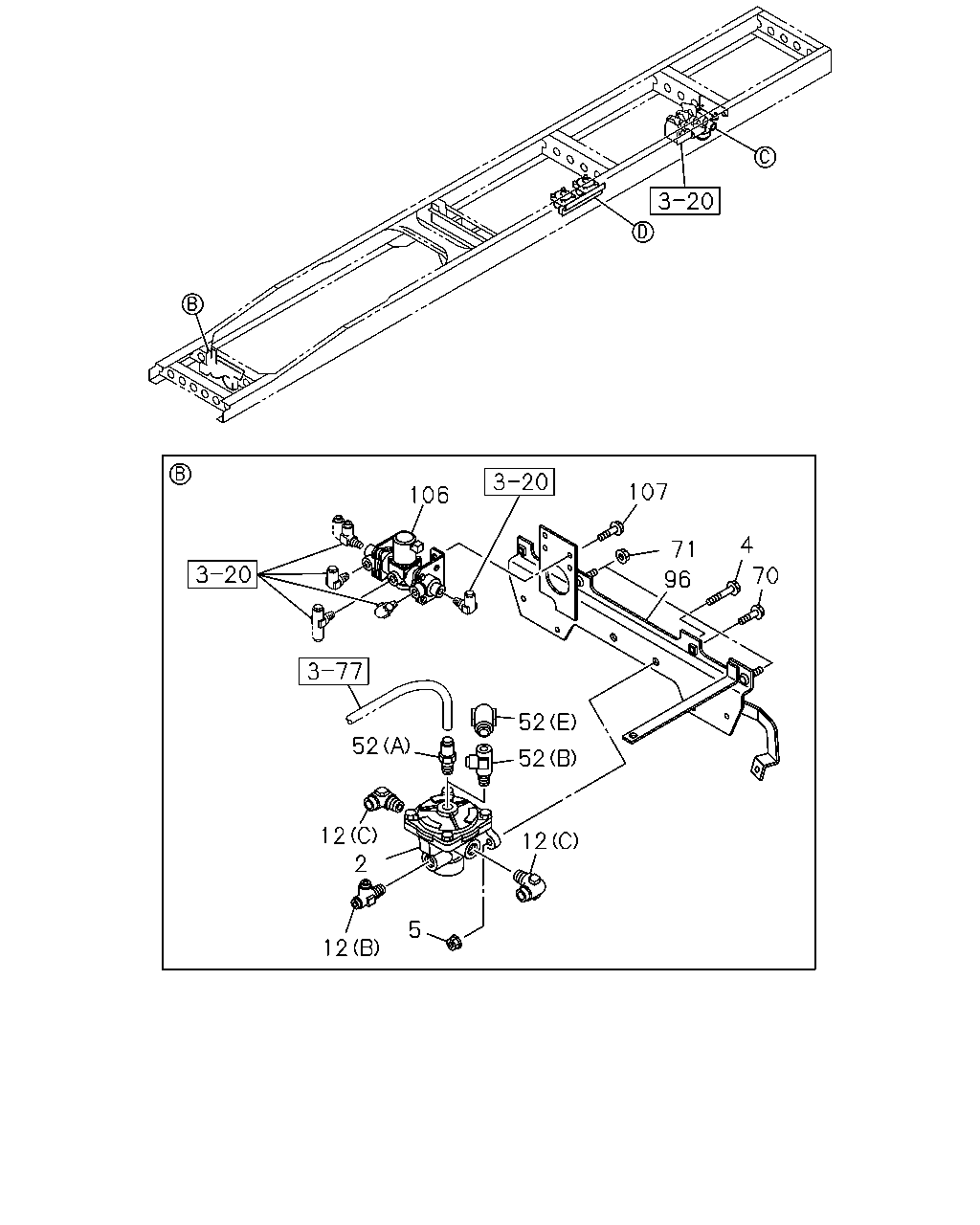

çizim 327760
106 107 71 96 4 70 52 52 52 12 2 12 5 12
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-875-0 01 1 1302-
2 VALVE; RELAY 1-48210-875-0 02 1 1302-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1302-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1302-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1302-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1302-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1302-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1302-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1302-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1302-
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1302-
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1302-
52 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1302-
52 CONNECTOR; RELAY VLV
(D) DIN9 & RC3/8 ELBOW 		8-98203-578-0 01 1 1302-
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1302-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1302-
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1302-
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 1302-
96 BRACKET 8-98094-851-2 01 1 1302-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1302-
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 04 1 1302-

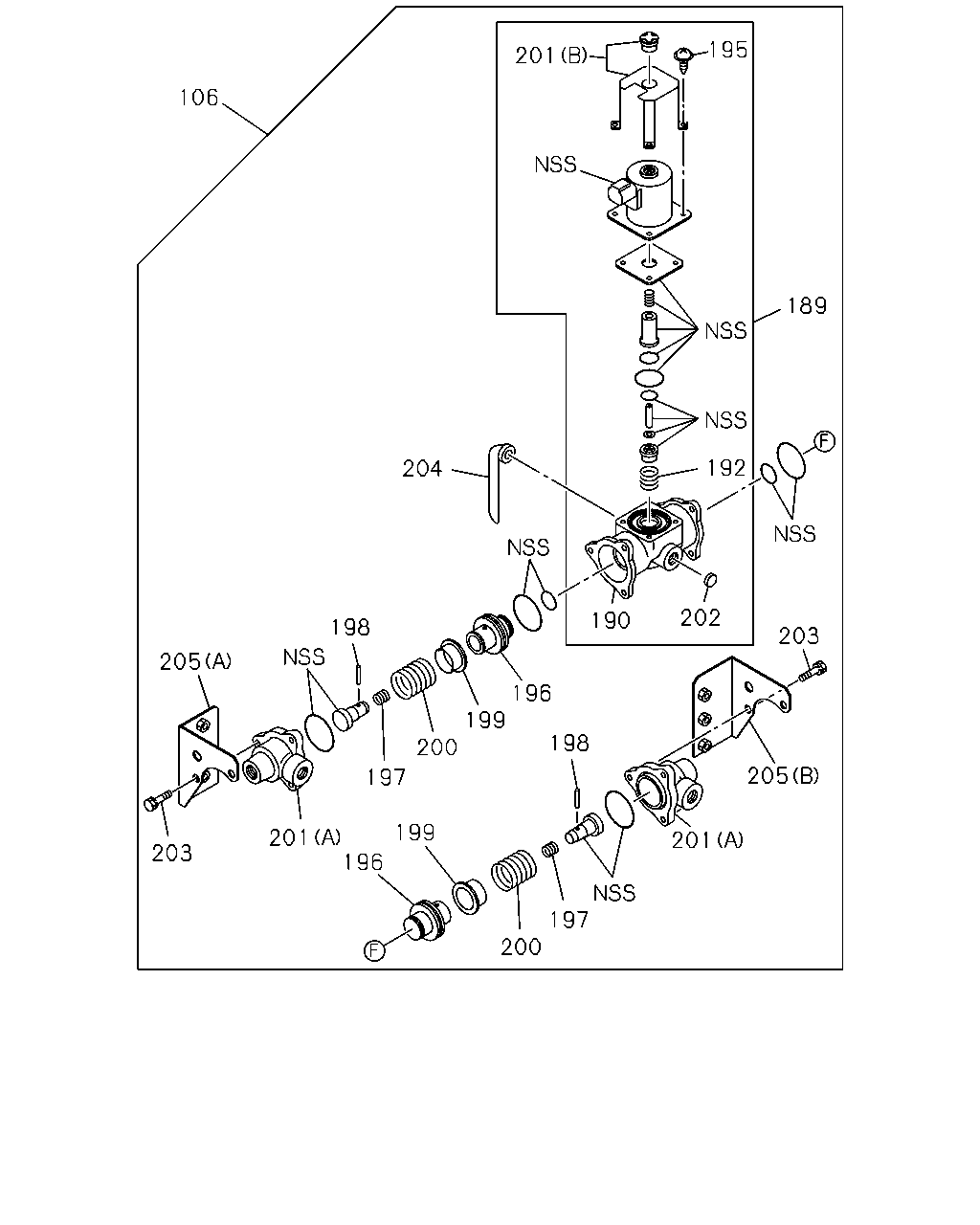

çizim 327763
201 195 189 192 203 202 190 204 196 198 205 201 197 200 199 200 197 197 196 201 203 205 106 198
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1302-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1302-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1302-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1302-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1302-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1302-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1302-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1302-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1302-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1302-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1302-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1302-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1302-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1302-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1302-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1302-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1302-

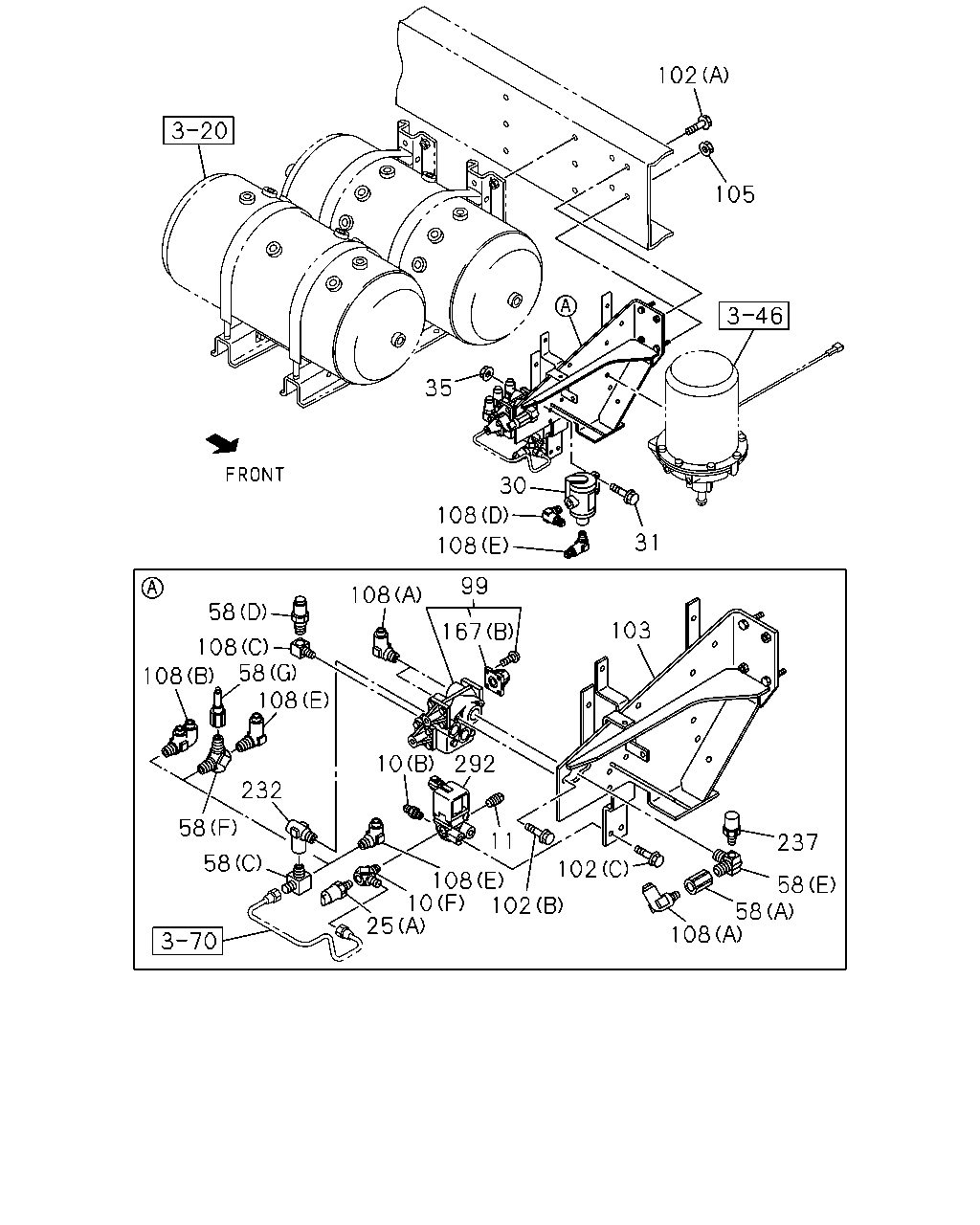

çizim 327926
102 105 35 30 31 108 108 58 108 99 103 237 102 292 10 232 108 108 108 167 58 58 25 102 108 10 108 58 58 58 11
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1302-1601
10 CONNECTOR
TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1602-
10 CONNECTOR
(F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
10 CONNECTOR
(D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1302-
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1302-
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1302-
11 PLUG
PT1/4 		9-99204-513-0 01 1 1302-
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1302-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1302-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 1302-1601
30 GOVERNOR; AIR CONT
TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1602-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1302-1601
31 BOLT; GOV TO FRAME
TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE 		0-28650-830-0 02 1 1602-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1302-1601
35 NUT; GOV TO FRAME
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1602-
58 ADAPTER
ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1602-
58 ADAPTER
ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1602-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1302-
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1302-
58 ADAPTER
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1302-
58 ADAPTER
(E) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1302-
58 ADAPTER
(C) 		8-98148-475-0 01 1 1302-
99 VALVE; PROTECTION 1-48110-288-3 01 1 1302-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1302-
102 BOLT; PROTECTION VALVE
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1302-
103 BRACKET; PROTECTION VALVE
EXC. TURBO - CONVENTIONAL<Q5T> 		8-98226-215-0 01 1 1602-
103 BRACKET; PROTECTION VALVE 8-98173-454-0 01 1 1302-1601
103 BRACKET; PROTECTION VALVE
TURBO - CONVENTIONAL<Q5T> 		8-98173-454-0 01 1 1602-
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 1302-
108 CONNECTOR; ELBOW
EXC. TURBO - CONVENTIONAL<Q5T> (D) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1602-
108 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-1601
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1602-
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 1302-
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1302-1601
108 CONNECTOR; ELBOW
ZF6S1000 M/T(Y5D) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1302-1601
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1602-
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1602-
108 CONNECTOR; ELBOW
ZF6S1000 M/T(Y5D) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1602-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1302-
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) (B) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1302-1601
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) TURBO - CONVENTIONAL<Q5T> (B) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1602-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1302-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1302-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1302-
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1302-
237 VALVE; SAFETY 1-48320-012-2 01 1 1302-
292 VALVE ASM; MAGNETIC 1-82563-871-2 01 1 1302-

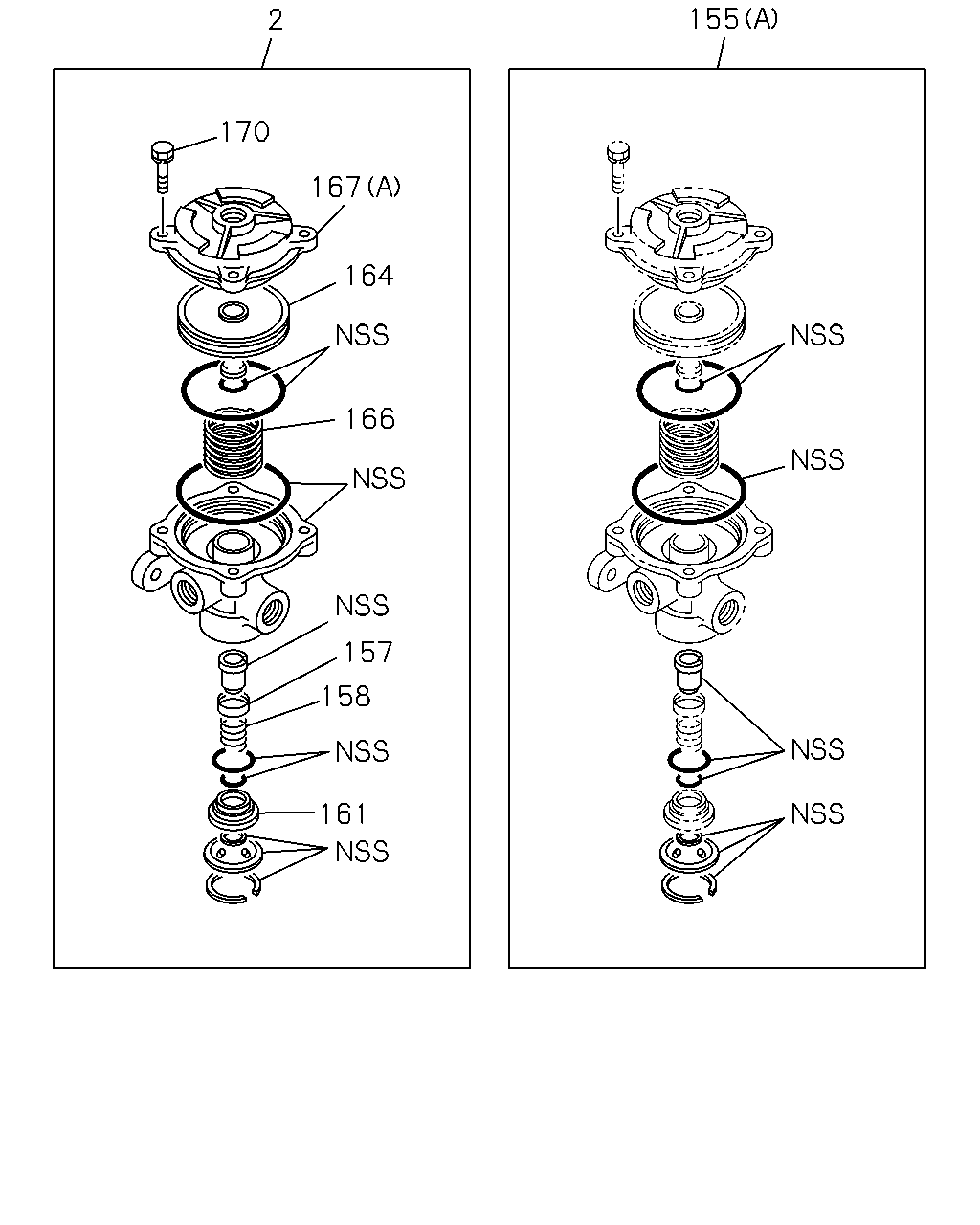

çizim 327990
155 2 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-875-0 01 1 1302-
2 VALVE; RELAY 1-48210-875-0 02 1 1302-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 01 1 1302-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 1302-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1302-
157 RETAINER; VALVE 1-48213-002-0 01 1 1302-
157 RETAINER; VALVE 1-48213-002-0 02 1 1302-
158 SPRING; VALVE 1-47819-089-0 01 1 1302-
158 SPRING; VALVE 1-47819-089-0 02 1 1302-
161 GUIDE; VALVE 1-48129-014-0 01 1 1302-
161 GUIDE; VALVE 1-48129-014-0 02 1 1302-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 1302-
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 1302-
166 SPRING; PISTON 1-47819-090-0 01 1 1302-
166 SPRING; PISTON 1-47819-090-0 02 1 1302-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1302-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1302-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1302-
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 1302-
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 1302-

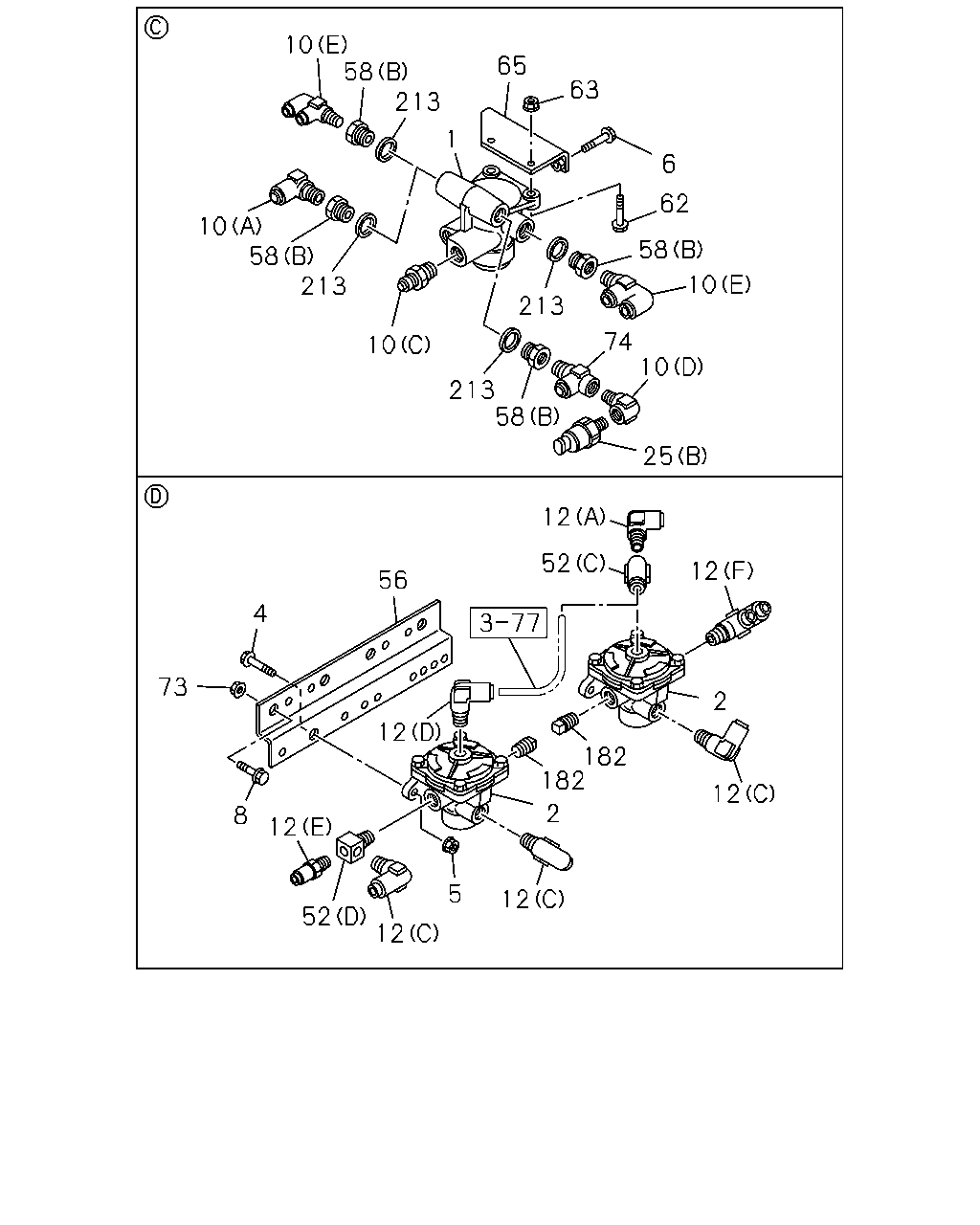

çizim 331568
10 58 213 65 63 6 62 58 10 74 10 25 58 213 10 213 58 10 213 12 52 12 2 12 182 182 2 12 5 12 52 12 8 73 4 56 12 1
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1302-
2 VALVE; RELAY 1-48210-875-0 01 1 1302-
2 VALVE; RELAY 1-48210-875-0 02 1 1302-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1302-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1302-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1302-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1302-
6 BOLT; VLV
M8X35 FLANGE 		0-28650-835-0 02 1 1302-
8 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 1302-
10 CONNECTOR
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1302-1601
10 CONNECTOR
TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1602-
10 CONNECTOR
(F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
10 CONNECTOR
(D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1302-
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1302-
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1302-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1302-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1302-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1302-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1302-
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1302-
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1302-
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1302-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1302-
52 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1302-
52 CONNECTOR; RELAY VLV
(D) DIN9 & RC3/8 ELBOW 		8-98203-578-0 01 1 1302-
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1302-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1302-
56 BRACKET; RELAY VLV 1-47479-937-0 01 1 1302-
58 ADAPTER
ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1602-
58 ADAPTER
ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1602-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1302-
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1302-
58 ADAPTER
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1302-
58 ADAPTER
(E) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1302-
58 ADAPTER
(C) 		8-98148-475-0 01 1 1302-
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1302-
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1302-
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 1302-
73 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1302-
74 CONNECTOR; 3WAY
DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 1302-
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 02 1 1302-
213 GASKET
ID=22.5 		9-09571-422-0 04 1 1302-

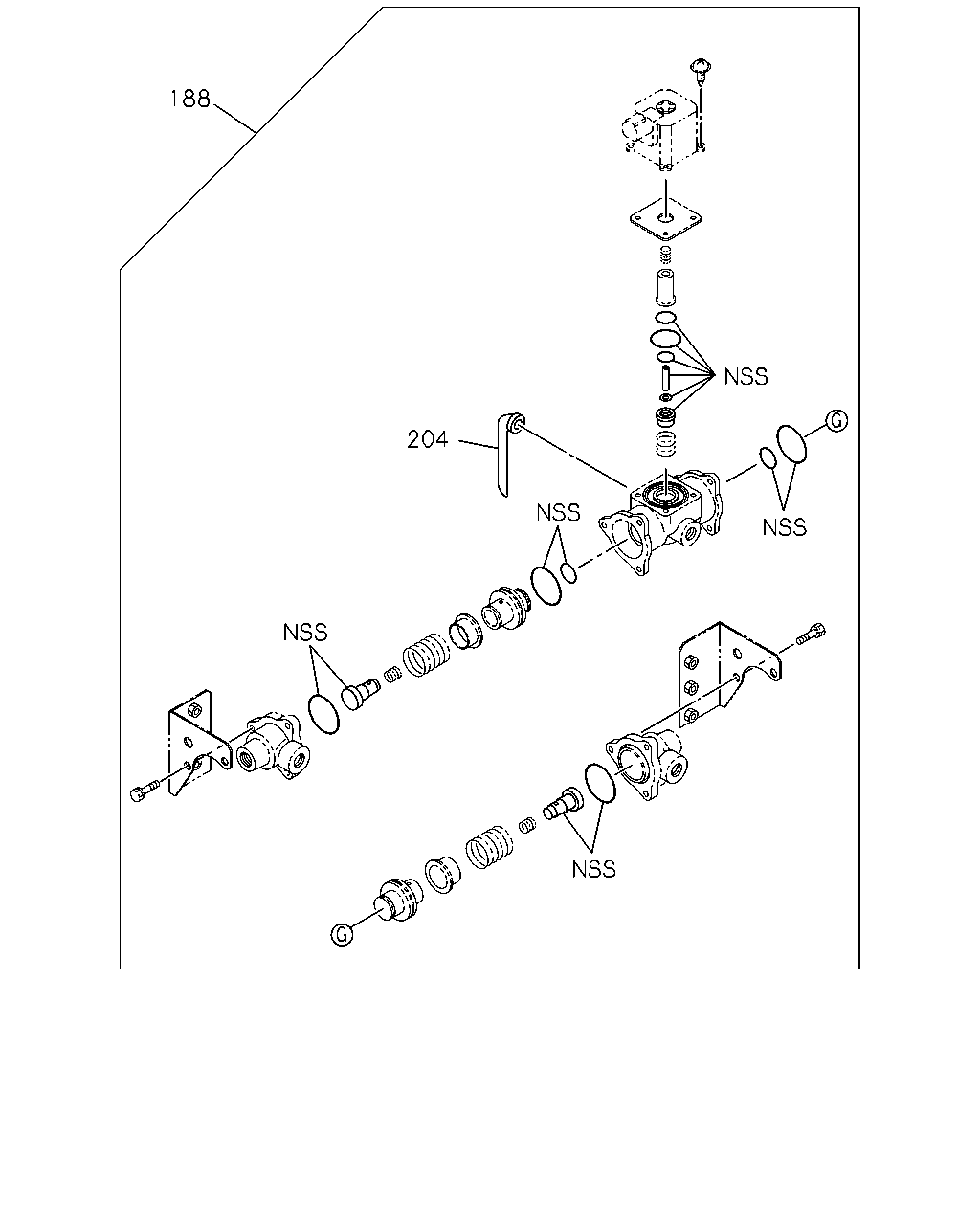

çizim 331631
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1302-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1302-
çizim 331636
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 1302-1601
240 REPAIR KIT; AIR CONT GOV
TURBO - CONVENTIONAL<Q5T> 		1-85576-467-0 01 1 1602-
çizim 421274
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
