Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#114281) — 179 parça

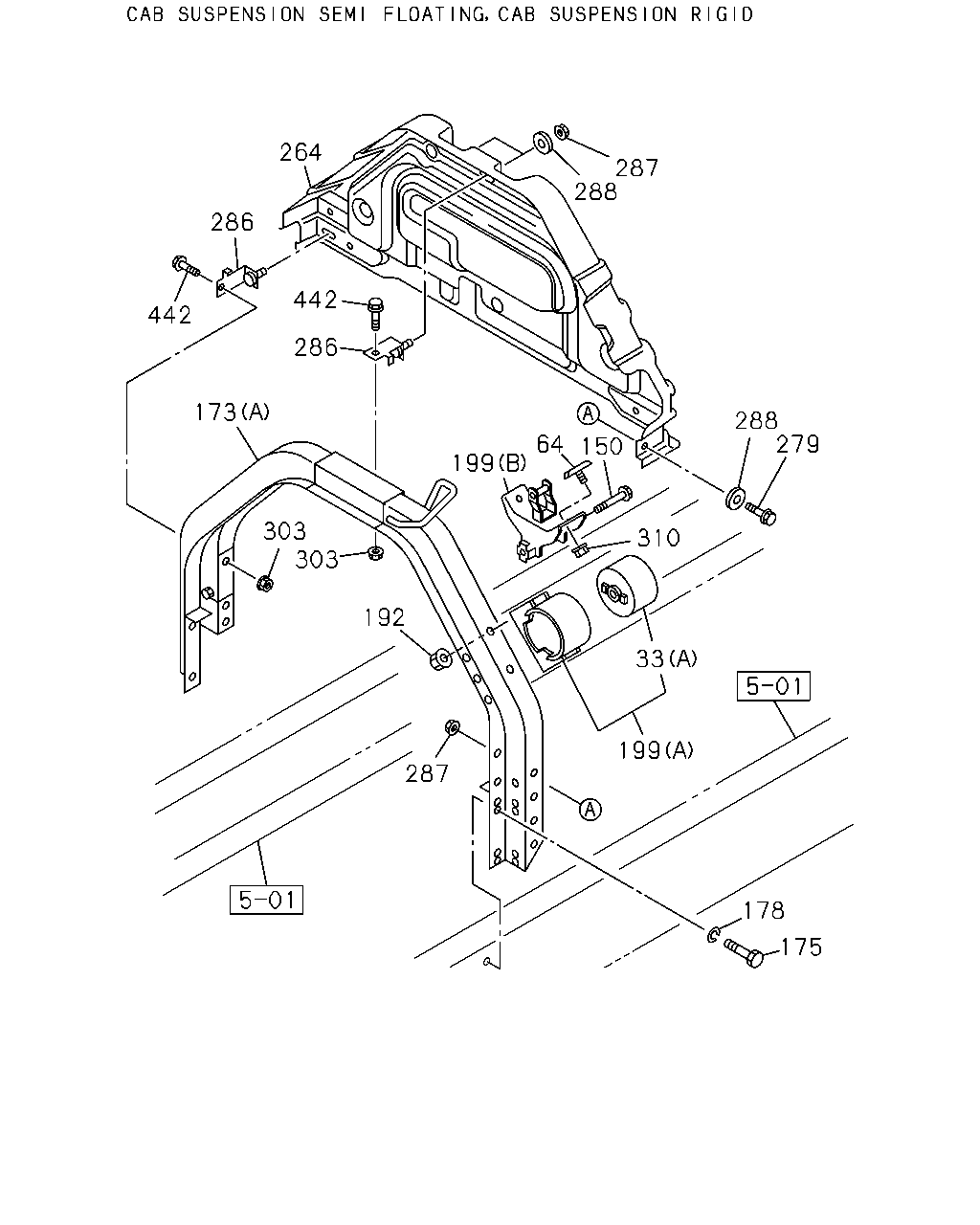

264 286 442 442 286 173 303 303 192 287 175 178 199 33 310 199 64 150 288 287 288 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	1302-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	1302-		●
64	RUBBER; CUSHION	8-97113-340-0	04	1	1302-	●	●
150	BOLT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X100	0-10956-400-0	02	1	1302-	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	1302-		●
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (B)	8-98213-639-0	01	1	1302-	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98213-003-0	01	1	1302-	●
173	MEMBER; CAB MTG RR (A)	8-98213-003-0	01	1	1302-		●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	1302-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	1302-	●	●
192	NUT; BRKT FIX CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M12 FLANGE	0-91180-212-0	04	1	1302-	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	1302-		●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-489-4	01	1	1302-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-488-4	01	1	1302-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	1302-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	1302-	●
199	BRACKET; CAB RR MTG (A)	8-98060-901-1	02	1	1302-		●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98023-692-0	02	1	1302-	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	1302-		●
264	PANEL; BACK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53194-609-2	01	1	1302-1505	●
264	PANEL; BACK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53194-609-2	01	1	1506-	●
279	BOLT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	1302-1505	●
279	BOLT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
286	BRACKET; LOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	1302-1505	●
286	BRACKET; LOW 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	1506-	●
287	NUT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	1302-1505	●
287	NUT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	1506-	●
288	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	1302-1505	●
288	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	1506-	●
303	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
303	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	1506-	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
442	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
442	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	1506-	●

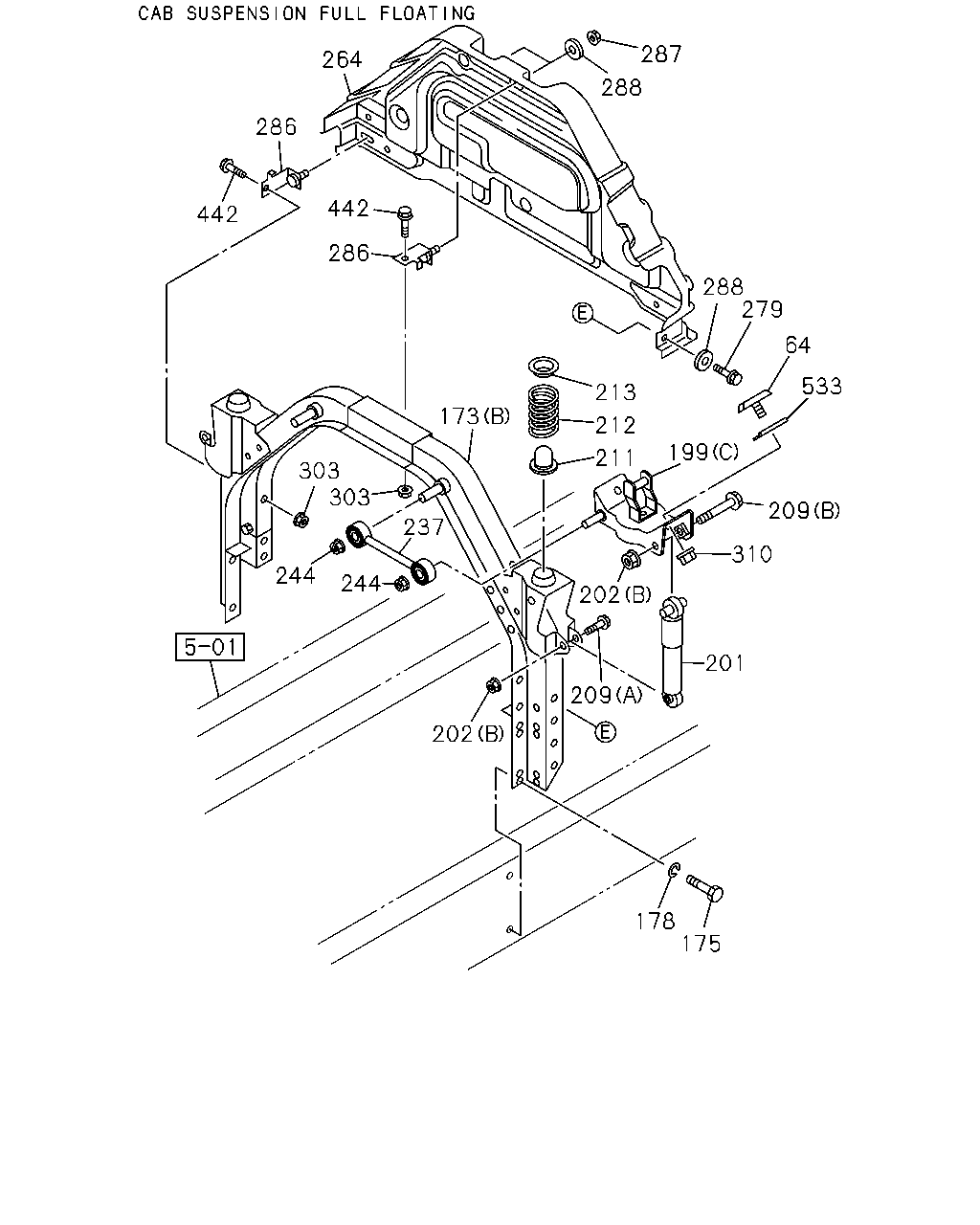

264 286 442 442 286 287 288 303 303 237 244 244 202 178 175 201 209 202 310 209 199 211 212 173 213 288 279 64 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	RUBBER; CUSHION	8-97113-340-0	04	1	1302-	●	●
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (B)	8-98213-639-0	01	1	1302-	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98213-003-0	01	1	1302-	●
173	MEMBER; CAB MTG RR (A)	8-98213-003-0	01	1	1302-		●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	1302-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	1302-	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-489-4	01	1	1302-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-488-4	01	1	1302-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	1302-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	1302-	●
199	BRACKET; CAB RR MTG (A)	8-98060-901-1	02	1	1302-		●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98023-692-0	02	1	1302-	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	1302-		●
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98022-450-0	02	1	1302-1401	●
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98269-510-0	02	1	1402-	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	1302-	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	1302-	●
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M12X60 FLANGE	0-28051-260-0	02	1	1302-	●
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12X100 FLANGE	0-28061-200-0	02	1	1302-	●
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	1302-	●
212	SPRING; COIL CAB SUSPENSION FULL FLOATING<W16>	1-09580-398-1	02	1	1302-	●
213	SEAT; SPR,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-062-2	02	1	1302-	●
237	ROD ASM; LATERAL AUTO CAB TILT<WV2>	1-53459-585-2	02	1	1302-	●
244	NUT; LATERAL ROD CAB SUSPENSION FULL FLOATING<W16> M16 FLANGE	0-91180-216-0	04	1	1302-	●
264	PANEL; BACK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53194-609-2	01	1	1302-1505	●
264	PANEL; BACK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53194-609-2	01	1	1506-	●
279	BOLT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	1302-1505	●
279	BOLT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
286	BRACKET; LOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	1302-1505	●
286	BRACKET; LOW 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	1506-	●
287	NUT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	1302-1505	●
287	NUT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	1506-	●
288	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	1302-1505	●
288	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	1506-	●
303	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
303	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	1506-	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
442	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
442	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
533	SPACER; MTG RUBBER CAB SUSPENSION FULL FLOATING<W16>	8-98077-323-0	04	1	1302-	●

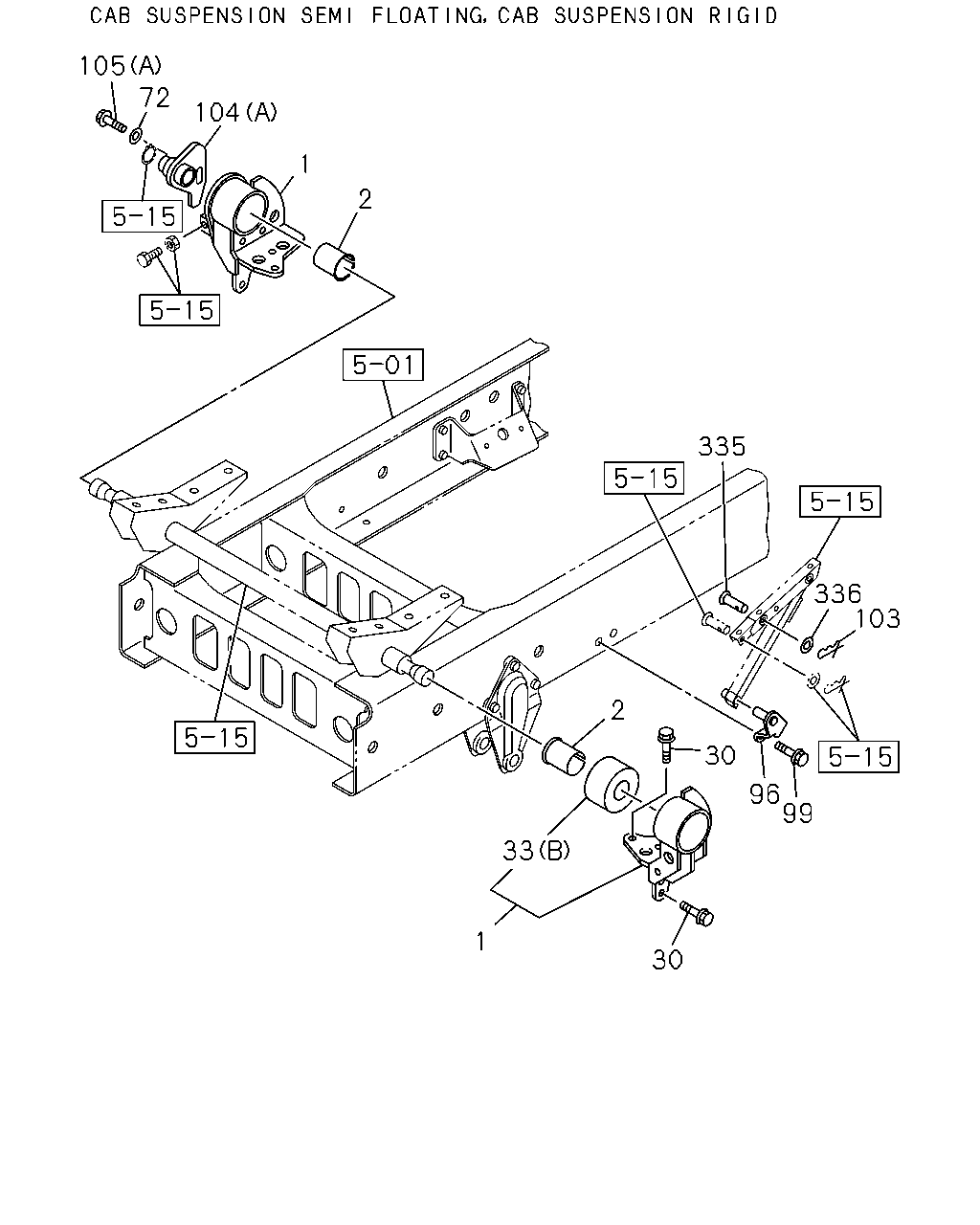

105 104 72 1 2 335 336 103 96 99 30 2 33 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71>	8-98017-661-2	01	1	1302-	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71>	8-98017-664-2	01	1	1302-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-663-1	01	1	1302-	●
1	BRACKET; CAB MTG	8-98017-663-1	01	1	1302-		●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-662-1	01	1	1302-	●
1	BRACKET; CAB MTG	8-98017-662-1	01	1	1302-		●
2	BUSHING; TORSION BAR CAB SUSPENSION RIGID<W71>	8-98010-767-0	02	1	1302-	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> M14X50	0-20951-450-0	10	1	1302-	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X45 FLANGE	0-28861-445-0	10	1	1302-	●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	1302-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	1302-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	1302-		●
72	WASHER; PL,BRKT TO FRAME CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=15 OD=36	0-91614-714-0	01	1	1302-	●
72	WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	1302-		●
96	BRACKET; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-628-0	01	1	1302-	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	1302-		●
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M10X30 FLANGE	0-28661-030-0	02	1	1302-	●
99	BOLT; BRKT M10X30 FLANGE	0-28661-030-0	02	1	1302-		●
103	PIN; SPLIT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=32.6	8-98062-280-0	01	1	1302-	●
103	PIN; SPLIT,CAB STAY L=32.6	8-98062-280-0	01	1	1302-		●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (B)	8-98084-173-0	01	1	1302-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98022-420-2	01	1	1302-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98017-610-3	01	1	1302-1511	●
104	BRACKET; CAB FRAME,CAB FRT MTG (A)	8-98017-610-3	01	1	1302-1511		●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98330-669-0	01	1	1512-	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98330-669-0	01	1	1512-		●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X35 FLANGE	0-28651-235-0	04	1	1302-	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (C) M10X30 FLANGE	0-28661-030-0	08	1	1302-	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) M14X35 FLANGE	0-28661-435-0	01	1	1302-	●
105	BOLT; BRKT TO CAB FRAME (A) M14X35 FLANGE	0-28661-435-0	01	1	1302-		●
335	PIN; ADJ,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> OD=10 L=48	1-09744-107-0	01	1	1302-	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	1302-		●
336	WASHER; PL,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=10.5 T=2.0	1-09985-183-0	01	1	1302-	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	1302-		●

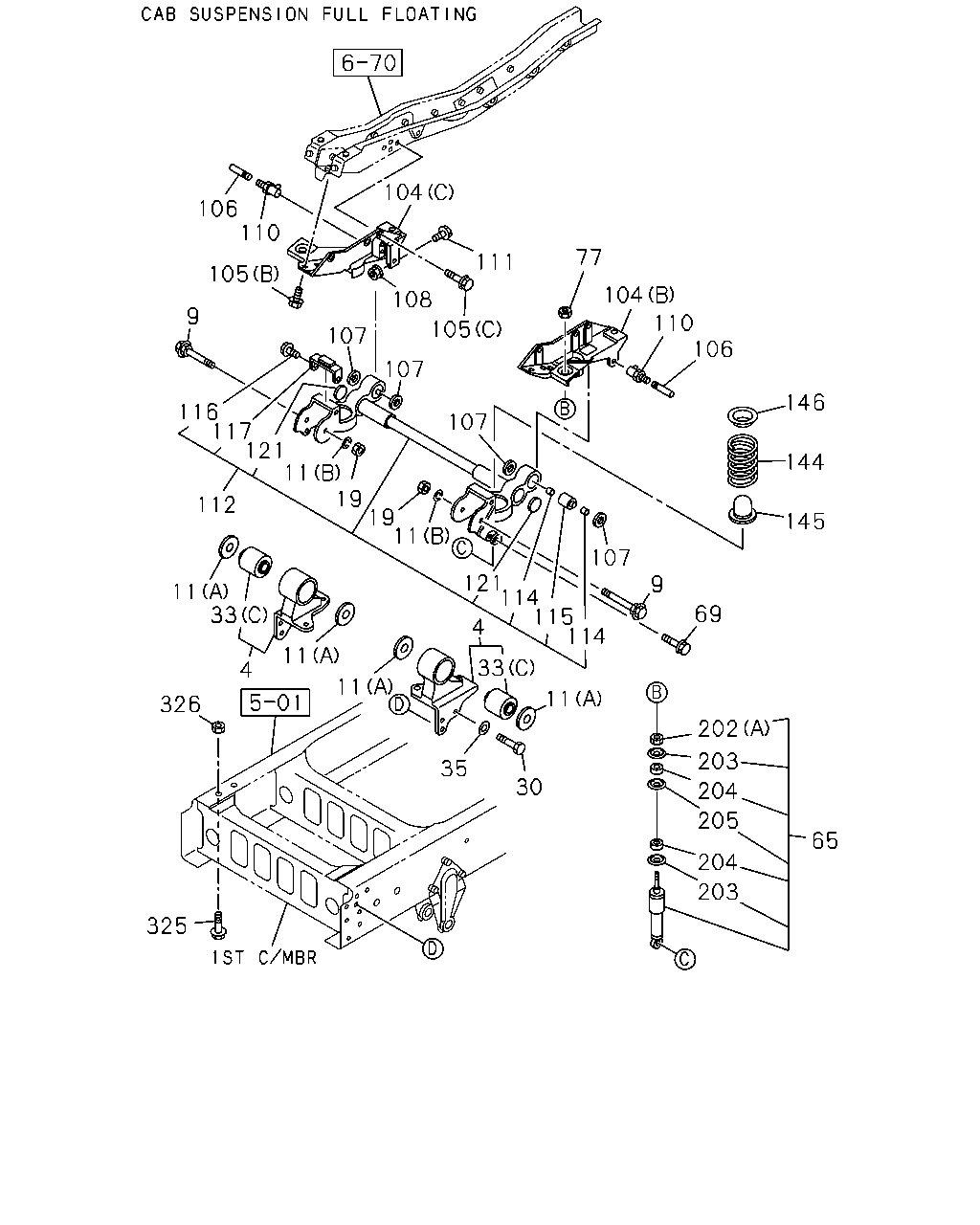

106 110 104 111 77 104 110 106 146 144 145 69 9 107 107 105 108 105 107 107 9 116 117 121 11 19 19 11 121 114 115 114 11 33 4 30 35 11 11 33 4 11 112 326 325 202 203 204 205 204 203 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-270-0	01	1	1302-	●
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-269-0	01	1	1302-	●
9	BOLT CAB SUSPENSION FULL FLOATING<W16> M16X125	1-51361-023-0	02	1	1302-	●
11	WASHER; LK CAB SUSPENSION FULL FLOATING<W16> (B) ID=16.2	0-91510-816-0	02	1	1302-	●
11	WASHER; LK CAB SUSPENSION FULL FLOATING<W16> (A) ID=34.5	1-53458-281-1	04	1	1302-	●
19	NUT CAB SUSPENSION FULL FLOATING<W16> M16	0-91110-516-0	02	1	1302-	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> M14X50	0-20951-450-0	10	1	1302-	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X45 FLANGE	0-28861-445-0	10	1	1302-	●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	1302-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	1302-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	1302-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	1302-		●
35	WASHER; PL,CAB MTG BRKT CAB SUSPENSION FULL FLOATING<W16> ID=15	8-98010-627-1	10	1	1302-	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-51630-345-0	02	1	1302-	●
69	BOLT; S/ABS,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16> M12X60 FLANGE	0-28051-260-0	02	1	1302-	●
77	NUT CAB SUSPENSION FULL FLOATING<W16>	8-97359-039-0	02	1	1302-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (B)	8-98084-173-0	01	1	1302-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98022-420-2	01	1	1302-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98017-610-3	01	1	1302-1511	●
104	BRACKET; CAB FRAME,CAB FRT MTG (A)	8-98017-610-3	01	1	1302-1511		●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98330-669-0	01	1	1512-	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98330-669-0	01	1	1512-		●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X35 FLANGE	0-28651-235-0	04	1	1302-	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (C) M10X30 FLANGE	0-28661-030-0	08	1	1302-	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) M14X35 FLANGE	0-28661-435-0	01	1	1302-	●
105	BOLT; BRKT TO CAB FRAME (A) M14X35 FLANGE	0-28661-435-0	01	1	1302-		●
106	PIN; BRKT TO LINK ARM CAB SUSPENSION FULL FLOATING<W16>	1-53459-642-1	02	1	1302-	●
107	WASHER; LINK ARM PIN,CAB FRT SUSPENSIO CAB SUSPENSION FULL FLOATING<W16>	1-53459-643-2	04	1	1302-	●
108	NUT; PIN LOCK BOLT CAB SUSPENSION FULL FLOATING<W16> M8 FLANGE	0-91180-108-0	02	1	1302-	●
110	NIPPLE; GREASE,LINK ARM PIN CAB SUSPENSION FULL FLOATING<W16> PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●
111	BOLT; PIN LOCK,LINK ARM CAB SUSPENSION FULL FLOATING<W16> M8X50 FLANGE	0-28050-850-0	02	1	1302-	●
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION FULL FLOATING<W16>	8-98148-517-0	01	1	1302-	●
114	BUSHING; FLOATING LINK PIN CAB SUSPENSION FULL FLOATING<W16>	1-09330-068-0	04	1	1302-	●
115	BUSHING; RUBBER,FLOATING LINK ARM CAB SUSPENSION FULL FLOATING<W16>	1-53459-315-2	02	1	1302-	●
116	BOLT; STOPPER RUBBER,LINK ARM CAB SUSPENSION FULL FLOATING<W16> M8X20 FLANGE	0-28050-820-0	04	1	1302-	●
117	RUBBER; STOPPER,LINK ARM,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53458-321-1	02	1	1302-	●
121	PLUG; FLOATING LINK ARM CAB SUSPENSION FULL FLOATING<W16>	9-09860-031-0	02	1	1302-	●
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-09580-518-1	02	1	1302-	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	1302-	●
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-132-1	02	1	1302-	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	1302-	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	1302-	●
203	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=10.5 OD=38	9-51631-062-0	04	1	1302-	●
204	RUBBER; CUSHION,SHOCK CAB SUSPENSION FULL FLOATING<W16> TOKICO	9-51631-603-0	04	1	1302-	●
205	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=13 OD=38	9-51631-063-0	02	1	1302-	●
325	BOLT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12X40 FLANGE	0-28651-240-0	02	1	1302-	●
326	NUT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12	0-91110-512-0	02	1	1302-	●

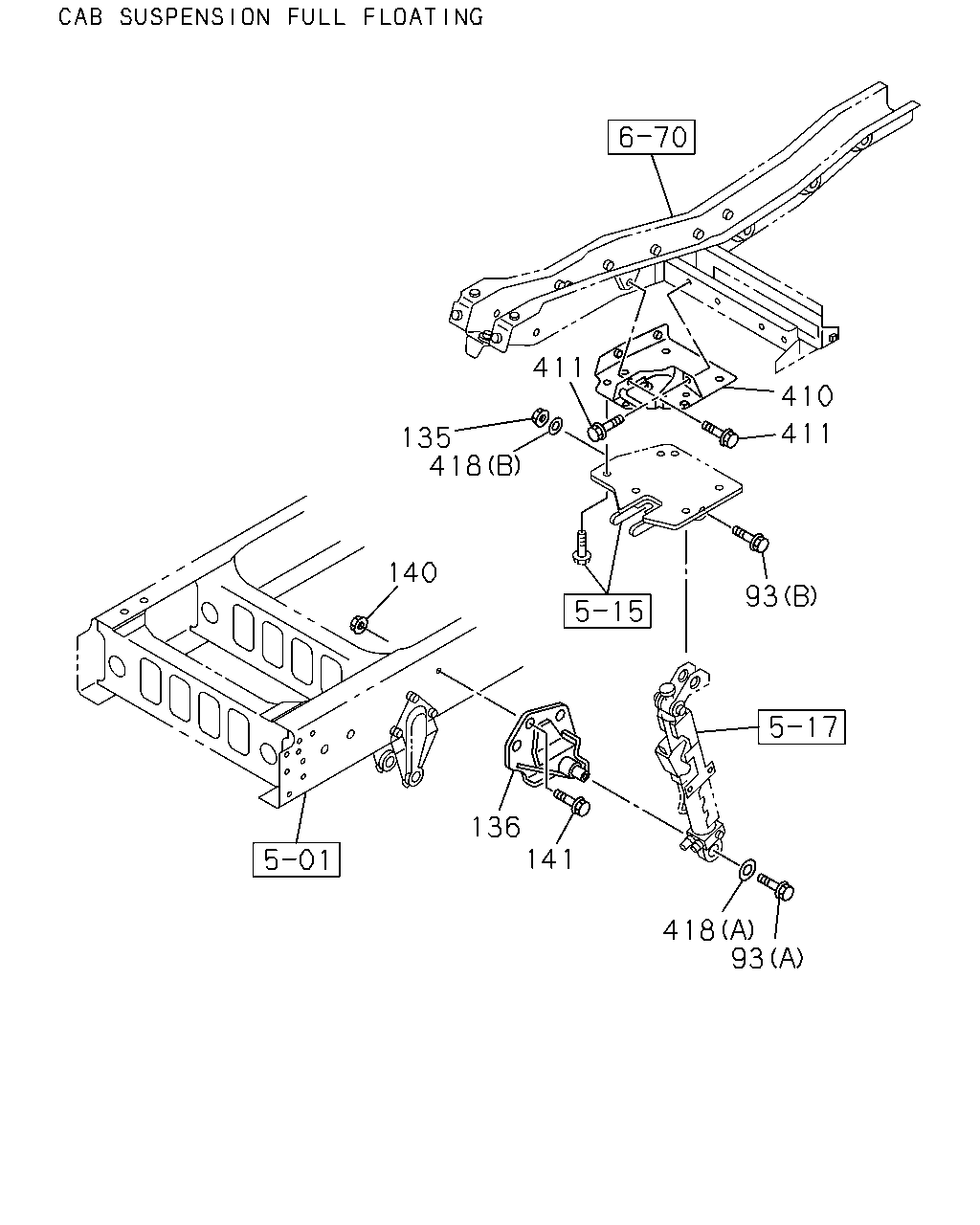

411 135 418 140 410 411 93 136 141 418 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
93	BOLT; PIN AUTO CAB TILT<WV2> (A) M10X20 FLANGE	0-28651-020-0	01	1	1302-	●
93	BOLT; PIN AUTO CAB TILT<WV2> (B) M14X70 FLANGE	0-29261-470-0	01	1	1302-	●
135	NUT; PIN AUTO CAB TILT<WV2> M14	0-91110-514-0	01	1	1302-	●
136	BRACKET; OIL CYL AUTO CAB TILT<WV2>	8-98077-938-0	01	1	1302-	●
140	NUT; BRKT AUTO CAB TILT<WV2> M14 FLANGE	0-91180-214-0	04	1	1302-	●
141	BOLT; BRKT AUTO CAB TILT<WV2> M14X40 FLANGE	0-28661-440-0	04	1	1302-	●
410	REINFORCEMENT; CAB TILT AUTO CAB TILT<WV2>	8-97588-837-5	01	1	1302-	●
411	BOLT; REINFORCEMENT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	04	1	1302-	●
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (B) ID=15	0-91610-514-0	01	1	1302-	●
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (A) ID=10.5 OD=32	0-91614-810-0	01	1	1302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
