Isuzu WW
▶
TRUCKS
▶
EXR
▶
10863 - EXR RHD FUEL TANK 200L+200L
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#11428) — 42 parça
◀

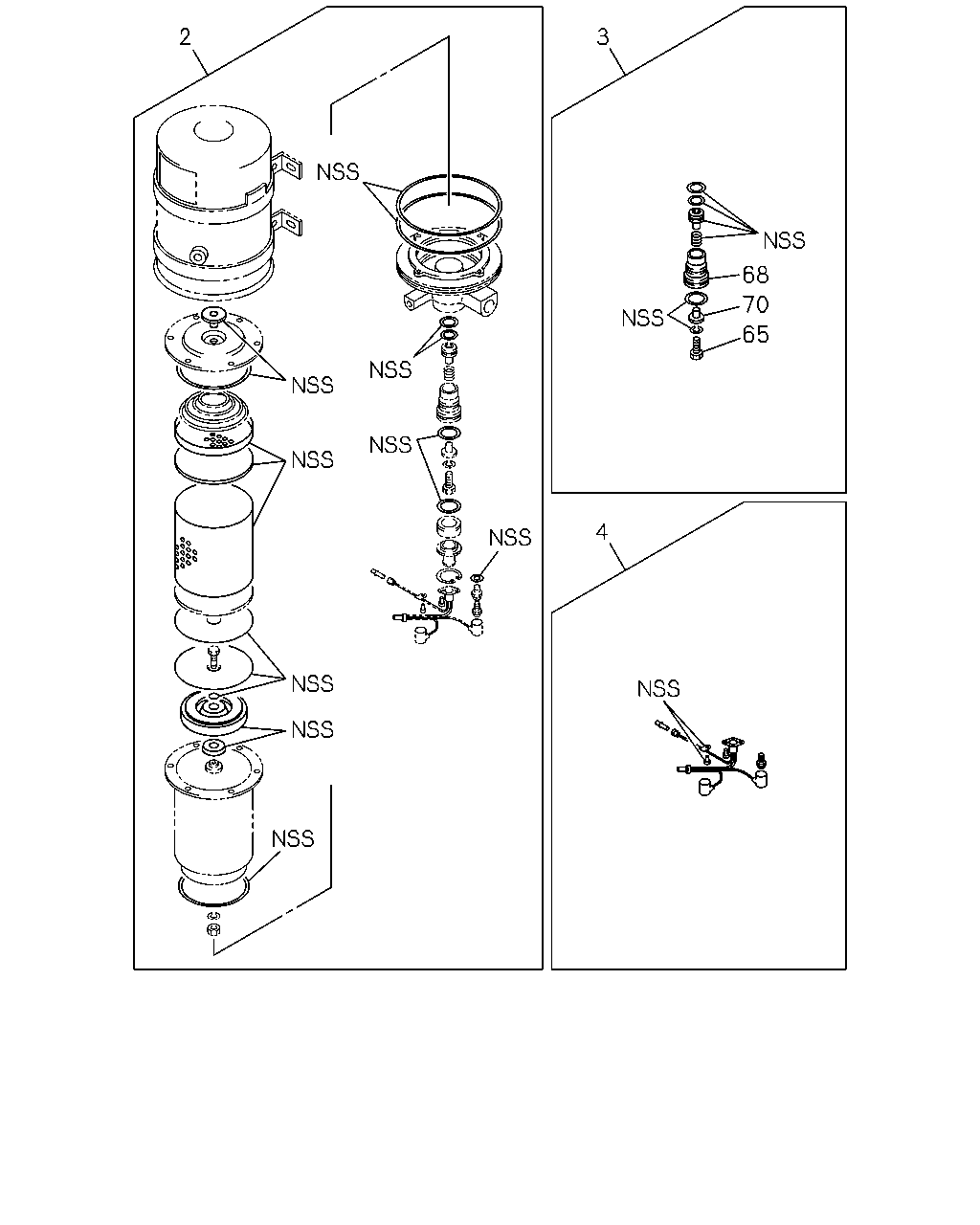

[346A] THERMOSTAT,PISTON AND REPAIR KIT (6 parça)
[346A] COMPONENT (19 parça)
[346A] FIXING (17 parça)
▶
4
3
2
68
65
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-055-1
01
1
0106-
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-057-1
01
1
0106-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-129-0
01
1
0106-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-413-0
01
1
0106-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
0106-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0106-

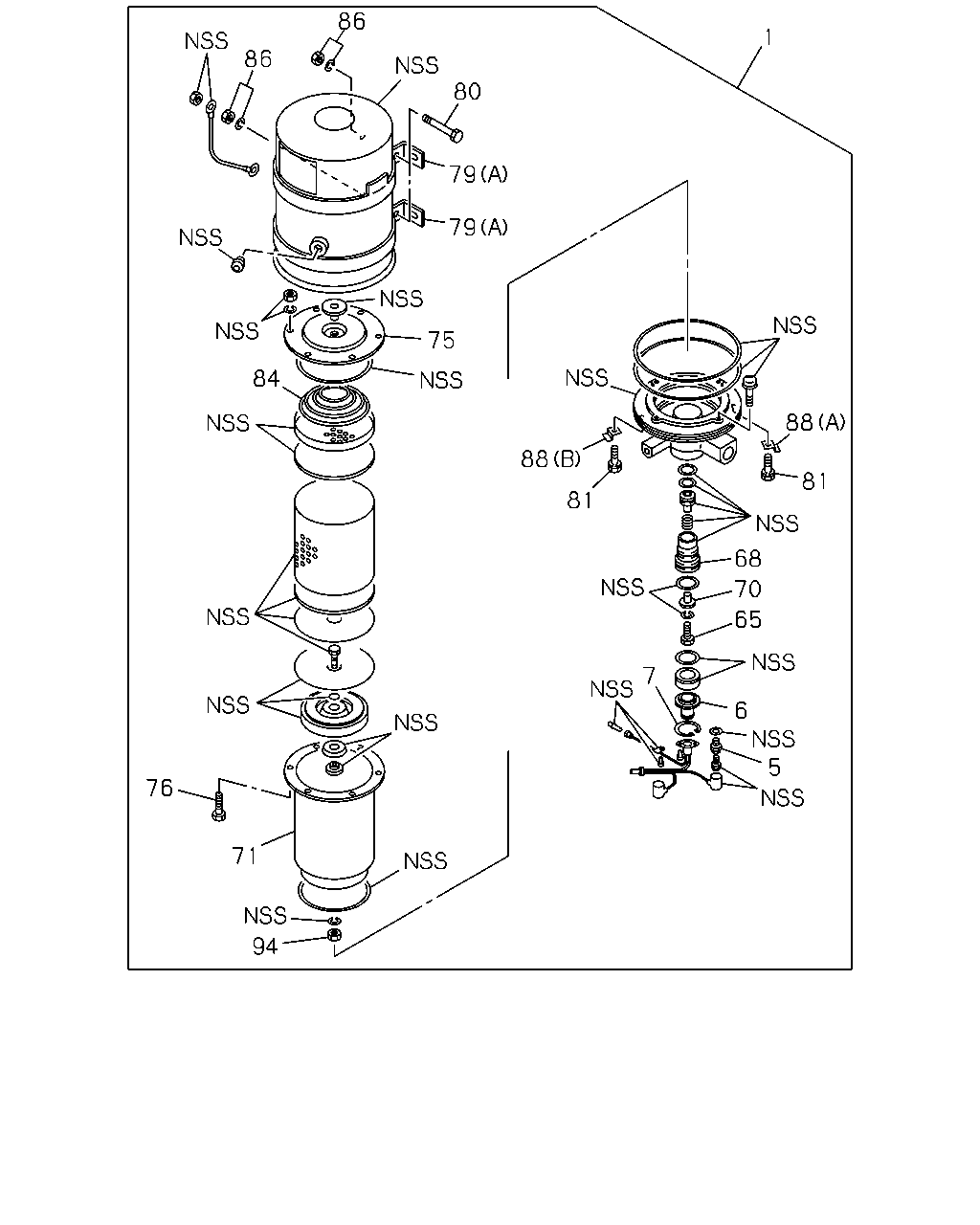

1
86
86
80
79
79
75
84
76
71
94
81
88
88
68
81
70
65
6
5
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-105-3
01
1
0106-
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
02
1
0106-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-101-0
01
1
0106-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-154-0
01
1
0106-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-413-0
01
1
0106-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
0106-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0106-
71
CASE; INNER,AIR DRYER
AIR DRYER<PS7>
1-48199-156-1
01
1
0106-
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-167-0
01
1
0106-
76
BOLT; COVER,AIR DRYER
AIR DRYER<PS7>
1-48199-478-0
06
1
0106-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> (A)
1-48199-189-0
02
1
0106-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> (B)
1-53497-540-1
01
1
0106-
80
BOLT; BRKT
AIR DRYER<PS7>
1-48199-190-0
02
1
0106-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-177-0
02
1
0106-
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-166-0
01
1
0106-
86
NUT; BRKT
AIR DRYER<PS7>
1-48199-320-0
02
1
0106-
88
PLATE; STOPPER
AIR DRYER<PS7> (A)
1-48199-178-0
01
1
0106-
88
PLATE; STOPPER
AIR DRYER<PS7> (B)
1-48199-179-0
01
1
0106-
94
NUT; COVER,AIR DRYER
AIR DRYER<PS7>
1-48199-479-0
07
1
0106-
1
12
16
1
79
13
8
89
89
29
9
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-105-3
01
1
0106-
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
0106-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0106-0607
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW
0-92134-315-0
01
1
0608-
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE
0-28681-030-0
04
1
0106-0512
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE
0-28651-030-0
04
1
0601-
12
BOLT; BRKT
AIR DRYER<PS7> M10X40 FLANGE
0-28681-040-0
04
1
0106-0512
12
BOLT; BRKT
AIR DRYER<PS7> M10X40 FLANGE
0-28651-040-0
04
1
0601-
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
04
1
0106-0602
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
0603-
16
NUT; BRKT
AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
04
1
0106-0602
16
NUT; BRKT
AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
0603-
29
UNION; 3 WAY,PURGE TANK
AIR DRYER<PS7>
1-09656-586-1
01
1
0106-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> (A)
1-48199-189-0
02
1
0106-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> (B)
1-53497-540-1
01
1
0106-
89
ADAPTER
AIR DRYER<PS7> (A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0106-
89
ADAPTER
AIR DRYER<PS7> (B) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0106-
