◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11517 - FVM(LHD) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#114270) — 54 parça

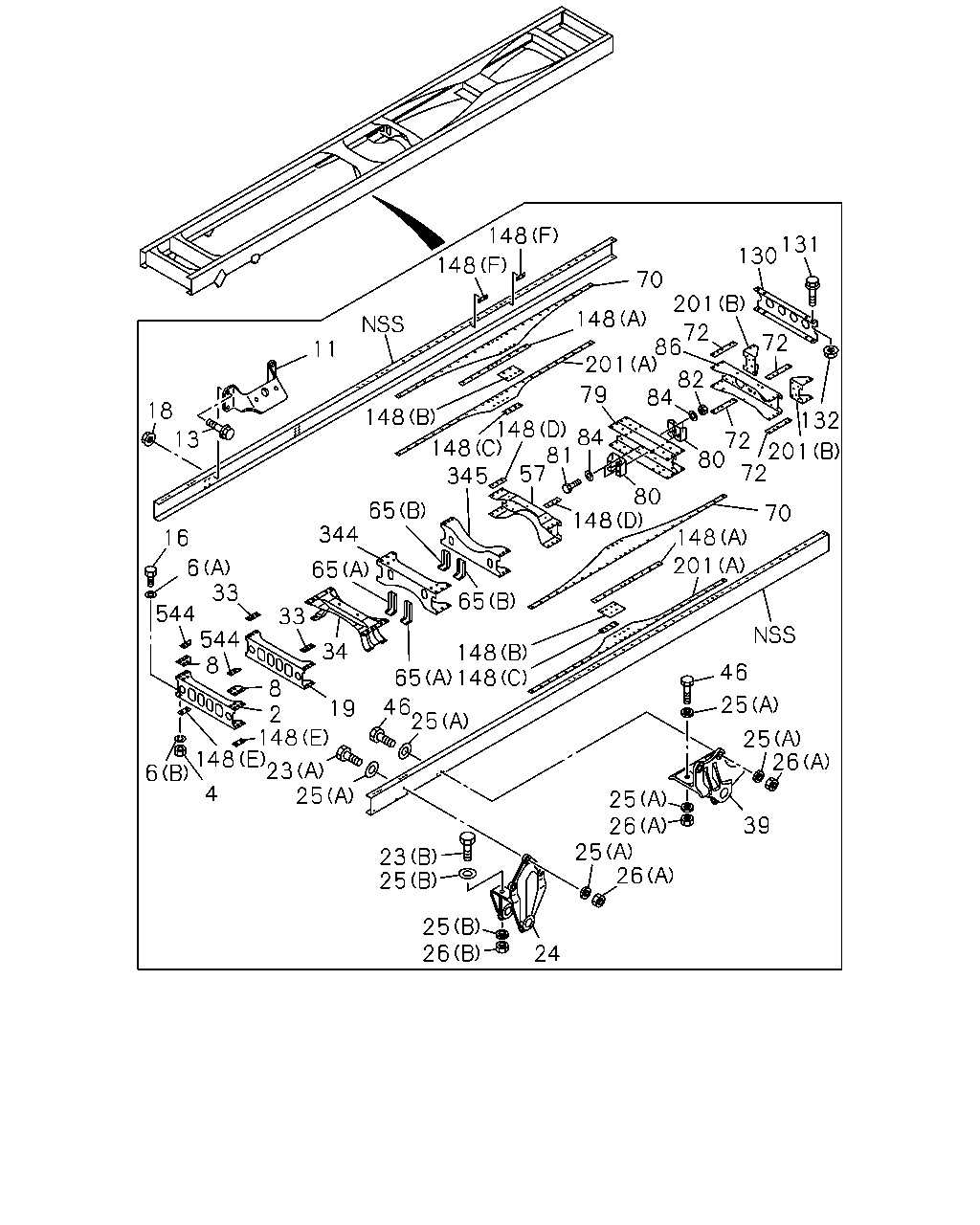

çizim 331995
18 13 11 148 148 131 130 201 70 148 148 16 6 544 544 33 33 65 344 65 345 148 148 79 201 86 72 72 82 84 84 8 57 8 6 148 8 2 148 23 4 25 19 34 25 46 65 65 148 148 148 148 80 80 201 72 70 72 201 132 46 25 25 26 39 25 26 25 26 24 23 25 25 26
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1302- ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14 		0-91110-514-0 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=14.2 		0-91510-814-0 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=15 		8-98010-627-1 02 1 1302- ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1302- ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1302- ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14X40 		0-20851-440-0 02 1 1302- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302- ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1302- ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1302- ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1302- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1302- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1302- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1302- ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1302- ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1302- ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1302- ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1302- ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1302- ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1302- ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1302- ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1302- ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97612-103-1 01 1 1302- ● ●
65 BRACKET; CENTER BRG
ZF6S1000 M/T(Y5D) (B) 		8-97645-580-0 02 1 1302- ●
65 BRACKET; CENTER BRG
ZF6S1000 M/T(Y5D) (A) 		8-98103-392-0 02 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		8-97614-125-0 02 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (A) 		8-97621-881-0 02 1 1302- ●
65 BRACKET; CENTER BRG
(A) 		8-97614-133-0 02 1 1302- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-140-0 02 1 1302- ●
70 GUSSET; TRUNNION,UPR 8-97612-106-0 02 1 1302- ● ●
72 SPACER; TRUNNION 8-97612-110-0 04 1 1302- ● ●
79 MEMBER; CROSS,TRUNNION ASM 8-97612-484-1 01 1 1302- ● ●
80 BRACKET; C/MBR 1-53363-068-0 02 1 1302- ● ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 1302- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1302- ● ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1302- ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97612-105-4 01 1 1302- ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1302- ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302- ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1302- ● ●
148 SPACER; C/MBR
(E) 		8-97611-039-0 02 1 1302- ● ●
148 SPACER; C/MBR
(D) 		8-97612-109-0 02 1 1302- ● ●
148 SPACER; C/MBR
(F) 		8-97612-111-0 04 1 1302- ● ●
148 SPACER; C/MBR
(A) 		8-97612-112-0 02 1 1302- ● ●
148 SPACER; C/MBR
(B) 		8-97612-113-0 02 1 1302- ● ●
148 SPACER; C/MBR
(C) 		8-97612-115-0 02 1 1302- ● ●
201 GUSSET; C/MBR
ZF6S1000 M/T(Y5D) (A) 		8-97645-582-0 02 1 1302- ●
201 GUSSET; C/MBR
(B) 		8-97612-108-2 02 1 1302- ● ●
201 GUSSET; C/MBR
ZF9S1110 M/T(Y5E) (A) 		8-97645-581-0 02 1 1302- ●
201 GUSSET; C/MBR
(A) 		8-97635-951-1 02 1 1302- ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1302- ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1302- ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
