5-01 — FRAME AND OTHER PARTS (#114268) — 71 parça

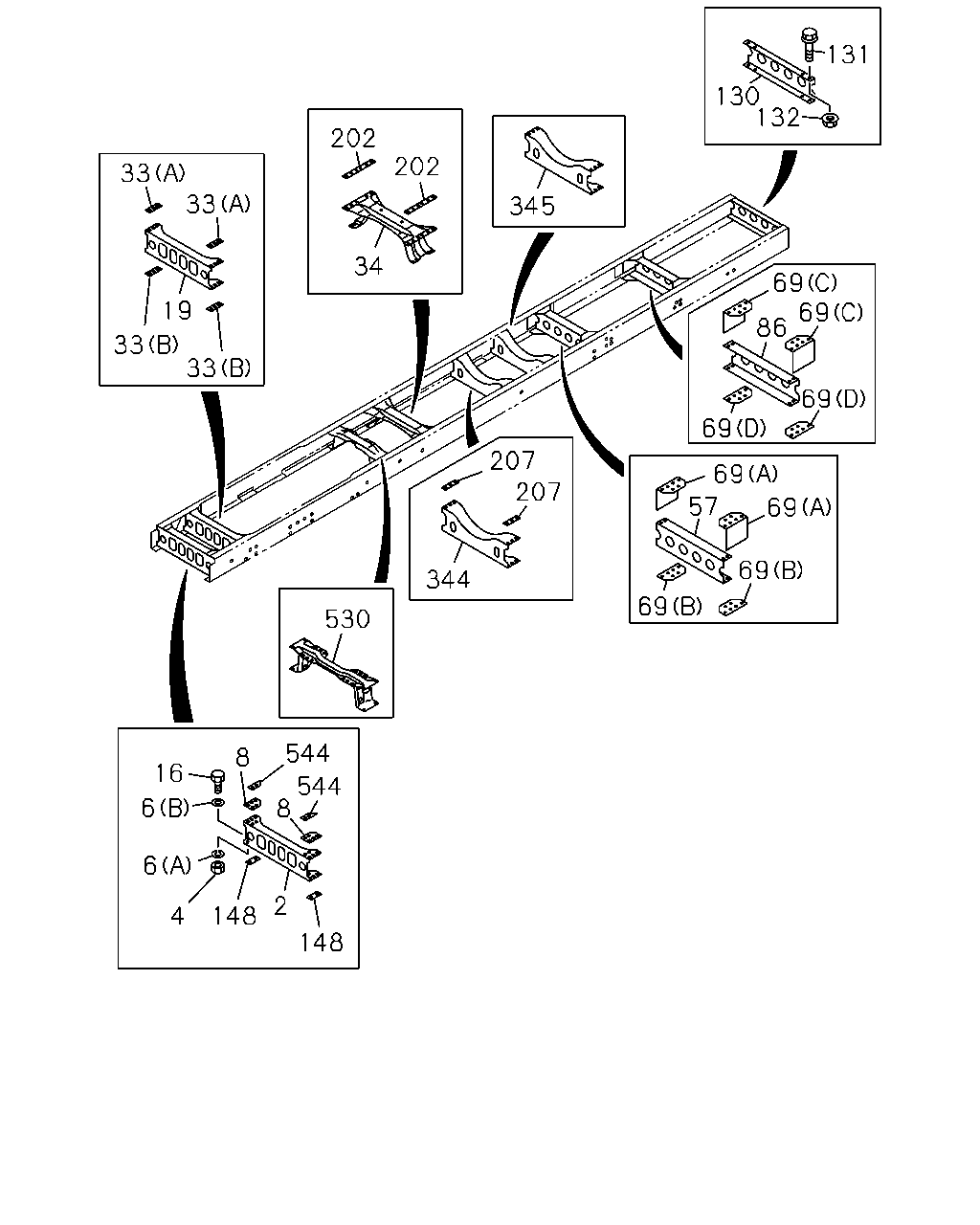

çizim 328526
530 207 207 57 69 69 69 69 69 69 86 69 69 344 148 148 4 6 16 6 544 8 544 8 2 33 33 19 33 33 202 202 34 345 130 131 132
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1302- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14 		0-91110-514-0 02 1 1302- ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=15 		8-98010-627-1 02 1 1302- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1302- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14X40 		0-20851-440-0 02 1 1302- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-2 01 1 1302-1302 ● ● ● ●
19 MEMBER; CROSS,2ND
6HK1-TCN ENG(82L) 		8-97623-239-3 01 1 1302- ● ● ● ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) 		8-97645-337-0 01 1 1305-1308 ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) 		8-97645-337-0 01 1 1309- ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 1302- ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1305-1308 ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1309- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1302- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 1302- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 1302- ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1302- ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302- ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1302- ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1302- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302- ● ● ● ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) 0.25KG 		8-97611-244-0 02 1 1309- ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1302-1308 ● ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1309- ● ● ●
207 SPACER; 4TH C/MBR
6HK1-TCN ENG(82L) 0.24KG 		8-97611-245-0 02 1 1309- ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1302- ● ● ● ●
345 MEMBER; CROSS,5TH
4HK1-TCS ENG(RJS) 		8-97611-238-1 01 1 1309- ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97638-949-0 01 1 1305-1308 ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97638-949-0 01 1 1309- ● ● ● ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 1302- ● ● ● ●

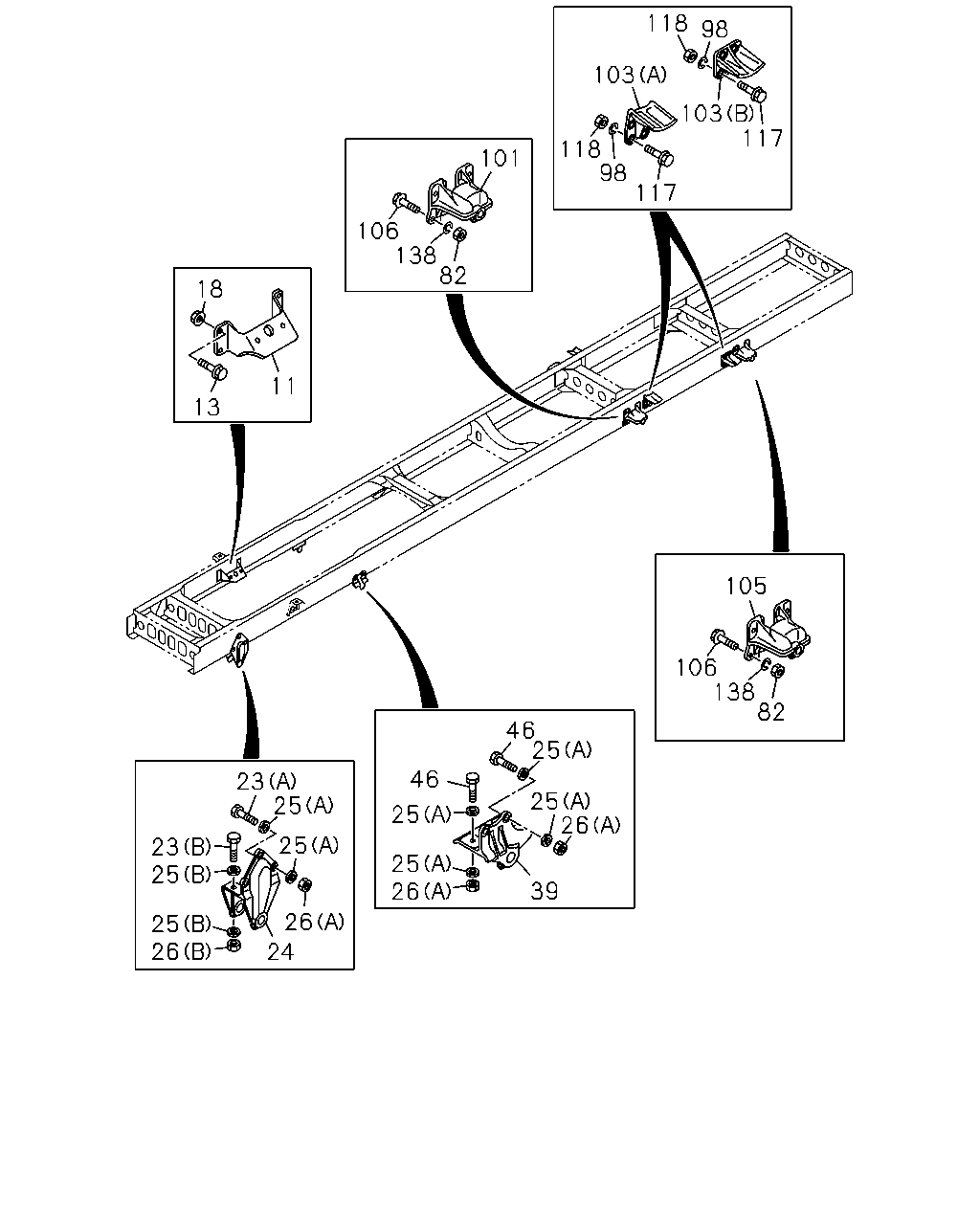

çizim 331996
103 118 117 98 103 118 117 101 106 82 138 18 11 13 23 105 106 138 82 25 25 26 46 46 25 25 26 39 25 25 26 24 26 23 25 25 98
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97619-549-0 02 1 1302-1302 ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) 		8-97619-549-0 02 1 1302- ● ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-385-1 01 1 1305-1308 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-385-1 01 1 1309- ● ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-386-1 01 1 1305-1308 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-386-1 01 1 1309- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302-1302 ● ● ● ●
13 BOLT; BRKT,ENG MTG
6HK1-TCN ENG(82L) M12X35 FLANGE 		0-28661-235-0 08 1 1302- ● ● ● ●
13 BOLT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12X35 FLANGE 		0-28661-235-0 12 1 1305-1308 ●
13 BOLT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12X35 FLANGE 		0-28661-235-0 12 1 1309- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302-1302 ● ● ● ●
18 NUT; BRKT,ENG MTG
6HK1-TCN ENG(82L) M12 FLANGE 		0-91180-212-0 08 1 1302- ● ● ● ●
18 NUT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 12 1 1305-1308 ●
18 NUT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 12 1 1309- ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1302- ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1302- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1302- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1302- ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1302- ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1302- ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1302- ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1302- ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1302- ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1302- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1302- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 1302- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1302- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 1302- ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 1302- ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 1302- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 1302- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 1302- ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1302- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1302- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 1302- ● ● ● ●
