5-01 — FRAME AND OTHER PARTS (#114267) — 154 parça

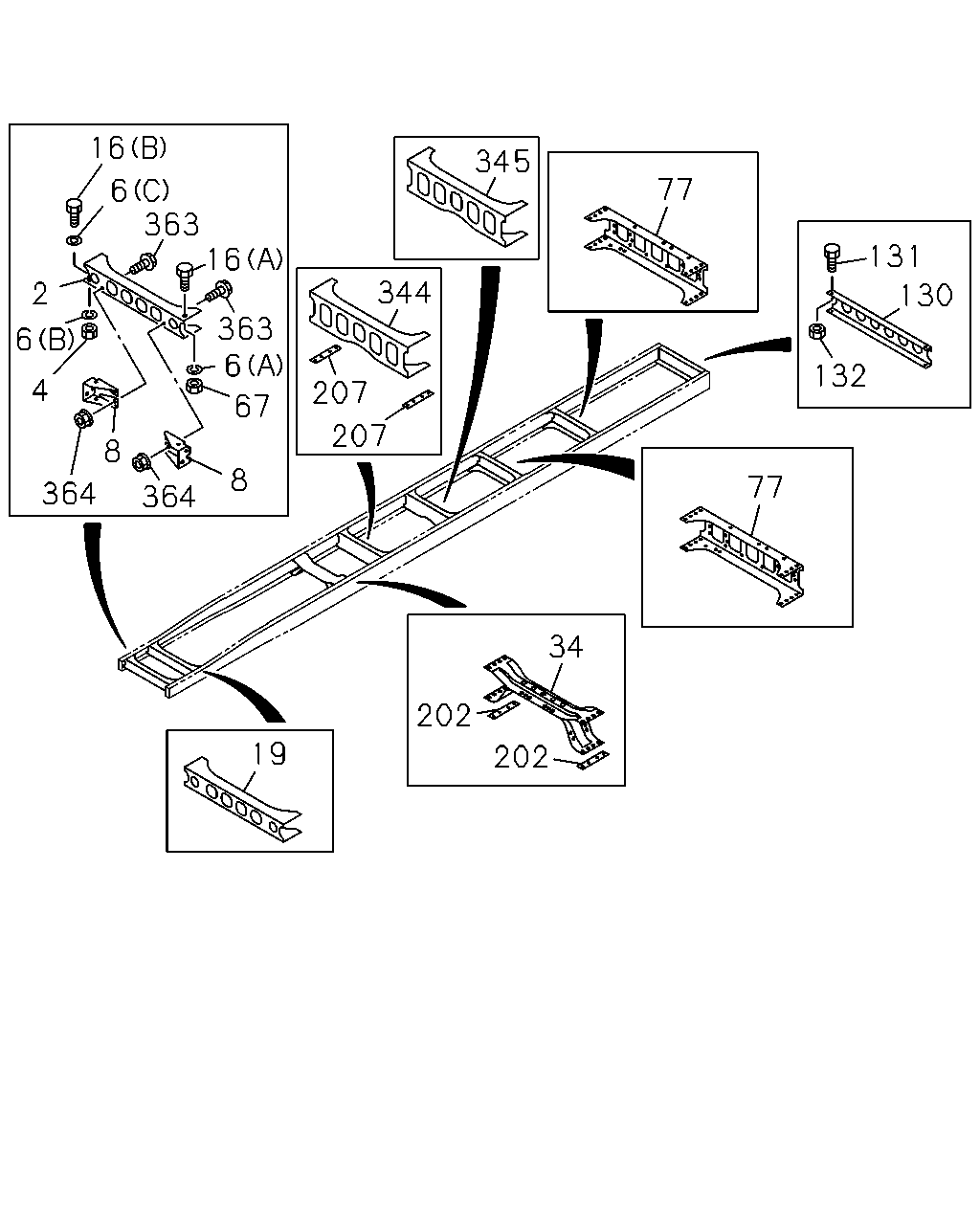

çizim 328750
16 6 363 16 2 363 6 6 8 67 8 364 364 207 344 345 77 131 130 132 77 34 202 202 19 207 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1302- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1302- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1302- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1302- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-578-1 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-578-1 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-579-2 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-579-2 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-759-1 01 1 1302-1404 ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-759-1 01 1 1302-1404 ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 1302-1404 ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-759-1 01 1 1405- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-759-1 01 1 1405- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 1405- ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-760-2 01 1 1302-1404 ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-760-2 01 1 1302-1404 ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 1302-1404 ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-760-2 01 1 1405- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-760-2 01 1 1405- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 1405- ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1302- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1302- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1302- ● ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-501-2 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-755-0 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1302- ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-754-0 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-500-2 01 1 1302-1404 ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-500-2 01 1 1405- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1302- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1302- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 02 1 1302- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1302- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1302- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1302- ● ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-756-1 02 1 1302- ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-757-0 02 1 1302- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1302- ●
207 SPACER; 4TH C/MBR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1302- ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1302- ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1302- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1302- ●
344 MEMBER; CROSS,4TH
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1302-1404 ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1302-1404 ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1405- ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1302- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1302- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1302- ● ● ● ●

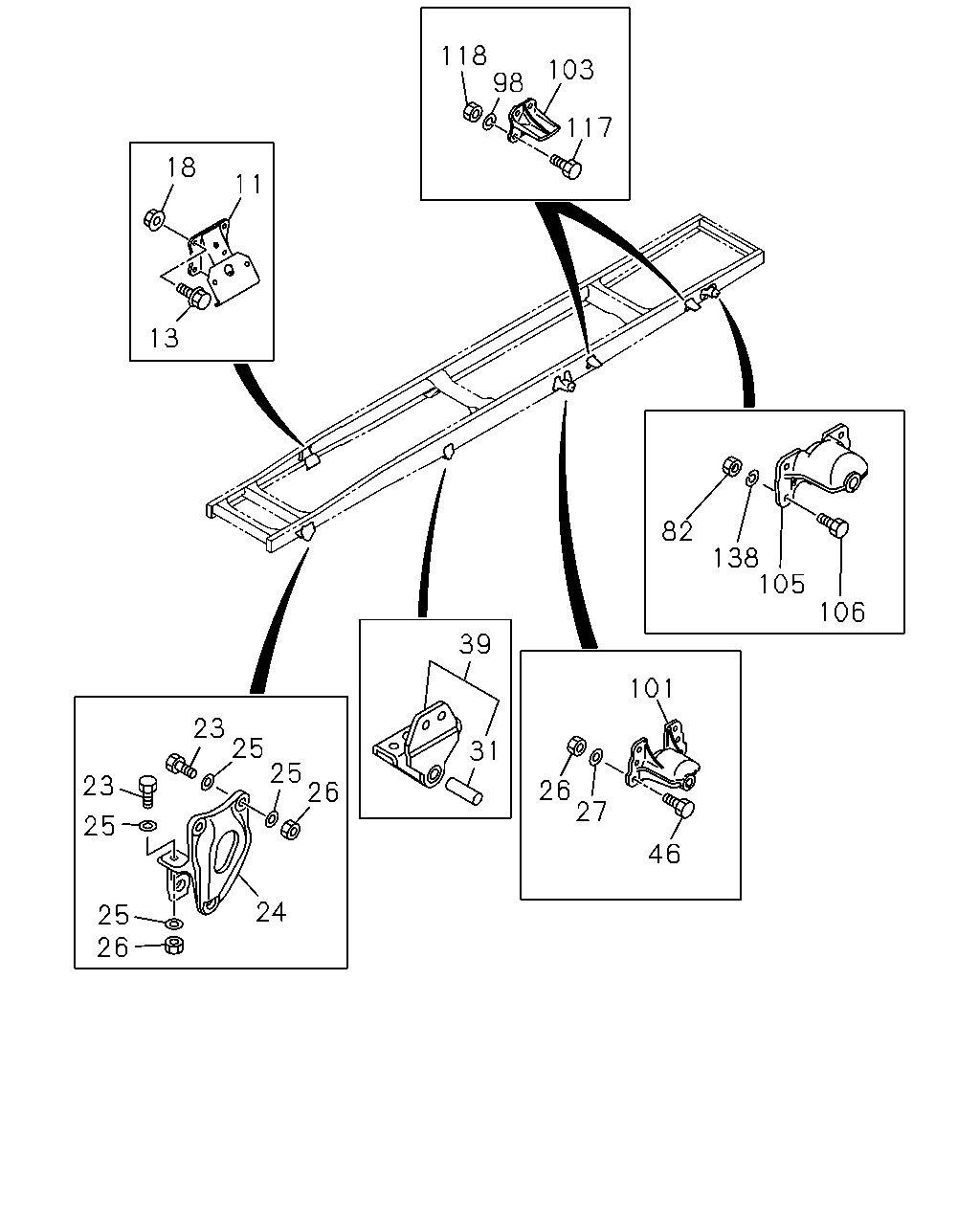

çizim 328841
18 11 118 103 98 117 82 138 105 106 101 39 31 26 27 46 26 25 25 23 23 25 25 24 26 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97604-129-0 02 1 1302- ● ● ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-502-0 02 1 1302- ● ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1302- ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-830-0 02 1 1302- ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-720-0 02 1 1302-1404 ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-720-0 02 1 1405- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1302- ● ● ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 1302-1408 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1302-1408 ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 1409- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1409- ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 1302-1408 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1302-1408 ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 1409- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1409- ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 1302-1404 ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 1405- ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 1302-1404 ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 1405- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1302- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1302- ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1302- ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1302- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1302- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1302- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1302- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1302- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1302- ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1302- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1302- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1302- ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1302- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1302- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1302- ● ● ● ●

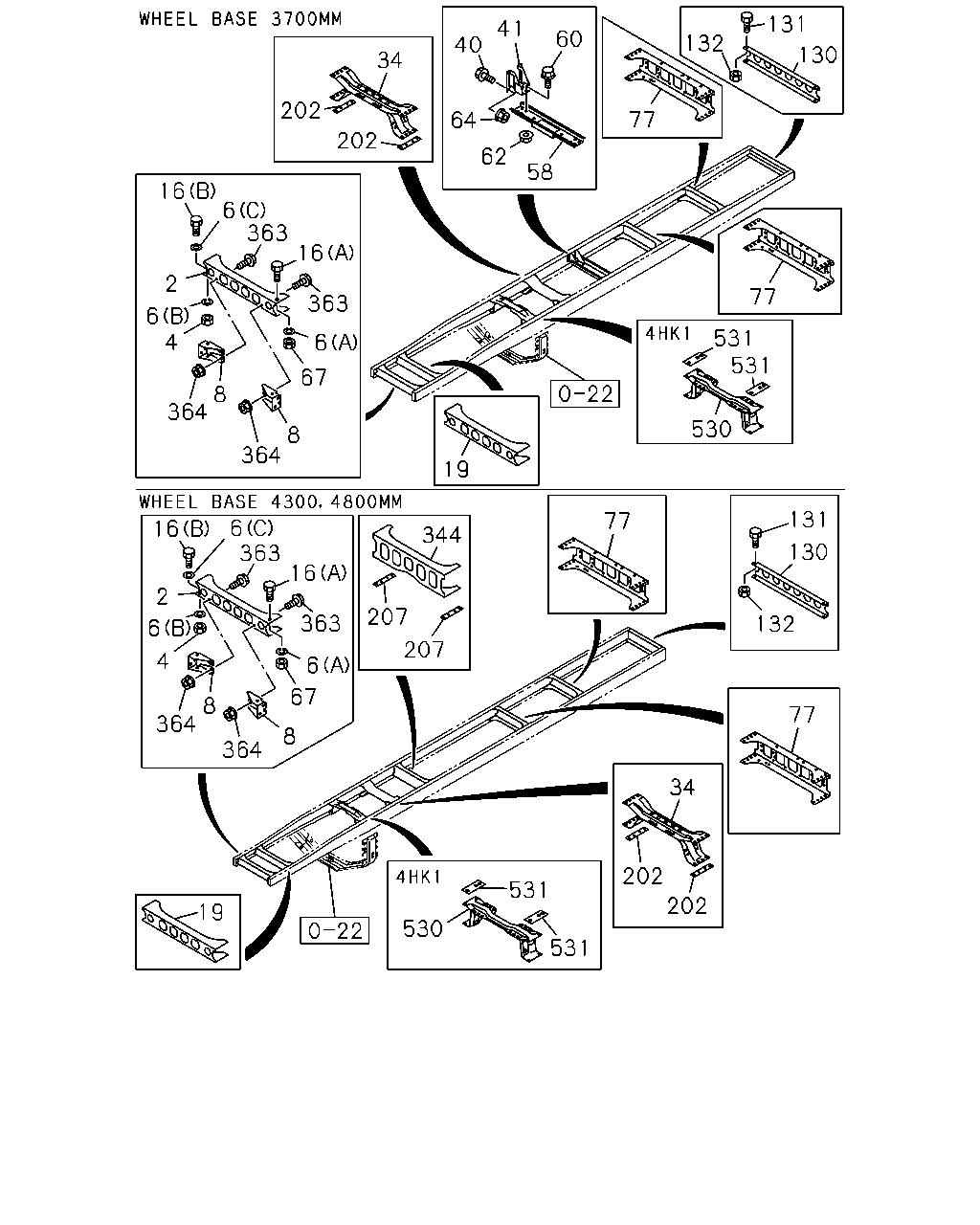

çizim 331868
34 202 202 40 41 64 58 62 60 77 132 131 130 77 531 530 19 8 67 6 363 16 363 6 16 2 6 4 364 8 364 16 6 363 16 363 6 67 8 364 8 364 4 6 2 207 207 344 77 131 130 132 77 34 202 202 531 531 530 19 531
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1302- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1302- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1302- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1302- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-578-1 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-578-1 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-579-2 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-579-2 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-759-1 01 1 1302-1404 ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-759-1 01 1 1302-1404 ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 1302-1404 ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-759-1 01 1 1405- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-759-1 01 1 1405- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 1405- ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-760-2 01 1 1302-1404 ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-760-2 01 1 1302-1404 ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 1302-1404 ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-760-2 01 1 1405- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-760-2 01 1 1405- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 1405- ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1302- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1302- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1302- ● ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-501-2 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-755-0 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1302- ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-754-0 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-500-2 01 1 1302-1404 ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-500-2 01 1 1405- ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1302- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1302-1408 ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1409- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1302-1408 ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1409- ●
58 MEMBER; CENTER BRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97629-975-0 01 1 1302- ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-971-0 01 1 1302- ●
58 MEMBER; CENTER BRG
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97638-924-0 01 1 1302- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1302- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1302- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1302- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1302- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1302- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 02 1 1302- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1302- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1302- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1302- ● ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-756-1 02 1 1302- ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-757-0 02 1 1302- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1302- ●
207 SPACER; 4TH C/MBR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1302- ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1302- ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1302- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1302- ●
344 MEMBER; CROSS,4TH
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1302-1404 ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1302-1404 ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1405- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1302- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1302- ● ● ● ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97609-809-3 01 1 1302-1404 ● ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-809-3 01 1 1302-1404 ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97609-809-3 01 1 1405- ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-461-1 02 1 1302- ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-461-1 02 1 1302- ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) 		8-97616-461-1 02 1 1302- ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-819-2 04 1 1302-1404 ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-819-2 04 1 1405- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
