Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#114266) — 244 parça

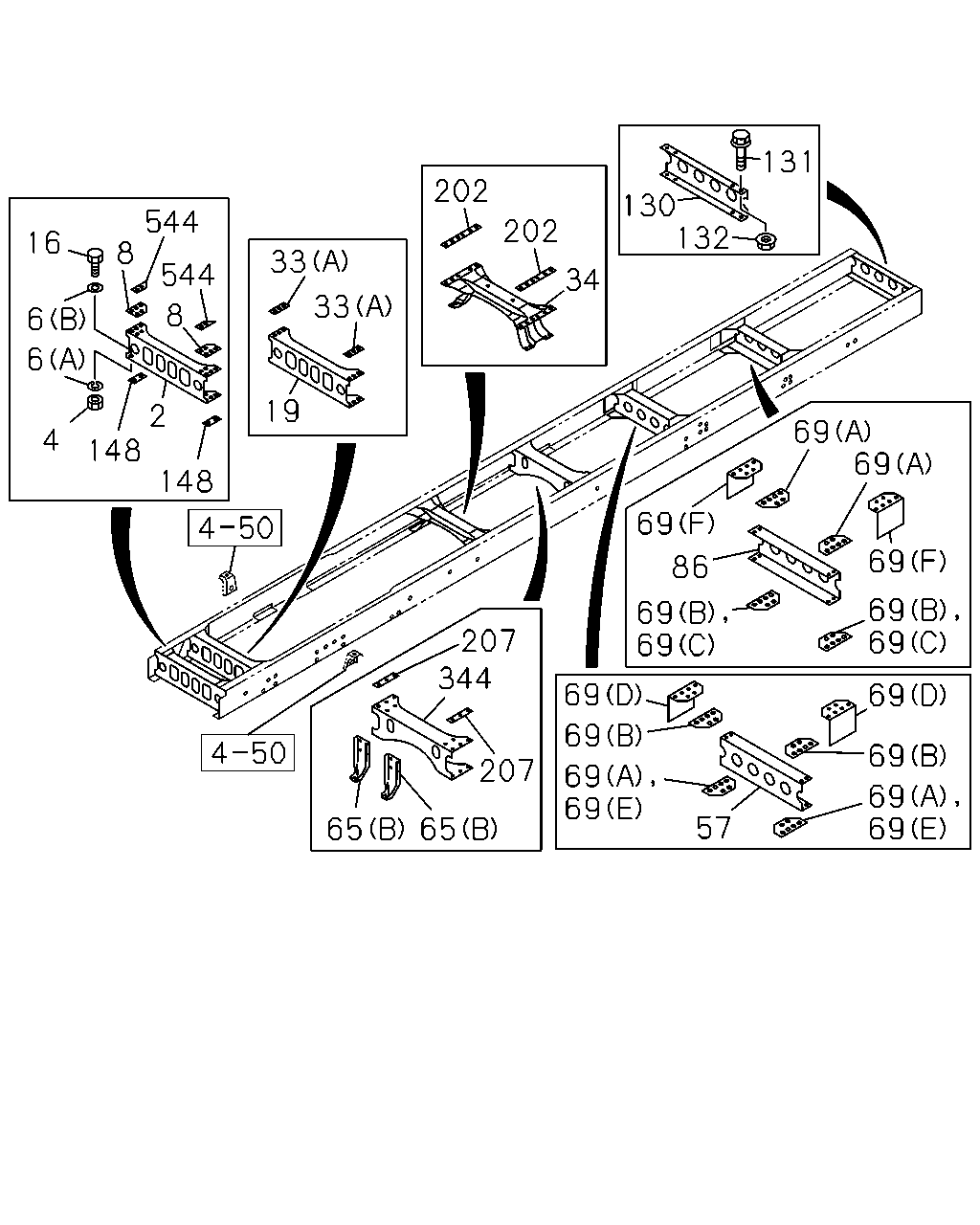

69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 86 65 344 207 207 65 148 148 4 6 6 16 544 2 544 19 8 33 202 33 202 130 34 131 132 57 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1302-	●	●	●	●	●
4	NUT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB> M14	0-91110-514-0	02	1	1302-	●	●	●	●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=14.2	0-91510-814-0	02	1	1302-	●	●	●	●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=15	8-98010-627-1	02	1	1302-	●	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1302-	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB> M14X40	0-20851-440-0	02	1	1302-	●	●	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1302-	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	8-97611-040-0	02	1	1302-	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR 4HK1-TCS ENG(RJS) (B)	8-97641-603-0	02	1	1302-1308					●
33	SPACER; 2ND C/MBR,UPR 4HK1-TCS ENG(RJS) (B)	8-97641-603-0	02	1	1309-	●	●	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1302-	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	1302-	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1302-1308	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1302-1308					●
57	MEMBER; CROSS,RR SUSP FRT 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1302-1308					●
57	MEMBER; CROSS,RR SUSP FRT 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1309-	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1309-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1309-					●
65	BRACKET; CENTER BRG MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98103-401-0	02	1	1302-1309	●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98103-401-0	02	1	1302-1309	●
65	BRACKET; CENTER BRG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<NT2> TOW HOOK<V76>,TOW HOOK DELETE<8C8> EXC. BUMPER W/HEADLAMPS<SLB>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98103-401-0	02	1	1310-	●
65	BRACKET; CENTER BRG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-97614-132-0	02	1	1302-		●
65	BRACKET; CENTER BRG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-97614-137-0	02	1	1302-			●
65	BRACKET; CENTER BRG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-97614-136-0	02	1	1302-				●
65	BRACKET; CENTER BRG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97614-133-0	02	1	1302-					●
65	BRACKET; CENTER BRG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-97621-881-0	02	1	1302-					●
65	BRACKET; CENTER BRG FULLER FSO5206B OD M/T(Y4V) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98103-401-0	02	1	1302-1309	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-97619-889-0	04	1	1302-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-97619-890-0	04	1	1302-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97610-865-0	02	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97610-865-0	02	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (E)	8-97610-865-0	02	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (E)	8-97610-865-0	02	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97610-865-0	02	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97610-865-0	02	1	1309-					●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97610-866-0	02	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97610-866-0	02	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (C)	8-97610-866-0	02	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (C)	8-97610-866-0	02	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97610-866-0	02	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97610-866-0	02	1	1309-					●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-800-0	01	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-800-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-800-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-800-0	01	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-800-0	01	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-800-0	01	1	1309-					●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-801-0	01	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-801-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-801-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-801-0	01	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-801-0	01	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-801-0	01	1	1309-					●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-802-0	01	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-802-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (F)	8-97619-802-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (F)	8-97619-802-0	01	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-802-0	01	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-802-0	01	1	1309-					●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-803-0	01	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-803-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (F)	8-97619-803-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (F)	8-97619-803-0	01	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-803-0	01	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-803-0	01	1	1309-					●
86	MEMBER; CROSS,RR SUSP RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	1302-	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1302-1308	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1302-1308					●
86	MEMBER; CROSS,RR SUSP RR 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1302-1308					●
86	MEMBER; CROSS,RR SUSP RR 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1309-	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1309-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1309-					●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1302-	●	●	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1302-	●	●	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1302-	●	●	●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1302-	●	●	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1302-	●	●	●	●	●
207	SPACER; 4TH C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 0.24KG	8-97611-245-0	02	1	1302-1308	●
207	SPACER; 4TH C/MBR 0.24KG	8-97611-245-0	02	1	1302-1308			●	●
207	SPACER; 4TH C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 0.24KG	8-97611-245-0	02	1	1309-	●
207	SPACER; 4TH C/MBR 4HK1-TCS ENG(RJS) 0.24KG	8-97611-245-0	02	1	1309-		●
207	SPACER; 4TH C/MBR 0.24KG	8-97611-245-0	02	1	1309-			●
207	SPACER; 4TH C/MBR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 0.24KG	8-97611-245-0	02	1	1309-				●
207	SPACER; 4TH C/MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 0.25KG	8-97611-244-0	02	1	1302-1308	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1302-1308		●			●
207	SPACER; 4TH C/MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 0.25KG	8-97611-244-0	02	1	1309-	●
207	SPACER; 4TH C/MBR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 0.25KG	8-97611-244-0	02	1	1309-		●
207	SPACER; 4TH C/MBR 4HK1-TCS ENG(RJS) 0.25KG	8-97611-244-0	02	1	1309-				●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1309-					●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1302-	●	●	●	●	●
544	PLATE; CAB FRT MTG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97615-598-0	02	1	1302-	●	●	●	●	●
544	PLATE; CAB FRT MTG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-030-0	02	1	1302-1308	●	●	●	●
544	PLATE; CAB FRT MTG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-030-0	02	1	1302-1308					●
544	PLATE; CAB FRT MTG 4HK1-TCS ENG(RJS)	8-97611-030-0	02	1	1302-1308					●
544	PLATE; CAB FRT MTG 4HK1-TCS ENG(RJS)	8-97611-030-0	02	1	1309-	●	●	●	●	●
544	PLATE; CAB FRT MTG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-030-0	02	1	1309-	●	●	●	●
544	PLATE; CAB FRT MTG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-030-0	02	1	1309-					●

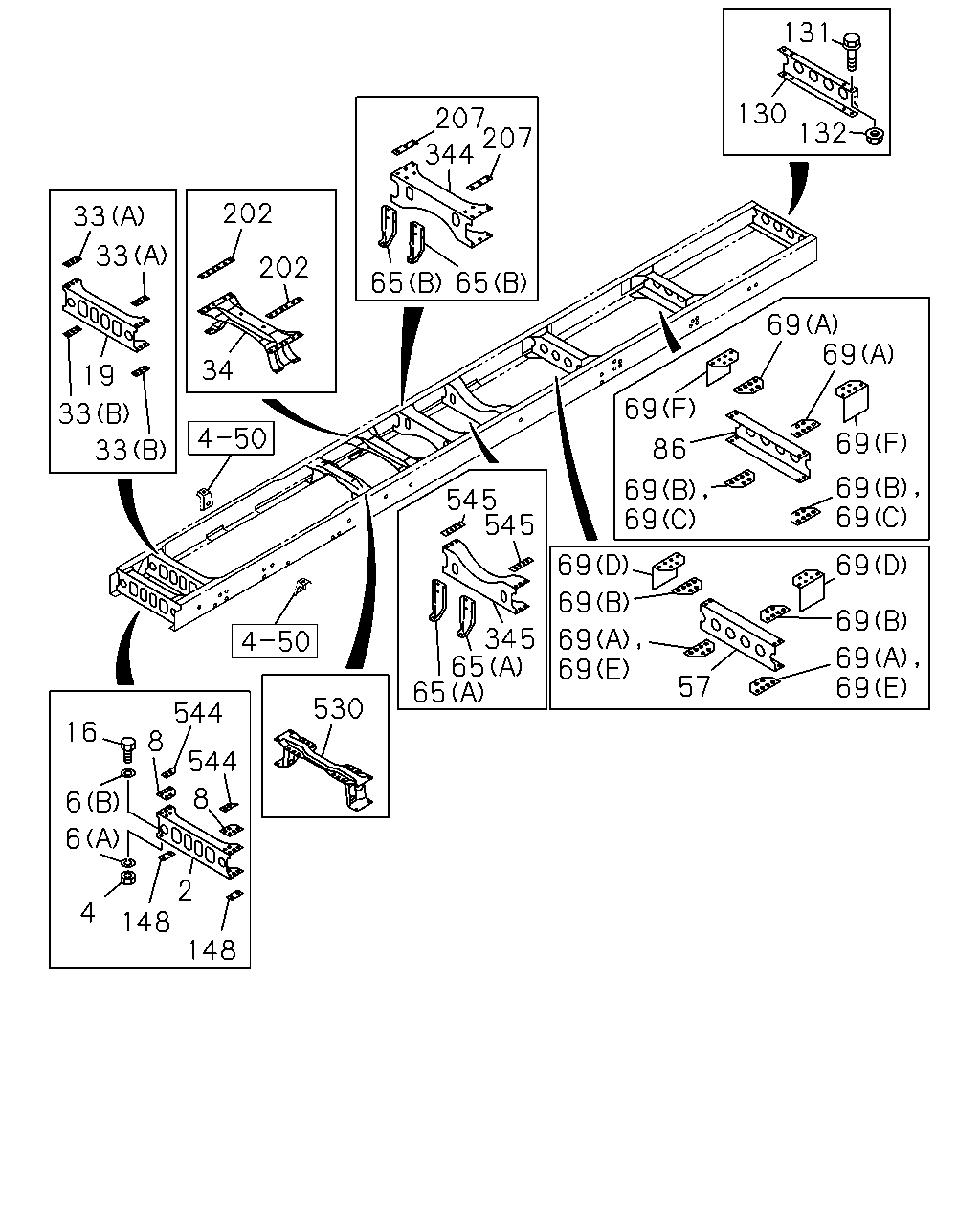

207 344 207 65 65 202 202 33 33 34 33 19 33 530 544 544 16 6 6 8 2 148 148 4 545 345 65 65 69 69 69 69 69 69 69 69 86 69 69 69 69 69 69 69 69 57 545 8 130 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1302-	●	●	●	●	●
4	NUT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB> M14	0-91110-514-0	02	1	1302-	●	●	●	●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=14.2	0-91510-814-0	02	1	1302-	●	●	●	●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=15	8-98010-627-1	02	1	1302-	●	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1302-	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB> M14X40	0-20851-440-0	02	1	1302-	●	●	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1302-	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	8-97611-040-0	02	1	1302-	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR 4HK1-TCS ENG(RJS) (B)	8-97641-603-0	02	1	1302-1308					●
33	SPACER; 2ND C/MBR,UPR 4HK1-TCS ENG(RJS) (B)	8-97641-603-0	02	1	1309-	●	●	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1302-	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	1302-	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1302-1308	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1302-1308					●
57	MEMBER; CROSS,RR SUSP FRT 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1302-1308					●
57	MEMBER; CROSS,RR SUSP FRT 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1309-	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1309-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1309-					●
65	BRACKET; CENTER BRG MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98103-401-0	02	1	1302-1309	●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98103-401-0	02	1	1302-1309	●
65	BRACKET; CENTER BRG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<NT2> TOW HOOK<V76>,TOW HOOK DELETE<8C8> EXC. BUMPER W/HEADLAMPS<SLB>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98103-401-0	02	1	1310-	●
65	BRACKET; CENTER BRG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-97614-132-0	02	1	1302-		●
65	BRACKET; CENTER BRG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-97614-137-0	02	1	1302-			●
65	BRACKET; CENTER BRG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-97614-136-0	02	1	1302-				●
65	BRACKET; CENTER BRG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97614-133-0	02	1	1302-					●
65	BRACKET; CENTER BRG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-97621-881-0	02	1	1302-					●
65	BRACKET; CENTER BRG FULLER FSO5206B OD M/T(Y4V) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98103-401-0	02	1	1302-1309	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-97619-889-0	04	1	1302-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-97619-890-0	04	1	1302-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97610-865-0	02	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97610-865-0	02	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (E)	8-97610-865-0	02	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (E)	8-97610-865-0	02	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97610-865-0	02	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97610-865-0	02	1	1309-					●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97610-866-0	02	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97610-866-0	02	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (C)	8-97610-866-0	02	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (C)	8-97610-866-0	02	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97610-866-0	02	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97610-866-0	02	1	1309-					●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-800-0	01	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-800-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-800-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-800-0	01	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-800-0	01	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-800-0	01	1	1309-					●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-801-0	01	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-801-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-801-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-801-0	01	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-801-0	01	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-801-0	01	1	1309-					●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-802-0	01	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-802-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (F)	8-97619-802-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (F)	8-97619-802-0	01	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-802-0	01	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-802-0	01	1	1309-					●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-803-0	01	1	1302-1308	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-803-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (F)	8-97619-803-0	01	1	1302-1308					●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (F)	8-97619-803-0	01	1	1309-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-803-0	01	1	1309-	●	●	●	●
69	GUSSET; RR SUSP,UPR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-803-0	01	1	1309-					●
86	MEMBER; CROSS,RR SUSP RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	1302-	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1302-1308	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1302-1308					●
86	MEMBER; CROSS,RR SUSP RR 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1302-1308					●
86	MEMBER; CROSS,RR SUSP RR 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1309-	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1309-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	1309-					●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1302-	●	●	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1302-	●	●	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1302-	●	●	●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1302-	●	●	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1302-	●	●	●	●	●
207	SPACER; 4TH C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 0.24KG	8-97611-245-0	02	1	1302-1308	●
207	SPACER; 4TH C/MBR 0.24KG	8-97611-245-0	02	1	1302-1308			●	●
207	SPACER; 4TH C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 0.24KG	8-97611-245-0	02	1	1309-	●
207	SPACER; 4TH C/MBR 4HK1-TCS ENG(RJS) 0.24KG	8-97611-245-0	02	1	1309-		●
207	SPACER; 4TH C/MBR 0.24KG	8-97611-245-0	02	1	1309-			●
207	SPACER; 4TH C/MBR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 0.24KG	8-97611-245-0	02	1	1309-				●
207	SPACER; 4TH C/MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 0.25KG	8-97611-244-0	02	1	1302-1308	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1302-1308		●			●
207	SPACER; 4TH C/MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 0.25KG	8-97611-244-0	02	1	1309-	●
207	SPACER; 4TH C/MBR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 0.25KG	8-97611-244-0	02	1	1309-		●
207	SPACER; 4TH C/MBR 4HK1-TCS ENG(RJS) 0.25KG	8-97611-244-0	02	1	1309-				●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1309-					●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1302-	●	●	●	●	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1302-1308					●
345	MEMBER; CROSS,5TH 4HK1-TCS ENG(RJS)	8-97611-238-1	01	1	1309-				●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1309-					●
530	MEMBER; CROSS,T/M 4HK1-TCS ENG(RJS)	8-97638-949-0	01	1	1302-1308					●
530	MEMBER; CROSS,T/M 4HK1-TCS ENG(RJS)	8-97638-949-0	01	1	1309-	●	●	●	●	●
544	PLATE; CAB FRT MTG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97615-598-0	02	1	1302-	●	●	●	●	●
544	PLATE; CAB FRT MTG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-030-0	02	1	1302-1308	●	●	●	●
544	PLATE; CAB FRT MTG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-030-0	02	1	1302-1308					●
544	PLATE; CAB FRT MTG 4HK1-TCS ENG(RJS)	8-97611-030-0	02	1	1302-1308					●
544	PLATE; CAB FRT MTG 4HK1-TCS ENG(RJS)	8-97611-030-0	02	1	1309-	●	●	●	●	●
544	PLATE; CAB FRT MTG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-030-0	02	1	1309-	●	●	●	●
544	PLATE; CAB FRT MTG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-030-0	02	1	1309-					●
545	SPACER; 5TH C/MBR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 0.24KG	8-97611-245-0	02	1	1302-					●

118 117 103 98 101 82 138 138 106 18 11 13 23 25 25 26 24 26 23 25 25 46 25 25 26 39 46 25 25 26 111 82 138 112 97 110 89 281 138 106 105 96 129 128 129

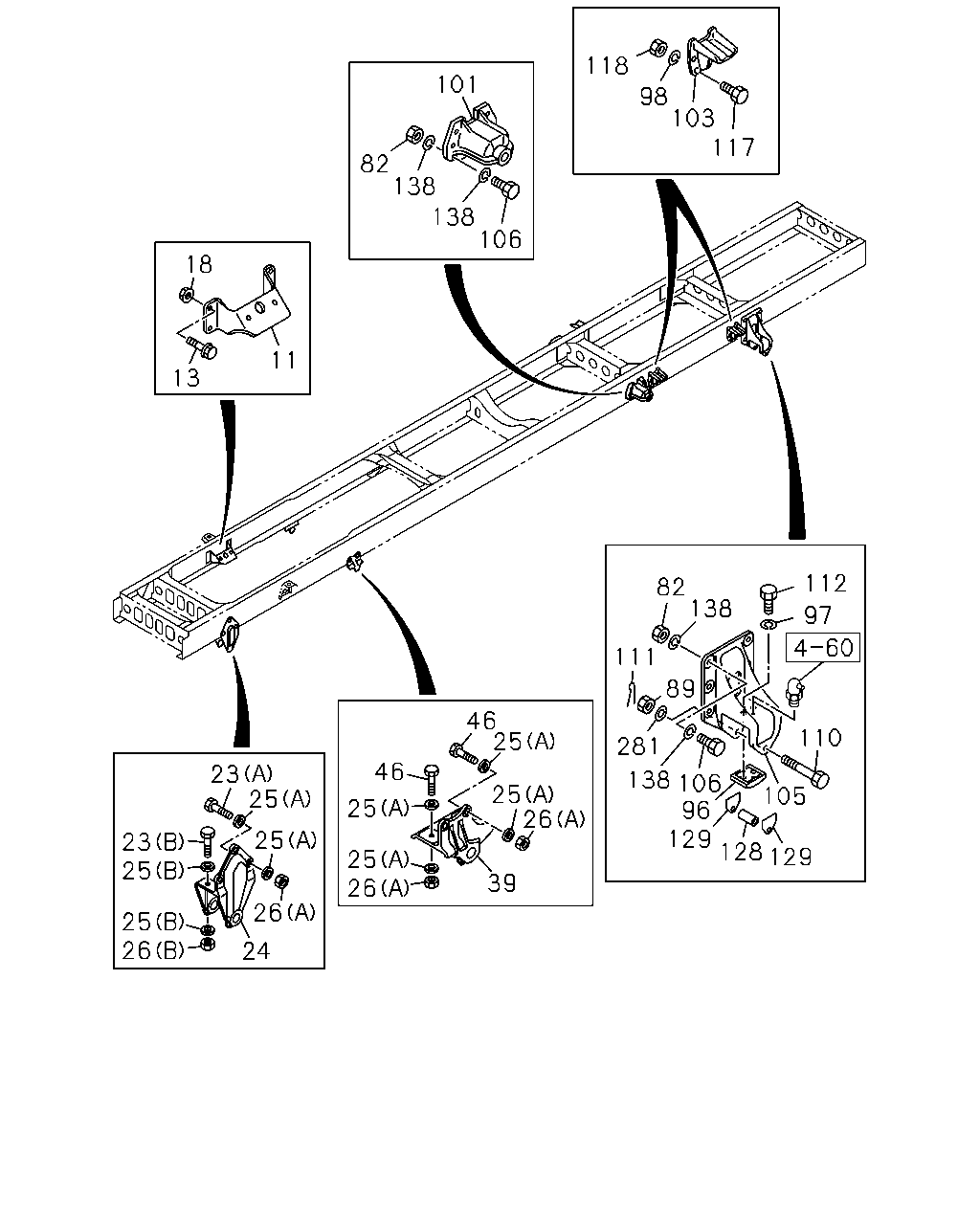

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	BRACKET; ENG MTG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-549-0	02	1	1302-	●	●	●	●	●
11	BRACKET; ENG MTG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-550-0	02	1	1302-	●	●	●	●	●
11	BRACKET; ENG MTG 4HK1-TCS ENG(RJS)	8-97639-385-1	01	1	1302-1308					●
11	BRACKET; ENG MTG 4HK1-TCS ENG(RJS)	8-97639-385-1	01	1	1309-	●	●	●	●	●
11	BRACKET; ENG MTG 4HK1-TCS ENG(RJS)	8-97639-386-1	01	1	1302-1308					●
11	BRACKET; ENG MTG 4HK1-TCS ENG(RJS)	8-97639-386-1	01	1	1309-	●	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1302-	●	●	●	●
13	BOLT; BRKT,ENG MTG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12X35 FLANGE	0-28661-235-0	08	1	1302-					●
13	BOLT; BRKT,ENG MTG 4HK1-TCS ENG(RJS) M12X35 FLANGE	0-28661-235-0	12	1	1302-1308					●
13	BOLT; BRKT,ENG MTG 4HK1-TCS ENG(RJS) M12X35 FLANGE	0-28661-235-0	12	1	1309-	●	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1302-	●	●	●	●
18	NUT; BRKT,ENG MTG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12 FLANGE	0-91180-212-0	08	1	1302-					●
18	NUT; BRKT,ENG MTG 4HK1-TCS ENG(RJS) M12 FLANGE	0-91180-212-0	12	1	1302-1308					●
18	NUT; BRKT,ENG MTG 4HK1-TCS ENG(RJS) M12 FLANGE	0-91180-212-0	12	1	1309-	●	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1302-	●	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1302-	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1302-	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1302-	●	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1302-	●	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1302-	●	●	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1302-	●	●	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1302-	●	●	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1302-	●	●	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1302-	●	●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1302-	●	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	1302-	●	●	●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	1302-	●	●	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	1302-	●	●	●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	1302-	●	●	●	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	1302-	●	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	1302-	●	●	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	1302-	●	●	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	1302-	●	●	●	●	●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	1302-	●	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	1302-	●	●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	1302-	●	●	●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	1302-	●	●	●	●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	1302-	●	●	●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1302-	●	●	●	●	●
128	COLLAR; RUBBER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-53359-004-0	02	1	1302-	●	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	1302-	●	●	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	1302-	●	●	●	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-814-0	24	1	1302-	●	●	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	1302-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
