5-01 — FRAME AND OTHER PARTS (#114264) — 134 parça

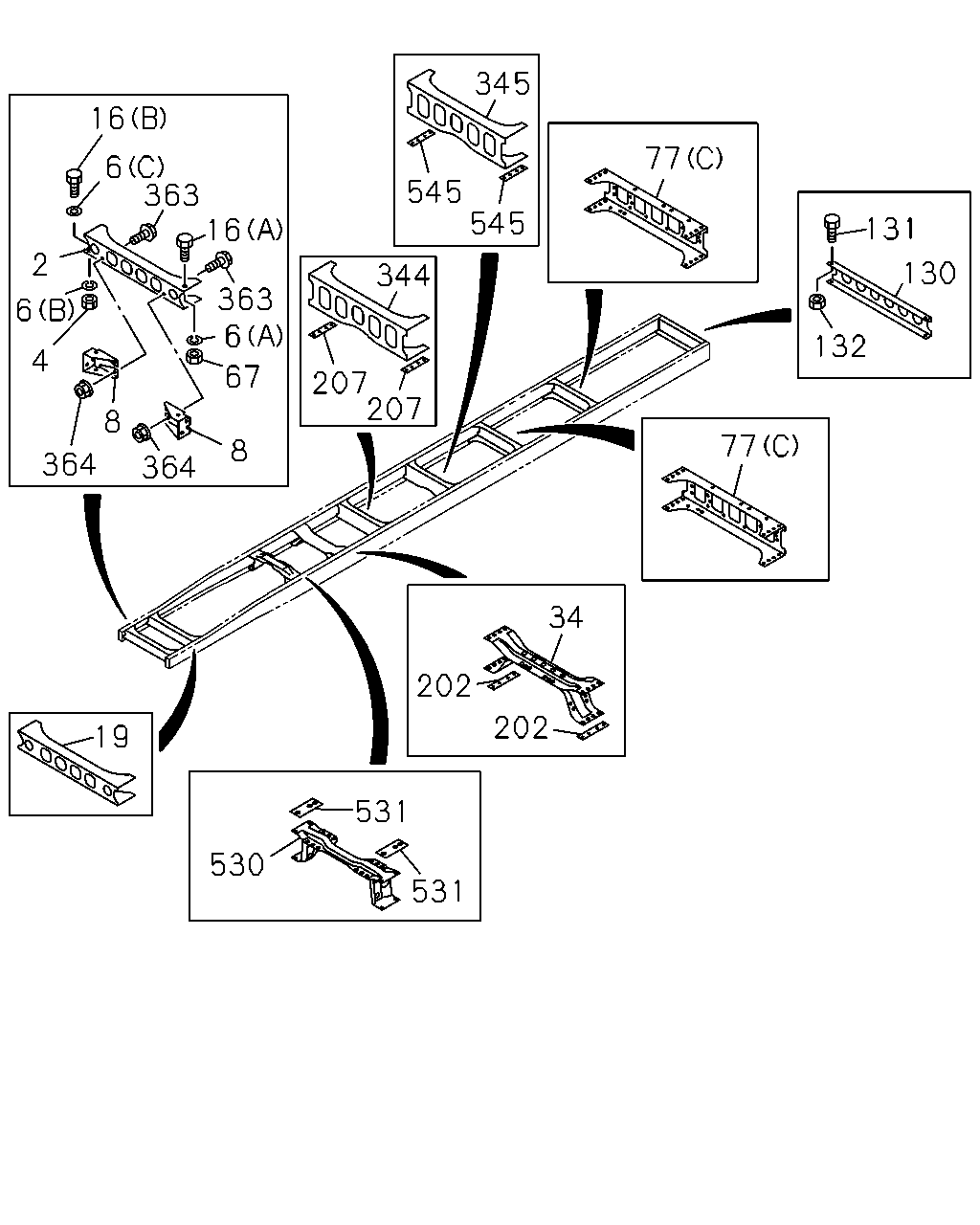

çizim 328066
16 363 6 2 6 4 8 364 364 8 67 6 363 16 344 207 207 545 345 545 77 131 132 130 77 34 202 202 531 531 530 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-462-9 01 1 1511- ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1302-1510 ● ● ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1511- ● ● ● ●
2 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-669-3 01 1 1511- ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1302-1510 ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 		0-91110-514-0 02 1 1511- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1302- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1302-1510 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=14.2 		0-91510-814-0 02 1 1511- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1302-1510 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=15 		8-98010-627-1 02 1 1511- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1302-1510 ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1511- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1302-1510 ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1511- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1302- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1302-1510 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X40 		0-20851-440-0 02 1 1511- ● ● ● ● ●
19 MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE> 		8-97629-428-5 01 1 1511- ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 1302-1510 ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 1511- ● ● ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97620-866-6 01 1 1511- ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1302- ● ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1302- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1302- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 1302- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1302- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1302- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1302- ● ● ● ● ●
133 RIVET; BRKT
D13X32 PLATED TAPER END 		0-67901-332-0 04 1 1511- ● ● ● ● ●
190 RIVET; 1ST C/MBR
FRONT UNDER RUN PROTECTOR<EBE> D11X32 PLATED TAPER END 		0-67801-132-0 06 1 1511- ●
190 RIVET; 1ST C/MBR
D11X28 PLATED TAPER END 		0-67801-128-0 06 1 1511- ● ● ● ●
190 RIVET; 1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> D11X28 PLATED TAPER END 		0-67801-128-0 06 1 1511- ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1302- ● ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1302- ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1302- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1302- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1302- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1302- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1302- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZZ6W M/T(RSA) 		8-97609-814-1 01 1 1302- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T(RSZ) 		8-97609-809-3 01 1 1302- ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZZ6W M/T(RSA) 		8-97637-078-0 02 1 1302- ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZW6P M/T(RSZ) 		8-97616-461-1 02 1 1302- ● ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1302- ● ●

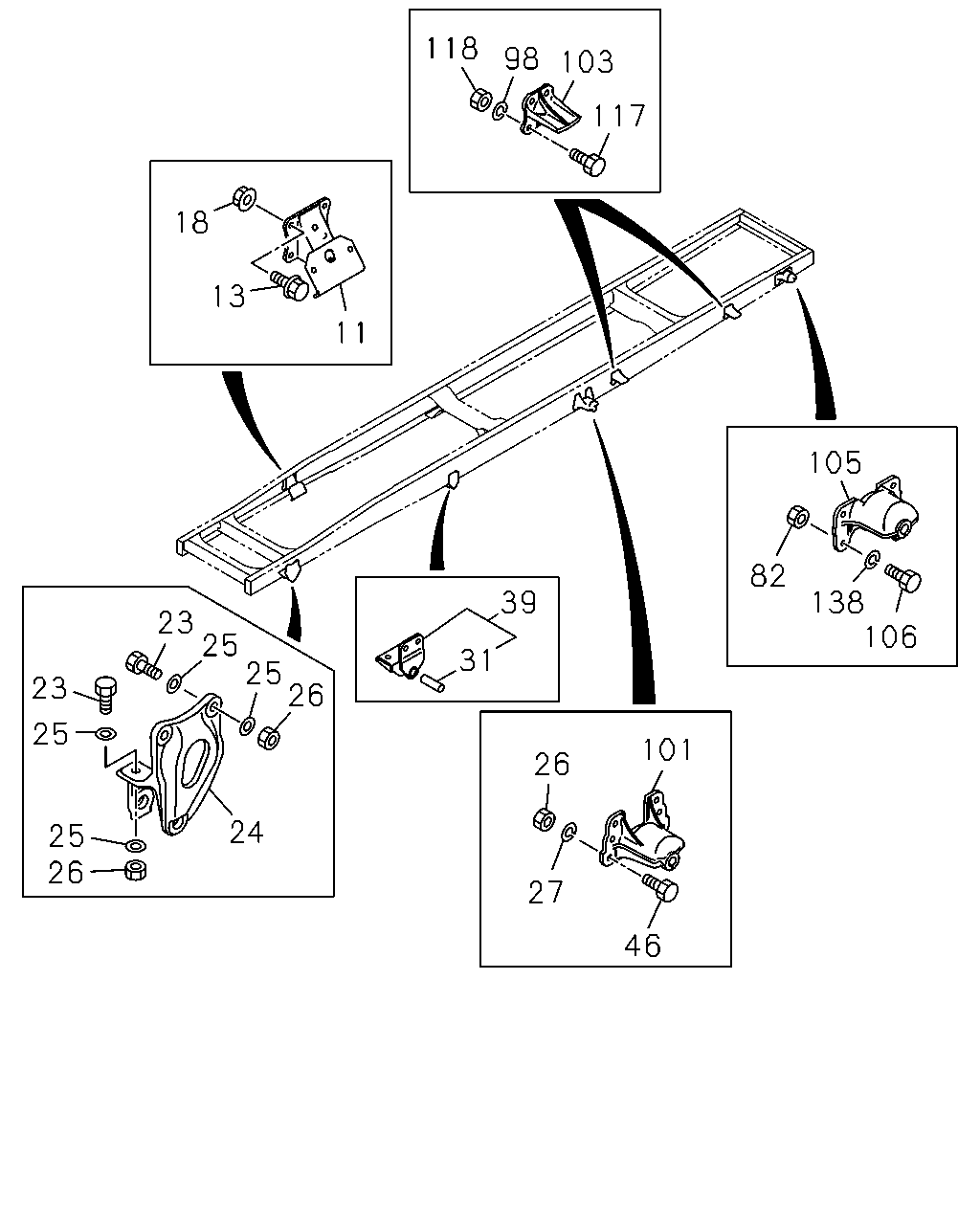

çizim 328780
118 98 103 117 18 13 11 105 82 138 106 101 26 27 46 39 31 25 26 25 23 23 25 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 BRACKET; ENG MTG
STABILIZER REAR LIGHT DUTY<GN1> 		8-97639-363-0 02 1 1506-1511 ●
11 BRACKET; ENG MTG
EURO5 SPECIFICATION<NT5> 		8-97639-363-0 02 1 1512- ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1302-1505 ● ● ● ● ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1506-1511 ● ● ● ●
11 BRACKET; ENG MTG
EXC. STABILIZER REAR LIGHT DUTY<GN1> 		8-97604-129-0 02 1 1506-1511 ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1512- ● ● ● ●
11 BRACKET; ENG MTG
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-97604-129-0 02 1 1512- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1302- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1302-1510 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1511- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1302-1510 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1511- ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1302- ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1302- ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1302- ● ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1302- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1302- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1302- ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1302- ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1302- ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1302- ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1302- ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1302- ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1302- ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1302- ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1302- ● ● ● ● ●
133 RIVET; BRKT
D13X32 PLATED TAPER END 		0-67901-332-0 04 1 1511- ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1302- ● ● ● ● ●
190 RIVET; 1ST C/MBR
FRONT UNDER RUN PROTECTOR<EBE> D11X32 PLATED TAPER END 		0-67801-132-0 06 1 1511- ●
190 RIVET; 1ST C/MBR
D11X28 PLATED TAPER END 		0-67801-128-0 06 1 1511- ● ● ● ●
190 RIVET; 1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> D11X28 PLATED TAPER END 		0-67801-128-0 06 1 1511- ●

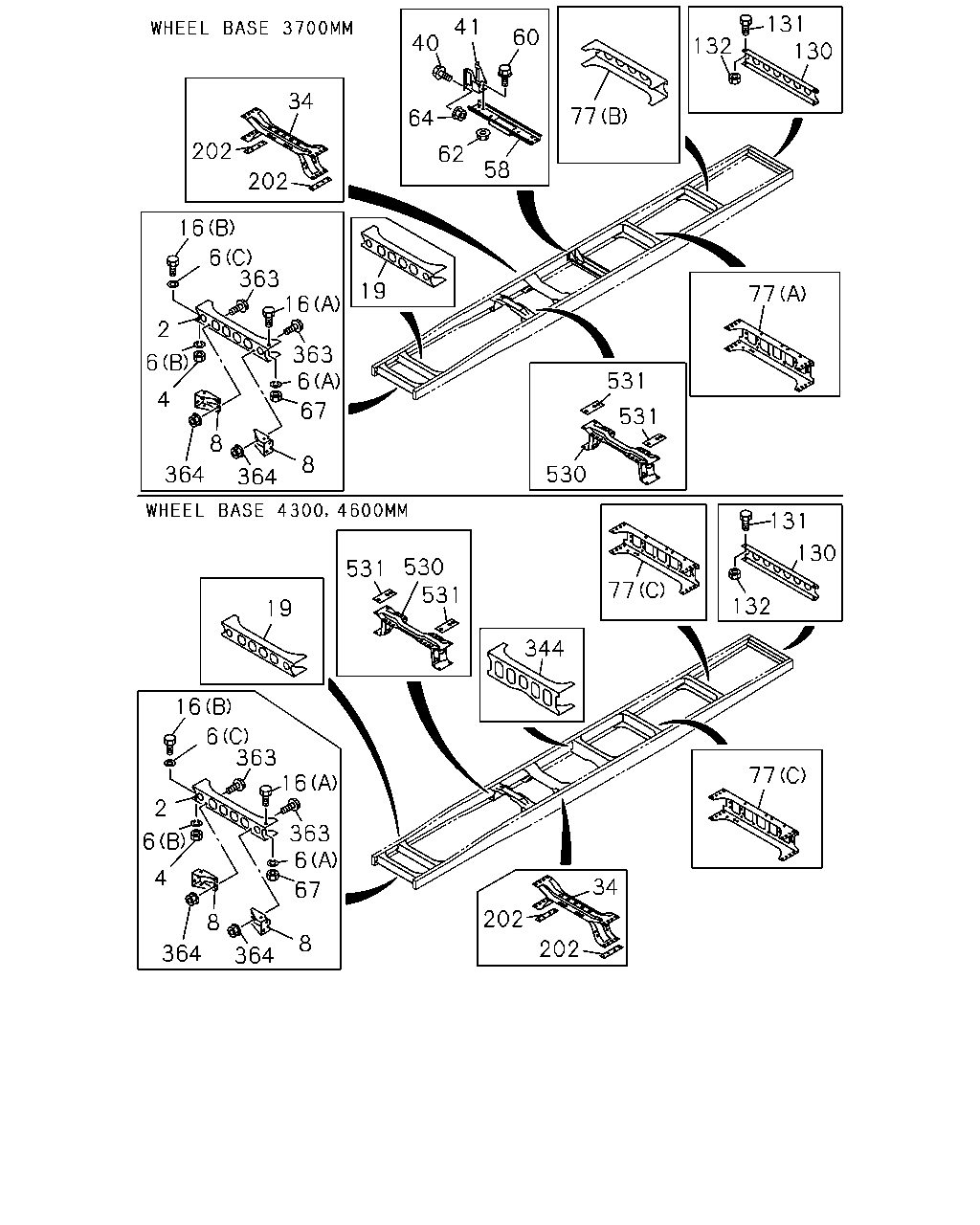

çizim 331998
202 202 77 34 344 531 531 19 530 77 130 131 77 530 531 531 16 363 6 16 2 6 4 364 8 364 67 6 363 19 8 364 364 8 67 6 363 6 2 6 16 16 363 4 132 130 132 131 77 58 62 64 40 41 60 202 202 34 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-462-9 01 1 1511- ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1302-1510 ● ● ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1511- ● ● ● ●
2 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-669-3 01 1 1511- ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1302-1510 ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 		0-91110-514-0 02 1 1511- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1302- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1302-1510 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=14.2 		0-91510-814-0 02 1 1511- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1302-1510 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=15 		8-98010-627-1 02 1 1511- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1302-1510 ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1511- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1302-1510 ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1511- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1302- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1302-1510 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X40 		0-20851-440-0 02 1 1511- ● ● ● ● ●
19 MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE> 		8-97629-428-5 01 1 1511- ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 1302-1510 ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 1511- ● ● ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97620-866-6 01 1 1511- ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1302- ● ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1302- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1302-1510 ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1511- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1302-1510 ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1511- ●
58 MEMBER; CENTER BRG
MZZ6W M/T(RSA) 		8-97620-971-0 01 1 1302- ●
58 MEMBER; CENTER BRG
MZW6P M/T(RSZ) 		8-97619-113-0 01 1 1302- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1302- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1302- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1302- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1302- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1302- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 1302- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1302- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1302- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1302- ● ● ● ● ●
133 RIVET; BRKT
D13X32 PLATED TAPER END 		0-67901-332-0 04 1 1511- ● ● ● ● ●
190 RIVET; 1ST C/MBR
FRONT UNDER RUN PROTECTOR<EBE> D11X32 PLATED TAPER END 		0-67801-132-0 06 1 1511- ●
190 RIVET; 1ST C/MBR
D11X28 PLATED TAPER END 		0-67801-128-0 06 1 1511- ● ● ● ●
190 RIVET; 1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> D11X28 PLATED TAPER END 		0-67801-128-0 06 1 1511- ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1302- ● ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1302- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1302- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1302- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1302- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZZ6W M/T(RSA) 		8-97609-814-1 01 1 1302- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T(RSZ) 		8-97609-809-3 01 1 1302- ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZZ6W M/T(RSA) 		8-97637-078-0 02 1 1302- ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZW6P M/T(RSZ) 		8-97616-461-1 02 1 1302- ● ● ● ● ●
