5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

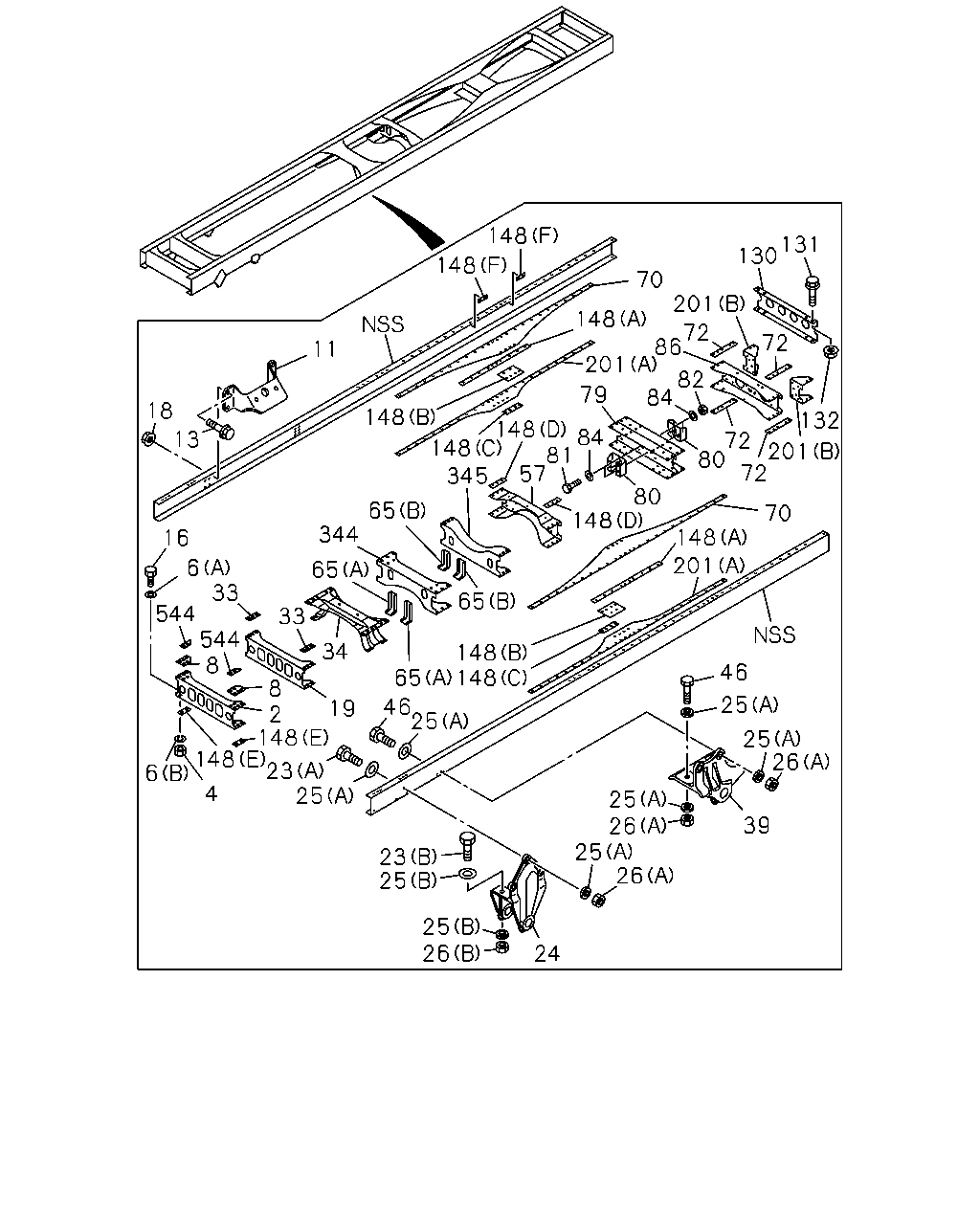

5-01 — FRAME AND OTHER PARTS
(#114262) — 51 parça
81
11
13
148
148
131
130
201
70
148
148
16
6
33
344
65
148
148
345
201
86
79
72
82
72
84
84
81
57
65
33
544
544
8
8
34
65
148
80
80
72
201
132
72
70
148
201
148
148
65
25
46
19
2
148
148
6
4
23
25
23
25
25
26
24
26
26
26
25
25
25
46
39
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1302-
4
NUT; 1ST C/MBR TO S/MBR
M14
0-91110-514-0
02
1
1302-
6
WASHER; LK,1ST C/MBR
(B) ID=14.2
0-91510-814-0
02
1
1302-
6
WASHER; LK,1ST C/MBR
(A) ID=15
8-98010-627-1
02
1
1302-
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
1302-
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1302-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1302-
16
BOLT; 1ST C/MBR TO S/MBR
M14X40
0-20851-440-0
02
1
1302-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1302-
19
MEMBER; CROSS,2ND
8-97610-853-5
01
1
1302-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1302-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1302-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1302-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1302-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1302-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1302-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
1302-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1302-
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
1302-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1302-
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1302-
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1302-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1302-
57
MEMBER; CROSS,RR SUSP FRT
8-97612-103-1
01
1
1302-
65
BRACKET; CENTER BRG
ZF6S1000 M/T(Y5D) (B)
8-97645-580-0
02
1
1302-
65
BRACKET; CENTER BRG
ZF6S1000 M/T(Y5D) (A)
8-98103-392-0
02
1
1302-
65
BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (B)
8-97614-125-0
02
1
1302-
65
BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (A)
8-97621-881-0
02
1
1302-
70
GUSSET; TRUNNION,UPR
8-97612-106-0
02
1
1302-
72
SPACER; TRUNNION
8-97612-110-0
04
1
1302-
79
MEMBER; CROSS,TRUNNION ASM
8-97612-484-1
01
1
1302-
80
BRACKET; C/MBR
1-53363-068-0
02
1
1302-
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
1302-
82
NUT; BRKT
M14
0-91110-514-0
02
1
1302-
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1302-
86
MEMBER; CROSS,RR SUSP RR
8-97612-105-4
01
1
1302-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1302-
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
1302-
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1302-
148
SPACER; C/MBR
(E)
8-97611-039-0
02
1
1302-
148
SPACER; C/MBR
(D)
8-97612-109-0
02
1
1302-
148
SPACER; C/MBR
(F)
8-97612-111-0
04
1
1302-
148
SPACER; C/MBR
(A)
8-97612-112-0
02
1
1302-
148
SPACER; C/MBR
(B)
8-97612-113-0
02
1
1302-
148
SPACER; C/MBR
(C)
8-97612-115-0
02
1
1302-
201
GUSSET; C/MBR
(B)
8-97612-108-2
02
1
1302-
201
GUSSET; C/MBR
ZF6S1000 M/T(Y5D) (A)
8-97645-582-0
02
1
1302-
201
GUSSET; C/MBR
ZF9S1110 M/T(Y5E) (A)
8-97645-581-0
02
1
1302-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1302-
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1302-
544
PLATE; CAB FRT MTG
8-97615-598-0
02
1
1302-
