◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#114261) — 314 parça

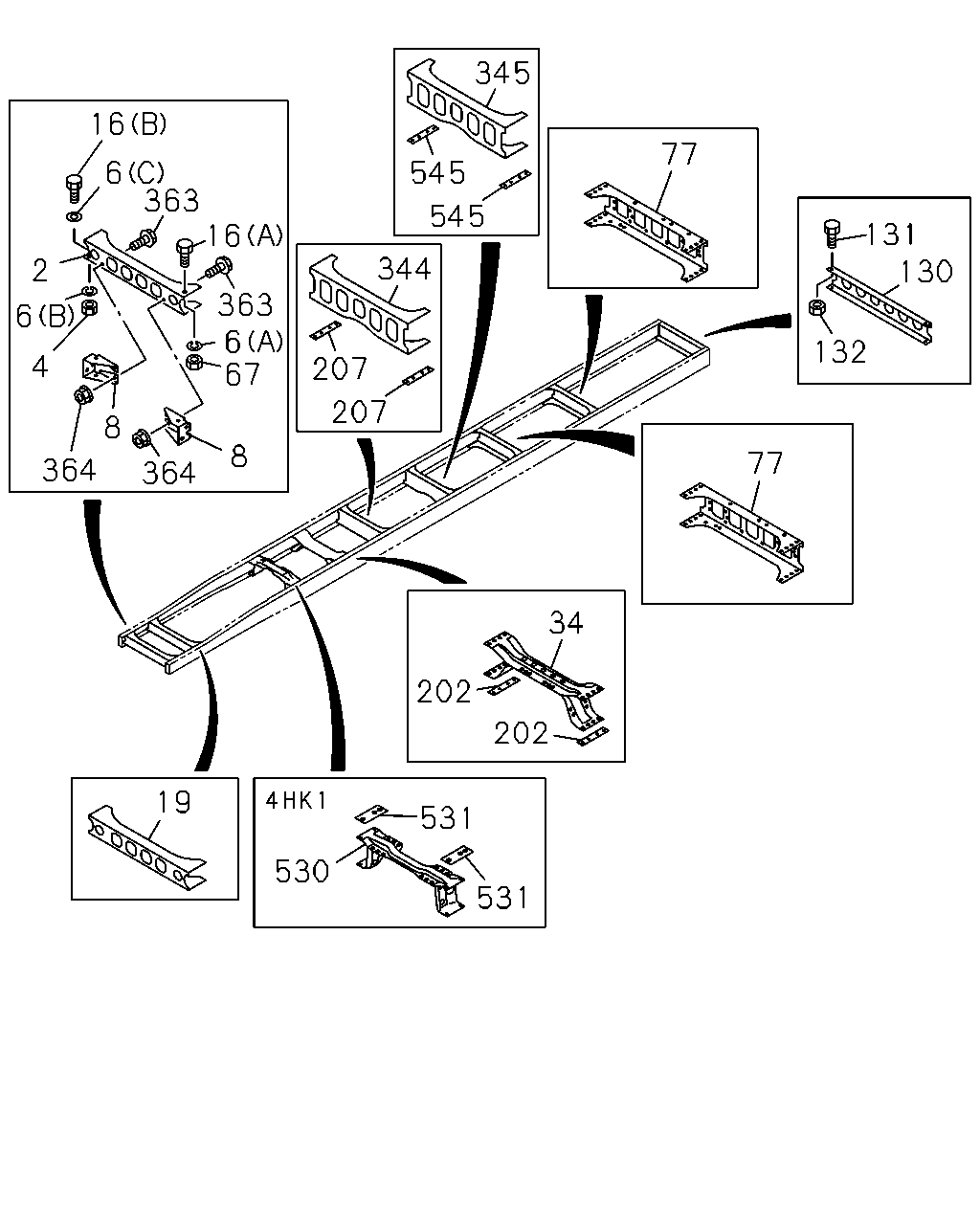

çizim 328721
16 6 545 345 77 131 130 132 77 34 202 202 19 530 531 531 364 8 67 6 363 16 363 2 6 8 4 364 344 207 207 545
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2015<VZF> FRONT UNDER RUN PROTECTOR<EBE> 		8-97647-710-1 01 1 1410- ● ●
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 1302-1405 ● ●
2 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-669-2 01 1 1302-1405 ● ●
2 MEMBER; CROSS,1ST
EURO2 SPECIFICATION<NT2> 		8-97615-669-2 01 1 1406-1408 ● ●
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 1406-1408 ●
2 MEMBER; CROSS,1ST
EURO2 SPECIFICATION<NT2> 		8-97615-669-2 01 1 1409-1409 ● ● ●
2 MEMBER; CROSS,1ST
6HK1-TCN ENG(82L) 		8-97615-669-3 01 1 1410-1510 ● ●
2 MEMBER; CROSS,1ST
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2015<VZF> 		8-97615-669-3 01 1 1410-1510 ● ●
2 MEMBER; CROSS,1ST
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2015<VZF> EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-669-3 01 1 1410-1510 ● ●
2 MEMBER; CROSS,1ST
EURO2 SPECIFICATION<NT2> 		8-97615-669-3 01 1 1410-1510 ● ●
2 MEMBER; CROSS,1ST
EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ANTI LOCK BRAKE(JE5),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR2015<VZF>,REAR UNDERRUN PROTECTOR<6DY> 		8-97615-669-3 01 1 1511- ● ● ●
2 MEMBER; CROSS,1ST
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> VIN MODEL YEAR 2015<VZF> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-669-3 01 1 1511- ● ●
2 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-462-7 01 1 1302-1405 ● ●
2 MEMBER; CROSS,1ST
EURO4 SPECIFICATION<NT4> 		8-97609-462-7 01 1 1406-1408 ● ●
2 MEMBER; CROSS,1ST 8-97609-462-7 01 1 1406-1408 ●
2 MEMBER; CROSS,1ST
EURO4 SPECIFICATION<NT4> 		8-97609-462-8 01 1 1409-1409 ● ● ●
2 MEMBER; CROSS,1ST
EURO4 SPECIFICATION<NT4> 		8-97609-462-9 01 1 1410-1510 ● ● ● ●
2 MEMBER; CROSS,1ST
EURO4 SPECIFICATION<NT4> 		8-97609-462-9 01 1 1511- ● ● ● ●
2 MEMBER; CROSS,1ST
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) FRONT UNDER RUN PROTECTOR<EBE> EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> VIN MODEL YEAR 2015<VZF> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-462-9 01 1 1511- ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1302- ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 		0-91110-514-0 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2 		0-91510-814-0 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15 		8-98010-627-1 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1302- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-912-1 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-912-1 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-912-2 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-912-2 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-913-2 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-913-2 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-913-3 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-913-3 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-910-1 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-1 01 1 1302-1408 ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-910-1 01 1 1409-1409 ● ● ●
8 GUSSET; 1ST C/MBR
EURO4 SPECIFICATION<NT4> 		8-97617-910-1 01 1 1409-1409 ● ● ●
8 GUSSET; 1ST C/MBR
EURO4 SPECIFICATION<NT4> 		8-97617-910-2 01 1 1410- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-910-2 01 1 1410- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-911-2 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-2 01 1 1302-1408 ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-911-2 01 1 1409-1409 ● ● ●
8 GUSSET; 1ST C/MBR
EURO4 SPECIFICATION<NT4> 		8-97617-911-2 01 1 1409-1409 ● ● ●
8 GUSSET; 1ST C/MBR
EURO4 SPECIFICATION<NT4> 		8-97617-911-3 01 1 1410- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-911-3 01 1 1410- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1302- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40 		0-20851-440-0 02 1 1302- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1302- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-5 01 1 1302-1405 ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97620-866-5 01 1 1302-1405 ● ●
19 MEMBER; CROSS,2ND
EURO2 SPECIFICATION<NT2> 		8-97620-866-5 01 1 1406-1408 ● ●
19 MEMBER; CROSS,2ND 8-97620-866-5 01 1 1406-1408 ●
19 MEMBER; CROSS,2ND
EURO2 SPECIFICATION<NT2> 		8-97620-866-6 01 1 1409-1510 ● ● ●
19 MEMBER; CROSS,2ND
EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ANTI LOCK BRAKE(JE5),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR2015<VZF>,REAR UNDERRUN PROTECTOR<6DY> 		8-97620-866-6 01 1 1511- ● ● ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> VIN MODEL YEAR 2015<VZF> EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-866-6 01 1 1511- ● ●
19 MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE> 		8-97629-428-3 01 1 1302-1405 ● ●
19 MEMBER; CROSS,2ND
EURO4 SPECIFICATION<NT4> 		8-97629-428-3 01 1 1406-1408 ● ●
19 MEMBER; CROSS,2ND 8-97629-428-3 01 1 1406-1408 ●
19 MEMBER; CROSS,2ND
EURO4 SPECIFICATION<NT4> 		8-97629-428-3 01 1 1409-1409 ● ● ●
19 MEMBER; CROSS,2ND
EURO4 SPECIFICATION<NT4> 		8-97629-428-5 01 1 1410-1510 ● ● ● ●
19 MEMBER; CROSS,2ND
EURO4 SPECIFICATION<NT4> 		8-97629-428-5 01 1 1511- ● ● ● ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) FRONT UNDER RUN PROTECTOR<EBE> EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> VIN MODEL YEAR 2015<VZF> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97629-428-5 01 1 1511- ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-500-2 01 1 1302-1408 ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-500-2 01 1 1409- ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-755-0 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-754-0 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-501-2 01 1 1302-1408 ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1302-1408 ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-501-2 01 1 1409-1409 ● ● ●
34 MEMBER; CROSS,3RD
EURO4 SPECIFICATION<NT4> 		8-97609-501-2 01 1 1409-1409 ● ● ●
34 MEMBER; CROSS,3RD
EURO4 SPECIFICATION<NT4> 		8-97609-501-2 01 1 1410- ● ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-501-2 01 1 1410- ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1302- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 02 1 1302-1408 ● ●
77 MEMBER; CROSS,TRUNNION RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 02 1 1302-1408 ●
77 MEMBER; CROSS,TRUNNION RR
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 02 1 1409- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1302-1408 ● ●
77 MEMBER; CROSS,TRUNNION RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1302-1408 ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1302-1408 ●
77 MEMBER; CROSS,TRUNNION RR
EURO4 SPECIFICATION<NT4> 		8-97609-481-4 02 1 1409- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1409- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1302- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1302- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1302- ● ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-757-0 02 1 1302- ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-756-1 02 1 1302-1408 ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1302-1408 ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-756-1 02 1 1409-1409 ● ● ●
202 SPACER; 3RD C/MBR
EURO4 SPECIFICATION<NT4> 		8-97609-756-1 02 1 1409-1409 ● ● ●
202 SPACER; 3RD C/MBR
EURO4 SPECIFICATION<NT4> 		8-97609-756-1 02 1 1410- ● ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-756-1 02 1 1410- ● ● ● ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1302-1408 ● ●
207 SPACER; 4TH C/MBR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1302-1408 ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1302-1408 ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1409-1409 ● ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> 		8-97609-758-0 02 1 1409-1409 ● ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> 		8-97609-758-0 02 1 1410- ● ● ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1410- ● ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1302-1405 ●
344 MEMBER; CROSS,4TH
EXC. FRONT UNDER RUN PROTECTOR<EBE>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1302-1405 ●
344 MEMBER; CROSS,4TH
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1406-1408 ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1406-1408 ●
344 MEMBER; CROSS,4TH
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1409- ● ●
344 MEMBER; CROSS,4TH
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1302-1408 ● ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1302-1408 ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1302-1408 ●
344 MEMBER; CROSS,4TH
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1409-1409 ● ●
344 MEMBER; CROSS,4TH
EURO4 SPECIFICATION<NT4> 		8-97609-473-2 01 1 1409-1409 ● ●
344 MEMBER; CROSS,4TH
EURO4 SPECIFICATION<NT4> 		8-97609-473-2 01 1 1410- ● ● ●
344 MEMBER; CROSS,4TH
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1410- ● ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1302- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1302- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1302- ● ● ● ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97609-809-3 01 1 1302- ● ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-819-2 04 1 1302-1408 ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-819-2 04 1 1409- ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-461-1 02 1 1302-1408 ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1302-1408 ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-461-1 02 1 1409-1409 ● ● ●
531 SPACER; C/MBR,T/M
EURO4 SPECIFICATION<NT4> 		8-97616-461-1 02 1 1409-1409 ● ● ●
531 SPACER; C/MBR,T/M
EURO4 SPECIFICATION<NT4> 		8-97616-461-1 02 1 1410- ● ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-461-1 02 1 1410- ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1302- ●

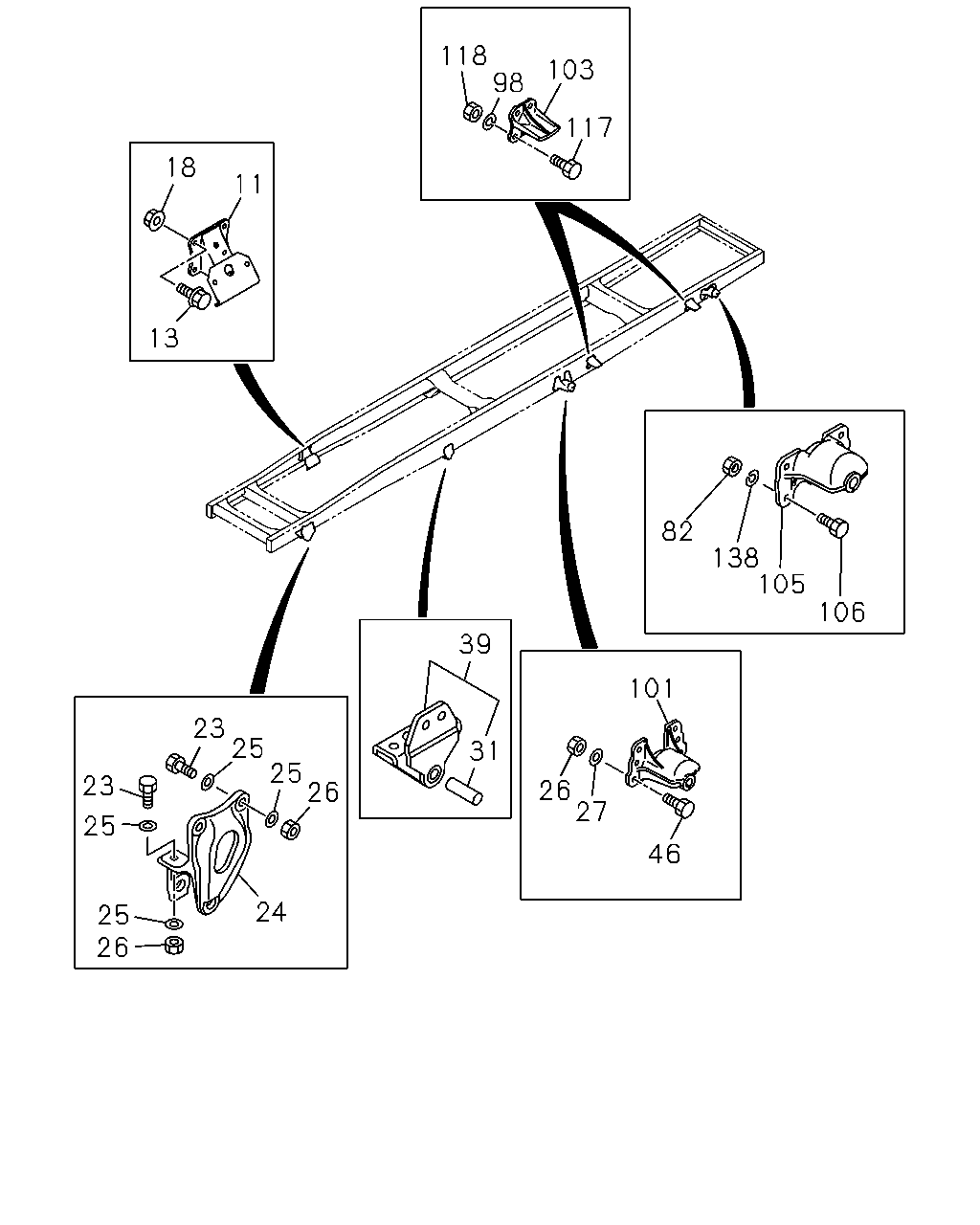

çizim 328810
18 11 13 118 98 103 117 82 105 138 106 101 39 31 26 27 46 25 26 25 23 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG
FRONT UNDER RUN PROTECTOR<EBE> 		8-97639-363-0 02 1 1304-1408 ●
11 BRACKET; ENG MTG 8-97639-363-0 02 1 1304-1408 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> EXC. VIN MODEL YEAR 2014<VZE> 		8-97639-363-0 02 1 1409-1409 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> 		8-97639-363-0 02 1 1409-1409 ●
11 BRACKET; ENG MTG 8-97639-363-0 02 1 1409-1409 ●
11 BRACKET; ENG MTG
EURO4 SPECIFICATION<NT4> 		8-97639-363-0 02 1 1410- ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> 		8-97639-363-0 02 1 1410- ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> EXC. VIN MODEL YEAR 2014<VZE> 		8-97639-363-0 02 1 1410- ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-720-0 02 1 1302-1408 ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-720-0 02 1 1409- ● ● ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-502-0 02 1 1302- ● ● ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-830-0 02 1 1302- ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97604-129-0 02 1 1302-1303 ● ● ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1302-1303 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,ANTI LOCK BRAKE(JE5) 		8-97604-129-0 02 1 1304-1405 ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97604-129-0 02 1 1406-1408 ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97604-129-0 02 1 1409-1409 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97604-129-0 02 1 1409-1409 ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> VIN MODEL YEAR 2014<VZE> 		8-97604-129-0 02 1 1409-1409 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97604-129-0 02 1 1410- ● ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> 		8-97604-129-0 02 1 1410- ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> VIN MODEL YEAR 2014<VZE> 		8-97604-129-0 02 1 1410- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1302- ● ● ● ●
24 BRACKET; FRT SPR,FRT
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 1302-1408 ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 1302-1408 ●
24 BRACKET; FRT SPR,FRT
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 1409- ● ● ● ●
24 BRACKET; FRT SPR,FRT
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 1302-1408 ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 1302-1408 ●
24 BRACKET; FRT SPR,FRT
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 1409- ● ● ● ●
24 BRACKET; FRT SPR,FRT
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 1302-1408 ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 1302-1408 ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1302-1408 ●
24 BRACKET; FRT SPR,FRT
EURO4 SPECIFICATION<NT4> 		8-98018-983-0 01 1 1409- ● ● ● ●
24 BRACKET; FRT SPR,FRT
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 1409- ● ● ● ●
24 BRACKET; FRT SPR,FRT
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 1302-1408 ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 1302-1408 ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1302-1408 ●
24 BRACKET; FRT SPR,FRT
EURO4 SPECIFICATION<NT4> 		8-98018-984-0 01 1 1409- ● ● ● ●
24 BRACKET; FRT SPR,FRT
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 1409- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1302- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1302- ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1302- ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1302- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1302- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1302- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1302- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1302- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1302- ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1302- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1302- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1302- ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1302- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1302- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1302- ● ● ● ●

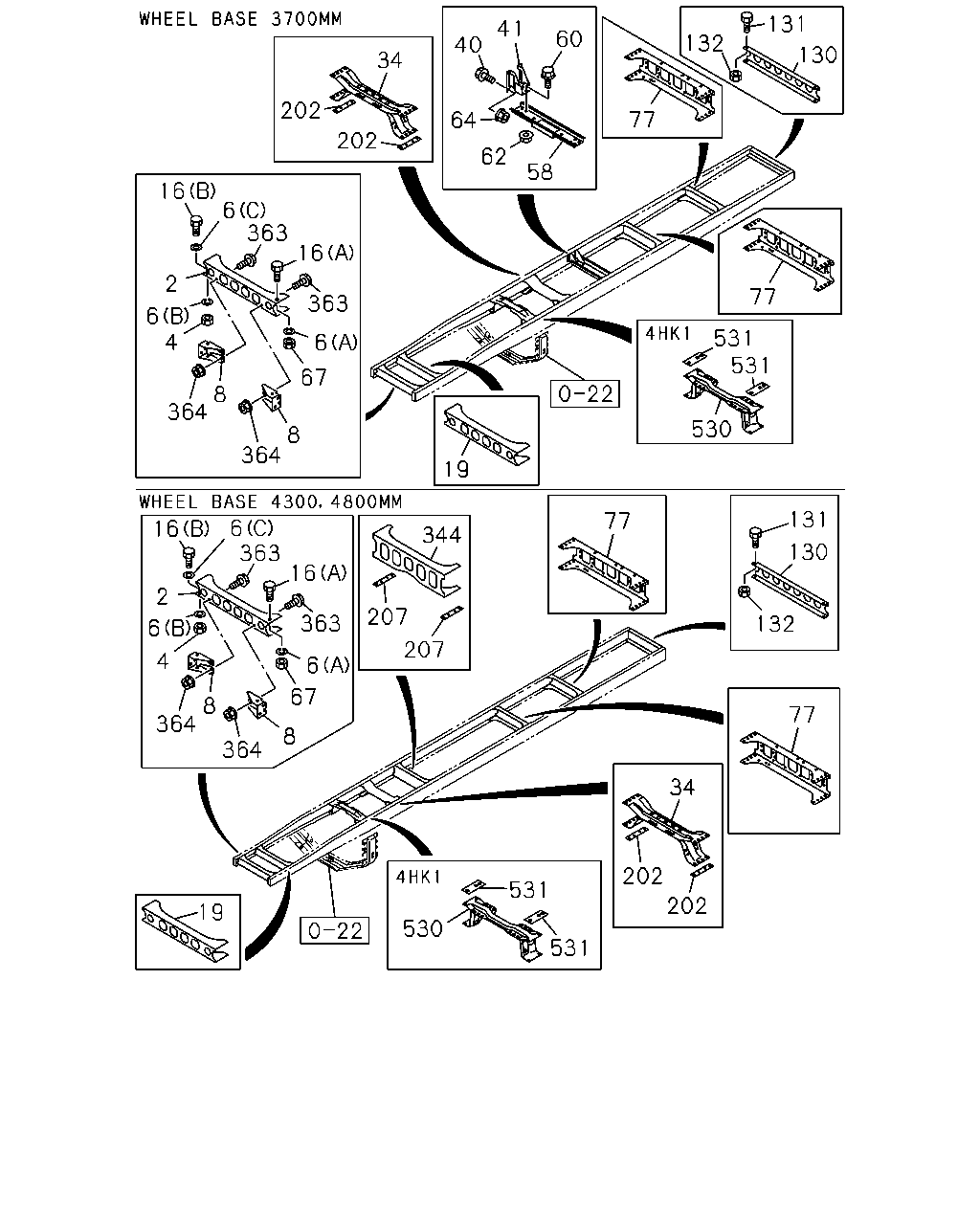

çizim 332006
41 40 64 34 202 202 62 60 58 77 132 131 77 130 531 530 531 131 132 130 77 344 207 207 34 202 202 77 531 531 530 19 364 364 4 67 8 6 363 16 363 6 16 2 6 8 19 364 364 8 67 6 363 16 363 6 16 2 4 6 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2015<VZF> FRONT UNDER RUN PROTECTOR<EBE> 		8-97647-710-1 01 1 1410- ● ●
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 1302-1405 ● ●
2 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-669-2 01 1 1302-1405 ● ●
2 MEMBER; CROSS,1ST
EURO2 SPECIFICATION<NT2> 		8-97615-669-2 01 1 1406-1408 ● ●
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 1406-1408 ●
2 MEMBER; CROSS,1ST
EURO2 SPECIFICATION<NT2> 		8-97615-669-2 01 1 1409-1409 ● ● ●
2 MEMBER; CROSS,1ST
6HK1-TCN ENG(82L) 		8-97615-669-3 01 1 1410-1510 ● ●
2 MEMBER; CROSS,1ST
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2015<VZF> 		8-97615-669-3 01 1 1410-1510 ● ●
2 MEMBER; CROSS,1ST
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2015<VZF> EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-669-3 01 1 1410-1510 ● ●
2 MEMBER; CROSS,1ST
EURO2 SPECIFICATION<NT2> 		8-97615-669-3 01 1 1410-1510 ● ●
2 MEMBER; CROSS,1ST
EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ANTI LOCK BRAKE(JE5),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR2015<VZF>,REAR UNDERRUN PROTECTOR<6DY> 		8-97615-669-3 01 1 1511- ● ● ●
2 MEMBER; CROSS,1ST
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> VIN MODEL YEAR 2015<VZF> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-669-3 01 1 1511- ● ●
2 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-462-7 01 1 1302-1405 ● ●
2 MEMBER; CROSS,1ST
EURO4 SPECIFICATION<NT4> 		8-97609-462-7 01 1 1406-1408 ● ●
2 MEMBER; CROSS,1ST 8-97609-462-7 01 1 1406-1408 ●
2 MEMBER; CROSS,1ST
EURO4 SPECIFICATION<NT4> 		8-97609-462-8 01 1 1409-1409 ● ● ●
2 MEMBER; CROSS,1ST
EURO4 SPECIFICATION<NT4> 		8-97609-462-9 01 1 1410-1510 ● ● ● ●
2 MEMBER; CROSS,1ST
EURO4 SPECIFICATION<NT4> 		8-97609-462-9 01 1 1511- ● ● ● ●
2 MEMBER; CROSS,1ST
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) FRONT UNDER RUN PROTECTOR<EBE> EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> VIN MODEL YEAR 2015<VZF> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-462-9 01 1 1511- ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1302- ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 		0-91110-514-0 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2 		0-91510-814-0 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15 		8-98010-627-1 02 1 1302- ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1302- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-912-1 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-912-1 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-912-2 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-912-2 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-913-2 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-913-2 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-913-3 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-913-3 01 1 1409- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-910-1 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-1 01 1 1302-1408 ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-910-1 01 1 1409-1409 ● ● ●
8 GUSSET; 1ST C/MBR
EURO4 SPECIFICATION<NT4> 		8-97617-910-1 01 1 1409-1409 ● ● ●
8 GUSSET; 1ST C/MBR
EURO4 SPECIFICATION<NT4> 		8-97617-910-2 01 1 1410- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-910-2 01 1 1410- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-911-2 01 1 1302-1408 ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-2 01 1 1302-1408 ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-911-2 01 1 1409-1409 ● ● ●
8 GUSSET; 1ST C/MBR
EURO4 SPECIFICATION<NT4> 		8-97617-911-2 01 1 1409-1409 ● ● ●
8 GUSSET; 1ST C/MBR
EURO4 SPECIFICATION<NT4> 		8-97617-911-3 01 1 1410- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97617-911-3 01 1 1410- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1302- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40 		0-20851-440-0 02 1 1302- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1302- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-5 01 1 1302-1405 ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97620-866-5 01 1 1302-1405 ● ●
19 MEMBER; CROSS,2ND
EURO2 SPECIFICATION<NT2> 		8-97620-866-5 01 1 1406-1408 ● ●
19 MEMBER; CROSS,2ND 8-97620-866-5 01 1 1406-1408 ●
19 MEMBER; CROSS,2ND
EURO2 SPECIFICATION<NT2> 		8-97620-866-6 01 1 1409-1510 ● ● ●
19 MEMBER; CROSS,2ND
EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ANTI LOCK BRAKE(JE5),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR2015<VZF>,REAR UNDERRUN PROTECTOR<6DY> 		8-97620-866-6 01 1 1511- ● ● ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> VIN MODEL YEAR 2015<VZF> EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-866-6 01 1 1511- ● ●
19 MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE> 		8-97629-428-3 01 1 1302-1405 ● ●
19 MEMBER; CROSS,2ND
EURO4 SPECIFICATION<NT4> 		8-97629-428-3 01 1 1406-1408 ● ●
19 MEMBER; CROSS,2ND 8-97629-428-3 01 1 1406-1408 ●
19 MEMBER; CROSS,2ND
EURO4 SPECIFICATION<NT4> 		8-97629-428-3 01 1 1409-1409 ● ● ●
19 MEMBER; CROSS,2ND
EURO4 SPECIFICATION<NT4> 		8-97629-428-5 01 1 1410-1510 ● ● ● ●
19 MEMBER; CROSS,2ND
EURO4 SPECIFICATION<NT4> 		8-97629-428-5 01 1 1511- ● ● ● ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) FRONT UNDER RUN PROTECTOR<EBE> EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> VIN MODEL YEAR 2015<VZF> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97629-428-5 01 1 1511- ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-500-2 01 1 1302-1408 ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-500-2 01 1 1409- ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-755-0 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-754-0 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-501-2 01 1 1302-1408 ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1302-1408 ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-501-2 01 1 1409-1409 ● ● ●
34 MEMBER; CROSS,3RD
EURO4 SPECIFICATION<NT4> 		8-97609-501-2 01 1 1409-1409 ● ● ●
34 MEMBER; CROSS,3RD
EURO4 SPECIFICATION<NT4> 		8-97609-501-2 01 1 1410- ● ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-501-2 01 1 1410- ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1302- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1302-1408 ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1409- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1302-1408 ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1409- ●
58 MEMBER; CENTER BRG
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97638-924-0 01 1 1302- ●
58 MEMBER; CENTER BRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97629-975-0 01 1 1302- ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-971-0 01 1 1302-1408 ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-971-0 01 1 1409- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1302- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1302- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1302- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1302- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 02 1 1302-1408 ● ●
77 MEMBER; CROSS,TRUNNION RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 02 1 1302-1408 ●
77 MEMBER; CROSS,TRUNNION RR
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 02 1 1409- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1302-1408 ● ●
77 MEMBER; CROSS,TRUNNION RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1302-1408 ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1302-1408 ●
77 MEMBER; CROSS,TRUNNION RR
EURO4 SPECIFICATION<NT4> 		8-97609-481-4 02 1 1409- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1409- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1302- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1302- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1302- ● ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-757-0 02 1 1302- ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-756-1 02 1 1302-1408 ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1302-1408 ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-756-1 02 1 1409-1409 ● ● ●
202 SPACER; 3RD C/MBR
EURO4 SPECIFICATION<NT4> 		8-97609-756-1 02 1 1409-1409 ● ● ●
202 SPACER; 3RD C/MBR
EURO4 SPECIFICATION<NT4> 		8-97609-756-1 02 1 1410- ● ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-756-1 02 1 1410- ● ● ● ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1302-1408 ● ●
207 SPACER; 4TH C/MBR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1302-1408 ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1302-1408 ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1409-1409 ● ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> 		8-97609-758-0 02 1 1409-1409 ● ●
207 SPACER; 4TH C/MBR
EURO4 SPECIFICATION<NT4> 		8-97609-758-0 02 1 1410- ● ● ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1410- ● ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1302-1405 ●
344 MEMBER; CROSS,4TH
EXC. FRONT UNDER RUN PROTECTOR<EBE>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1302-1405 ●
344 MEMBER; CROSS,4TH
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1406-1408 ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1406-1408 ●
344 MEMBER; CROSS,4TH
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1409- ● ●
344 MEMBER; CROSS,4TH
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1302-1408 ● ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1302-1408 ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1302-1408 ●
344 MEMBER; CROSS,4TH
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1409-1409 ● ●
344 MEMBER; CROSS,4TH
EURO4 SPECIFICATION<NT4> 		8-97609-473-2 01 1 1409-1409 ● ●
344 MEMBER; CROSS,4TH
EURO4 SPECIFICATION<NT4> 		8-97609-473-2 01 1 1410- ● ● ●
344 MEMBER; CROSS,4TH
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1410- ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1302- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1302- ● ● ● ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97609-809-3 01 1 1302- ● ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-819-2 04 1 1302-1408 ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-819-2 04 1 1409- ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-461-1 02 1 1302-1408 ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1302-1408 ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-461-1 02 1 1409-1409 ● ● ●
531 SPACER; C/MBR,T/M
EURO4 SPECIFICATION<NT4> 		8-97616-461-1 02 1 1409-1409 ● ● ●
531 SPACER; C/MBR,T/M
EURO4 SPECIFICATION<NT4> 		8-97616-461-1 02 1 1410- ● ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97616-461-1 02 1 1410- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
