◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#114260) — 66 parça

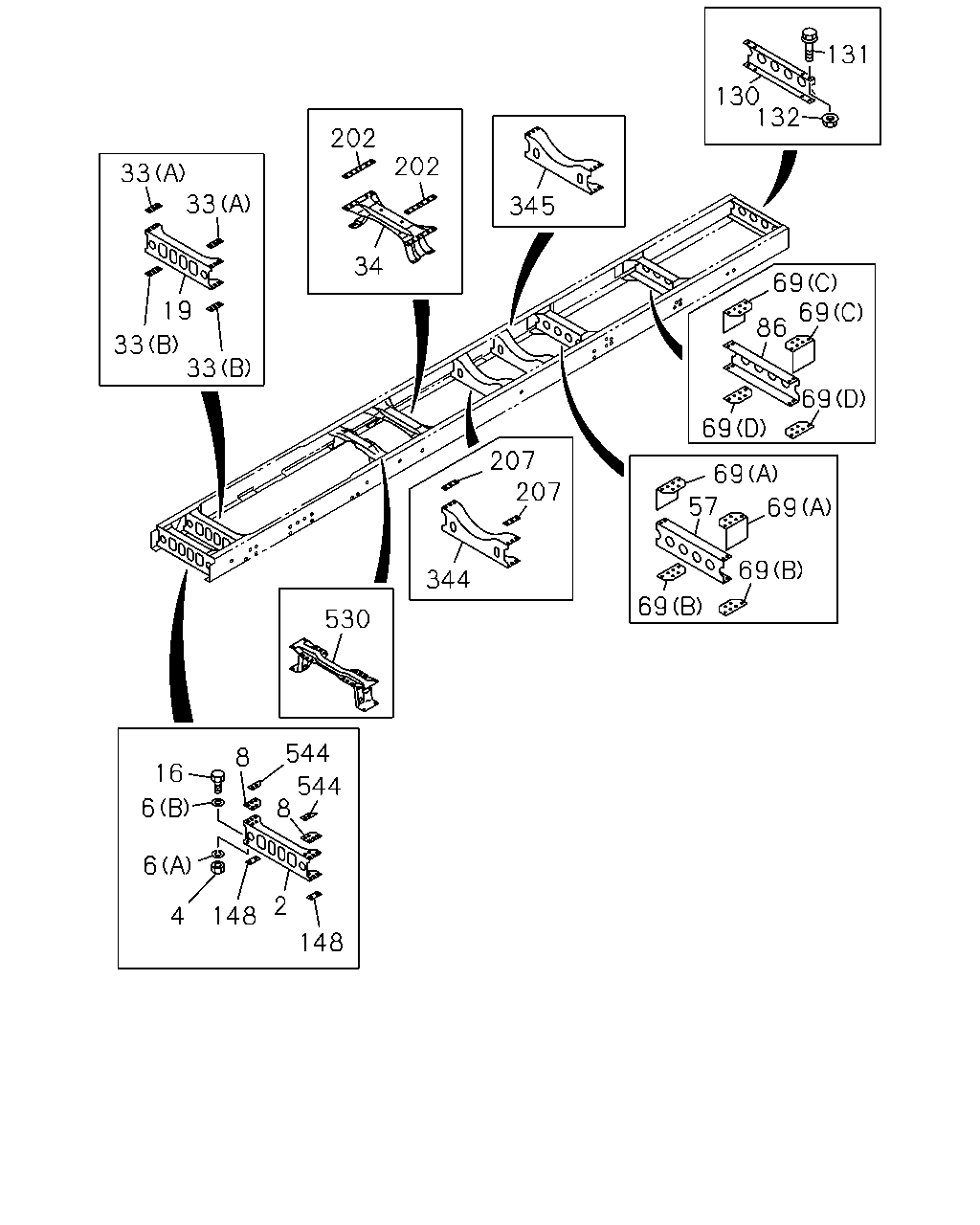

çizim 328548
148 2 148 4 6 6 16 544 544 8 8 530 207 344 207 69 57 69 69 69 4 202 202 33 33 19 33 345 130 132 131 69 86 69 69 69 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1302- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1302- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=15 		8-98010-627-1 02 1 1302- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1302- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M14X40 		0-20851-440-0 02 1 1302- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-5 01 1 1302- ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1305-1308 ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1309- ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 1302- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1302- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 1302- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 1302- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 1302- ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1302- ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302- ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1302- ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1302- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302- ● ● ● ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) 0.25KG 		8-97611-244-0 02 1 1309- ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1302-1308 ● ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1309- ● ● ●
207 SPACER; 4TH C/MBR
6HK1-TCN ENG(82L) 0.24KG 		8-97611-245-0 02 1 1309- ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1302- ● ● ● ●
345 MEMBER; CROSS,5TH
4HK1-TCS ENG(RJS) 		8-97611-238-1 01 1 1309- ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97638-949-0 01 1 1305-1308 ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97638-949-0 01 1 1309- ● ● ● ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 1302- ● ● ● ●

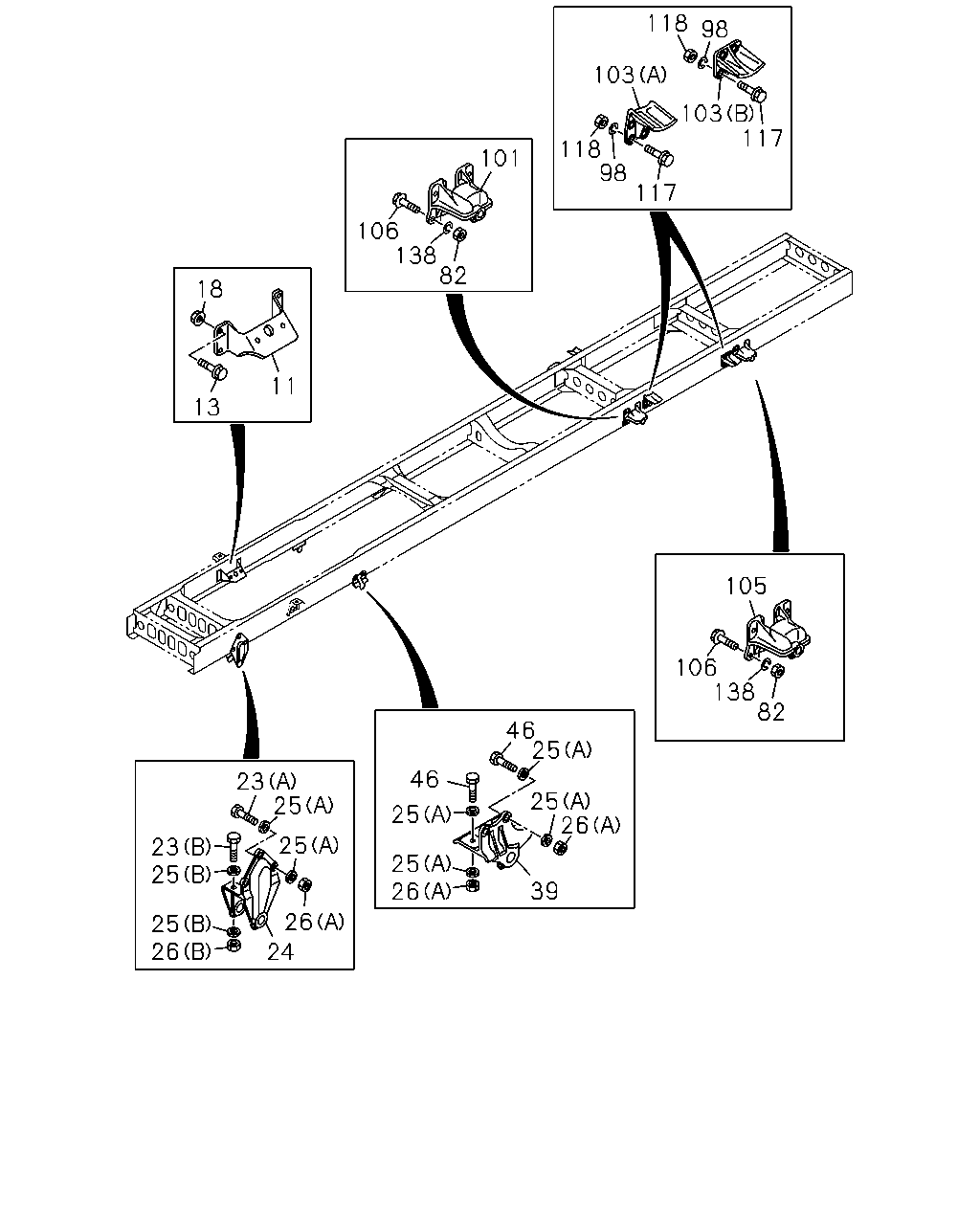

çizim 332007
105 106 82 138 117 117 98 118 103 118 103 98 101 82 138 106 46 25 25 26 39 26 25 25 25 25 26 23 23 25 25 26 24 11 13 18 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-385-1 01 1 1305-1308 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-385-1 01 1 1309- ● ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-386-1 01 1 1305-1308 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-386-1 01 1 1309- ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) 		8-97619-549-0 02 1 1302- ● ● ● ●
13 BOLT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12X35 FLANGE 		0-28661-235-0 12 1 1305-1308 ●
13 BOLT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12X35 FLANGE 		0-28661-235-0 12 1 1309- ● ● ● ●
13 BOLT; BRKT,ENG MTG
6HK1-TCN ENG(82L) M12X35 FLANGE 		0-28661-235-0 08 1 1302- ● ● ● ●
18 NUT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 12 1 1305-1308 ●
18 NUT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 12 1 1309- ● ● ● ●
18 NUT; BRKT,ENG MTG
6HK1-TCN ENG(82L) M12 FLANGE 		0-91180-212-0 08 1 1302- ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1302- ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1302- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1302- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1302- ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1302- ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1302- ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1302- ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1302- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1302- ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1302- ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1302- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1302- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 1302- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1302- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 1302- ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 1302- ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 1302- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 1302- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 1302- ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1302- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1302- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 1302- ● ● ● ●
