5-01 — FRAME AND OTHER PARTS (#114259) — 88 parça

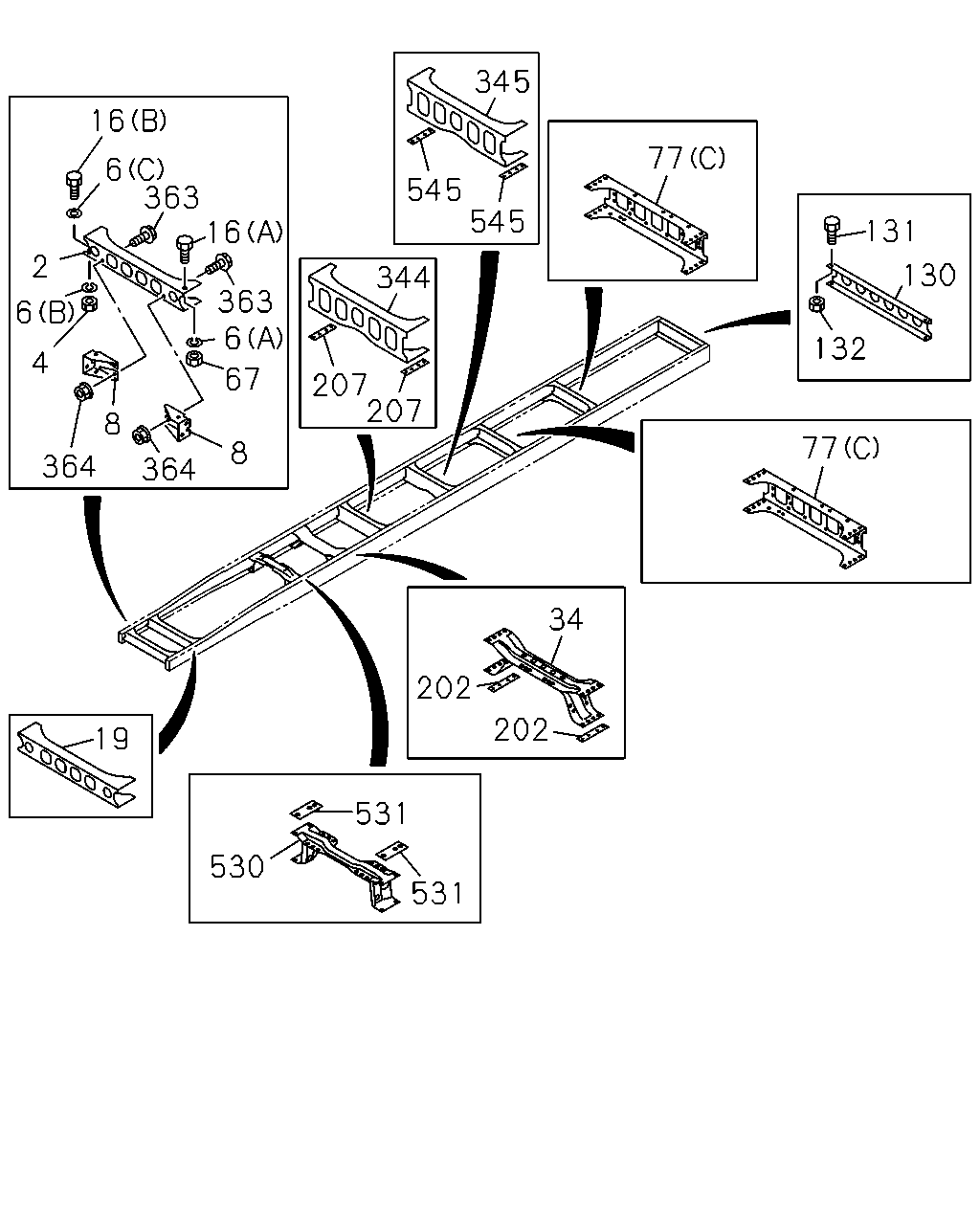

çizim 328694
16 2 6 6 4 363 364 16 363 67 8 8 6 364 19 344 207 207 345 545 545 77 131 132 130 77 34 202 202 531 531 530
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1302- ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1302- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1302- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1302- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 1302- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 1302- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1302- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1302- ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1302- ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1302- ● ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1302- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1302- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 1302- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1302- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1302- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1302- ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1302- ● ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1302- ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1302- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1302- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1302- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1302- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1302- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZZ6W M/T(RSA) 		8-97609-814-1 01 1 1302- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T(RSZ) 		8-97609-809-3 01 1 1302- ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZZ6W M/T(RSA) 		8-97637-078-0 02 1 1302- ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZW6P M/T(RSZ) 		8-97616-461-1 02 1 1302- ● ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1302- ● ●

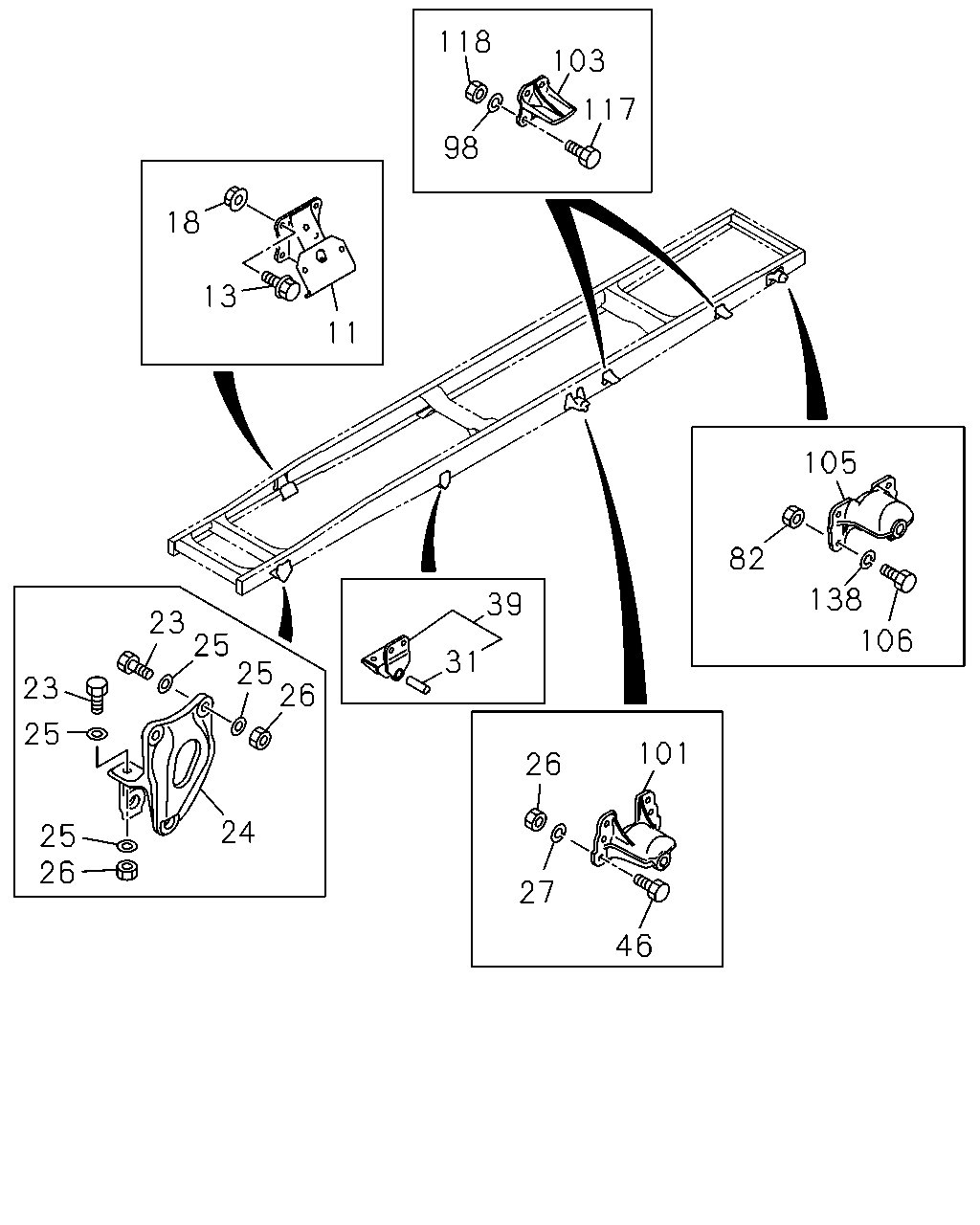

çizim 328809
118 103 117 98 18 13 11 23 25 25 26 23 25 24 25 26 31 39 101 26 27 46 82 105 138 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1302- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1302- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1302- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1302- ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1302- ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1302- ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1302- ● ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1302- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1302- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1302- ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1302- ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1302- ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1302- ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1302- ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1302- ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1302- ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1302- ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1302- ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1302- ● ● ● ● ●

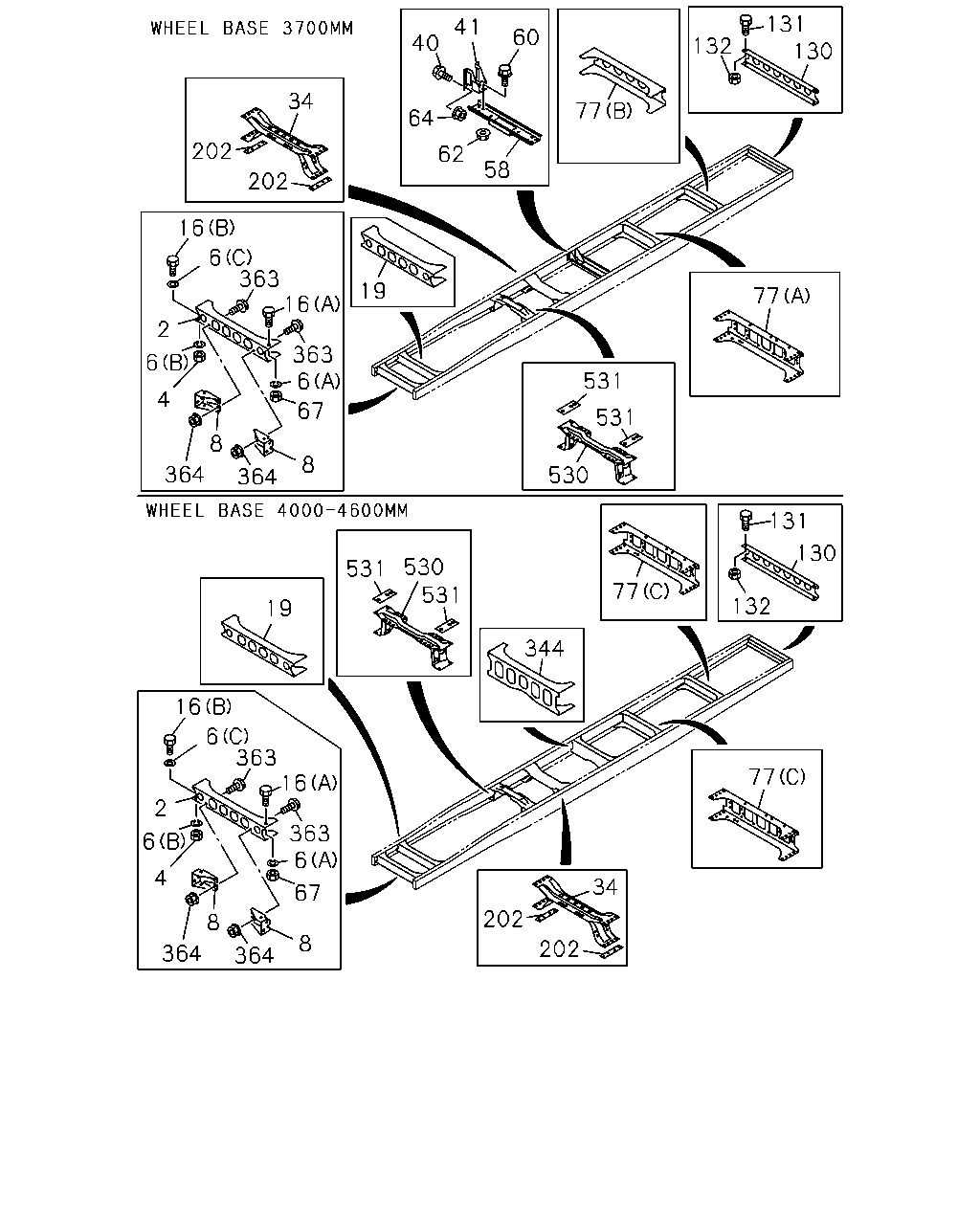

çizim 331997
77 132 131 60 130 131 130 132 77 344 77 34 202 202 531 531 531 530 531 530 19 363 6 16 16 363 6 67 8 364 364 6 4 2 8 77 58 62 64 40 41 202 202 34 16 2 6 364 8 4 16 363 6 8 364 67 363 6 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1302- ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1302- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1302- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1302- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 1302- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 1302- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1302- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1302- ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1302- ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1302- ● ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1302- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1302- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1302- ●
58 MEMBER; CENTER BRG
MZZ6W M/T(RSA) 		8-97620-971-0 01 1 1302- ●
58 MEMBER; CENTER BRG
MZW6P M/T(RSZ) 		8-97619-113-0 01 1 1302- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1302- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1302- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1302- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1302- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1302- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 1302- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1302- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1302- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1302- ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1302- ● ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1302- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1302- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1302- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1302- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZZ6W M/T(RSA) 		8-97609-814-1 01 1 1302- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T(RSZ) 		8-97609-809-3 01 1 1302- ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZZ6W M/T(RSA) 		8-97637-078-0 02 1 1302- ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZW6P M/T(RSZ) 		8-97616-461-1 02 1 1302- ● ● ● ● ●
