5-01 — FRAME AND OTHER PARTS (#114258) — 52 parça

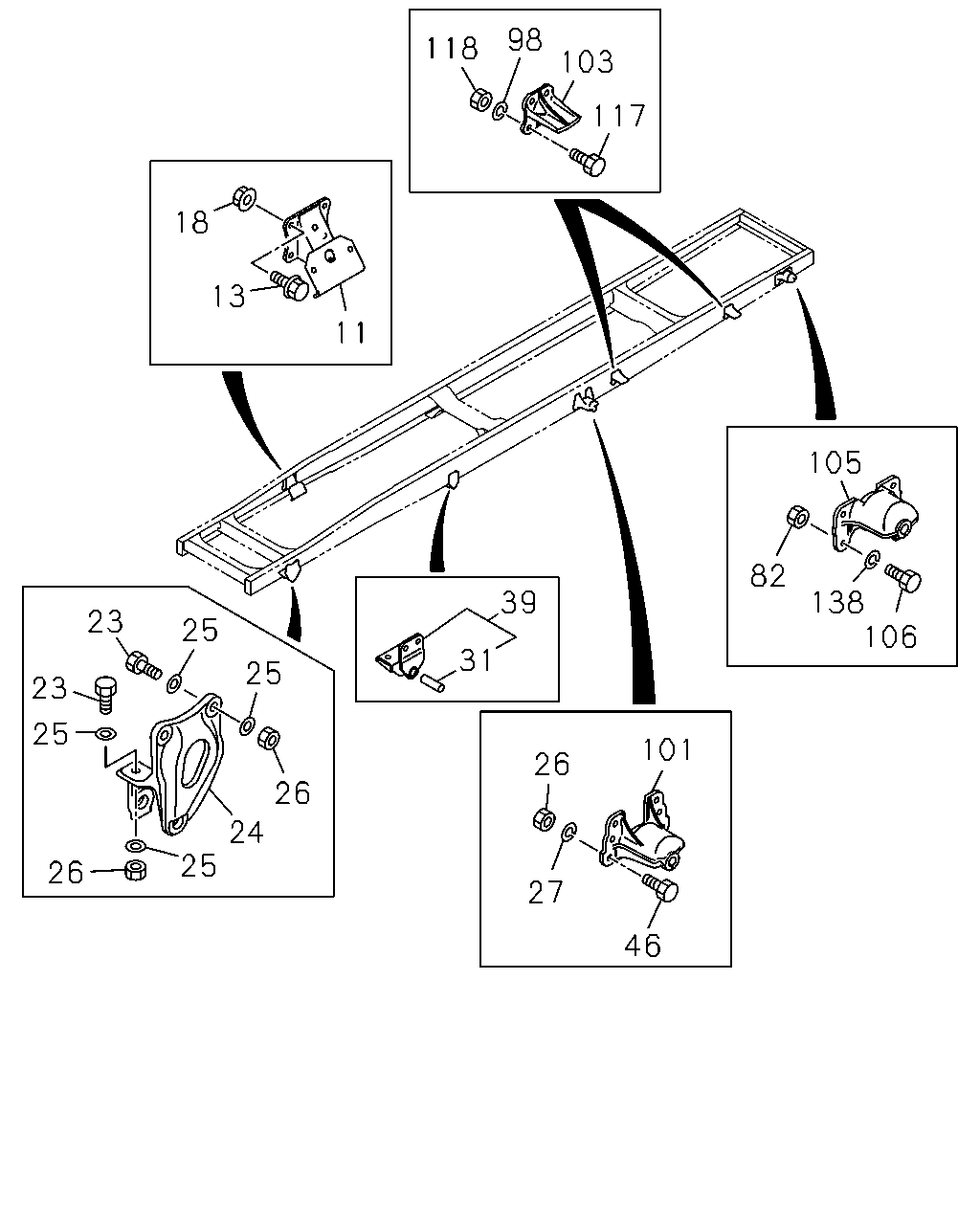

çizim 328669
118 98 117 103 18 13 11 23 23 25 26 25 26 24 25 25 31 39 26 27 46 101 105 82 106 138
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1302- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1302- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1302- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1302- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1302- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1302- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1302- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1302- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1302- ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1302- ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1302- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1302- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1302- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1302- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1302- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1302- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1302- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1302- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1302- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1302- ● ● ●

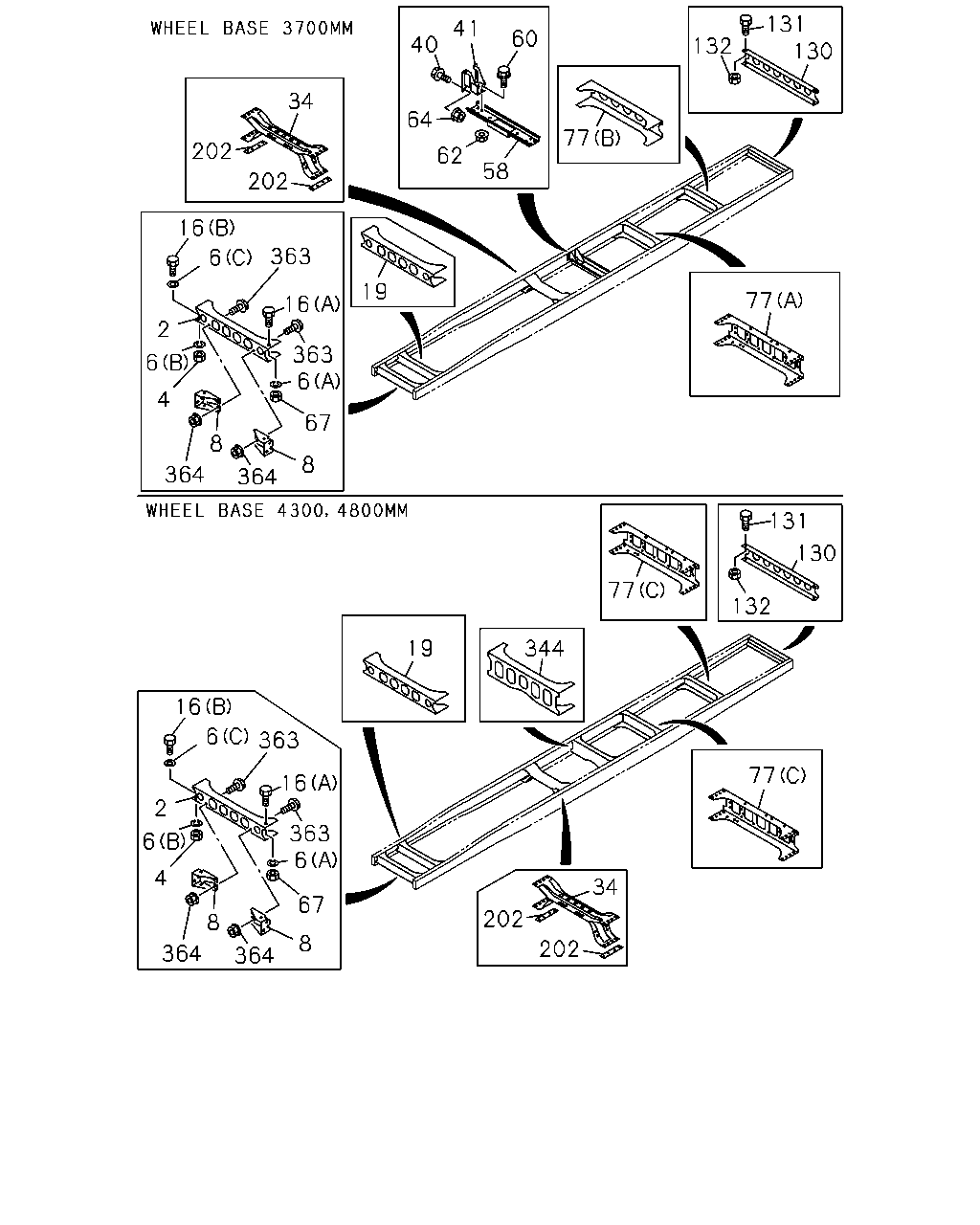

çizim 331999
77 131 130 132 77 77 344 19 34 19 58 77 62 64 42 41 132 131 60 130 202 202 34 16 2 343 6 6 16 363 67 364 4 364 6 8 8 202 202 8 364 8 364 4 6 363 6 16 363 6 16 2 67
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1302- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1302- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1302- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1302- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1302- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1302- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1302- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1302- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1302- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1302- ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1302- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1302- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1302- ●
58 MEMBER; CENTER BRG 8-97619-112-0 01 1 1302- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1302- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1302- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1302- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1302- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 1302- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1302- ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 1302- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1302- ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1302- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1302- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1302- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1302- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1302- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1302- ● ● ●
