4-80 — ROAD WHEEL (#114254) — 50 parça

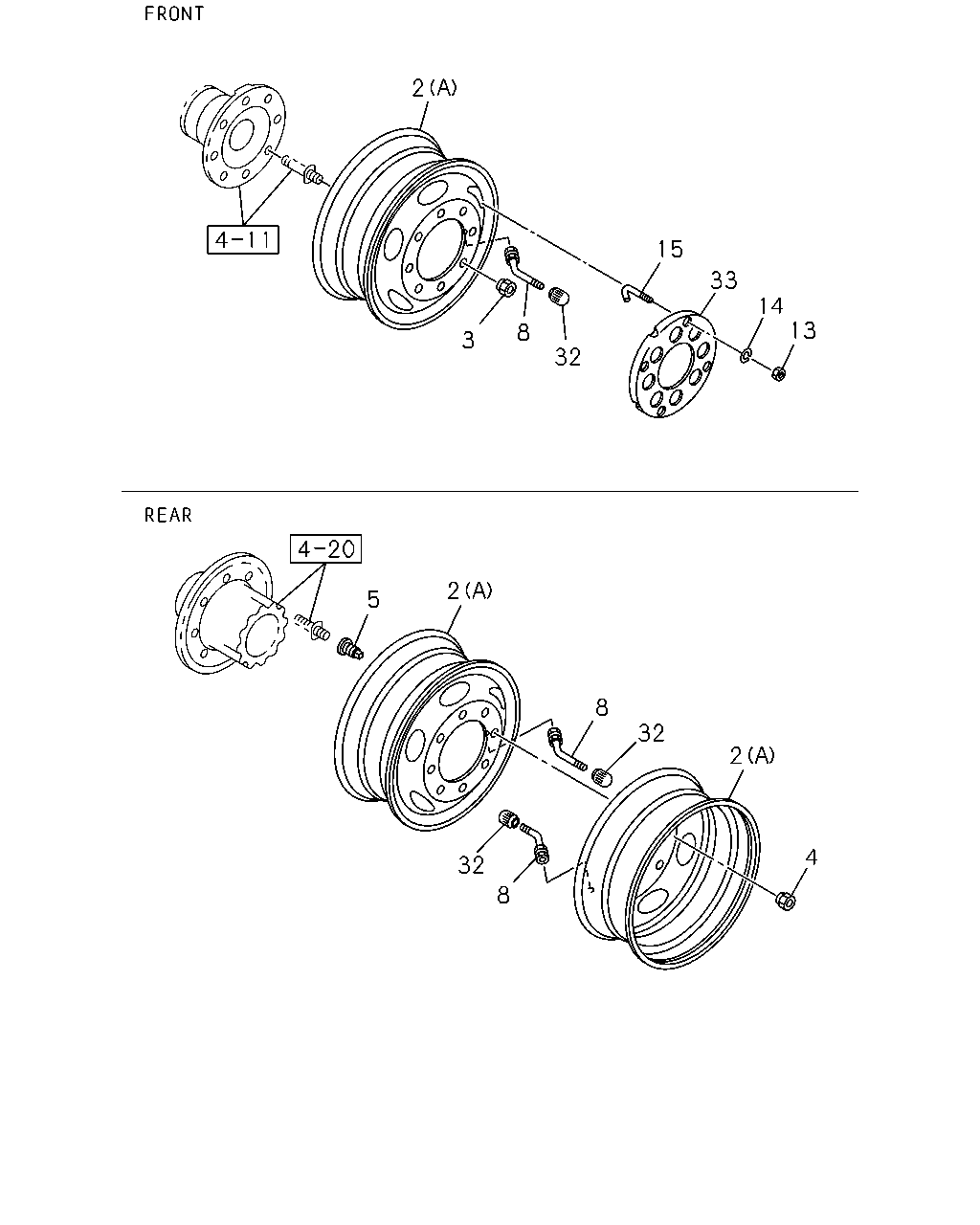

2 3 8 32 15 33 14 13 2 5 8 32 2 4 8 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-761-1	01	1	1302-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-761-1	01	1	1302-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-641-0	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-641-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-407-1	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-407-1	01	1	1302-
2	WHEEL; DISC DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) FRONT,REAR	1-42350-761-1	06	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (B) FRONT,REAR	1-42350-641-0	06	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) FRONT,REAR	1-42350-407-1	06	1	1302-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1302-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1302-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	1302-
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1302-
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	1302-
8	VALVE; TIRE WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-020-3	01	1	1302-
8	VALVE; TIRE WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) FRONT,REAR	1-42370-020-3	06	1	1302-
13	NUT; STEP DISC RUSSIA EQUIPMENT(B12) DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) M10	0-91110-510-0	08	1	1302-1405
13	NUT; STEP DISC RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) M10	0-91110-510-0	08	1	1406-
14	WASHER; LK,STEP DISC RUSSIA EQUIPMENT(B12) DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) ID=10.2	0-91510-810-0	08	1	1302-1405
14	WASHER; LK,STEP DISC RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) ID=10.2	0-91510-810-0	08	1	1406-
15	BOLT; STEP DISC RUSSIA EQUIPMENT(B12) DISC WHEEL 8STUD 6.75X19.5 147-12(TEE)	1-43139-073-0	08	1	1302-1405
15	BOLT; STEP DISC RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) DISC WHEEL 8STUD 6.75X19.5 147-12(TEE)	1-43139-073-0	08	1	1406-
32	CAP; VALVE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	1302-
33	COVER; WHEEL RUSSIA EQUIPMENT(B12) DISC WHEEL 8STUD 6.75X19.5 147-12(TEE)	1-43139-062-2	02	1	1302-1405
33	COVER; WHEEL RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) DISC WHEEL 8STUD 6.75X19.5 147-12(TEE)	1-43139-062-2	02	1	1406-

2 32 31 3 2 2 31 31 5 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-761-1	01	1	1302-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-761-1	01	1	1302-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-641-0	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-641-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-407-1	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-407-1	01	1	1302-
2	WHEEL; DISC DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) FRONT,REAR	1-42350-761-1	06	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (B) FRONT,REAR	1-42350-641-0	06	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) FRONT,REAR	1-42350-407-1	06	1	1302-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1302-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1302-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	1302-
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1302-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-012-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-012-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) FRONT,REAR	1-42355-012-1	06	1	1302-
32	CAP; VALVE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	1302-
