◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#114253) — 191 parça

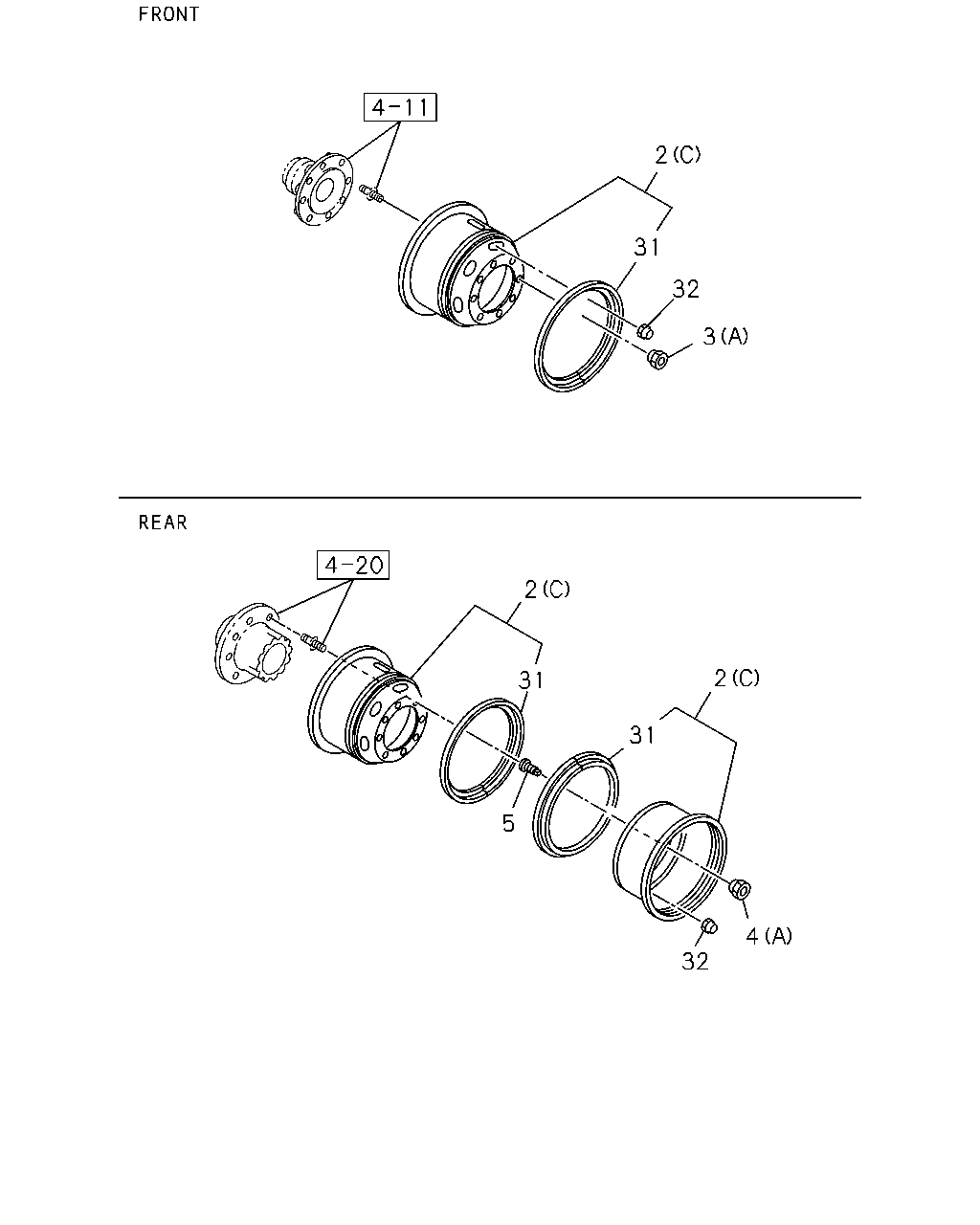

çizim 328620
2 31 32 3 2 31 31 2 5 32 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12),SPARE TIRE & DISC WHEELRR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. RUSSIA EQUIPMENT(B12),DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12) (A) FRONT 		8-98281-497-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12) (A) REAR 		8-98281-497-0 04 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-478-0 01 1 1302- ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-478-0 01 1 1302- ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT 		1-42350-478-0 02 1 1302- ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (C) REAR 		1-42350-478-0 04 1 1302- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-448-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-448-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-745-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-745-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1302-1407 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1302-1407 ● ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1408- ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-447-0 01 1 1302- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-447-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) FRONT 		1-42350-448-0 02 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) REAR 		1-42350-448-0 04 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT 		1-42350-745-0 02 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR 		1-42350-745-0 04 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1302-1407 ● ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1302-1407 ● ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1408- ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (B) FRONT 		1-42350-447-0 02 1 1302- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (B) REAR 		1-42350-447-0 04 1 1302- ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M24 LH THREAD 		1-42334-022-3 08 1 1302- ●
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M24 		1-42333-022-3 08 1 1302- ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 		1-42333-055-0 20 1 1302- ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M30 LH THREAD 		8-97359-810-0 08 1 1302- ●
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M30 RH THREAD 		8-97359-809-0 08 1 1302- ●
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 		1-42333-055-0 20 1 1302- ● ●
5 NUT; WHEEL,INNER,RR AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 1302- ●
5 NUT; WHEEL,INNER,RR AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 1302- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-003-1 01 1 1302- ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-003-1 01 1 1302- ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) FRONT 		1-42355-003-1 02 1 1302- ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) REAR 		1-42355-003-1 04 1 1302- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-014-0 01 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-014-0 01 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-012-1 01 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-012-1 01 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT 		1-42355-014-0 02 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) REAR 		1-42355-014-0 04 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) FRONT 		1-42355-012-1 02 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) REAR 		1-42355-012-1 04 1 1302- ● ●
32 CAP; VALVE
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 1302- ●
32 CAP; VALVE
WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 1302- ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1302- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 01 1 1302- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 02 1 1302- ● ●
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 1302- ● ●
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 04 1 1302- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 04 1 1302- ● ●

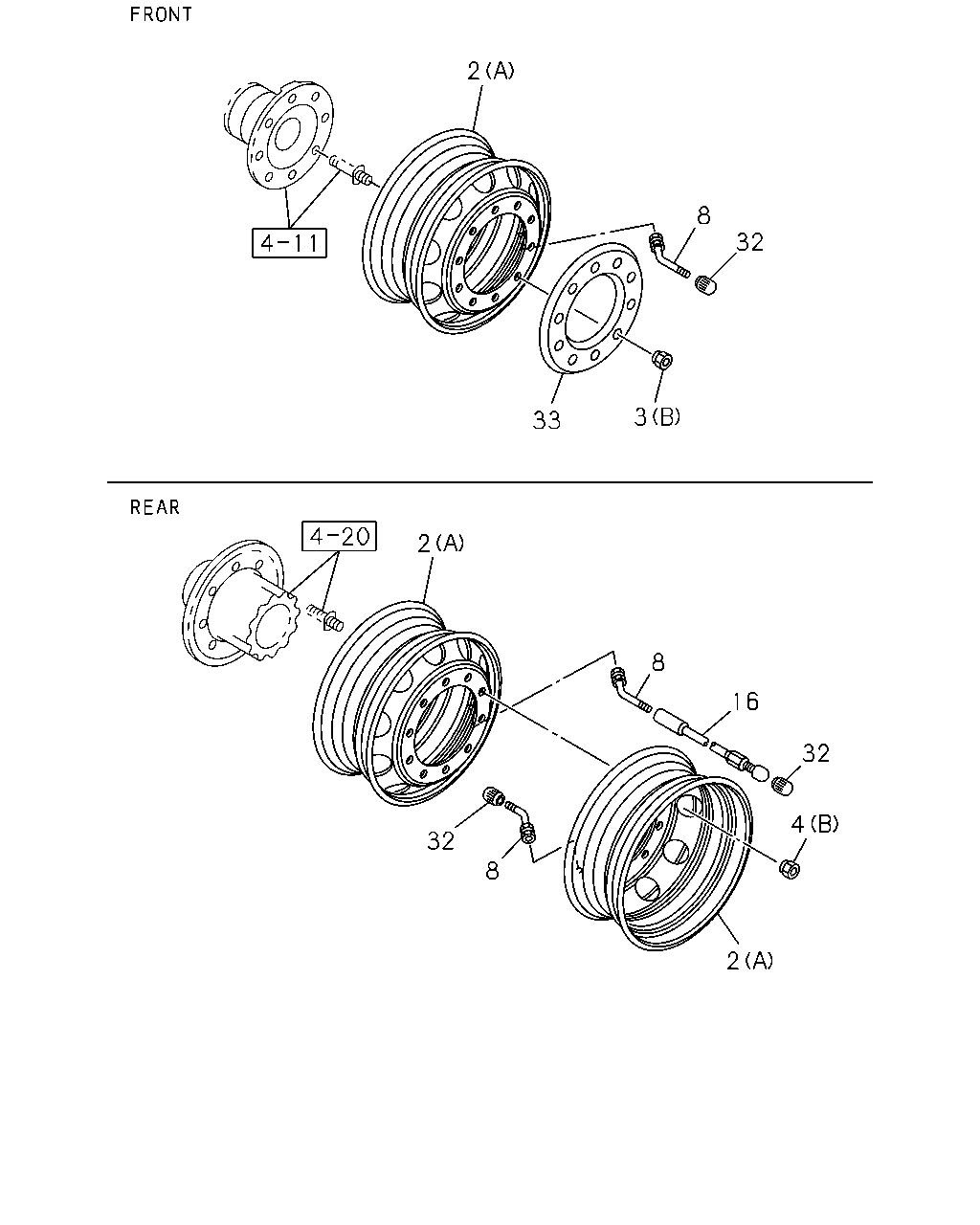

çizim 328777
2 8 32 3 33 2 32 8 8 16 32 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12),SPARE TIRE & DISC WHEELRR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. RUSSIA EQUIPMENT(B12),DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12) (A) FRONT 		8-98281-497-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12) (A) REAR 		8-98281-497-0 04 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-478-0 01 1 1302- ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-478-0 01 1 1302- ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT 		1-42350-478-0 02 1 1302- ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (C) REAR 		1-42350-478-0 04 1 1302- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-448-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-448-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-745-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-745-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1302-1407 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1302-1407 ● ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1408- ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-447-0 01 1 1302- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-447-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) FRONT 		1-42350-448-0 02 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) REAR 		1-42350-448-0 04 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT 		1-42350-745-0 02 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR 		1-42350-745-0 04 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1302-1407 ● ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1302-1407 ● ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1408- ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (B) FRONT 		1-42350-447-0 02 1 1302- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (B) REAR 		1-42350-447-0 04 1 1302- ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M24 LH THREAD 		1-42334-022-3 08 1 1302- ●
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M24 		1-42333-022-3 08 1 1302- ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 		1-42333-055-0 20 1 1302- ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M30 LH THREAD 		8-97359-810-0 08 1 1302- ●
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M30 RH THREAD 		8-97359-809-0 08 1 1302- ●
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 		1-42333-055-0 20 1 1302- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12),SPARE TIRE & DISC WHEELRR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-019-3 01 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. RUSSIA EQUIPMENT(B12),DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 1408- ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-019-3 01 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12) FRONT 		1-42370-019-3 02 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-019-3 02 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12) REAR 		1-42370-019-3 04 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-019-3 04 1 1408- ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1302- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 1302- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-048-0 01 1 1302-1407 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-048-0 01 1 1302-1407 ● ●
8 VALVE; TIRE
RUSSIA EQUIPMENT(B12) DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-048-0 01 1 1408- ●
8 VALVE; TIRE
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-048-0 01 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT 		1-42370-020-3 02 1 1302- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR 		1-42370-020-3 04 1 1302- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-048-0 02 1 1302-1407 ● ●
8 VALVE; TIRE
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-048-0 02 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-048-0 04 1 1302-1407 ● ●
8 VALVE; TIRE
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-048-0 04 1 1408- ●
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) L=170 		8-98167-052-0 02 1 1302- ● ●
32 CAP; VALVE
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 1302- ●
32 CAP; VALVE
WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 1302- ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1302- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 01 1 1302- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 02 1 1302- ● ●
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 1302- ● ●
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 04 1 1302- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 04 1 1302- ● ●
33 COVER; WHEEL
RUSSIA EQUIPMENT(B12) 		1-43139-065-0 02 1 1302-1405 ●
33 COVER; WHEEL
RUSSIA EQUIPMENT(B12) 		1-43139-065-1 02 1 1406-1512 ●
33 COVER; WHEEL
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> 		1-43139-065-1 02 1 1406-1512 ●
33 COVER; WHEEL
RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) 		1-43139-065-1 02 1 1601- ●
33 COVER; WHEEL
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> 		1-43139-065-1 02 1 1601- ●

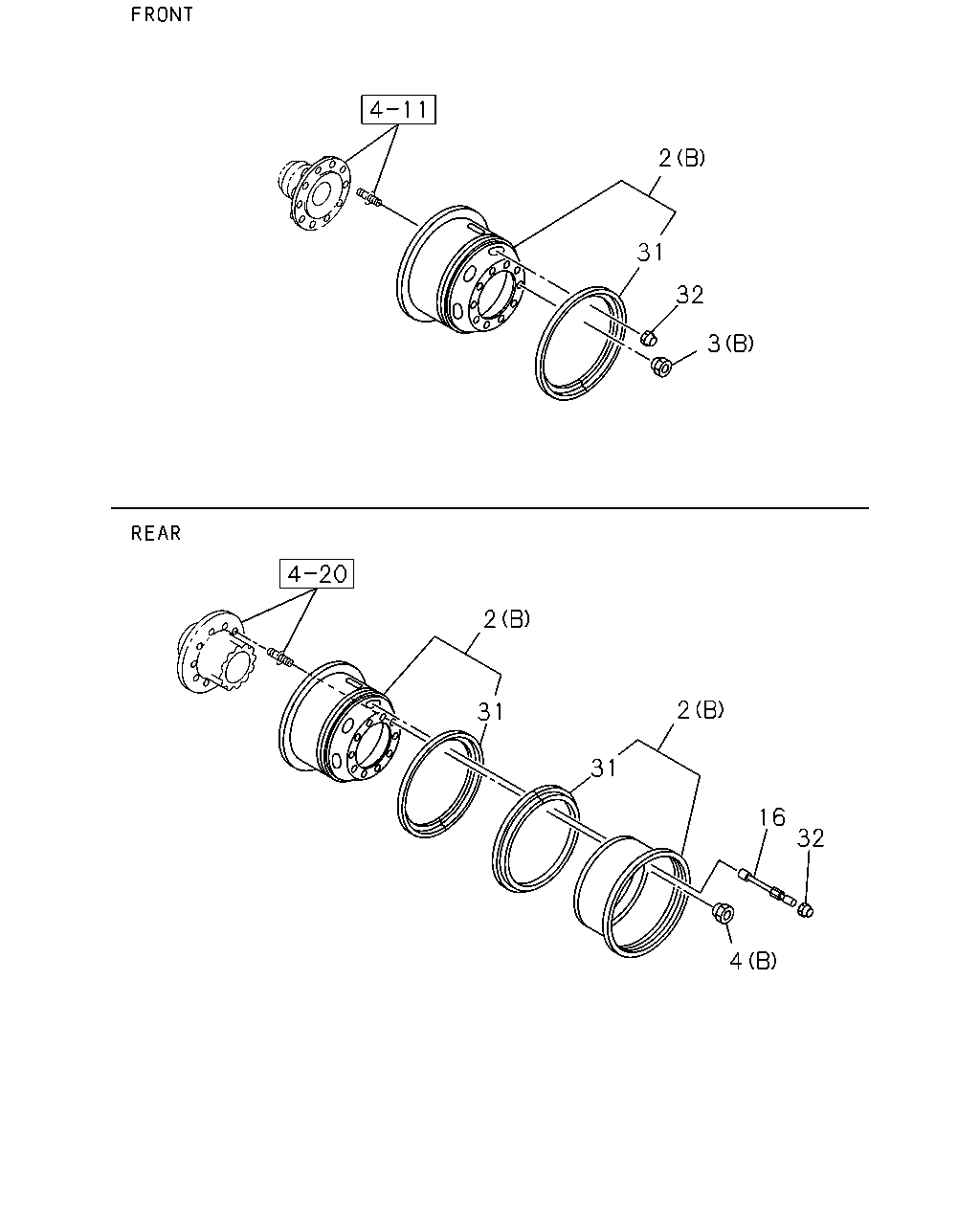

çizim 328871
2 31 32 3 2 31 31 2 16 32 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12),SPARE TIRE & DISC WHEELRR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. RUSSIA EQUIPMENT(B12),DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12) (A) FRONT 		8-98281-497-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. RUSSIA EQUIPMENT(B12) (A) REAR 		8-98281-497-0 04 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-478-0 01 1 1302- ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-478-0 01 1 1302- ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (C) FRONT 		1-42350-478-0 02 1 1302- ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (C) REAR 		1-42350-478-0 04 1 1302- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-448-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-448-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-745-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-745-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1302-1407 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1302-1407 ● ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1408- ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-447-0 01 1 1302- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-447-0 01 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) FRONT 		1-42350-448-0 02 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) REAR 		1-42350-448-0 04 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT 		1-42350-745-0 02 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR 		1-42350-745-0 04 1 1302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1302-1407 ● ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1302-1407 ● ●
2 WHEEL; DISC
RUSSIA EQUIPMENT(B12) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1408- ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (B) FRONT 		1-42350-447-0 02 1 1302- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (B) REAR 		1-42350-447-0 04 1 1302- ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M24 LH THREAD 		1-42334-022-3 08 1 1302- ●
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M24 		1-42333-022-3 08 1 1302- ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 		1-42333-055-0 20 1 1302- ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M30 LH THREAD 		8-97359-810-0 08 1 1302- ●
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) M30 RH THREAD 		8-97359-809-0 08 1 1302- ●
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5 		1-42333-055-0 20 1 1302- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) L=170 		8-98167-052-0 02 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-003-1 01 1 1302- ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-003-1 01 1 1302- ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) FRONT 		1-42355-003-1 02 1 1302- ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) REAR 		1-42355-003-1 04 1 1302- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-014-0 01 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-014-0 01 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-012-1 01 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-012-1 01 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT 		1-42355-014-0 02 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) REAR 		1-42355-014-0 04 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) FRONT 		1-42355-012-1 02 1 1302- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) REAR 		1-42355-012-1 04 1 1302- ● ●
32 CAP; VALVE
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 1302- ●
32 CAP; VALVE
WHEEL 8STUD 7.00TX20 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 1302- ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1302- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 01 1 1302- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 02 1 1302- ● ●
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 1302- ● ●
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 04 1 1302- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 04 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
