4-80 — ROAD WHEEL (#114252) — 54 parça

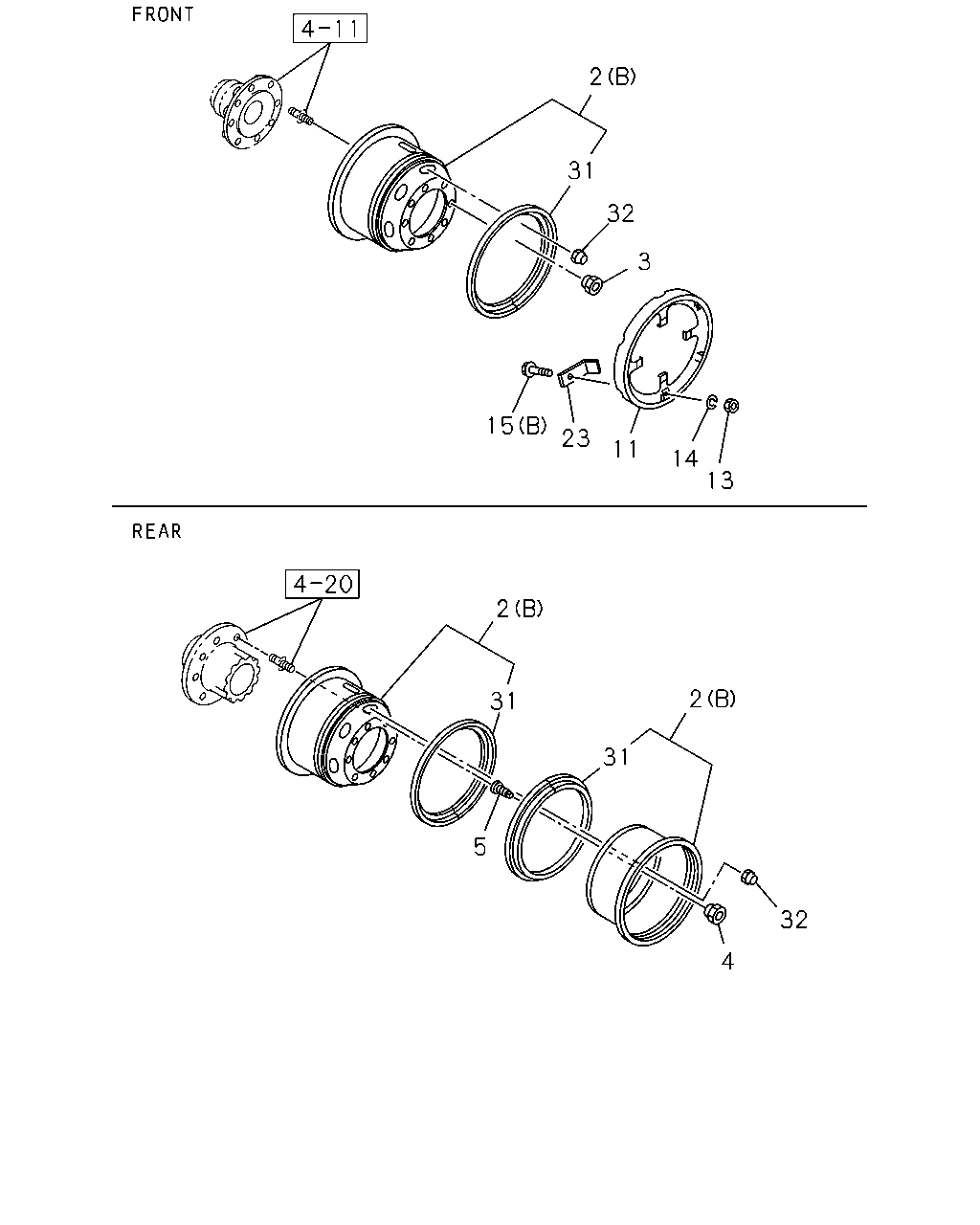

2 31 3 13 14 11 23 15 32 2 31 31 32 4 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42350-641-0	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-641-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-407-1	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-407-1	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (B) FRONT	1-42350-641-0	02	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (B) REAR	1-42350-641-0	04	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) FRONT	1-42350-407-1	02	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) REAR	1-42350-407-1	04	1	1302-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1302-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1302-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	1302-
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1302-
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66>	1-43139-002-2	02	1	1302-
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	1302-
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	0-91510-810-0	06	1	1302-
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	1302-
15	BOLT; STEP DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL STEP<W66> (A) L=60	1-43139-016-0	06	1	1302-
23	PLATE; CLAMP,STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66>	1-43139-013-0	06	1	1302-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-012-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-012-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) FRONT	1-42355-012-1	02	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) REAR	1-42355-012-1	04	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1302-
32	CAP; VALVE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	1302-

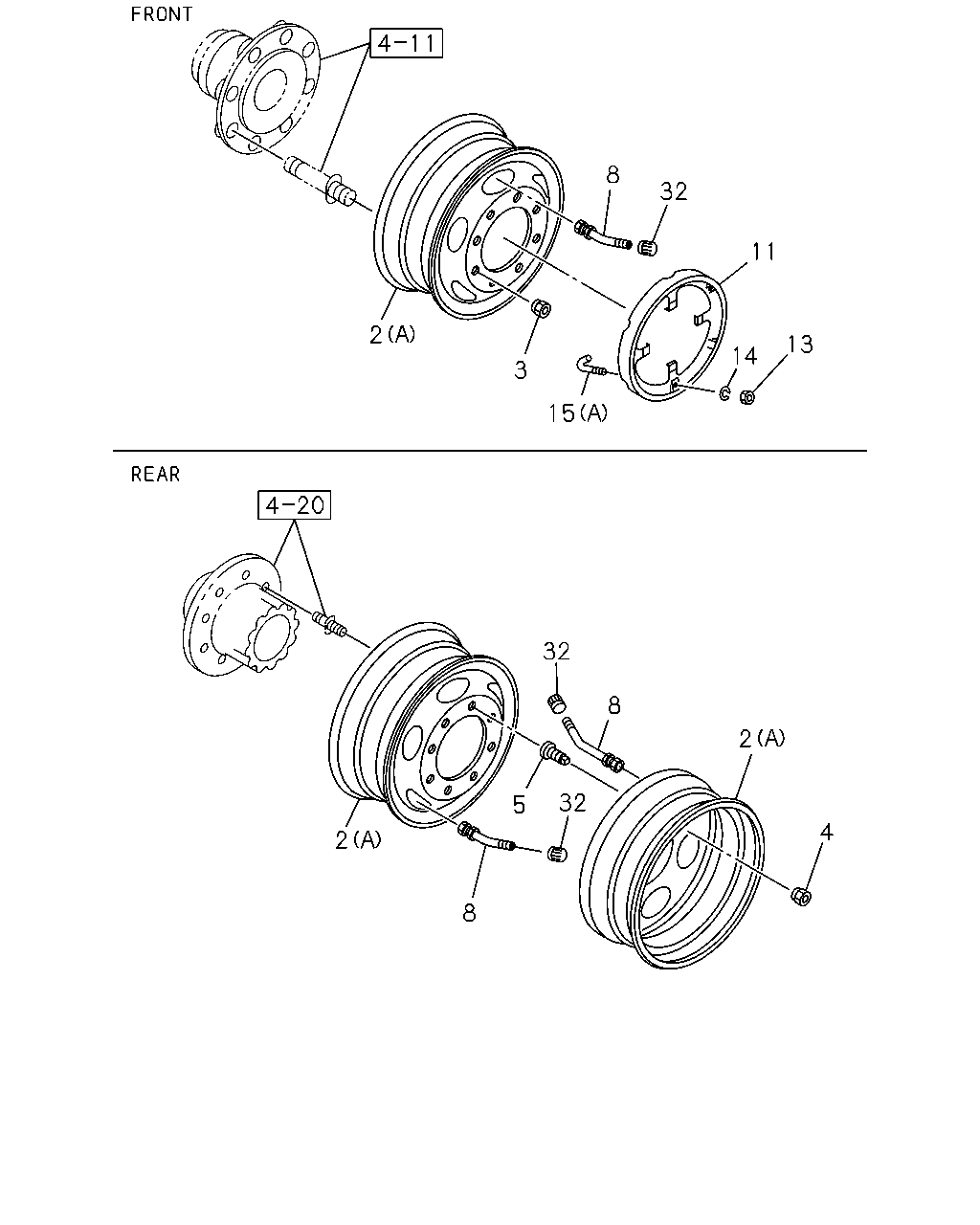

8 11 13 14 15 3 2 32 8 2 4 32 5 8 2 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42350-641-0	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-641-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-407-1	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-407-1	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (B) FRONT	1-42350-641-0	02	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (B) REAR	1-42350-641-0	04	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) FRONT	1-42350-407-1	02	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) REAR	1-42350-407-1	04	1	1302-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1302-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1302-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	1302-
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1302-
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	1302-
8	VALVE; TIRE WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-020-3	01	1	1302-
8	VALVE; TIRE WHEEL 8STUD 6.75X22.5 145-11(PT1) FRONT,REAR	1-42370-020-3	06	1	1302-
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66>	1-43139-002-2	02	1	1302-
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	1302-
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	0-91510-810-0	06	1	1302-
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	1302-
15	BOLT; STEP DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL STEP<W66> (A) L=60	1-43139-016-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1302-
32	CAP; VALVE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	1302-
