Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11514 - FTS(RHD)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

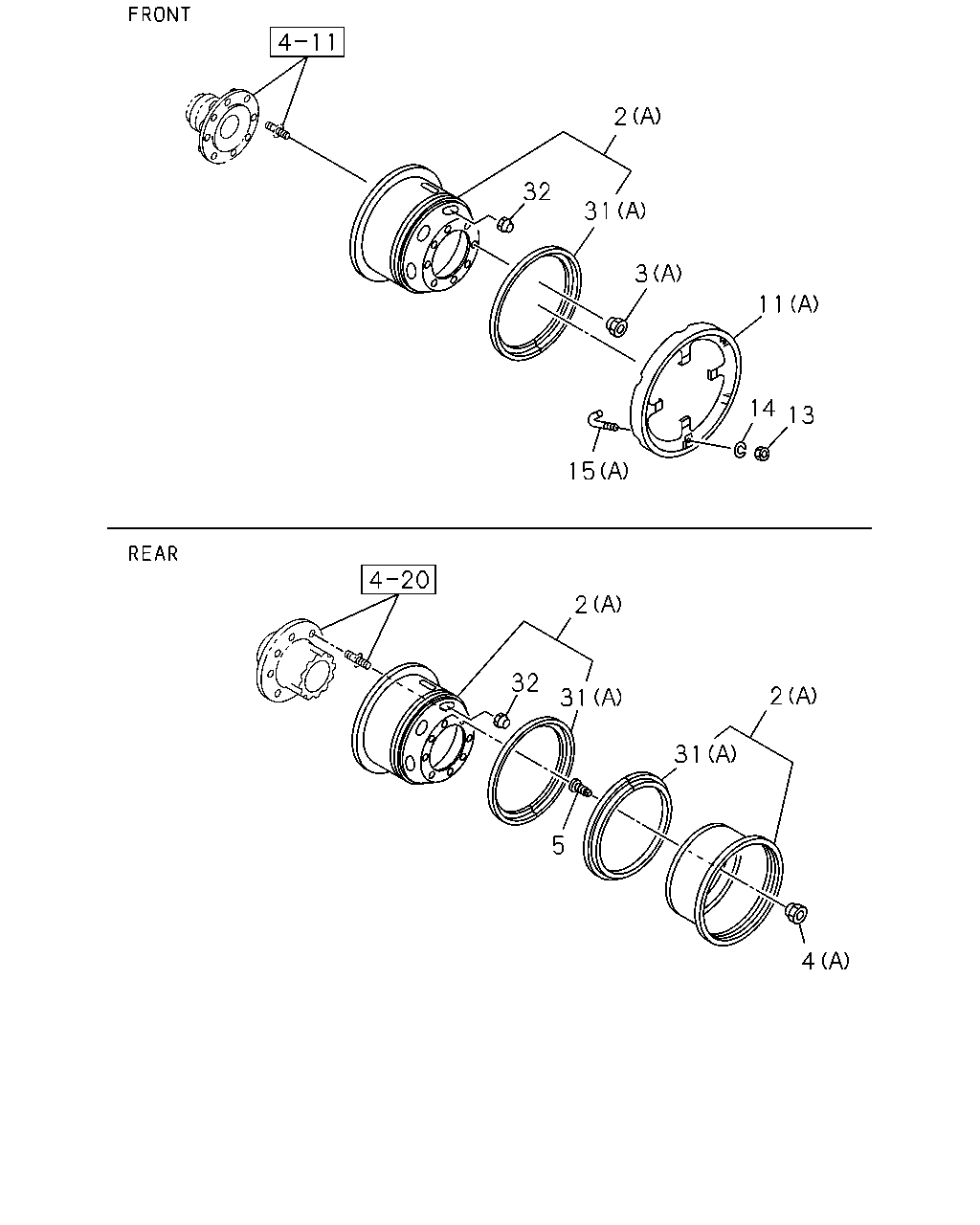

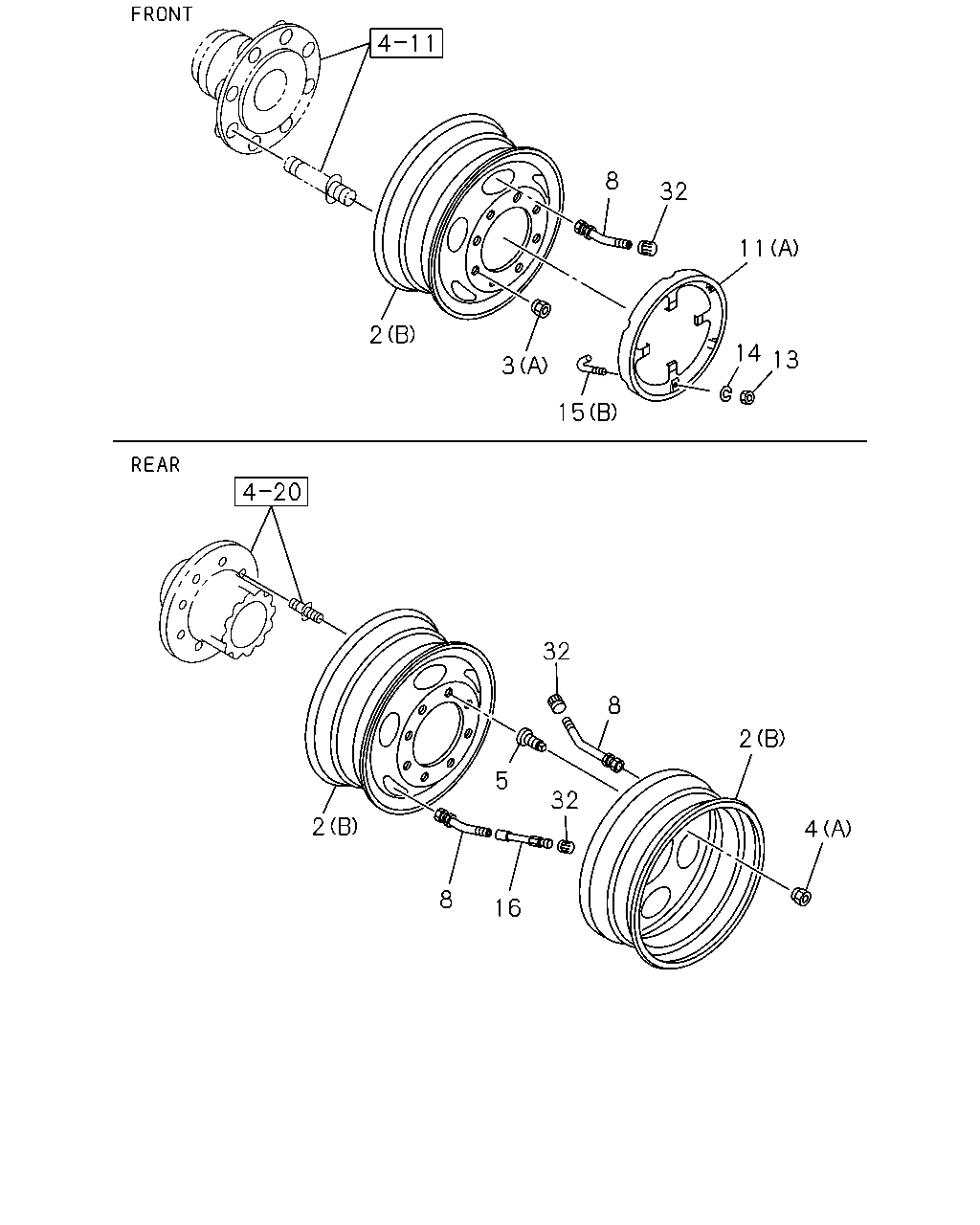

4-80 — ROAD WHEEL (#114250) — 127 parça

2 32 3 11 14 15 2 31 2 13 4 31 32 5 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE	1-42350-758-0	01	1	1302-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE	8-98232-031-0	01	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT	1-42350-758-0	02	1	1302-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT	8-98232-031-0	02	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (B) REAR	1-42350-758-0	04	1	1302-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (B) REAR	8-98232-031-0	04	1	1311-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1302-1306
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1302-1306
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1307-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1307-
2	WHEEL; DISC CONVERTING INTO 6X6<BCC> (C) FRONT,REAR	1-42350-775-0	02	1	1307-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) SPARE	1-42350-775-0	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) SPARE	1-42350-268-2	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) FRONT	1-42350-268-2	02	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) DOUBLE TIRE REARWARD<SR6> (A) REAR	1-42350-268-2	04	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 10STUD 8.50VX20 138-13(FJC) (B) M22X1.5	1-42333-055-0	20	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 LH THREAD	1-42334-022-3	08	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24	1-42333-022-3	08	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 10STUD 8.50VX20 138-13(FJC) (B) M22X1.5	1-42333-055-0	20	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (A) M30 LH THREAD	8-97359-810-0	08	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (A) M30 RH THREAD	8-97359-809-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1302-
11	STEP; DISC WHEEL SIDE WHEEL 10STUD 8.50VX20 138-13(FJC) DISC WHEEL STEP<W66> (B)	1-43139-066-0	02	1	1302-
11	STEP; DISC WHEEL SIDE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> (A)	1-43139-002-2	02	1	1302-
13	NUT; STEP DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	1302-
14	WASHER; LK,STEP DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> ID=10.2	0-91510-810-0	06	1	1302-
15	BOLT; STEP DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> (B) L=60	1-43139-016-0	06	1	1302-1310
15	BOLT; STEP DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> (B)	8-98245-130-0	06	1	1311-
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 152-11(Q50) DISC WHEEL STEP<W66> (A) L=44	9-43139-023-1	06	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42355-004-1	02	1	1302-1306
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42355-004-1	02	1	1302-1306
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42355-004-1	02	1	1307-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42355-004-1	02	1	1307-
31	RING; SIDE,DISC WHEEL CONVERTING INTO 6X6<BCC> (B) FRONT,REAR	1-42355-004-1	02	1	1307-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) SPARE	1-42355-004-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) (A) SPARE	1-42355-012-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) (A) FRONT	1-42355-012-1	02	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) DOUBLE TIRE REARWARD<SR6> (A) REAR	1-42355-012-1	04	1	1302-
32	CAP; VALVE WHEEL 10STUD 8.50VX20 138-13(FJC) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	1302-
32	CAP; VALVE WHEEL 10STUD 8.50VX20 138-13(FJC) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 152-11(Q50) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1302-
32	CAP; VALVE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	1302-

4 2 32 8 32 5 16 8 2 15 3 14 13 11 32 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE	1-42350-758-0	01	1	1302-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE	8-98232-031-0	01	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT	1-42350-758-0	02	1	1302-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT	8-98232-031-0	02	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (B) REAR	1-42350-758-0	04	1	1302-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (B) REAR	8-98232-031-0	04	1	1311-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1302-1306
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1302-1306
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1307-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1307-
2	WHEEL; DISC CONVERTING INTO 6X6<BCC> (C) FRONT,REAR	1-42350-775-0	02	1	1307-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) SPARE	1-42350-775-0	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) SPARE	1-42350-268-2	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) FRONT	1-42350-268-2	02	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) DOUBLE TIRE REARWARD<SR6> (A) REAR	1-42350-268-2	04	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 10STUD 8.50VX20 138-13(FJC) (B) M22X1.5	1-42333-055-0	20	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 LH THREAD	1-42334-022-3	08	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24	1-42333-022-3	08	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 10STUD 8.50VX20 138-13(FJC) (B) M22X1.5	1-42333-055-0	20	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (A) M30 LH THREAD	8-97359-810-0	08	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (A) M30 RH THREAD	8-97359-809-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1302-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE	1-42370-020-3	01	1	1302-1310
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE	1-42370-048-0	01	1	1311-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT,REAR	1-42370-020-3	06	1	1302-1310
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT,REAR	1-42370-048-0	06	1	1311-
11	STEP; DISC WHEEL SIDE WHEEL 10STUD 8.50VX20 138-13(FJC) DISC WHEEL STEP<W66> (B)	1-43139-066-0	02	1	1302-
11	STEP; DISC WHEEL SIDE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> (A)	1-43139-002-2	02	1	1302-
13	NUT; STEP DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	1302-
14	WASHER; LK,STEP DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> ID=10.2	0-91510-810-0	06	1	1302-
15	BOLT; STEP DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> (B) L=60	1-43139-016-0	06	1	1302-1310
15	BOLT; STEP DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> (B)	8-98245-130-0	06	1	1311-
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 152-11(Q50) DISC WHEEL STEP<W66> (A) L=44	9-43139-023-1	06	1	1302-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) L=170	8-98167-052-0	02	1	1311-
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) L=115	8-98167-051-0	01	1	1302-
32	CAP; VALVE WHEEL 10STUD 8.50VX20 138-13(FJC) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	1302-
32	CAP; VALVE WHEEL 10STUD 8.50VX20 138-13(FJC) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 152-11(Q50) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1302-
32	CAP; VALVE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	1302-

4 31 2 32 16 3 11 31 32 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE	1-42350-758-0	01	1	1302-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE	8-98232-031-0	01	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT	1-42350-758-0	02	1	1302-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT	8-98232-031-0	02	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (B) REAR	1-42350-758-0	04	1	1302-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (B) REAR	8-98232-031-0	04	1	1311-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1302-1306
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1302-1306
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1307-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) FRONT,REAR	1-42350-775-0	02	1	1307-
2	WHEEL; DISC CONVERTING INTO 6X6<BCC> (C) FRONT,REAR	1-42350-775-0	02	1	1307-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (C) SPARE	1-42350-775-0	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) SPARE	1-42350-268-2	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) FRONT	1-42350-268-2	02	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) DOUBLE TIRE REARWARD<SR6> (A) REAR	1-42350-268-2	04	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 10STUD 8.50VX20 138-13(FJC) (B) M22X1.5	1-42333-055-0	20	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 LH THREAD	1-42334-022-3	08	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24	1-42333-022-3	08	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 10STUD 8.50VX20 138-13(FJC) (B) M22X1.5	1-42333-055-0	20	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (A) M30 LH THREAD	8-97359-810-0	08	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DOUBLE TIRE REARWARD<SR6> (A) M30 RH THREAD	8-97359-809-0	08	1	1302-
11	STEP; DISC WHEEL SIDE WHEEL 10STUD 8.50VX20 138-13(FJC) DISC WHEEL STEP<W66> (B)	1-43139-066-0	02	1	1302-
11	STEP; DISC WHEEL SIDE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL STEP<W66> (A)	1-43139-002-2	02	1	1302-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) L=170	8-98167-052-0	02	1	1311-
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) L=115	8-98167-051-0	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42355-004-1	02	1	1302-1306
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42355-004-1	02	1	1302-1306
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42355-004-1	02	1	1307-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42355-004-1	02	1	1307-
31	RING; SIDE,DISC WHEEL CONVERTING INTO 6X6<BCC> (B) FRONT,REAR	1-42355-004-1	02	1	1307-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) SPARE	1-42355-004-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) (A) SPARE	1-42355-012-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) (A) FRONT	1-42355-012-1	02	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) DOUBLE TIRE REARWARD<SR6> (A) REAR	1-42355-012-1	04	1	1302-
32	CAP; VALVE WHEEL 10STUD 8.50VX20 138-13(FJC) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	1302-
32	CAP; VALVE WHEEL 10STUD 8.50VX20 138-13(FJC) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 152-11(Q50) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1302-
32	CAP; VALVE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
