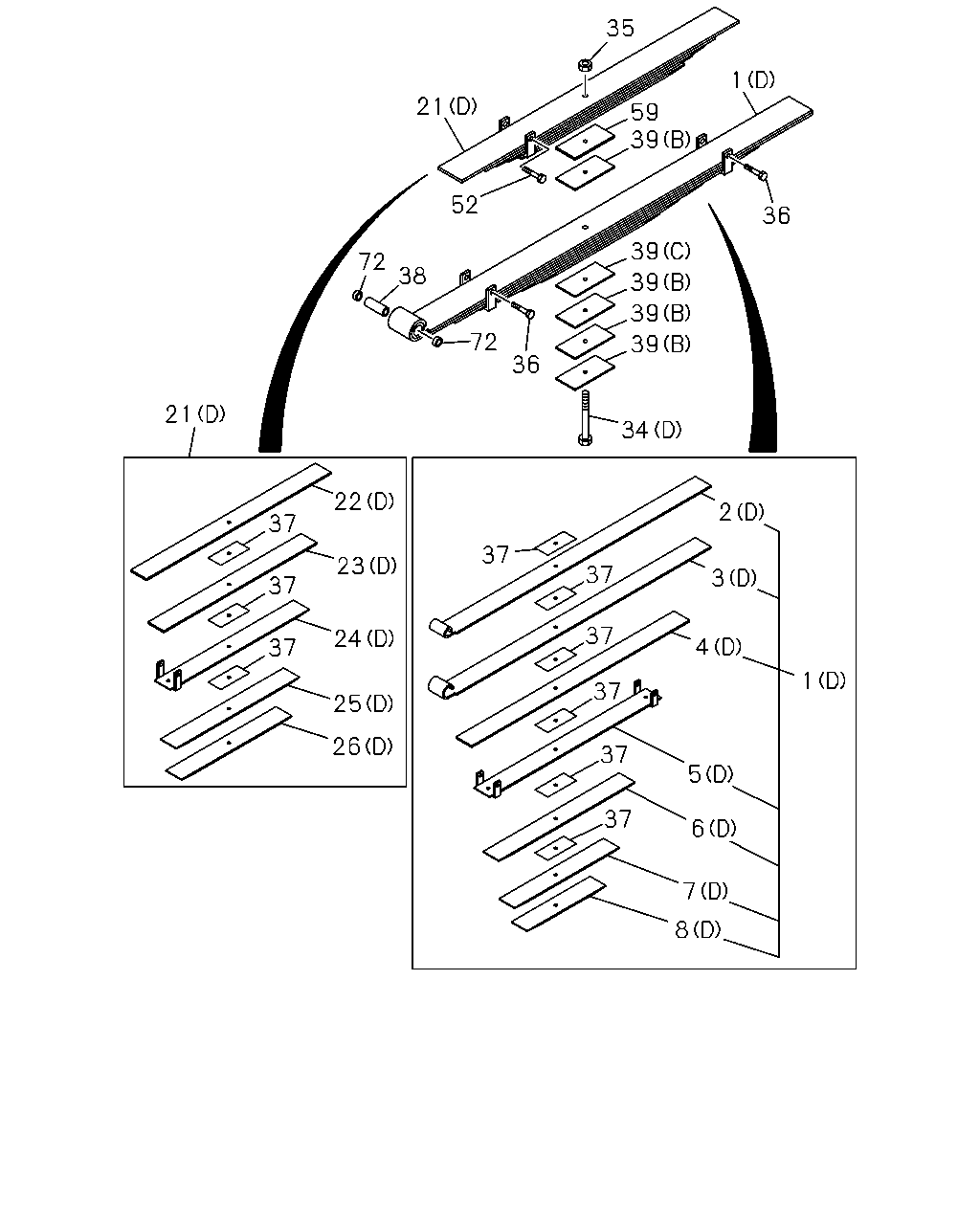

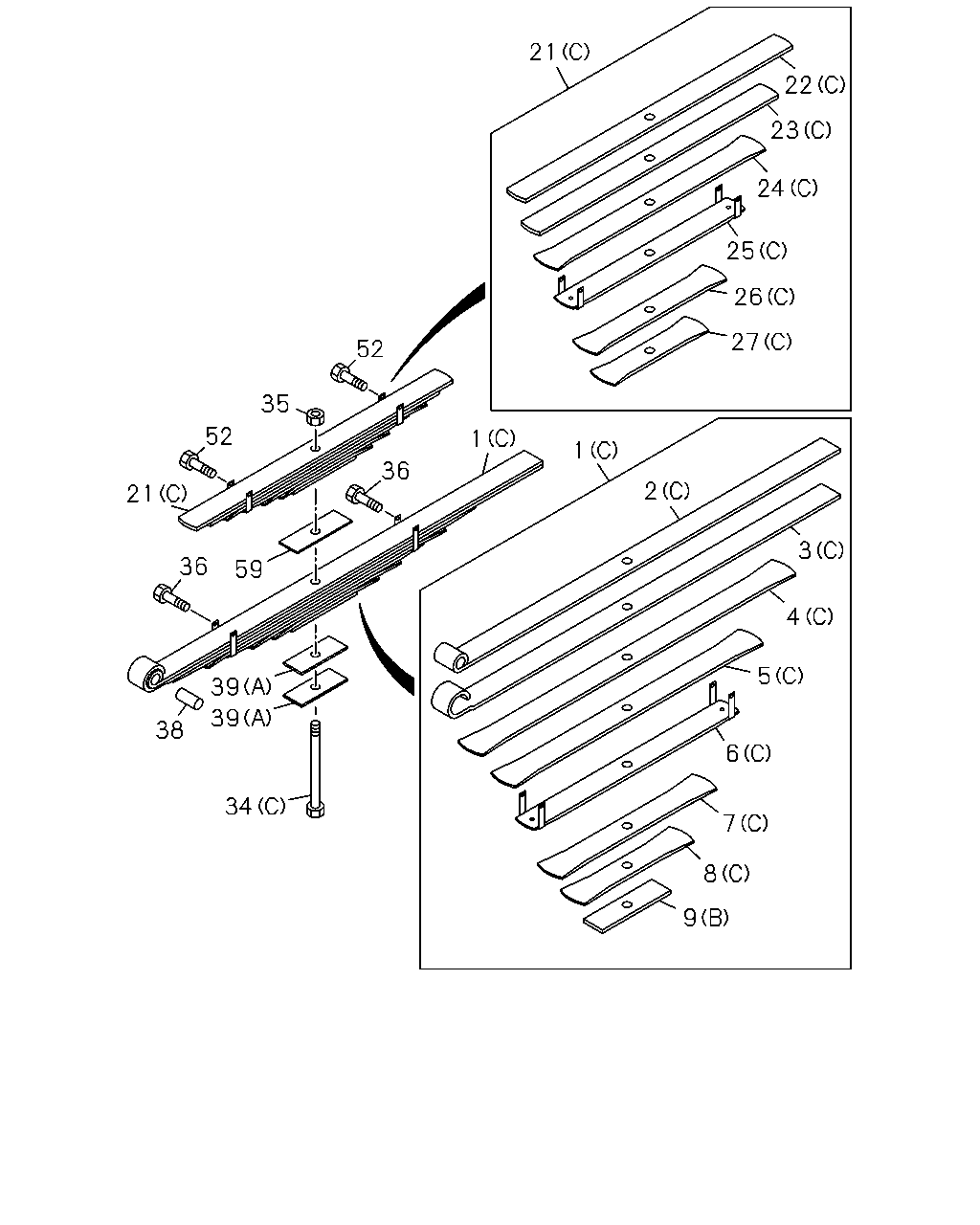

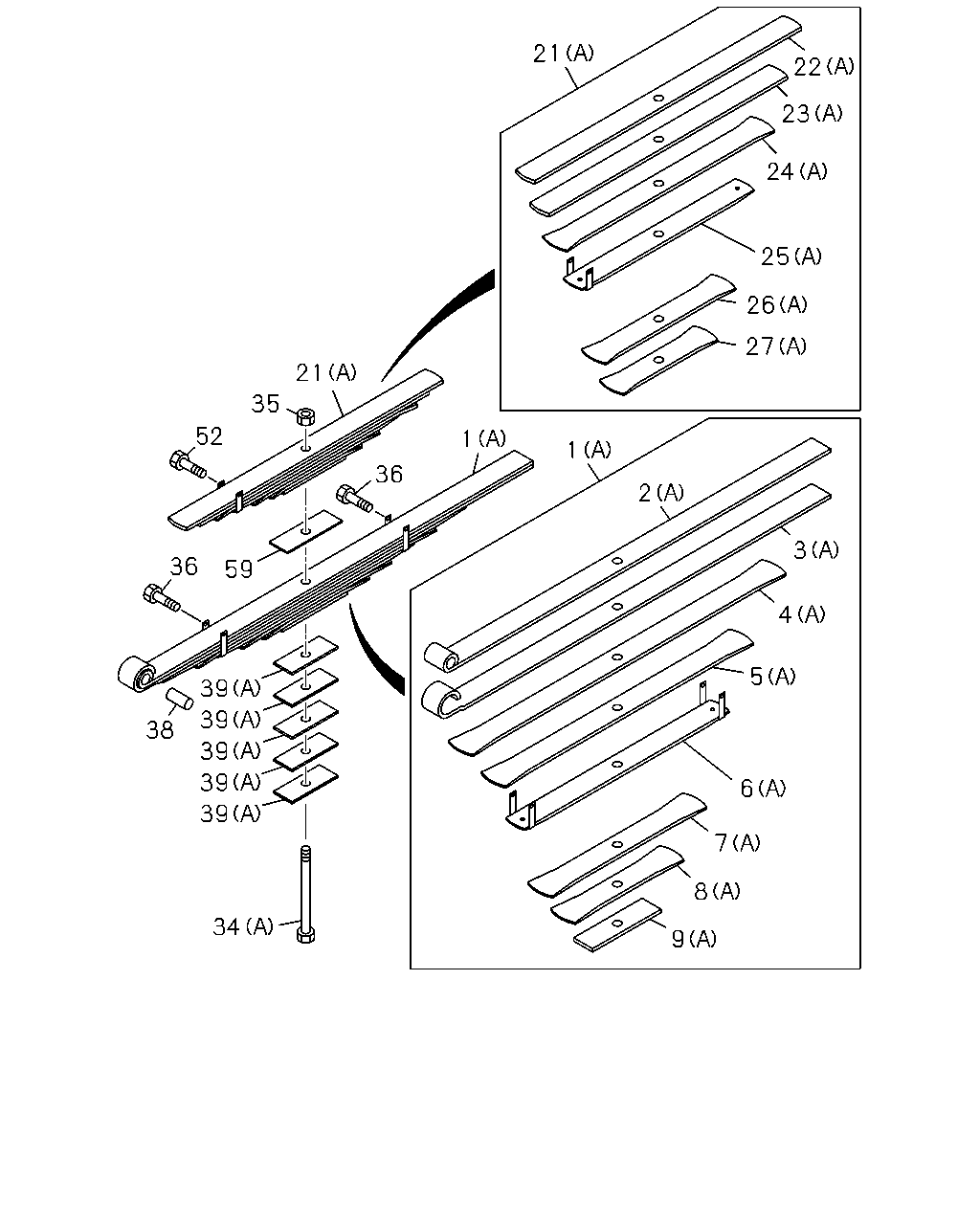

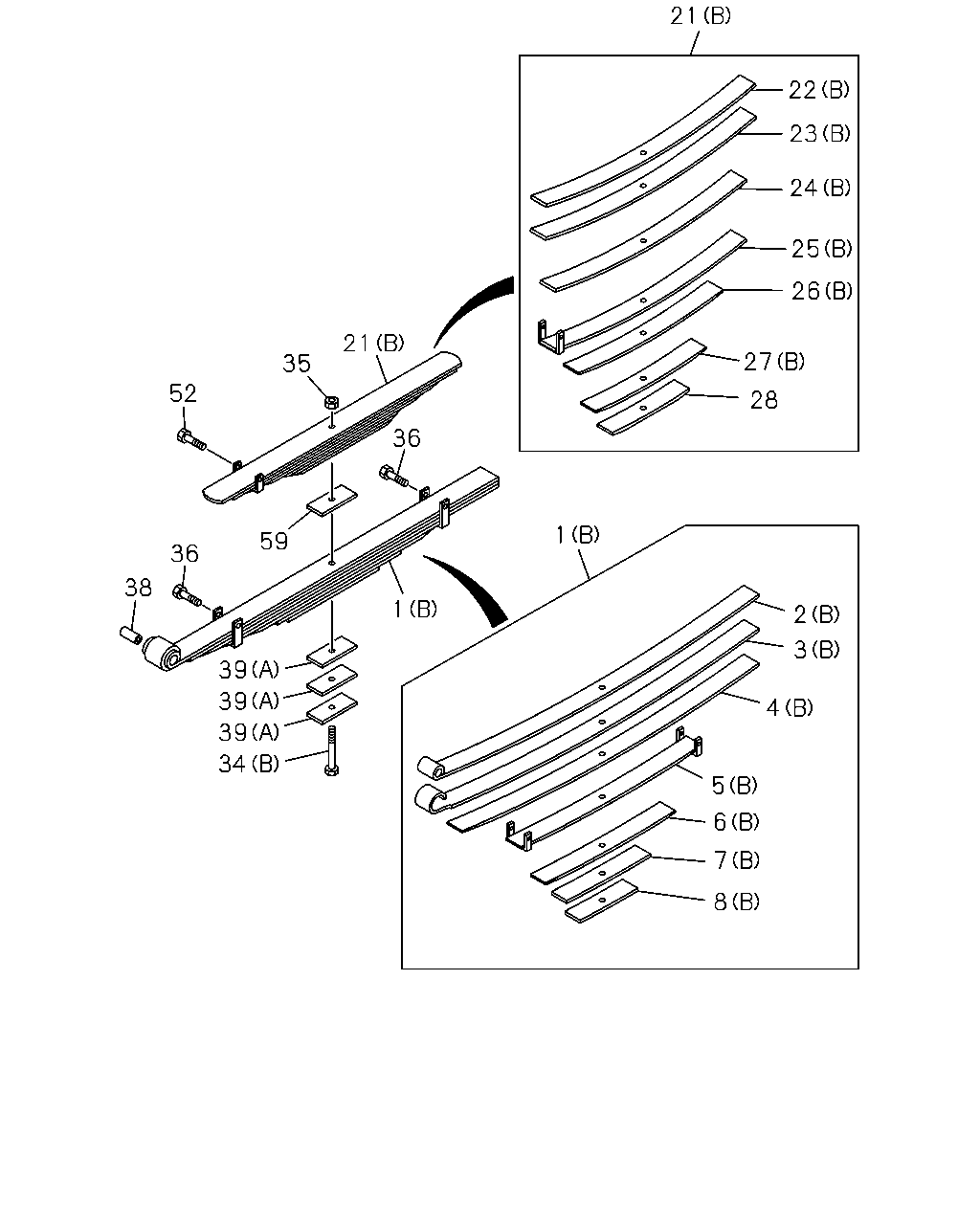

4-65 — REAR LEAF SPRING (#114243) — 312 parça

52 35 21 36 59 36 38 39 39 39 34 1 1 21 22 23 8 7 6 5 4 3 2 28 27 26 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51310-721-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51410-209-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-961-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-977-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51311-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51411-209-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-962-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-978-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51312-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51412-209-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-963-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-979-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51313-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51413-209-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-964-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-980-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51314-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51414-209-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-965-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-981-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51315-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51415-209-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-966-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-982-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51316-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51416-209-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-967-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-983-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51317-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51417-209-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-968-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-984-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51340-450-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-970-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-985-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-874-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51341-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-971-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-986-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-865-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51342-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-972-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-987-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-866-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51343-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-973-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-988-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-867-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51344-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-974-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-989-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-868-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51345-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-975-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-990-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-869-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51346-450-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-976-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-991-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB ASM PART: C = 8-98017-566-1	8-98051-992-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (D), L=230 ASM PART: D = 8-98272-220-0	1-51356-130-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=240 ASM PART: B = 8-98017-565-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=235 ASM PART: C = 8-98017-566-1	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (C), L=210 ASM PART: A = 1-51300-532-0	1-51356-146-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR ASM PART: D = 8-98272-220-0	1-51351-045-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-87610-164-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=10 ASM PART: D = 8-98272-220-0	1-51359-018-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (C) ASM PART: D = 8-98272-220-0	1-51377-093-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: B = 8-98017-565-0	1-51377-118-0	05	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: C = 8-98017-566-1	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: A = 1-51300-532-0	1-51377-118-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-532-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB T=7 ASM PART: D = 8-98272-220-0	1-51377-237-0	01	1	-

34 38 39 39 59 36 21 52 35 52 36 1 1 2 3 4 5 6 7 8 9 27 26 25 24 23 22 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51310-721-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51410-209-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-961-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-977-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51311-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51411-209-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-962-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-978-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51312-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51412-209-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-963-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-979-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51313-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51413-209-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-964-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-980-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51314-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51414-209-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-965-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-981-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51315-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51415-209-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-966-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-982-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51316-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51416-209-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-967-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-983-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51317-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51417-209-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-968-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-984-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: A = 1-51300-532-0	1-51318-721-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-969-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51340-450-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-970-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-985-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-874-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51341-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-971-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-986-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-865-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51342-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-972-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-987-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-866-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51343-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-973-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-988-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-867-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51344-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-974-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-989-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-868-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51345-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-975-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-990-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-869-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51346-450-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-976-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-991-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (D), L=230 ASM PART: D = 8-98272-220-0	1-51356-130-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=240 ASM PART: B = 8-98017-565-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=235 ASM PART: C = 8-98017-566-1	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (C), L=210 ASM PART: A = 1-51300-532-0	1-51356-146-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR ASM PART: D = 8-98272-220-0	1-51351-045-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-87610-164-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=10 ASM PART: D = 8-98272-220-0	1-51359-018-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (C) ASM PART: D = 8-98272-220-0	1-51377-093-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: B = 8-98017-565-0	1-51377-118-0	05	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: C = 8-98017-566-1	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: A = 1-51300-532-0	1-51377-118-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-532-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB T=7 ASM PART: D = 8-98272-220-0	1-51377-237-0	01	1	-

9 8 7 6 5 4 3 2 1 1 52 35 21 59 36 39 39 39 39 39 34 38 36 21 22 23 24 25 26 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51310-721-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51410-209-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-961-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-977-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51311-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51411-209-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-962-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-978-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51312-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51412-209-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-963-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-979-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51313-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51413-209-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-964-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-980-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51314-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51414-209-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-965-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-981-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51315-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51415-209-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-966-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-982-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51316-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51416-209-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-967-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-983-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51317-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51417-209-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-968-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-984-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: A = 1-51300-532-0	1-51318-721-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-969-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51340-450-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-970-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-985-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-874-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51341-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-971-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-986-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-865-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51342-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-972-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-987-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-866-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51343-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-973-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-988-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-867-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51344-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-974-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-989-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-868-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51345-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-975-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-990-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-869-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51346-450-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-976-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-991-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (D), L=230 ASM PART: D = 8-98272-220-0	1-51356-130-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=240 ASM PART: B = 8-98017-565-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=235 ASM PART: C = 8-98017-566-1	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (C), L=210 ASM PART: A = 1-51300-532-0	1-51356-146-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR ASM PART: D = 8-98272-220-0	1-51351-045-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-87610-164-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=10 ASM PART: D = 8-98272-220-0	1-51359-018-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (C) ASM PART: D = 8-98272-220-0	1-51377-093-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: B = 8-98017-565-0	1-51377-118-0	05	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: C = 8-98017-566-1	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: A = 1-51300-532-0	1-51377-118-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-532-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB T=7 ASM PART: D = 8-98272-220-0	1-51377-237-0	01	1	-

21 22 23 24 25 26 37 37 37 37 2 3 4 1 5 6 7 8 37 37 37 37 37 34 39 39 39 39 36 1 59 39 36 72 38 52 21 72 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51310-721-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51410-209-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-961-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-977-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51311-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51411-209-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-962-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-978-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51312-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51412-209-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-963-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-979-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51313-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51413-209-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-964-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-980-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51314-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51414-209-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-965-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-981-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51315-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51415-209-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-966-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-982-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51316-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51416-209-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-967-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-983-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (C) ASM PART: A = 1-51300-532-0	1-51317-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (D) ASM PART: D = 8-98272-220-0	1-51417-209-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: B = 8-98017-565-0	8-98051-968-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: C = 8-98017-566-1	8-98051-984-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51340-450-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-970-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-985-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-874-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51341-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-971-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-986-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-865-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51342-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-972-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-987-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-866-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51343-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-973-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-988-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-867-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51344-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-974-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-989-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-868-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (C) ASM PART: A = 1-51300-532-0	1-51345-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (A) ASM PART: B = 8-98017-565-0	8-98051-975-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (B) ASM PART: C = 8-98017-566-1	8-98051-990-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (D) ASM PART: D = 8-98272-220-0	8-98276-869-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (D), L=230 ASM PART: D = 8-98272-220-0	1-51356-130-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=240 ASM PART: B = 8-98017-565-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=235 ASM PART: C = 8-98017-566-1	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (C), L=210 ASM PART: A = 1-51300-532-0	1-51356-146-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09000-334-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: D = 8-98272-220-0	1-51377-159-0	09	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR ASM PART: D = 8-98272-220-0	1-51351-045-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-87610-164-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=10 ASM PART: D = 8-98272-220-0	1-51359-018-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (C) ASM PART: D = 8-98272-220-0	1-51377-093-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: B = 8-98017-565-0	1-51377-118-0	05	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: C = 8-98017-566-1	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: A = 1-51300-532-0	1-51377-118-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-532-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: B = 8-98017-565-0, C = 8-98017-566-1, D = 8-98272-220-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-532-0, B = 8-98017-565-0, C = 8-98017-566-1	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB T=7 ASM PART: D = 8-98272-220-0	1-51377-237-0	01	1	-
72	SEAL; DUST ASM PART: D = 8-98272-220-0	1-51177-321-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
