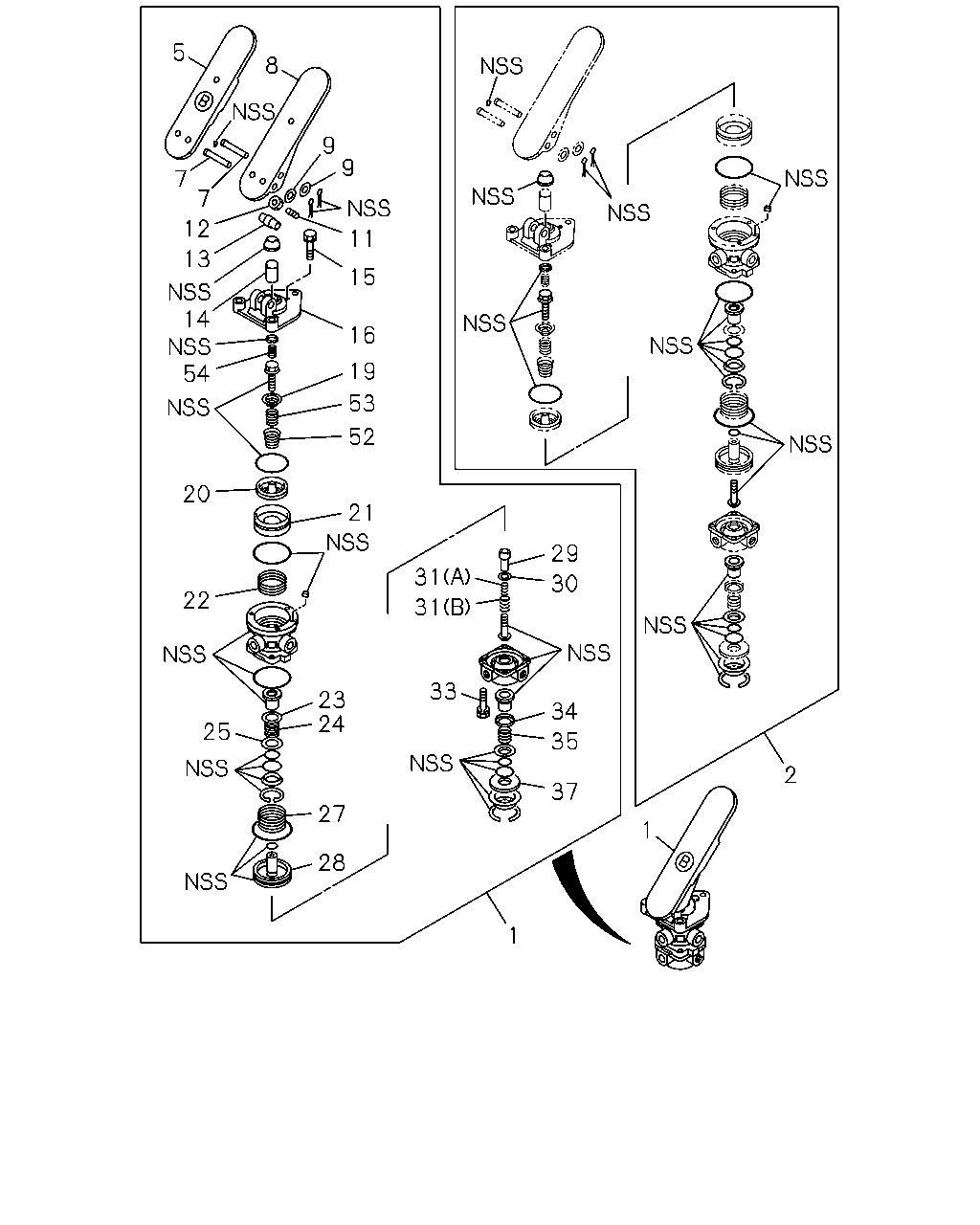

3-34 — BRAKE VALVE; AIR
(#11424) — 43 parça
2
1
1
37
34
35
30
29
31
31
33
23
24
27
28
25
22
20
21
52
53
19
16
15
11
9
9
8
5
7
12
7
13
14
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
1-48100-774-0
01
1
0106-0206
1
VALVE; BRK
1-48100-863-0
01
1
0207-
2
REPAIR KIT; BRK VLV
1-85576-182-0
01
1
0106-0206
2
REPAIR KIT; BRK VLV
1-85576-318-0
01
1
0207-
5
COVER; PEDAL,BRK VLV
1-48119-333-0
01
1
0106-0206
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0207-
7
PIN; PEDAL,BRK VLV
1-48119-244-0
02
1
0106-0206
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0207-
8
PEDAL; BRK VLV
1-48119-332-0
01
1
0106-0206
8
PEDAL; BRK VLV
1-48119-429-0
01
1
0207-
9
WASHER; PIN,BRK VLV
1-48119-106-0
02
1
0106-0206
11
SCREW; SET,BRK VLV
1-48119-245-0
01
1
0106-0206
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0207-
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
0106-
13
ROLLER; PEDAL,BRK VLV
1-48119-243-0
01
1
0106-0206
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0207-
14
PLUNGER; BRK VLV
1-48119-383-0
01
1
0106-0206
14
PLUNGER; BRK VLV
1-48119-561-0
01
1
0207-
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
0106-
16
PLATE; MTG,BRKT VLV
1-48119-268-0
01
1
0106-0206
16
PLATE; MTG,BRKT VLV
1-48119-547-0
01
1
0207-
19
SEAT; SPRING,BRK VLV
1-48123-041-0
01
1
0106-
20
PISTON; UPR,BRK VLV
1-48119-336-0
01
1
0106-0206
20
PISTON; UPR,BRK VLV
1-48119-565-0
01
1
0207-
21
BUSHING; UPR BODY
1-48119-293-0
01
1
0106-
22
SPRING; PISTON,LWR,BRK VLV
1-48143-009-0
01
1
0106-
23
WASHER; UPR,BRK VLV
1-48129-145-0
01
1
0106-
24
SPRING; UPR,BRK VLV
1-48123-018-0
01
1
0106-
25
WASHER; PISTON,BRK VLV
1-48129-138-0
01
1
0106-
27
SPRING; PISTON,LWR,BRK VLV
1-48123-055-0
01
1
0106-
28
PISTON; LWR,BRK VLV
1-48129-292-0
01
1
0106-0206
28
PISTON; LWR,BRK VLV
1-48129-317-0
01
1
0207-
29
SLEEVE; VLV,BRK VLV
1-48129-083-1
01
1
0106-
30
WASHER; SLEEVE,BRK VLV
1-48129-082-0
01
1
0106-
31
SPRING; VLV,BRK VLV
(A)
1-48123-032-0
01
1
0106-
31
SPRING; VLV,BRK VLV
(B)
1-48123-033-0
01
1
0106-
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
0106-
34
RETAINER; VLV,BRK VLV
1-48129-144-0
01
1
0106-
35
SPRING; VLV,BRK VLV
1-48123-019-0
01
1
0106-
37
WASHER; VLV LWR,BRK VLV
1-48129-080-0
01
1
0106-
52
SPRING; PISTON,OUTER,BRK VLV
1-48123-074-0
01
1
0106-
53
SPRING; PISTON,INNER,BRK VLV
1-48123-068-0
01
1
0106-
54
SPRING; PISTON,UPR,BRK VLV
1-48123-067-0
01
1
0106-
