◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#114228) — 33 parça

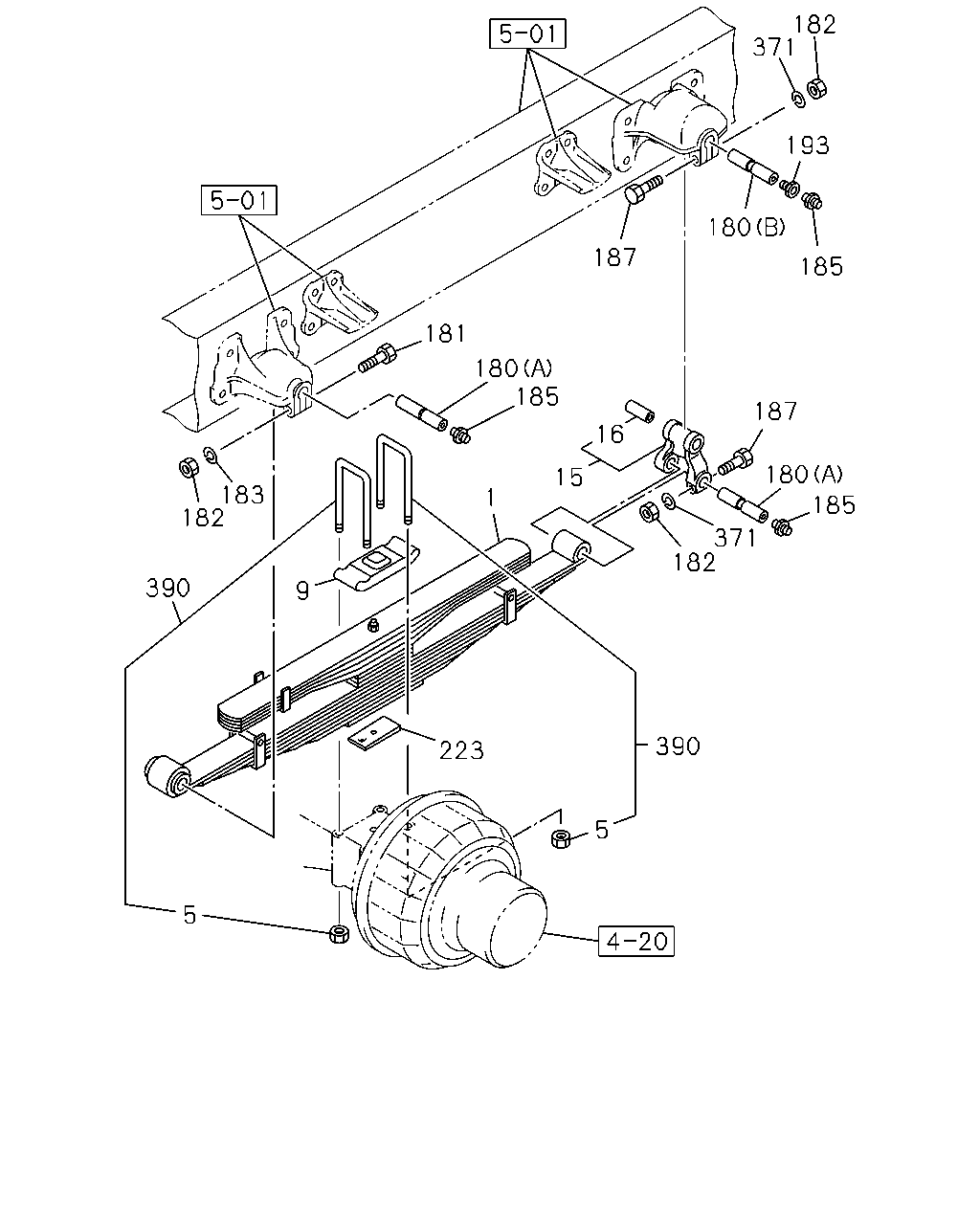

çizim 328713
182 371 193 180 185 187 181 180 185 15 16 182 371 185 180 187 390 5 223 5 390 182 183 1 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 14-LEAF 		8-98017-563-1 02 1 1302-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 17-LEAF 		8-98017-561-0 02 1 1302-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 12-LEAF 		8-98064-447-0 02 1 1302-
5 NUT; U-BOLT,RR SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20 FLANGE 		8-98010-415-0 08 1 1302-
5 NUT; U-BOLT,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M18 FLANGE 		1-09440-039-1 08 1 1302-
9 PAD; U BOLT,RR SPR 1-51372-059-0 02 1 1302-
15 SHACKLE; RR SPR 1-51362-038-2 02 1 1302-
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 1302-
180 PIN; RR SPR
(A) DO=25 L=115 PT1/8 		1-51361-016-0 04 1 1302-
180 PIN; RR SPR
(B) DO=25 L=115 M12 		1-51361-017-0 02 1 1302-
181 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 02 1 1302-
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 06 1 1302-
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 1302-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 06 1 1302-
187 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 04 1 1302-
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-329-1 02 1 1302-1412
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-329-1 02 1 1501-
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-329-1 02 1 1501-
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98096-335-0 02 1 1302-1412
223 SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98096-335-0 02 1 1302-1412
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98096-335-0 02 1 1501-
223 SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> 		8-98096-335-0 02 1 1501-
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98043-891-0 02 1 1302-1412
223 SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98043-891-0 02 1 1302-1412
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> 		8-98043-891-0 02 1 1501-
223 SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> 		8-98043-891-0 02 1 1501-
223 SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-333-1 02 1 1302-1412
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-333-1 02 1 1501-
223 SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-333-1 02 1 1501-
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 1302-
390 U-BOLT SET; RR SPRING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=405 		1-87870-472-0 04 1 1302-
390 U-BOLT SET; RR SPRING
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=405 		1-87870-372-1 04 1 1302-
