Isuzu WW
▶
TRUCKS
▶
FSS
▶
11511 - FSS(LHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

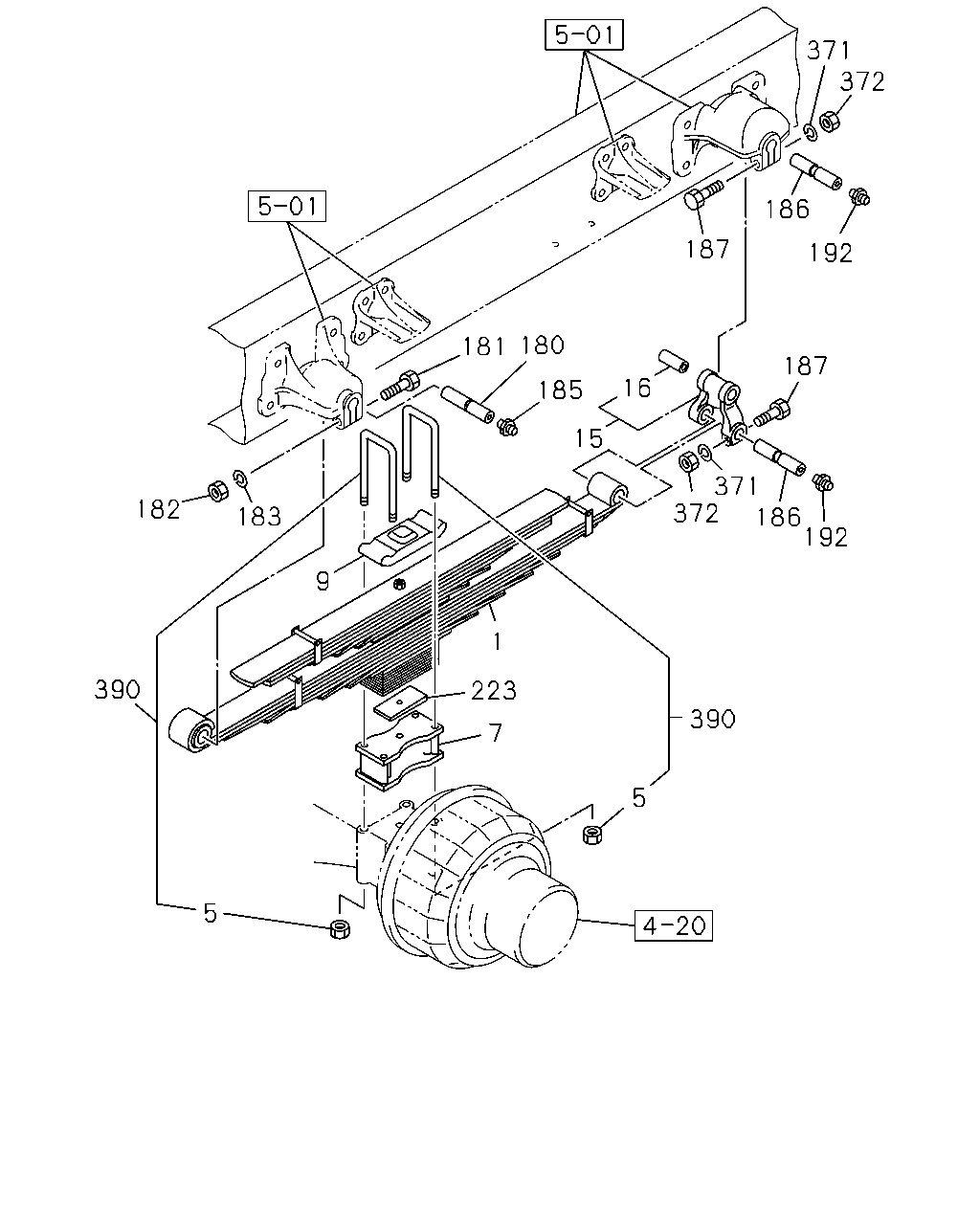

4-60 — REAR SUSPENSION
(#114224) — 18 parça
182
183
390
9
181
180
185
16
15
187
186
192
372
371
187
371
372
186
192
390
5
7
223
5
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98050-306-0
02
1
1302-
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
1302-
7
SEAT; SPR,LWR
1-51385-090-1
02
1
1302-
9
PAD; U BOLT,RR SPR
1-51372-059-0
02
1
1302-
15
SHACKLE; RR SPR
1-51362-038-2
02
1
1302-
16
BUSHING; SHACKLE,RR SPR
ID=25
8-98082-176-0
02
1
1302-
180
PIN; RR SPR
DO=25 L=115 PT1/8
1-51361-016-0
02
1
1302-
181
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
02
1
1302-
182
NUT; PIN,RR SPR
M12
0-91110-512-0
02
1
1302-
183
WASHER; LK,PIN,RR SPR
ID=12.2
0-91510-612-0
02
1
1302-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1302-
186
PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8
1-51361-016-0
04
1
1302-
187
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
04
1
1302-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
0-90301-410-0
04
1
1302-
223
SPACER; U BOLT,RR SPR
8-98063-307-0
02
1
1302-
371
WASHER; LK,SHACKLE
ID=12.2
0-91510-612-0
04
1
1302-
372
NUT; SHACKLE
M12
0-91110-512-0
04
1
1302-
390
U-BOLT SET; RR SPRING
L=540
1-87870-429-0
04
1
1302-
