4-60 — REAR SUSPENSION (#114221) — 127 parça

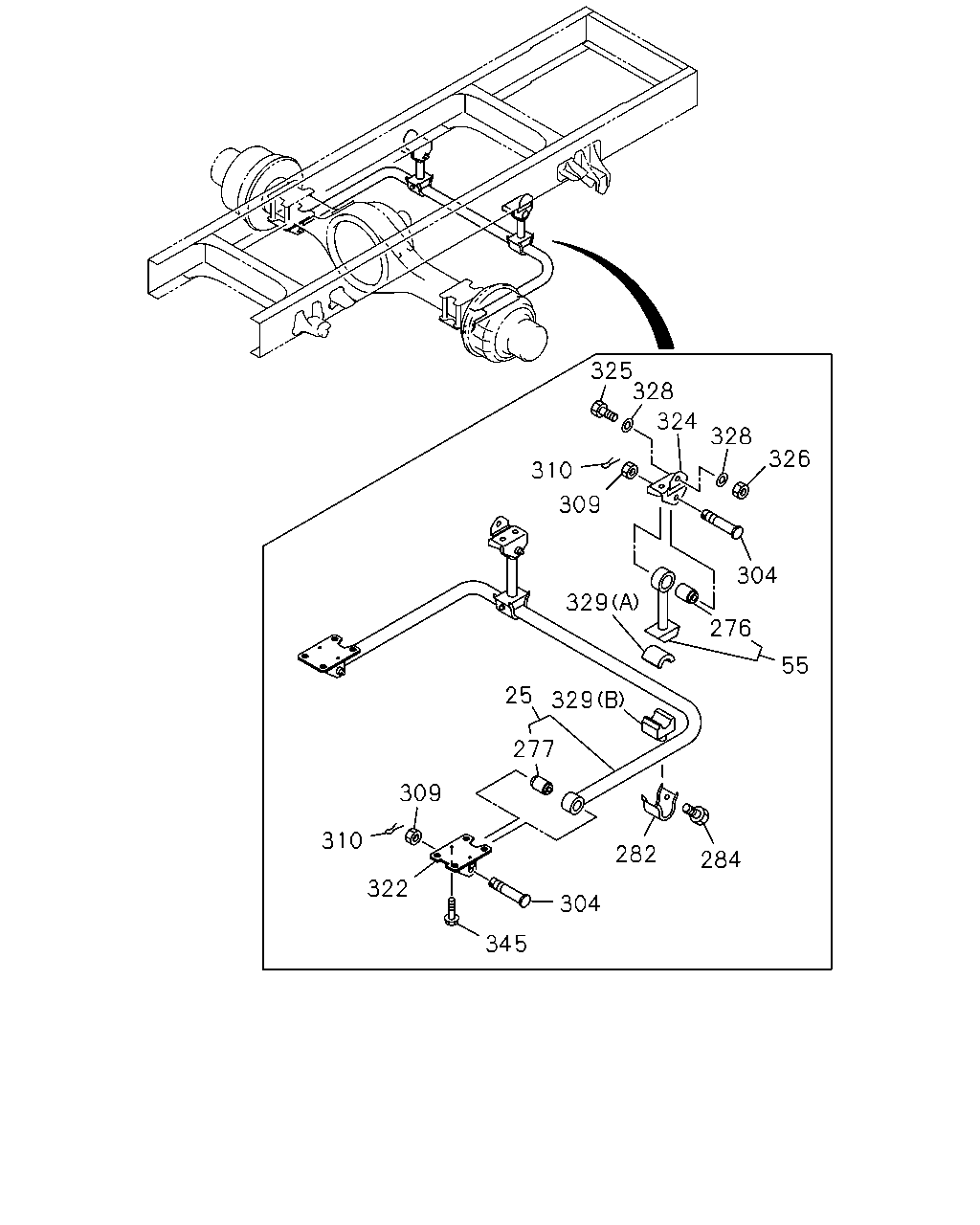

çizim 328544
25 329 282 284 304 345 322 310 309 277 276 304 326 328 324 328 325 310 309 329 55
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-030-2 01 1 1302- ● ●
55 ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-035-1 02 1 1302- ● ●
276 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-019-0 02 1 1302- ● ●
277 BUSHING; STAB,RR UPR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-067-0 02 1 1302- ● ●
282 RETAINER; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-015-2 02 1 1302- ● ●
284 BOLT; RET TO RET
STABILIZER REAR LIGHT DUTY<GN1> M10X25 		8-94463-351-0 08 1 1302- ● ●
304 PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-020-2 04 1 1302- ● ●
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> M24 		9-99116-424-0 04 1 1302- ● ●
310 PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45 		0-81125-045-0 04 1 1302- ● ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-127-0 01 1 1302- ● ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-048-4 01 1 1302- ● ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-059-0 02 1 1302- ● ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X40 		0-20951-440-0 02 1 1302- ● ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X45 		9-92061-445-0 04 1 1302- ● ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		0-91110-514-0 06 1 1302- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14 		0-91110-514-0 06 1 1302- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		0-91110-514-0 04 1 1302- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 12 1 1302- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> ID=15 		8-98010-627-1 12 1 1302- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 10 1 1302- ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (A) 		1-51789-051-1 02 1 1302- ● ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (B) 		1-51789-052-0 02 1 1302- ● ●
345 BOLT; BRKT
STABILIZER REAR LIGHT DUTY<GN1> M10X16 FLANGE 		0-28051-016-0 04 1 1302- ● ●

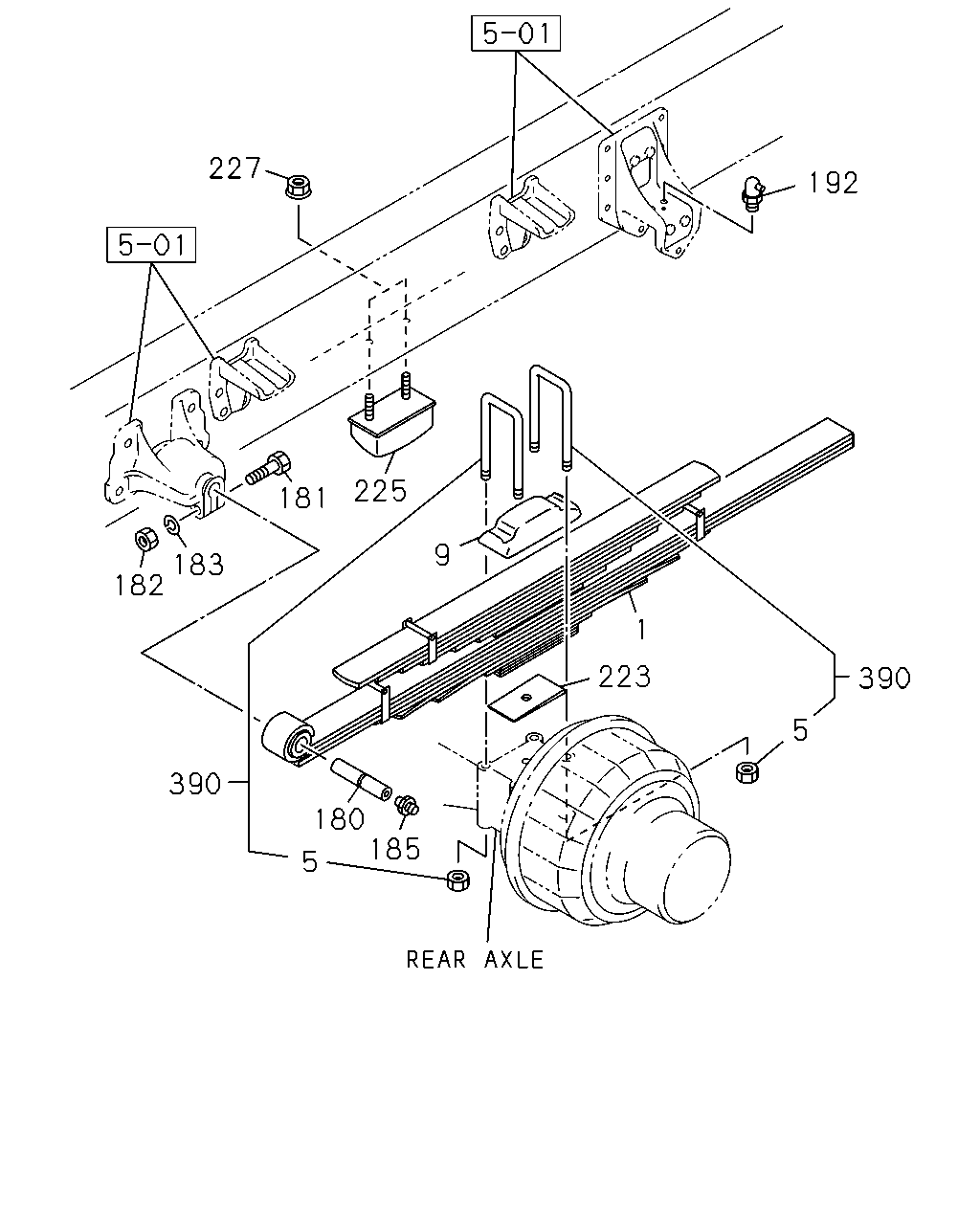

çizim 328834
181 225 9 223 1 5 390 192 227 390 183 182 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98272-220-0 02 1 1404- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98017-566-1 02 1 1302- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98017-565-0 02 1 1302- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51300-532-0 02 1 1302-1403 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		1-51300-532-0 02 1 1404- ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 1302- ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 1302- ● ●
180 PIN; RR SPR 1-51361-020-0 02 1 1302- ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 1302- ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 1302- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 1302- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302- ● ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98220-148-0 02 1 1505-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98220-148-0 02 1 1505-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98220-148-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98220-148-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-385-0 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-385-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-385-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 3700MM(37W) 		8-98091-873-0 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 3700MM(37W) 		8-98091-873-0 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98091-873-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 3700MM(37W) 		8-98091-873-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1302-1304 ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1305-1505 ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 6000MM(60W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98220-149-0 02 1 1302-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98220-149-0 02 1 1302-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98220-149-0 02 1 1302-1505 ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98220-149-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98220-149-0 02 1 1506- ●
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98220-149-0 02 1 1506- ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-045-1 02 1 1302- ●
225 RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-081-1 02 1 1302- ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-1 02 1 1302- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 1302- ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 1302-1403 ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 1404- ●
390 U-BOLT SET; RR SPRING
SOFT RIDE SUSPENSION SYSTEM<FE1> L=490 		1-87870-036-4 04 1 1404- ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-299-1 04 1 1302-1403 ●
390 U-BOLT SET; RR SPRING
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> L=490 		1-87870-299-1 04 1 1404- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
