4-55 — FRONT LEAF SPRING (#114205) — 55 parça

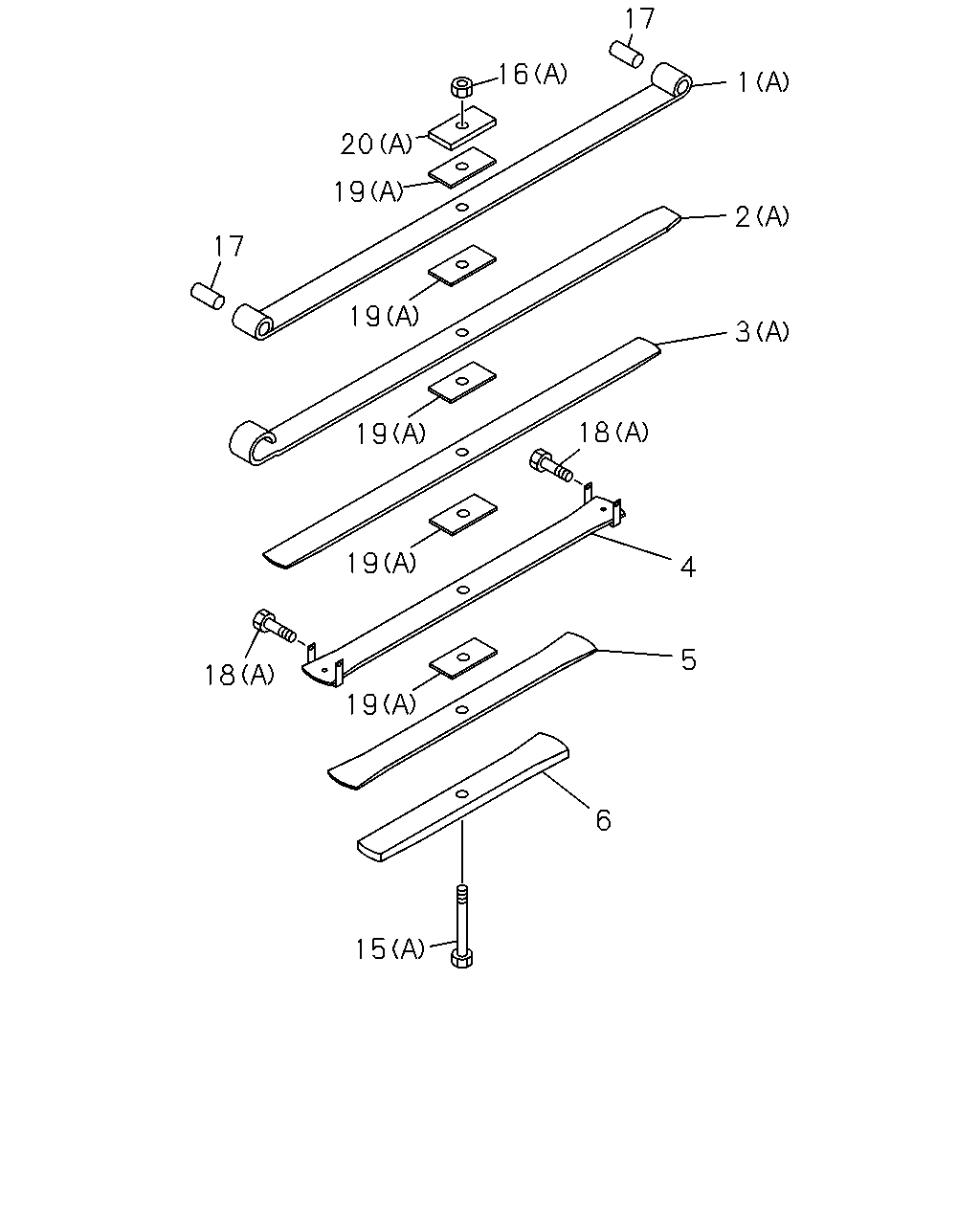

17 1 2 3 18 4 5 6 15 19 18 19 19 19 19 20 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98017-554-0	8-98064-261-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98017-555-0	8-98064-267-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98111-360-0	8-98124-850-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98111-361-0	8-98124-853-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98017-554-0	8-98064-262-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98017-555-0	8-98064-268-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98111-360-0	8-98124-851-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98111-361-0	8-98124-855-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98017-554-0	8-98064-263-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98017-555-0	8-98064-269-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98111-360-0	8-98124-852-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-98111-361-0	8-98124-856-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98017-554-0	8-98064-264-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98017-555-0	8-98064-270-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98017-554-0	8-98064-265-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98017-555-0	8-98064-271-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98017-554-0	8-98064-266-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98017-555-0	8-98064-272-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=100 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0	1-51156-341-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=90 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	1-51156-416-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (B), M12 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	9-99110-512-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (A), M14 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT ID=25 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0, C = 8-98111-360-0, D = 8-98111-361-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M8X87 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0	1-09000-335-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M8X93.5 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	8-94407-134-0	02	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0	1-51177-263-0	05	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	1-51177-287-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=6 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0	1-51177-262-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=6 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	1-51177-285-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=9 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	8-98124-862-0	02	1	-

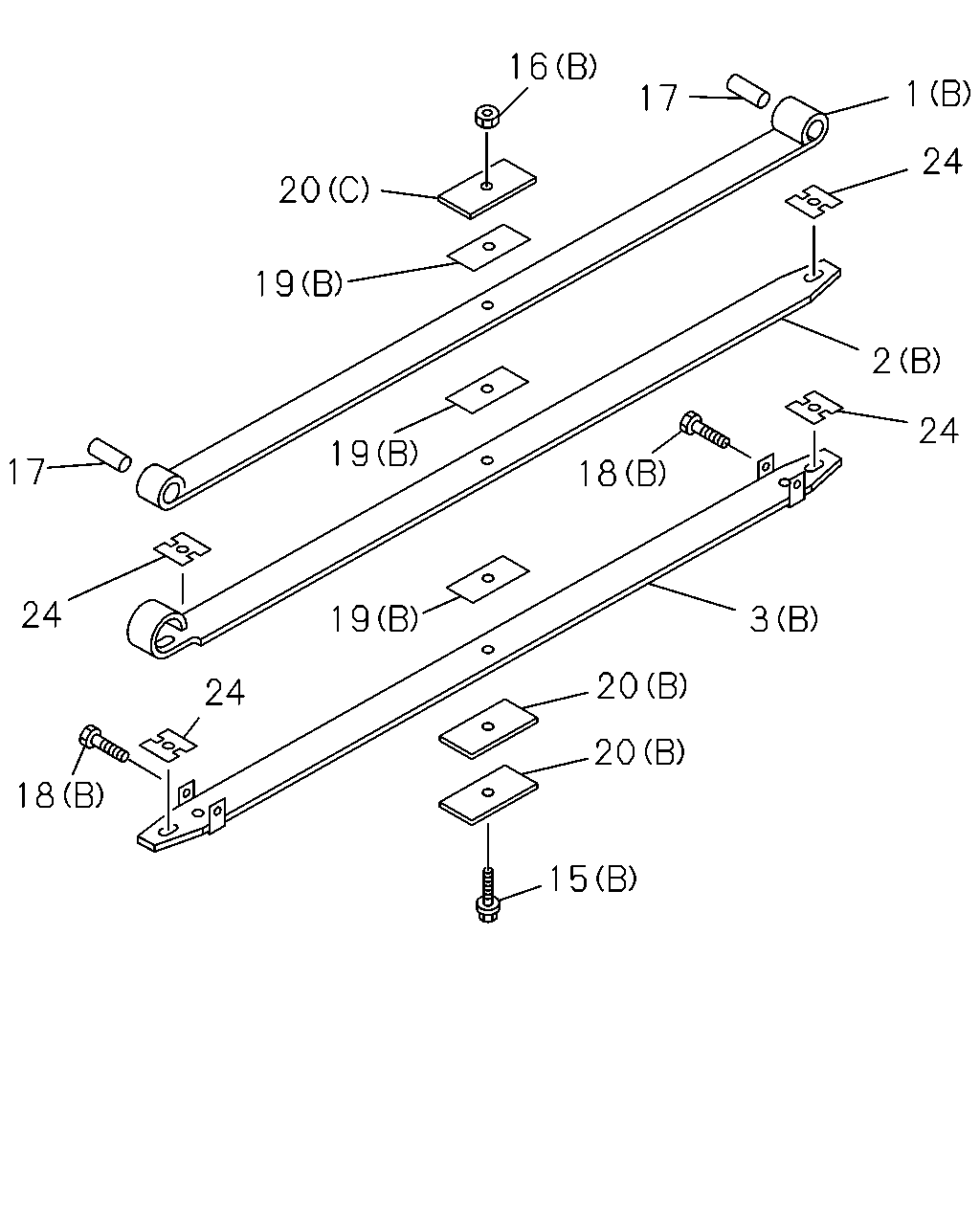

16 17 1 24 2 24 18 3 20 20 15 19 24 18 24 17 19 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98017-554-0	8-98064-261-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98017-555-0	8-98064-267-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98111-360-0	8-98124-850-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98111-361-0	8-98124-853-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98017-554-0	8-98064-262-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98017-555-0	8-98064-268-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98111-360-0	8-98124-851-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98111-361-0	8-98124-855-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98017-554-0	8-98064-263-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98017-555-0	8-98064-269-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98111-360-0	8-98124-852-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-98111-361-0	8-98124-856-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=100 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0	1-51156-341-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=90 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	1-51156-416-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (B), M12 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	9-99110-512-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (A), M14 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT ID=25 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0, C = 8-98111-360-0, D = 8-98111-361-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M8X87 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0	1-09000-335-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M8X93.5 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	8-94407-134-0	02	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0	1-51177-263-0	05	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	1-51177-287-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=6 ASM PART: A = 8-98017-554-0, B = 8-98017-555-0	1-51177-262-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=6 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	1-51177-285-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=9 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	8-98124-862-0	02	1	-
24	LINER; LEAF SPR,FWD FRT ASM PART: C = 8-98111-360-0, D = 8-98111-361-0	1-51159-025-0	04	1	-
