◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#114202) — 52 parça

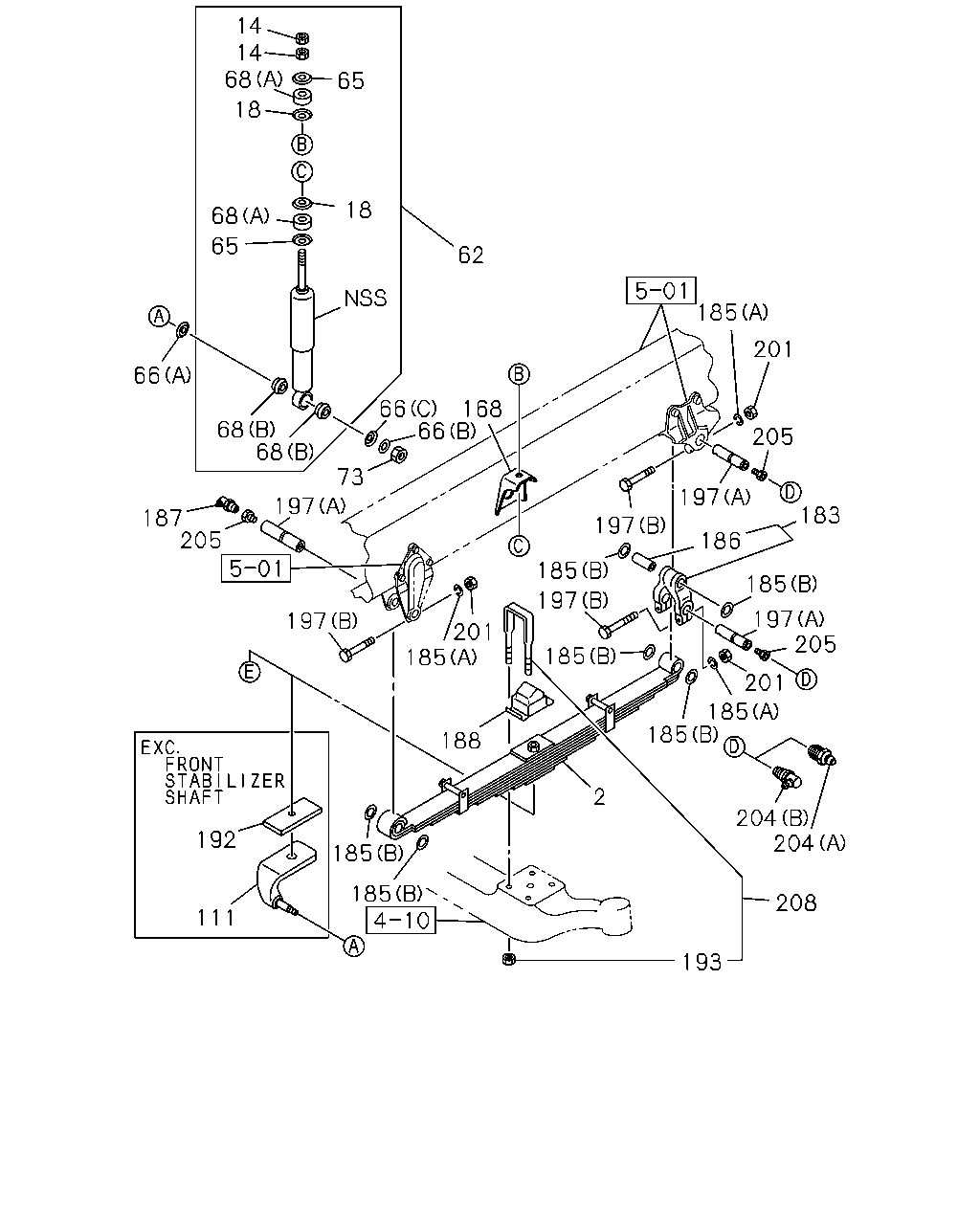

çizim 331961
14 14 65 68 18 68 18 65 66 66 62 68 68 187 205 73 197 197 185 188 66 168 185 201 205 183 197 185 197 185 185 185 201 205 197 186 185 197 2 193 208 204 204 185 185 111 192 201
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> 8-LEAF 		8-98268-436-0 01 1 1402-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) EXC. FRONT STABILIZER SHAFT<F59> 8-LEAF 		8-98228-700-0 02 1 1402-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) 8-LEAF 		8-98228-700-0 02 1 1305-1401
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> 8-LEAF 		8-98228-700-0 01 1 1402-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98010-512-0 02 1 1302-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1302-
14 NUT; S/ABS,UPR
M12 		8-98010-412-0 04 1 1302-
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 1302-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98021-302-0 02 1 1302-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		8-98063-368-0 02 1 1302-
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 1302-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1302-
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 1302-
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 1302-
68 BUSHING; S/ABS
(B) 		1-51631-009-1 04 1 1302-
68 BUSHING; S/ABS
(A) 		9-51631-050-0 04 1 1302-
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 1302-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98123-348-0 01 1 1302-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98123-347-0 01 1 1302-
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 1302-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1302-
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1302-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1302-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1302-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1302-
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59>,KD PREPARATORY PACK<6HF> 80X144 ID=17.5 		1-51177-284-1 AR 1 1302-1401
192 PIECE; DIST
6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59>,KD PREPARATORY PACK<6HF> 80X144 ID=17.5 		1-51177-284-1 AR 1 1402-
192 PIECE; DIST
KD PREPARATORY PACK<6HF> EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 1302-1401
192 PIECE; DIST
KD PREPARATORY PACK<6HF> EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 1402-
192 PIECE; DIST
4HK1-TCS ENG(RJS) EXC. FRONT STABILIZER SHAFT<F59>,KD PREPARATORY PACK<6HF> 80X144 ID=17.5 		1-51177-284-1 01 1 1402-
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1302-
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1302-
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 1302-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1302-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1302-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1302-

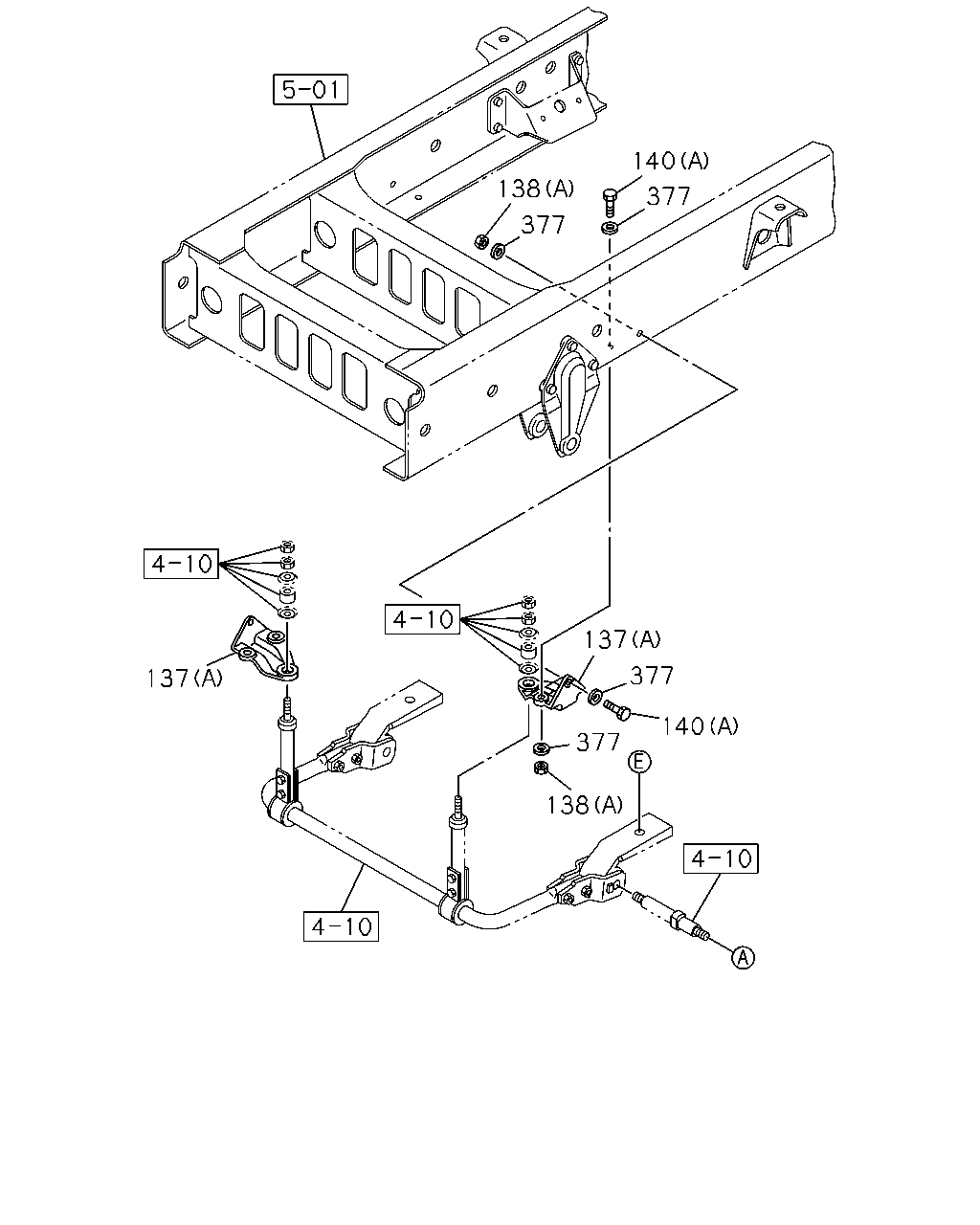

çizim 331980
138 377 377 140 137 137 377 377 140 138
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) 		1-51781-046-3 02 1 1305-
137 BRACKET; STAB BAR TO FRAME
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) 		8-98128-356-1 02 1 1302-
138 NUT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10 FLANGE 		0-91180-210-0 08 1 1305-
138 NUT; BRKT
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14 		0-91110-514-0 06 1 1302-
140 BOLT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10X30 FLANGE 		0-28651-030-0 08 1 1305-
140 BOLT; BRKT
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14X45 		9-92061-445-0 06 1 1302-
377 WASHER; LK,BRKT
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 1302-

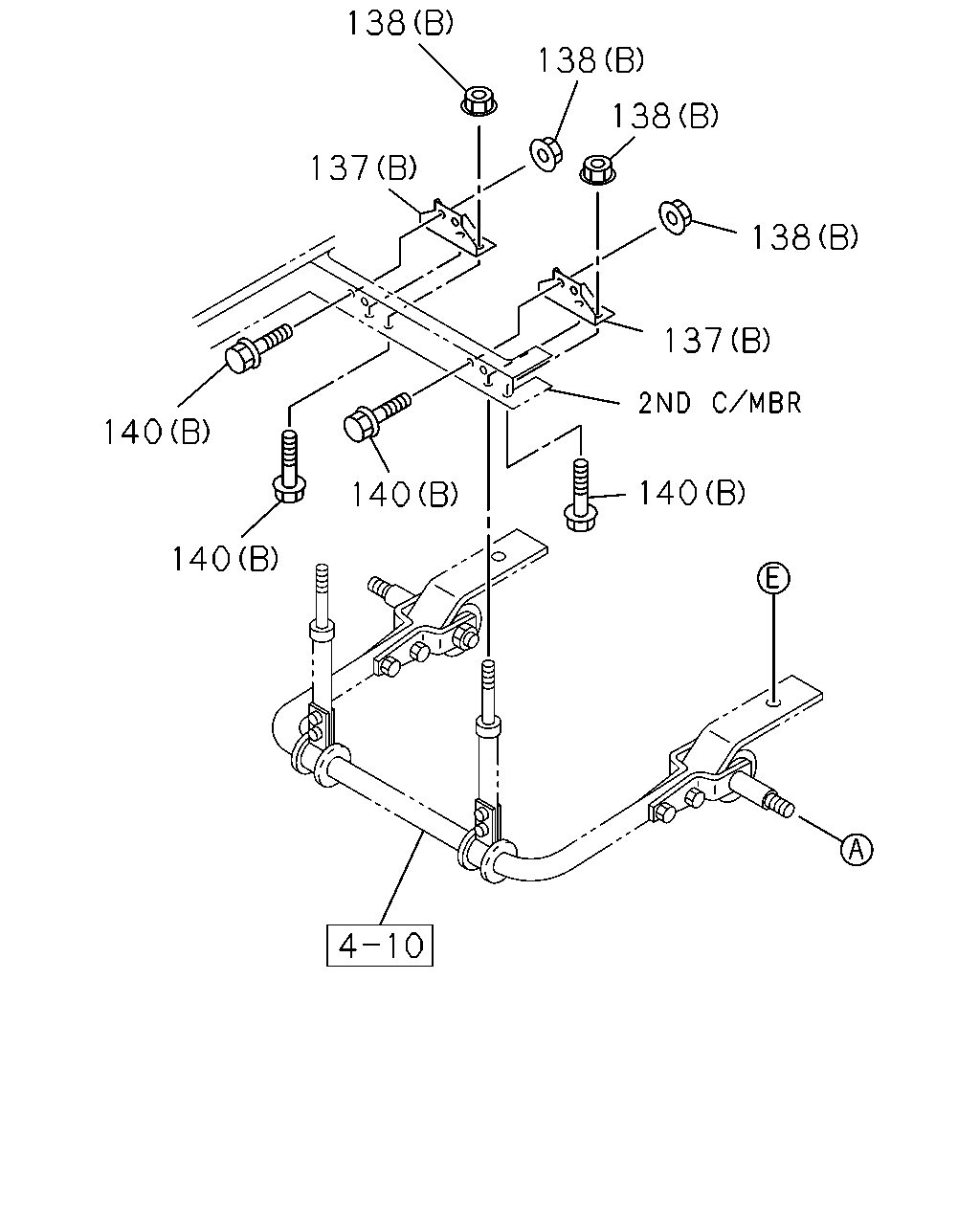

çizim 351104
138 138 137 138 138 137 140 140 140 140
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) 		1-51781-046-3 02 1 1305-
137 BRACKET; STAB BAR TO FRAME
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) 		8-98128-356-1 02 1 1302-
138 NUT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10 FLANGE 		0-91180-210-0 08 1 1305-
138 NUT; BRKT
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14 		0-91110-514-0 06 1 1302-
140 BOLT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10X30 FLANGE 		0-28651-030-0 08 1 1305-
140 BOLT; BRKT
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14X45 		9-92061-445-0 06 1 1302-
